Характеристики
Product Description

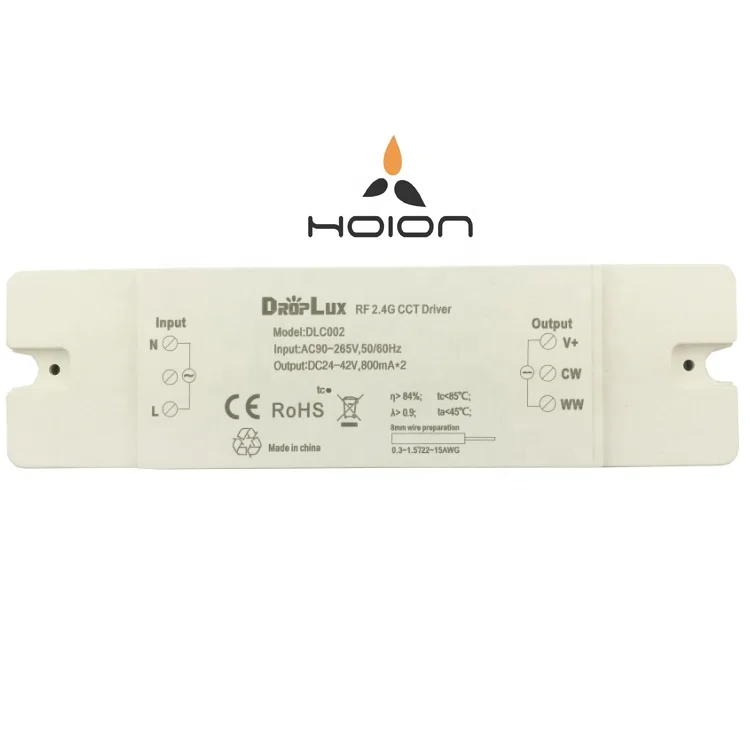

New Product 2.4G Wifi COB LED Dimming Driver
DLC002-20-050
Driver Feature
1) Isolated power supply
2) Adopt PWM technology
3) High efficiency/High PF/ 0 flicker
4) Protected from miswire, over loading, over voltage, short circuit.
5) High quality smooth dimming(1024 grades)
6 )With Power off memory function
7) 2.4GHz wireless control,Air Self-inspection Sync control
8) Compatible with Freelighting Control system,realized phone, PAD, WIFI smart control
9)Applicable lamps:LED like LED panel, LED ceiling lamps, LED down light and others constant current lights
10) Applicable place:Home, Shop, Hotel, Office and so on household/commercial indoor lighting
11) Warranty 3 years
Driver Technical Parameters
Electrical Performance Test are all in 25℃+-10% temperature environment,230VAC/50HZ input | ||
Factor | Index | 32W |
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Rate Current | 0.2A(full load) | |
Surge Current | <50A | |
Standby Power | ≤0.9W | |
Overall Efficiency | 85%(full load) | |
Power Factor(PF) | 0.93(full load) | |
THD | 17% | |
Port | Two Wire input(L/N) | |
Output | unloaded Voltage | 53V |
Voltage Range | 18V-42VDC | |
String Number | 6-12 string | |
Rate Current | 500mA-800mA | |
MAX Power | 32W | |
Current accuracy | +-5% | |
PWM Signal Output Frequency | 3KHz | |
Dimming Grade | 1024 | |
Dimming Range | 3-100% | |
Video effect | Free-flicker | |
Reliability | Power Supply | Isolated Power Supply |
Working Temperature Ta | -20-45℃ | |
Case Max Working Temperature Tc | 85℃ (working temperature 45℃,Max power) | |
Storage Temperature | -40~85℃ (relative hnmidity 20%-90% non-condensing) | |
Life | 45000 hours (25℃+-10% temperature environment,230VAC input,100% LOAD) | |
Warranty | 3 years | |
Safety and EMC | Certification CE-LVD | EN61347-1,EN61347-2-13 |
Electromagnetic Compatibility CE-EMC | EMI(EN55022,EN61000-3-3) EMS(EN55024,EN61000-4-2,3,4,5,6,11) | |
Withstand voltage | I/P-O-P:3.75KVDC | |
Insulation Resistance | ≥100MΩ(in 25℃+-10℃ temperature environment,lower than 70% relative hnmidity,Input to output,input to ground,output to ground,apply 500VDC voltage respectively,Time is 60s) | |
Protection | IP | IP40 |
Over Voltage Protection | Yes(lower than 53V) | |
Short Circuit Protection | Yes (When short circuit enter intermittent mode, restore output automatically after short circuit remove) | |
Other | Wireless Control | 2.4GHz |
Remote Control Distance | 30m | |
Memory Function | Yes | |
Product G.W. | 162g | |
Product Size | L163*W46*H25mm | |
Packing Size | L167*W50*H26mm | |
Regular Model Technical Parameters

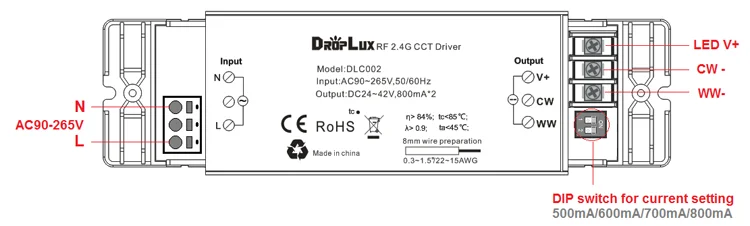

Port Instruction
Port Instruction

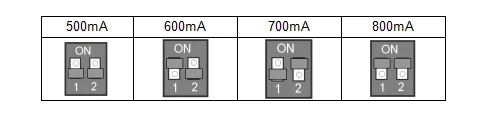

500mA, 600mA, 700mA, 800mA DIP swtich optionalble.
Matching Remotes and Wifi
Typical Applications(Support wireless-sync-control, 1remote to 1 driver; 1 remote to multiple drivers)

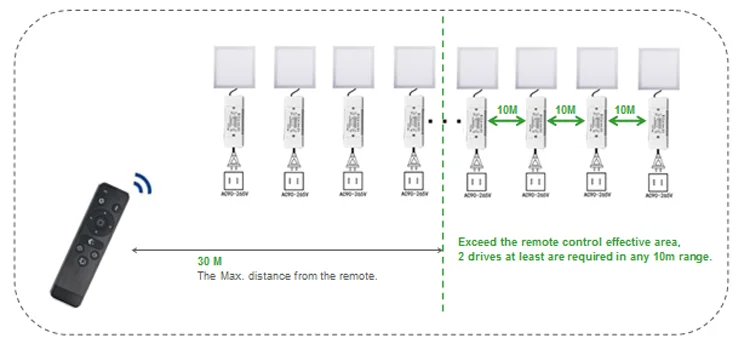

1. 1 remote to muilti drivers,
2.4GHz wireless control,Air Self-inspection Sync control

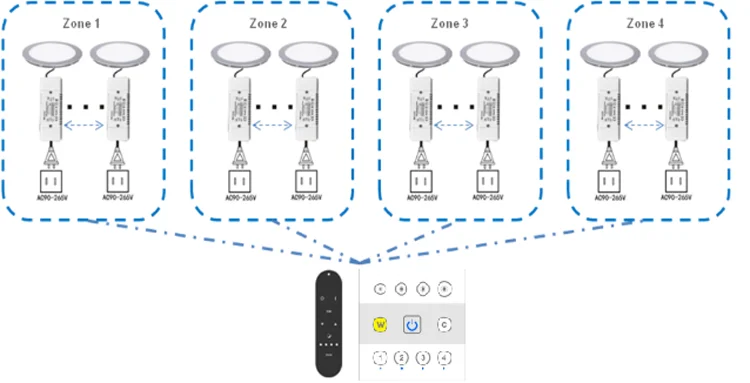

2. 4 Zones remote, each zone muliti driver,
wireless sync control

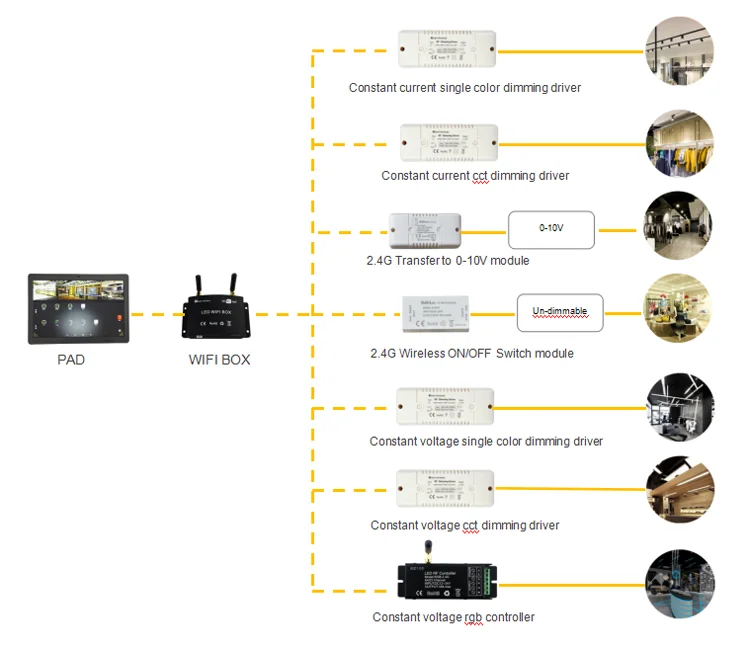

3. Compliance with 2.4G smart systerm
