CE approval 700ma led driver 10w light constant 300mA 350mA 400mA 450mA 500mA 900mA

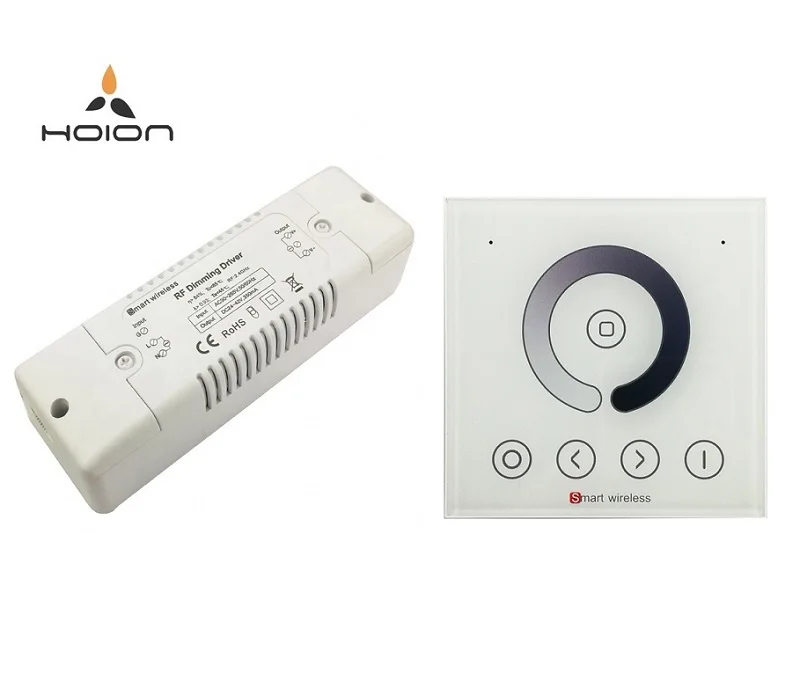

Product Picture

2. Product Feature

1) Isolated power supply

2) Adopt PWM technology

4) High efficiency/High PF/ flicker-free

5) Protected from miswire, over loading, over voltage, short circuit.

6) High quality smooth dimming(4096 grades)

7) 2.4GHz wireless control,Air Self-inspection Sync control

8) Compatible with Freelighting Control system,realized phone WIFI smart control

9)Applicable lamps:LED like LED panel, LED ceiling lamps, LED down light and others constant current lights

10) Applicable place:Home, Shop, Hotel, Office and so on household/commercial indoor lighting

11) Certification:CE/R&TTE/LVD/Rohs

12) Warranty 3 years

 Driver Technical Parameters

4. Case Temperature TCand Driver Life Curve

5. Regular Model Driver Technical Parameters

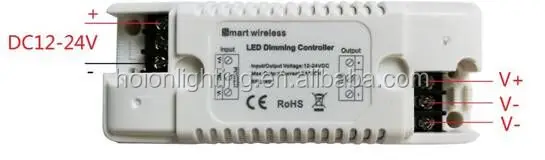

6. Port Instruction

Wire specifications recommend:

Input wire:three-core PVC plastic wire H05VV-F ,diameter =0.72mm,VDE certificate,core 3*1.0mm2. 300/500V,Stripping 11mm and tin dipping 3mm for the end of wire which is directly connect with the driver.

Output wire:three-core PVC plastic wire,diameter =0.5mm. Stripping 11mm and tin dipping 3mm for the end of wire which is directly connect with the driver.

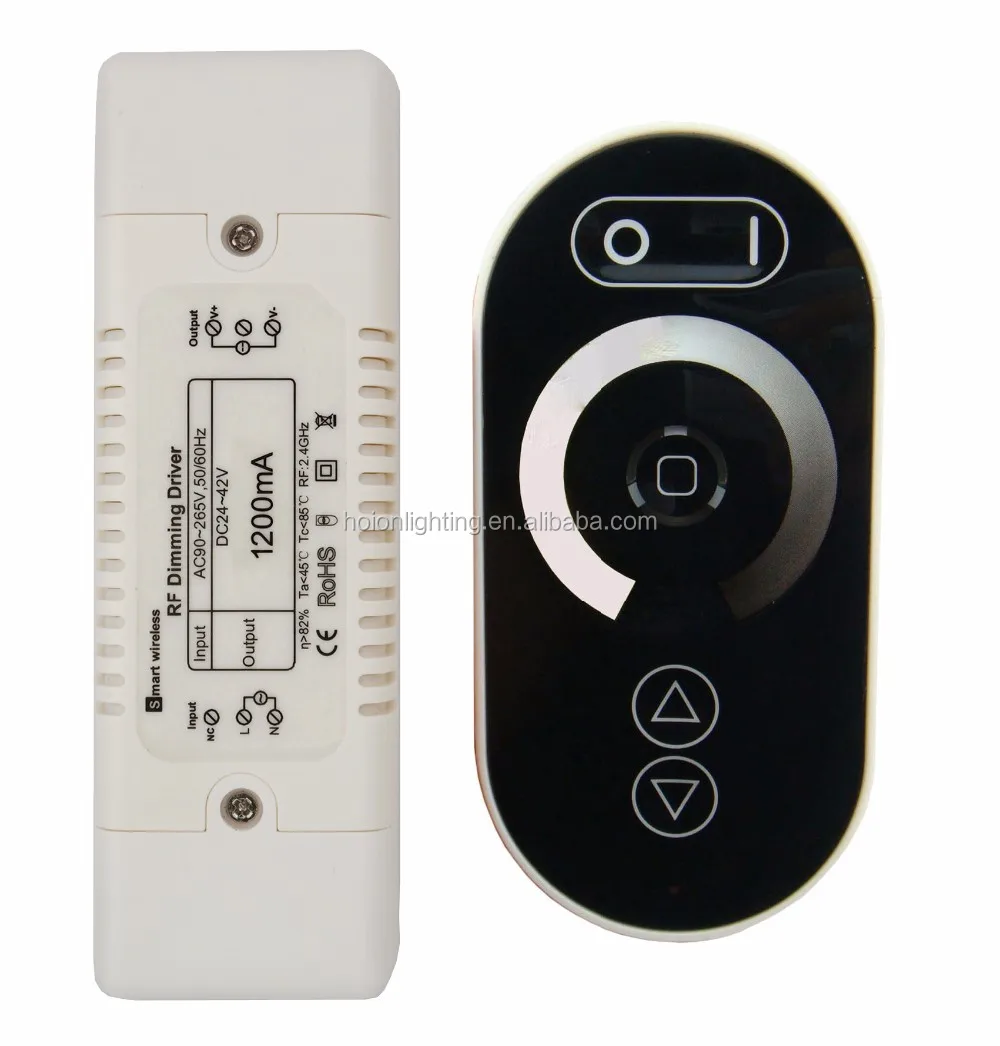

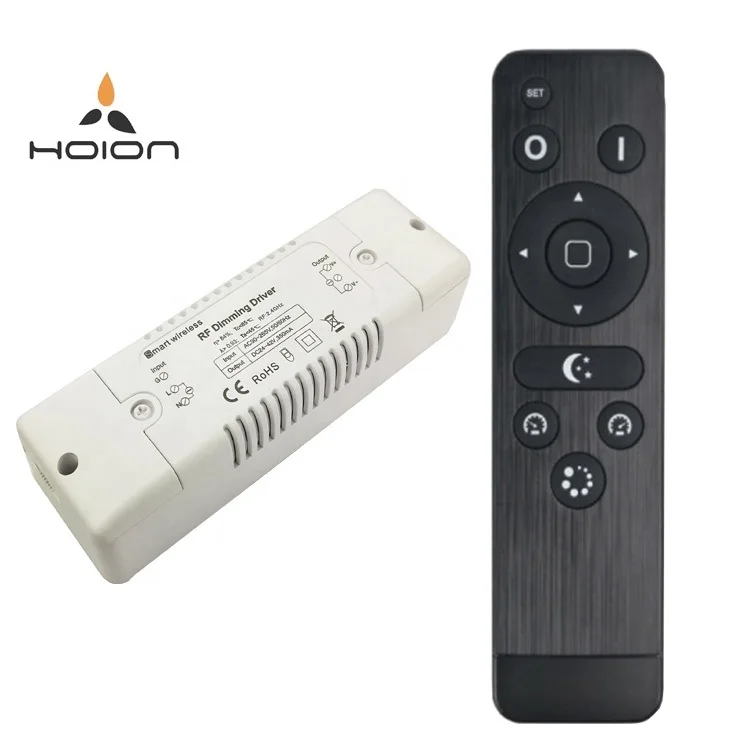

7.Product Compatibility(Applicable for remote)

8. Typical Application

1) Compatible with a variety of models of remote control at the same time, could be matched according to project situation

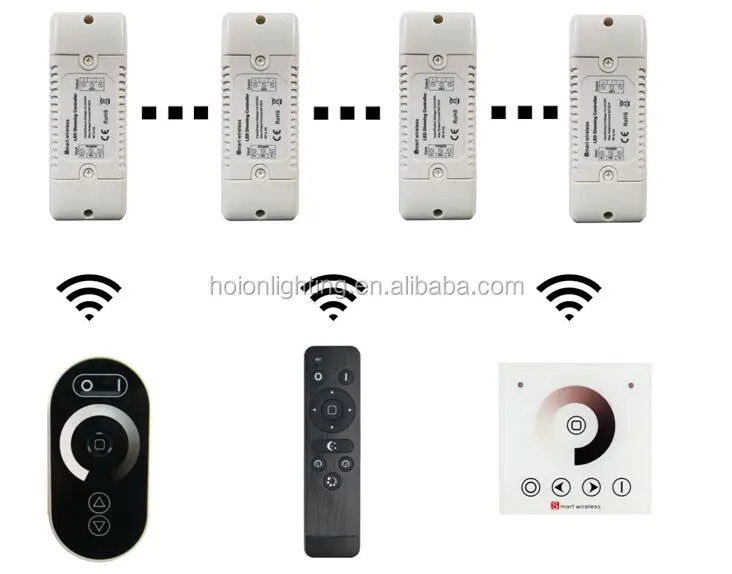

2)Air Self-inspection Sync control not only make the product more advantaged than similar product in wireless sync function, but also make 1 remote controller out of limitation of remote control distance, theoretically achieve controlling numerous drivers wireless connection sync control function.

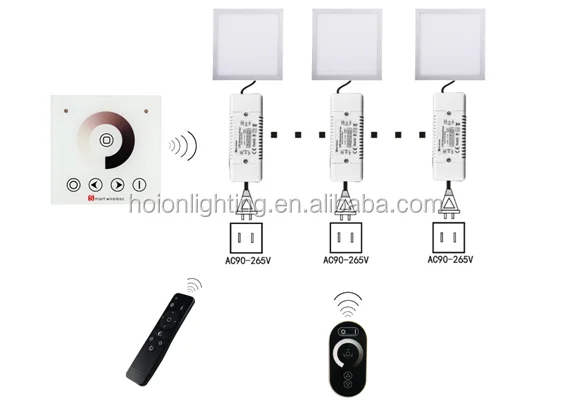

(3) 4 zones remote typical application, multi drivers could be controlled in each zone. 4 zone could be respectively and allover controlled

Connection

(4)This wireless driver also could be match with our Wifi Box to achieve phone smart control, Max achieve 10 zones to control separately.

9. Tips:

1)If the lamp turned off by remote control, it also can restart the lamp directly by the AC power switch(No-flicker driver need to restart after turn off the power switch and discharge for 5s.

2)If the lamp is light up without any operation in 167 hours, the driver will turn off the lamp automatically. It will recount the time if there is any operation from power switch or remote control.

3)Each driver can save 4 different RF codes ( it means each driver can be controlled by 4 different-code remote in the Max).If there is confusion,, more remote control all can control, you need to clear the code and then use the specified remote control re-code with the driver.

4)Memory function, each time power-on reserve the mode which stop in the last power-down.
