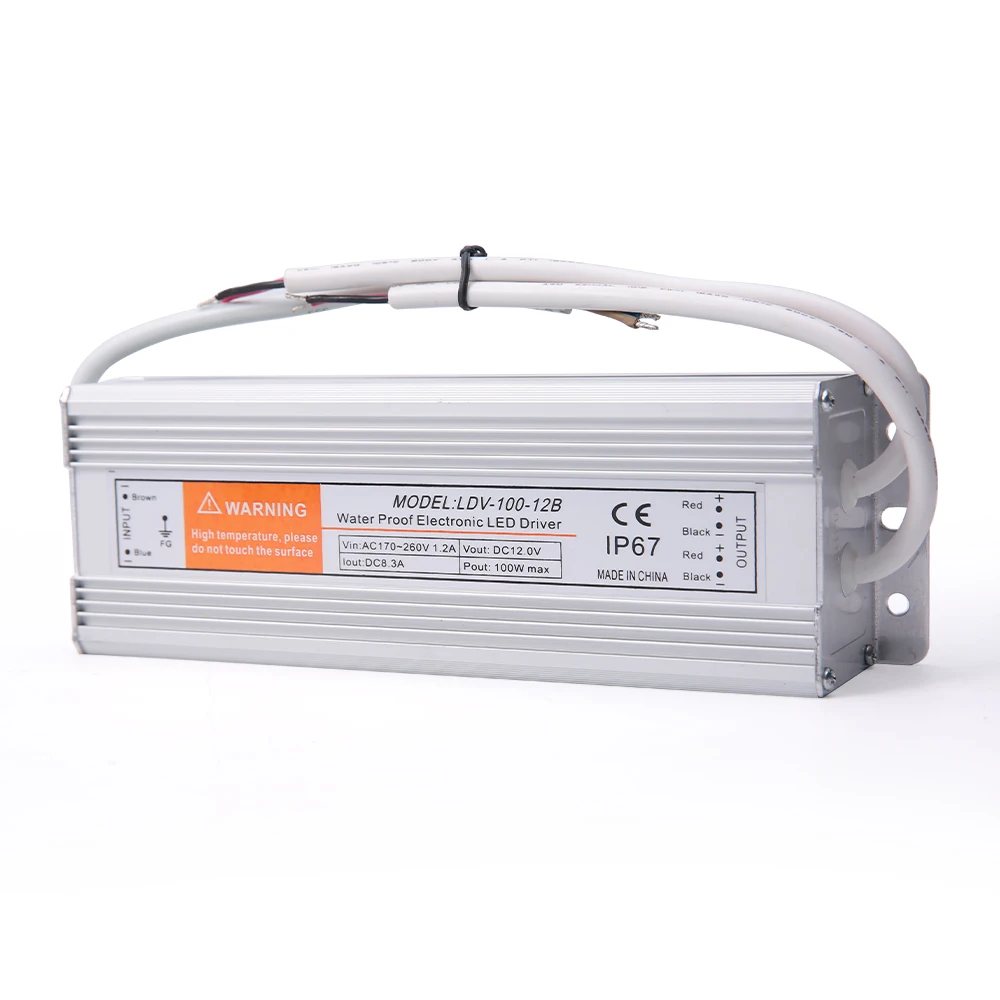

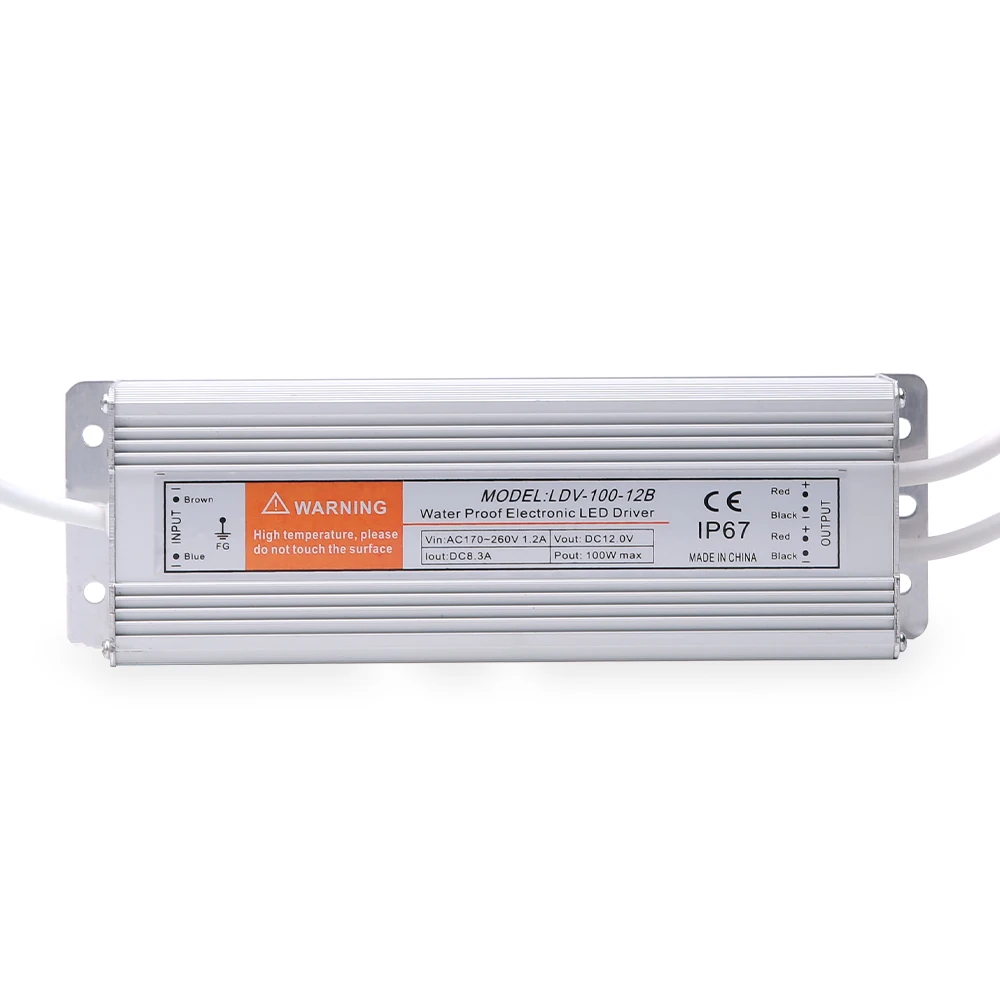

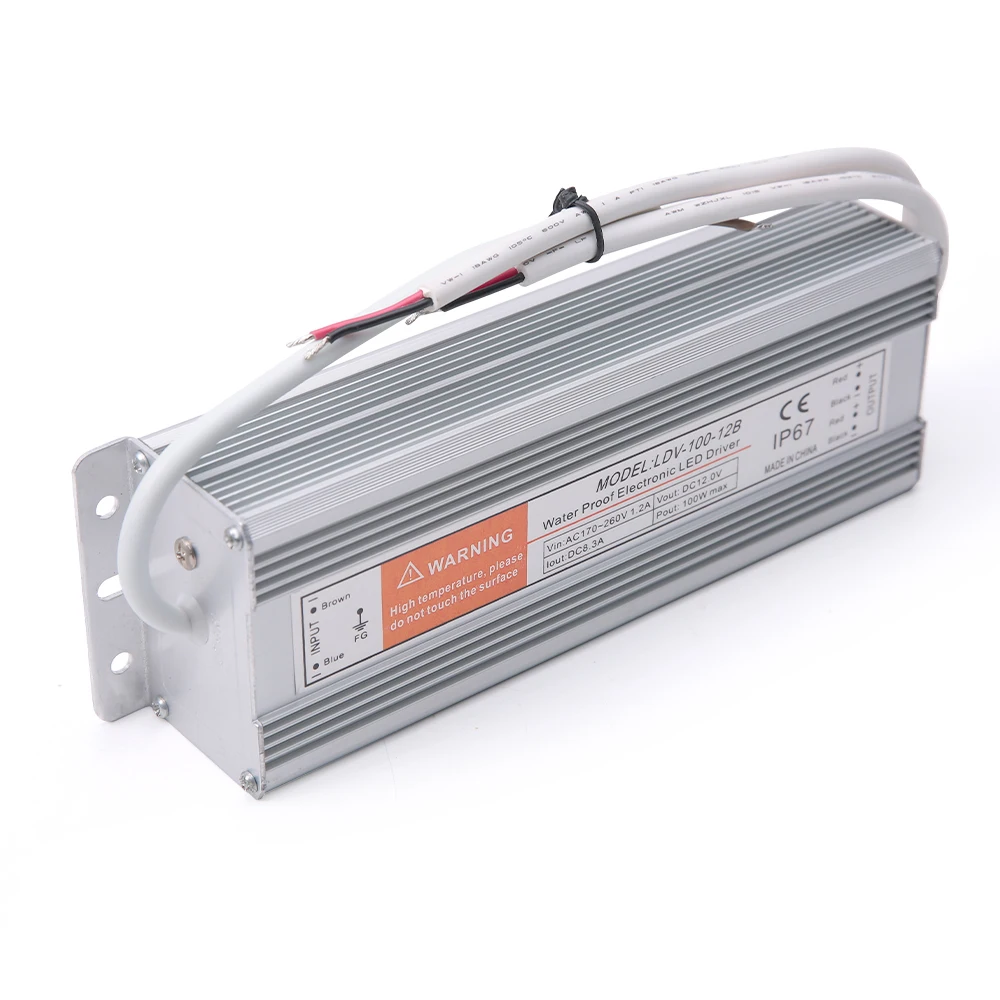

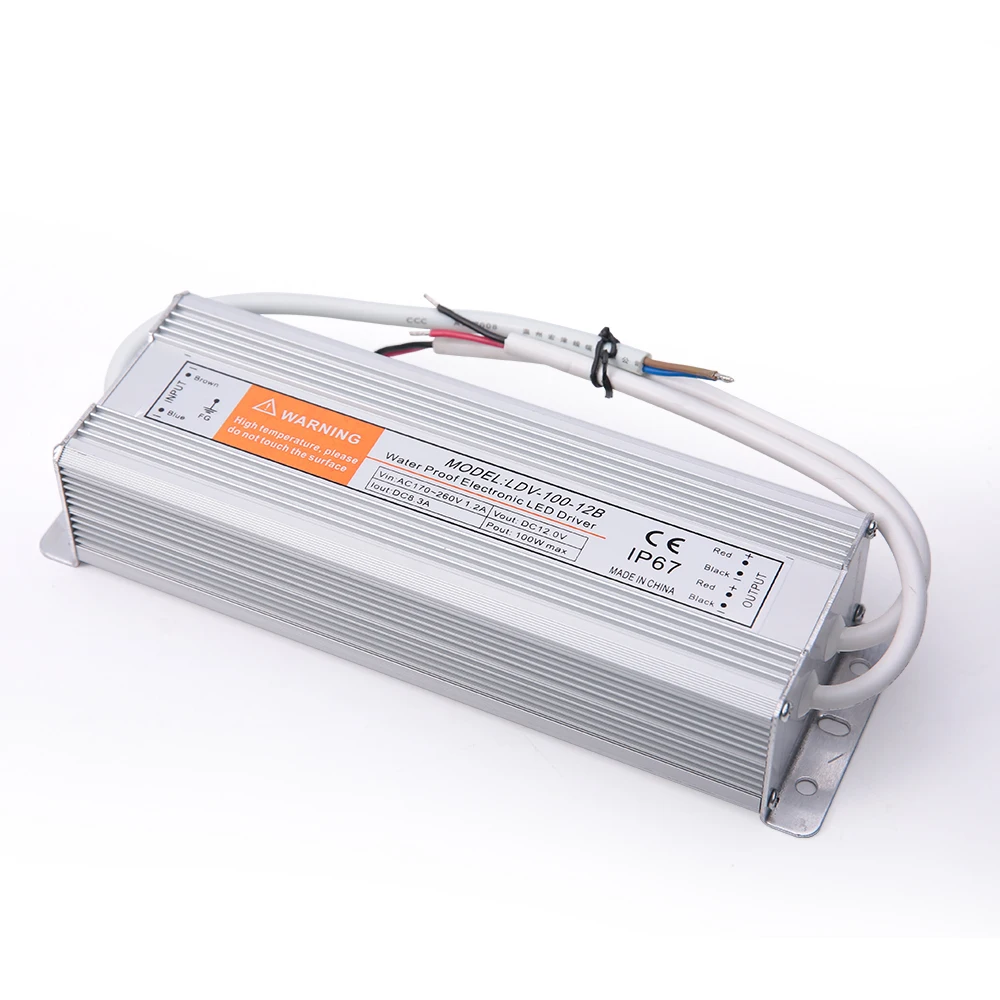

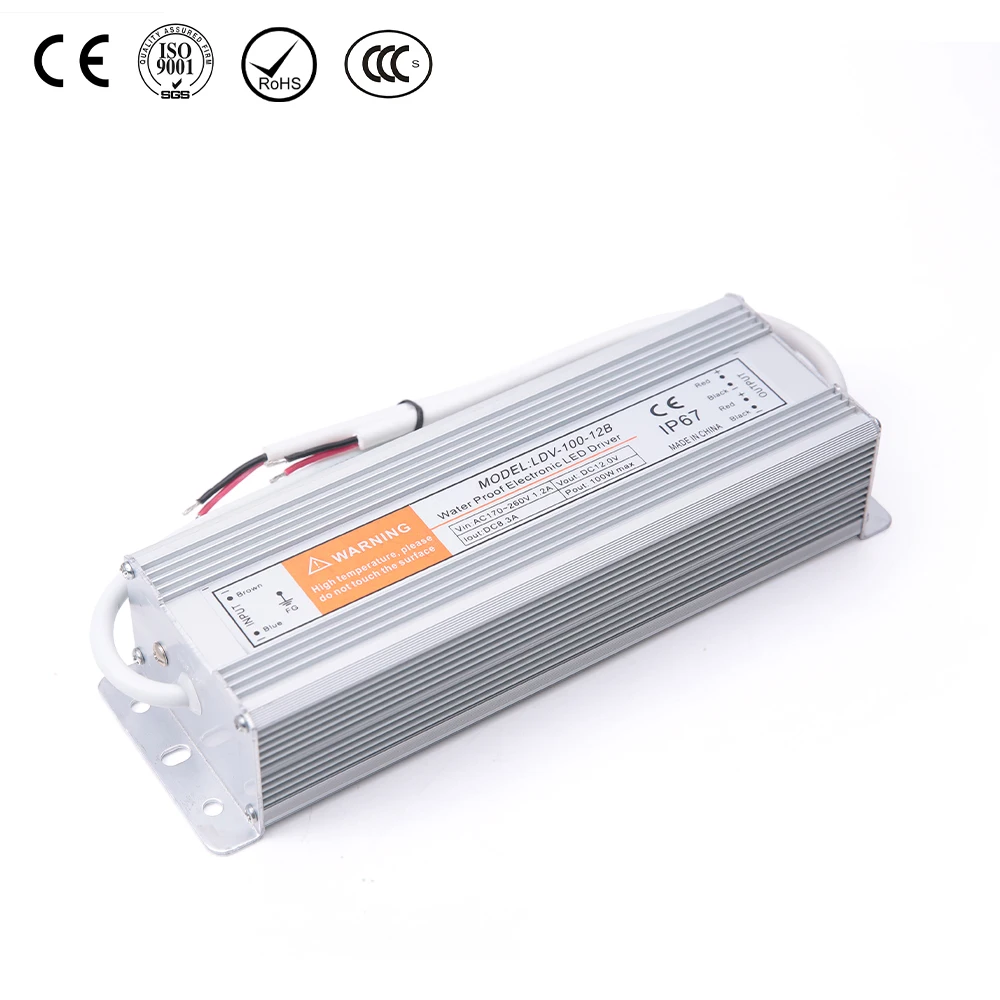

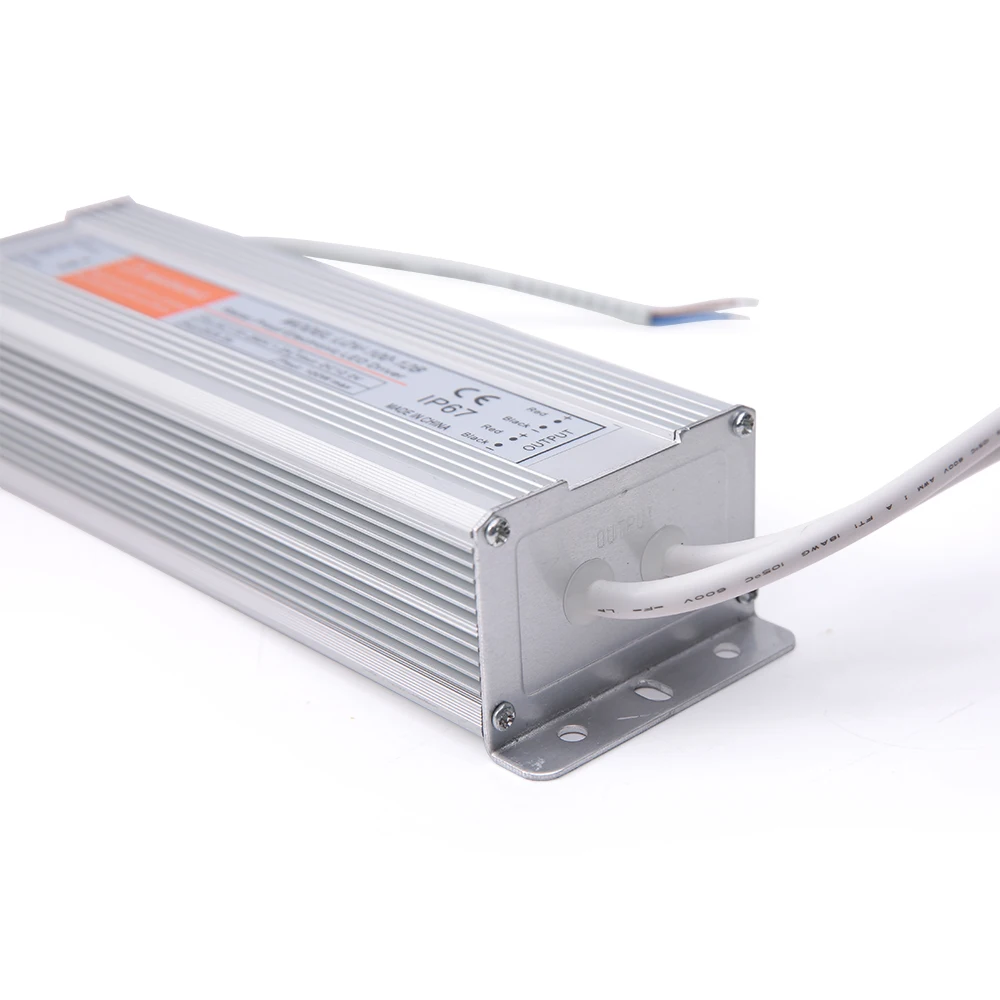

LDV-100-24 выход 220vac вход CE по ограничению на использование опасных материалов в производстве 100w светодиодные полосы питания 24v светодиодный

SPECIFICATION

OUTPUT

Model

LDV-100-12

LDV-100-36

DC Voltage

12V

36V

Rated Current

8.3A

2.7A

Current Range

0-8.3A

0-2.7A

Rated Power

100W

100W

Ripple & Noise

120mVp-p

120mVp-p

Voltage Adj. Range

±10%

±10%

Voltage Tolerance

±1%

±1%

Inlet Stability

±0.5%

±0.5%

Load Stability

±0.5%

±0.5%

Setup, Rise, Hold Up Time

800s,50ms,10ms/115VAC  300ms,50ms,80ms/230VAC

INPUT

Voltage Range

176~264VAC

AC Current

2A/115V   1A/230V

Efficiency

76%

79%

Inrush Current

Cold-start current 30A/115V  60A/230V

PROTECTION

Over Load

105%~150%

Plusing hiccup shutdown Reset: auto recovery

ENVIRONMENT

Working Temp., Humidity

-10°C~+60°C(Refer to output derating curve),20%~90%RH

Storage Temp., Humidity

-20°C~+85°C, 10%~95%RH

Temp. Coefficient

±0.03%/°C(0-50°C)

Vibration

10-500Hz,2G 10min,/1cycle,Period for 60min,Each axes

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

UL1012TUV EN60950(IEC950,UL1950),IP67

EMC Standard

CLSPR22(EN55022),IEC801-2,3,4,IEC555-2 Verification

OTHERS

Dimension

222*67*44mm(L*W*H)

Weight

1.3Kg
