24W 1000mA led driver Wireless SYNC constant current LED Dimming driver 2.4GHz dimming driver single color CE Certification

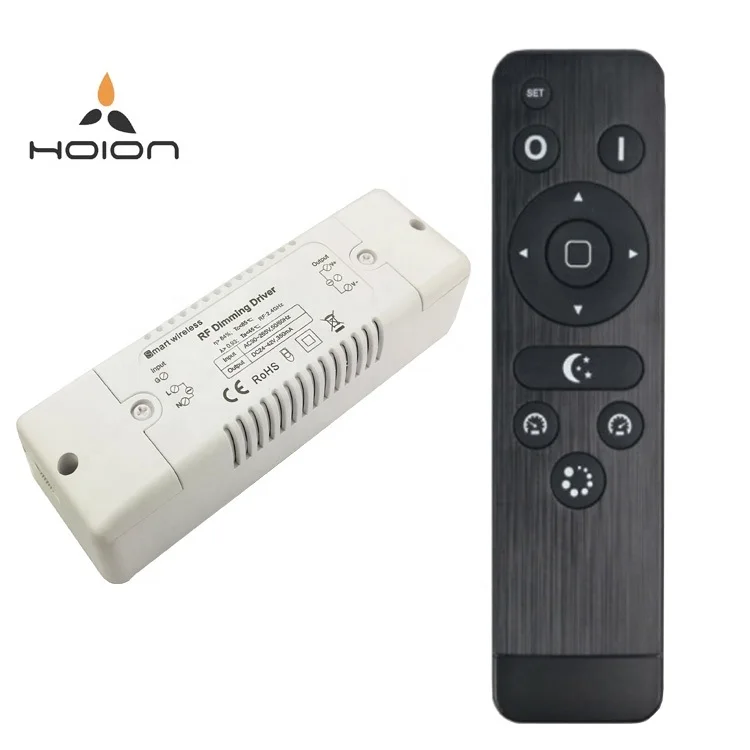

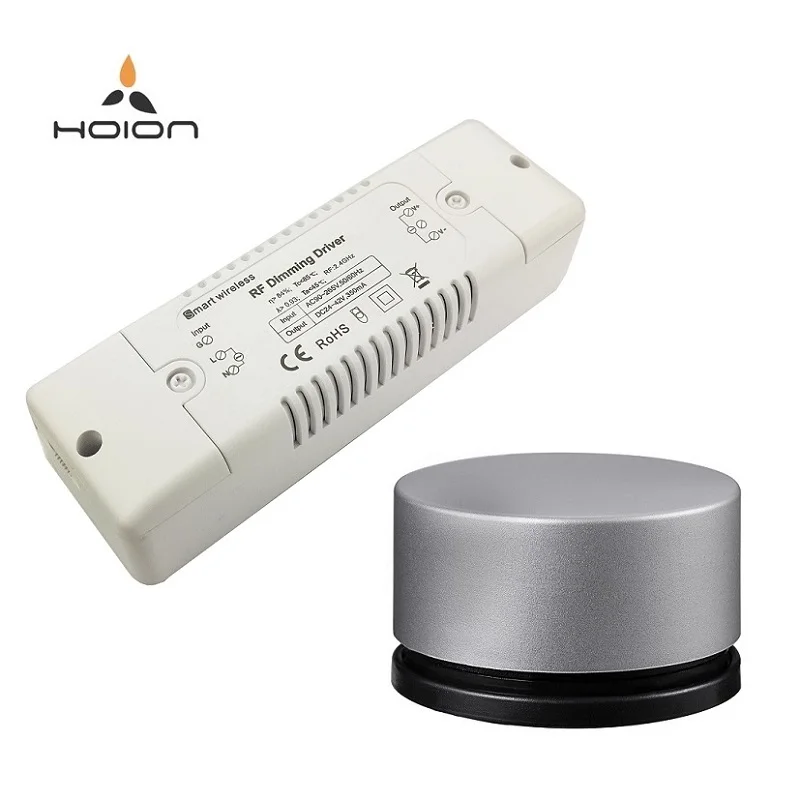

2.4GHz wireless-controlled Single color dimming driver with remote







HDT-24-100-R is a high efficiency constant current output drive power which integrated dimming function, using PWM technology to achieve high quality dimming experience: smooth, flicker-free, dimming from 0% to 100%. It focus on dimming LED interior lighting, power up to 24W, Adopt wireless RF remote control technology, its compatibility with a wide variety of LED arrays and numerous control options will enable it to be widely used in LED intelligent lighting.











HDT series constant current led driver, adopting advanced PWM technology, dimming from 1-100%,smooth and flicker-free. Designed for Single color LED Light Fixtures: like LED panel, LED ceiling lamps, LED downlight and others household/commercial indoor lighting.

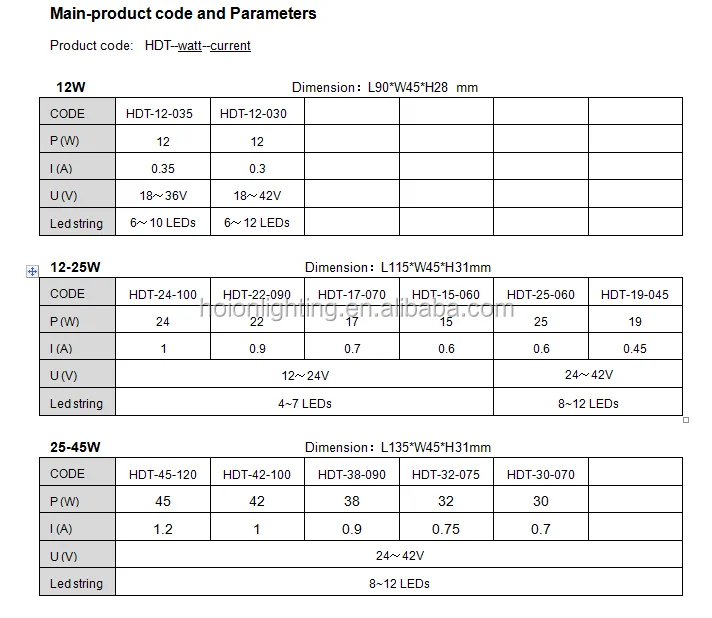

Technical Parameters



Driver







Remote control

Working temperature	-20℃~60℃	Supply voltage	DC4.5V(AAA*3pcs)
Standby current	<14uA	Working current	<17mA
Standby power	54uW	Working power	76.5mW
Net weight	90g	RF frequency	2.4GHz
External dimension	L113*W55*H22 mm	RF distance	≤20m

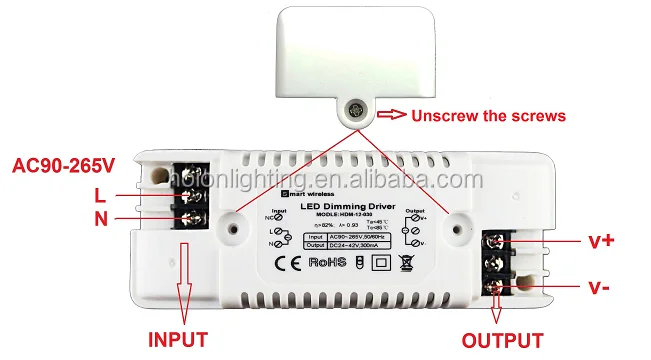

Interface Specification



Direction of use

Connecting the load wire at first, followed by the power wire;

Please ensure short circuit can not occur between wires before you turn on the power;



Adopts 2.4GHz wireless RF touch remote control, the function of each button as below:



The function of each button as below:



Matching code operation

If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction before using:

1.     Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.

2.     Step 2: Continuously to press the key “ON “ for 3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.

3.     Code learning successfully, the LEDs will be back to the status before the power off, and the receiver only can be control by the remote.

4.       If not, please re-operate from step 1 to 2.

Clear code operation

Back to factory default, wall-panel can be controlled by any one the same remote control.

1.      Step 1: Pressing key “Mode” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.

2.      Step 2: Continuously to press “Speed/Brightness -“ 3 times within 5 seconds after step 1 ,the brightness of LEDs will change from 25% -10% as responding.

3.      Code clearing successfully, the LEDs will be back to the status before the power off, and the receiver can be controlled by any remote control(any one the same remote control can be used to clear the code).



4.      If not, please re-operate from step 1 to 2.

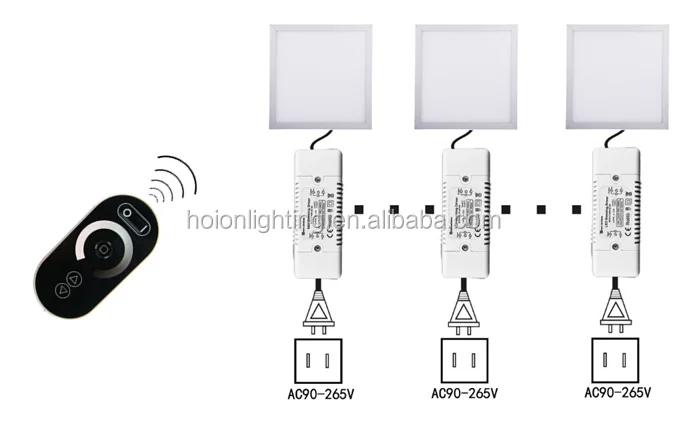

Typical Applications

Product information for placing order



Product name	Item number
Wireless-Control PWM Dimming Driver	HDT-24-100-R
