AC90-265V DC36-48V 260mA 2 4 г затемнения светодиодный
- Категория: LED Driver >>>
- Поставщик: Shenzhen,Hoion,Lighting,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 14.0 $* | 15.33 $* |
| Aug-15-2025 | 14.6 $* | 15.73 $* |
| Jul-15-2025 | 12.28 $* | 13.97 $* |
| Jun-15-2025 | 14.29 $* | 15.96 $* |
| May-15-2025 | 12.3 $* | 13.68 $* |
| Apr-15-2025 | 14.78 $* | 15.73 $* |
| Mar-15-2025 | 14.27 $* | 15.11 $* |
| Feb-15-2025 | 13.34 $* | 14.67 $* |
| Jan-15-2025 | 13.42 $* | 14.36 $* |
Характеристики
Product Description

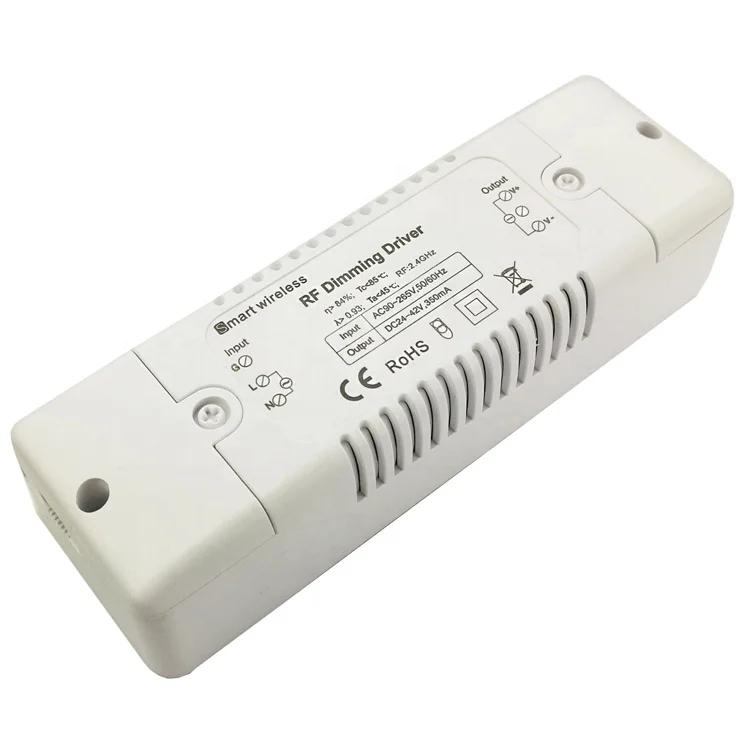

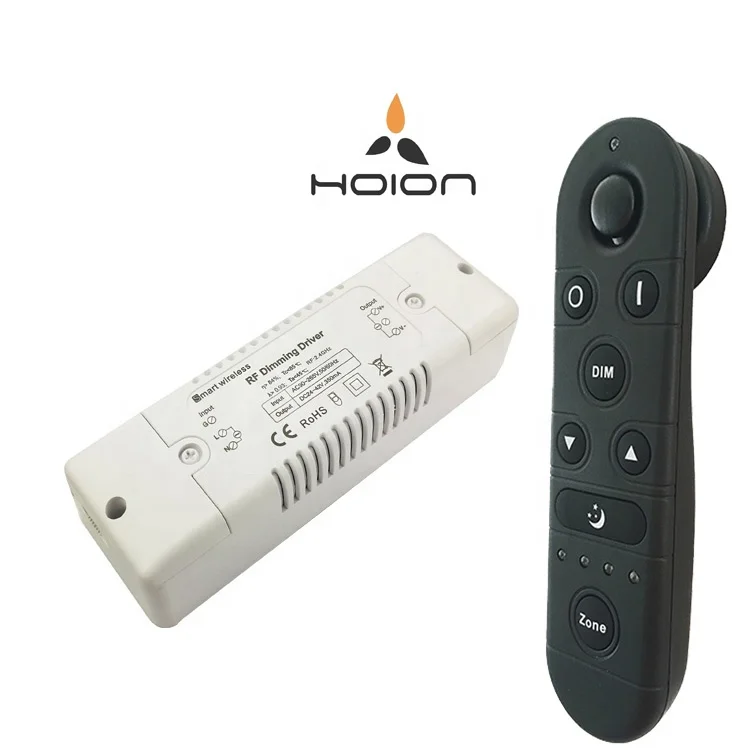

AC90-265V DC36-48V 260mA 2.4G Dimmable LED Driver
HDBK-10-026
Constant Current Driver Feature
1) Isolated power supply
2) Adopt PWM technology
3) High efficiency/High PF/ flicker-free
4) 2.4GHz wireless control,Air Self-inspection Sync control
5) Compatible with Freelighting Control system,realized phone WIFI smart control
6)Applicable lamps:LED like LED panel, LED ceiling lamps, LED down light and others constant current lights
7) Applicable place:Home, Shop, Hotel, Office and so on household/commercial indoor lighting
8) Warranty 3 years
Constant Current Driver Technical Parameters
Electrical Performance Test are all in 25℃±10% temperature environment,230VAC/50HZ input | ||
Factor | Index | 38W |
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Rate Current | 0.23A(full load) | |
Surge Current | <50A | |
Standby Power | ≤1.3W | |
Overall Efficiency | >85%(full load) | |
Power Factor(PF) | ≥0.91 | |
Port | Three Wire input(L/N/FG) | |
Output | unloaded Voltage | 53V |
Voltage Range | 18V-42VDC | |
String Number | 6-12 string | |
Rate Current | 650mA-900mA | |
MAX Power | 38W | |
Current accuracy | -+5% | |
PWM Signal Output Frequency | 3KHz | |
Dimming Grade | 4096 | |
Dimming Range | 3-100% | |
Video effect | Free-flicker | |
Reliability | Power Supply | Isolated Power Supply |
Working Temperature Ta | -20-45℃ | |
Case Max Working Temperature Tc | 85℃ (working temperature 45℃,Max power) | |
Life | 31000 hours( 25℃-+10% temperature environment,230VAC input,100%LOAD,case temperature 72℃) | |
Warranty | 3 years | |
Safety and EMC | Certification CE-LVD | EN61347-1,EN61347-2-13 |
Electromagnetic Compatibility CE-EMC | EMI(EN55022,EN61000-3-3) EMS(EN55024,EN61000-4-2,3,4,5,6,11) | |
Other | Wireless Control | 2.4GHz |
Remote Control Distance | 30m | |
Memory Function | Yes | |
Product G.W. | 162g | |

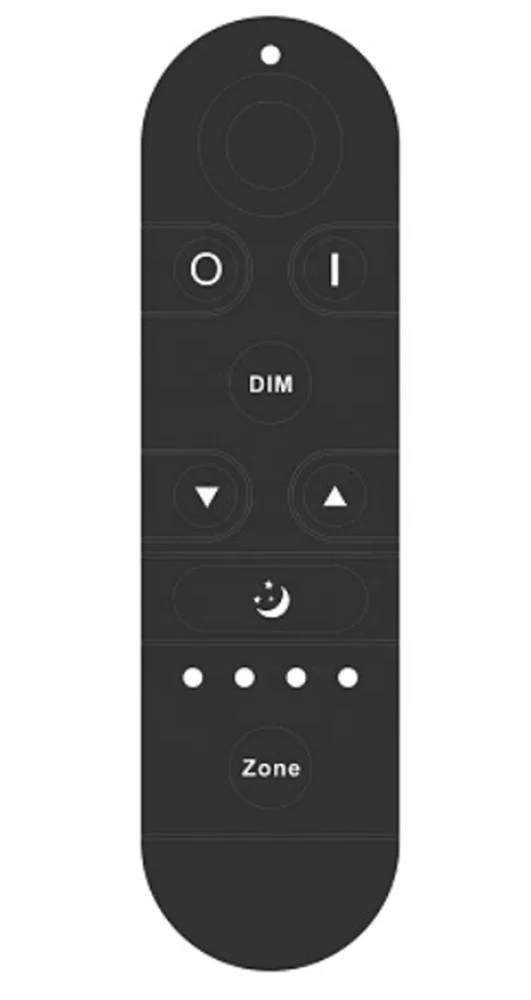

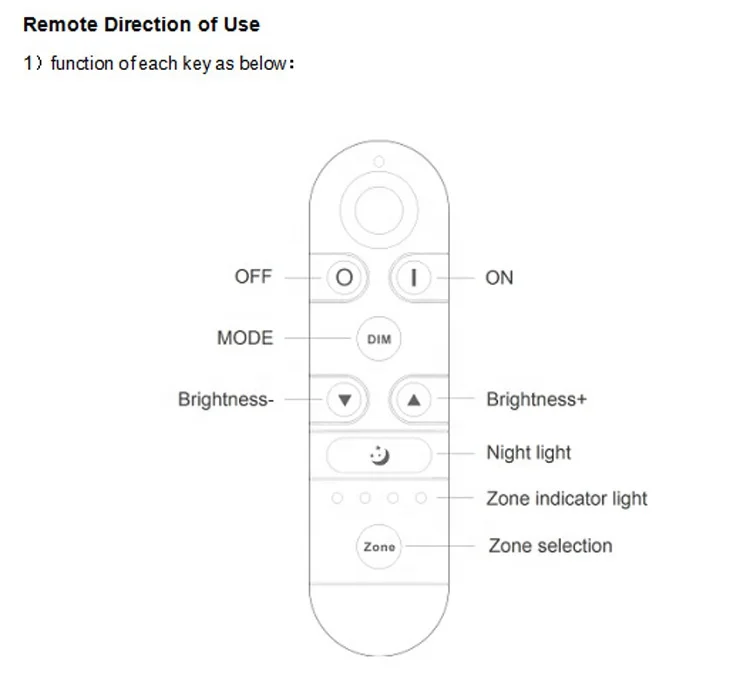

Remote Technical Parameters
Working temperature | -20-60℃ | Supply voltage | 3V (AAA*2PCS) |
Sleep state current | <25uA |
| <30mA |
Sleep state power consume | <75uW |
| <90mW |
Net weight | 55g | Product size | L148*W40*38 (mm) |
remote control distance | ≤30m | Emission frequency | 2.4GHz |
Remote accessories | Remote hanger,3M foam sponge glue,M4 Double headed self tapping screw,φ6 Expanding Tube, Battery, Manual | ||
Constant Current Driver Specification

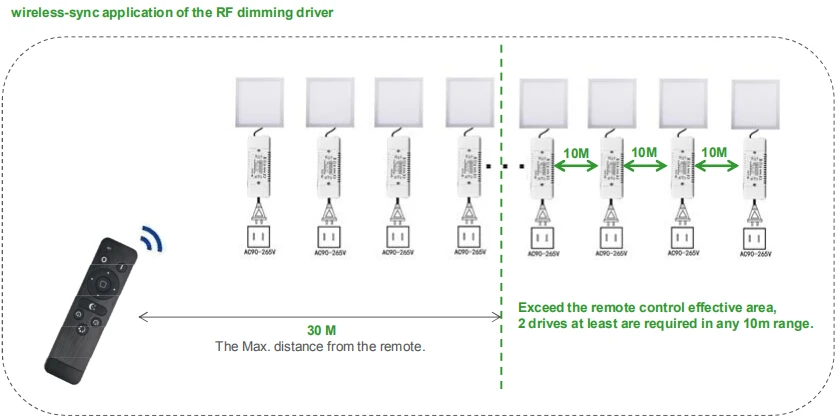

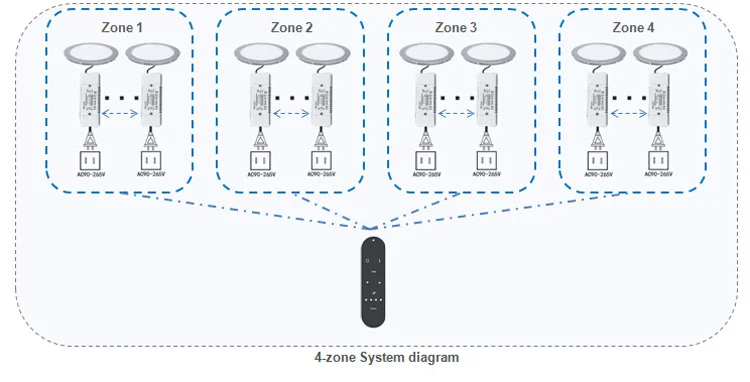

Constant Current Driver Applications(Support wireless-sync-control,1 remote to multiple drivers)
