Высококачественный листогибочный станок с ЧПУ по низкой цене 4
- Категория: Оборудование для обработки металлических листов >>>
- Поставщик: Nanjing,Chzone,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5950.56 $* | 6248.1 $* |
| Aug-16-2025 | 5900.6 $* | 6195.32 $* |
| Jul-16-2025 | 4950.44 $* | 5198.32 $* |
| Jun-16-2025 | 5800.28 $* | 6090.81 $* |
| May-16-2025 | 5050.89 $* | 5303.87 $* |
| Apr-16-2025 | 5700.82 $* | 5985.38 $* |
| Mar-16-2025 | 5650.49 $* | 5933.7 $* |
| Feb-16-2025 | 5600.62 $* | 5880.33 $* |
| Jan-16-2025 | 5550.45 $* | 5828.94 $* |
Характеристики

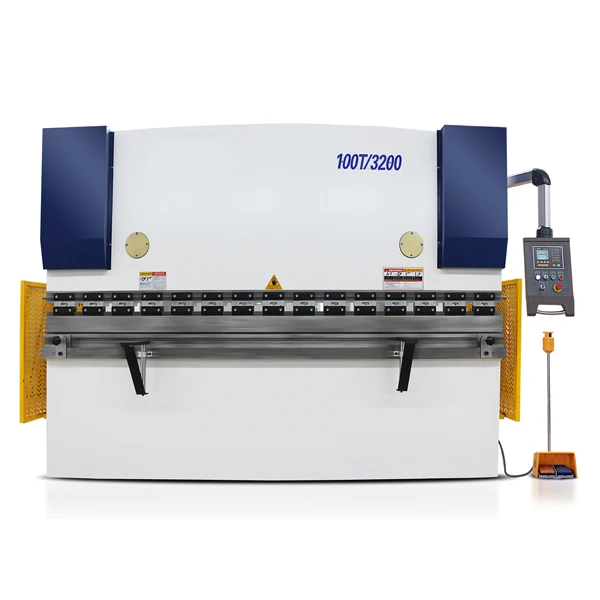

WC67K Series NC Press Brake
Product Description
Main features:
* X&Y axis
* ESTUN E21 Controller
* Schneider Electrics
* X&Y axis
* ESTUN E21 Controller
* Schneider Electrics
* Siemens Motor
* Sntadard Top& Bottom Toolings
* Sntadard Top& Bottom Toolings
Controller | ESTUN E21 |
Motor | Siemens |
Valve | BOSCH Rexroth |
Electrics | Schneider |
Pump | Sunny |
Foot Pedal | Kacon |
Controller
ESTUN E21
■ HD LCD display, with both Chinese and English language options,a display programming parameters
■ X, Y-axis intelligent positioning, can also be manually adjusted according to need
■ Built-in dwell time
■ Key parameter backup and restore functionality
■ Support multi-step programming, complex work pieces can be completed at one time, improve production machining accuracy
■ All keys on the panel are micro-switches,
■ X, Y-axis intelligent positioning, can also be manually adjusted according to need
■ Built-in dwell time
■ Key parameter backup and restore functionality
■ Support multi-step programming, complex work pieces can be completed at one time, improve production machining accuracy
■ All keys on the panel are micro-switches,
Main Parameters
Type | Nominal Force | Worktable Length | Throat depth | Stroke | Cylinder dia | motor | GAP | Dimension(L×W×H) | Machine weight |
40T/2200 | 400 | 2200 | 200 | 100 | Ф110 | 5.5 | 320 | 2500×1600×2100 | 2.5 |
40T/2500 | 400 | 2500 | 200 | 100 | Ф110 | 5.5 | 320 | 2800×1600×2100 | 2.8 |
50T/2200 | 500 | 2200 | 200 | 100 | Ф125 | 5.5 | 320 | 2500×1650×2140 | 2.8 |
50T/2500 | 500 | 2500 | 200 | 100 | Ф125 | 5.5 | 320 | 2800×1650×2140 | 3.2 |
63T/2500 | 630 | 2500 | 250 | 120 | 135 | 5.5 | 345 | 2800×1700×2200 | 4.1 |
63T/3200 | 630 | 3200 | 250 | 120 | 135 | 5.5 | 345 | 3500×1700×2200 | 4.6 |
63T/4000 | 630 | 4000 | 250 | 120 | 135 | 5.5 | 345 | 4400×1700×2300 | 5.1 |
80T/2500 | 800 | 2500 | 250 | 120 | Ф160 | 5.5 | 350 | 2800×1700×2320 | 5.0 |
80T/3200 | 800 | 3200 | 250 | 120 | Ф160 | 5.5 | 350 | 3500×1700×2320 | 5.5 |
80T/4000 | 800 | 4000 | 250 | 120 | Ф160 | 5.5 | 350 | 4300×1700×2320 | 6.8 |
80T/5000 | 800 | 5000 | 250 | 120 | Ф160 | 7.5 | 380 | 5300×1700×2500 | 9.2 |
100T/2500 | 1000 | 2500 | 320 | 120 | 170 | 7.5 | 380 | 2800×1750×2420 | 5.6 |
100T/3200 | 1000 | 3200 | 320 | 120 | 170 | 7.5 | 380 | 3700×1750×2420 | 6.6 |
100T/4000 | 1000 | 4000 | 320 | 120 | 170 | 7.5 | 380 | 4400×1750×2420 | 7.8 |
100T/5000 | 1000 | 5000 | 320 | 120 | 170 | 7.5 | 380 | 5500×1750×2520 | 9.2 |
100T/6000 | 1000 | 6000 | 320 | 120 | 170 | 7.5 | 380 | 6400×1750×2620 | 12.0T |
125T/2500 | 1250 | 2500 | 320 | 120 | 180 | 7.5 | 380 | 2800×1750×2520 | 6.2 |
125T/3200 | 1250 | 3200 | 320 | 120 | 180 | 7.5 | 380 | 3800×1750×2520 | 7.2 |
125T/4000 | 1250 | 4000 | 320 | 120 | 180 | 7.5 | 380 | 4400×1750×2520 | 9.2 |
125T/5000 | 1250 | 5000 | 320 | 120 | 180 | 7.5 | 380 | 5400×1750×2520 | 10.5 |
125T/6000 | 1250 | 6000 | 320 | 120 | 180 | 11 | 380 | 6500×1750×2720 | 13.5 |
160T/2500 | 1600 | 2500 | 320 | 200 | Ф220 | 11 | 450 | 2800×1850×2700 | 8.2 |
160T/3200 | 1600 | 3200 | 320 | 200 | Ф220 | 11 | 450 | 3800×1850×2700 | 9.5 |
160T/4000 | 1600 | 4000 | 320 | 200 | Ф220 | 11 | 450 | 4500×1850×2700 | 11 |
160T/5000 | 1600 | 5000 | 400 | 200 | Ф220 | 11 | 450 | 5500×2000×3000 | 14.5 |
160T/6000 | 1600 | 6000 | 400 | 200 | Ф220 | 11 | 450 | 6500×2000×3200 | 17 |
200T/2500 | 2000 | 2500 | 350 | 250 | Ф240 | 11 | 500 | 2800×2150×2950 | 12 |
200T/3200 | 2000 | 3200 | 350 | 250 | Ф240 | 11 | 500 | 3800×2150×2950 | 13.5 |
200T/4000 | 2000 | 4000 | 350 | 250 | Ф240 | 11 | 500 | 4500×2150×2950 | 16 |
200T/5000 | 2000 | 5000 | 350 | 250 | Ф240 | 11 | 500 | 5500×2150×3200 | 18.5 |
200T/6000 | 2000 | 6000 | 350 | 250 | Ф240 | 15 | 500 | 6500×2150×3350 | 22 |
250T/2500 | 2500 | 2500 | 350 | 250 | Ф280 | 18.5 | 520 | 2800×2200×3300 | 13 |
250T/3200 | 2500 | 3200 | 350 | 250 | Ф280 | 18.5 | 520 | 3800×2200×3300 | 15 |
250T/4000 | 2500 | 4000 | 350 | 250 | Ф280 | 18.5 | 520 | 4500×2200×3300 | 17 |
250T/5000 | 2500 | 5000 | 350 | 250 | Ф280 | 18.5 | 520 | 5500×2200×3300 | 20 |
250T/6000 | 2500 | 6000 | 400 | 250 | Ф280 | 18.5 | 520 | 6500×2300×3500 | 26 |
300T/3200 | 3000 | 3200 | 400 | 250 | Ф300 | 22 | 520 | 3800×2300×3350 | 20 |
300T/4000 | 3000 | 4000 | 400 | 250 | Ф300 | 22 | 520 | 4500×2300×3550 | 22 |
300T/5000 | 3000 | 5000 | 400 | 250 | Ф300 | 22 | 520 | 5500×2300×3800 | 27 |
300T/6000 | 3000 | 6000 | 400 | 250 | Ф300 | 22 | 520 | 6500×2300×3900 | 30 |
Detailed Images
E21 Controller
ESTUN Brand, X&Y axis Control

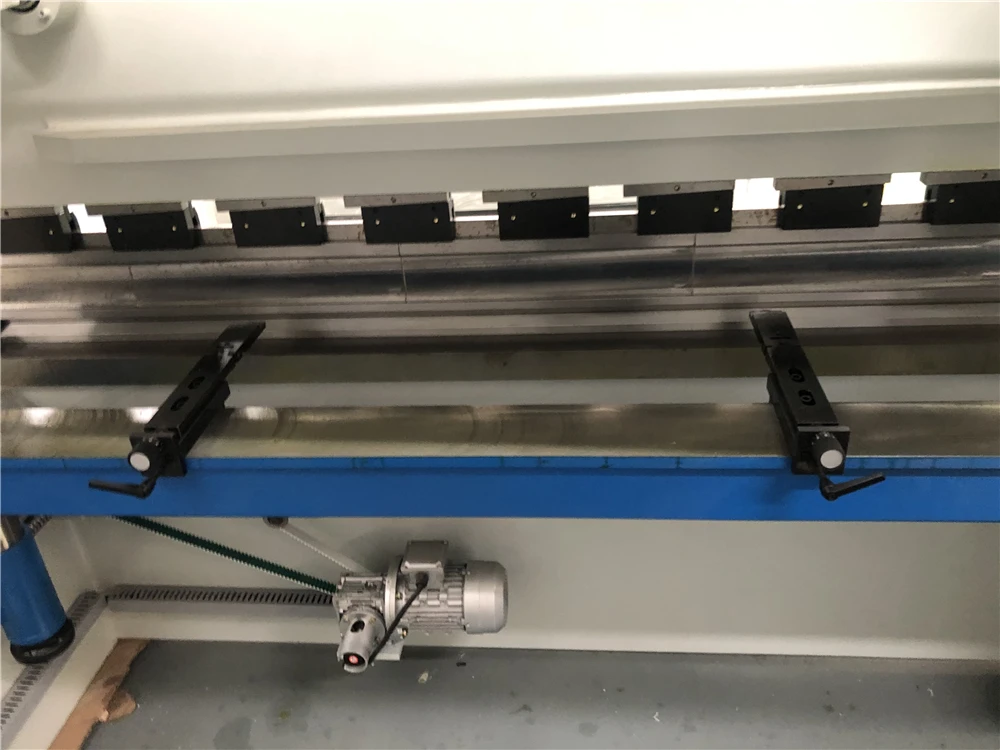

Standard Back Gauge
Factory made, all metal structure
Back Stop Fingers
Factory made metal structure type

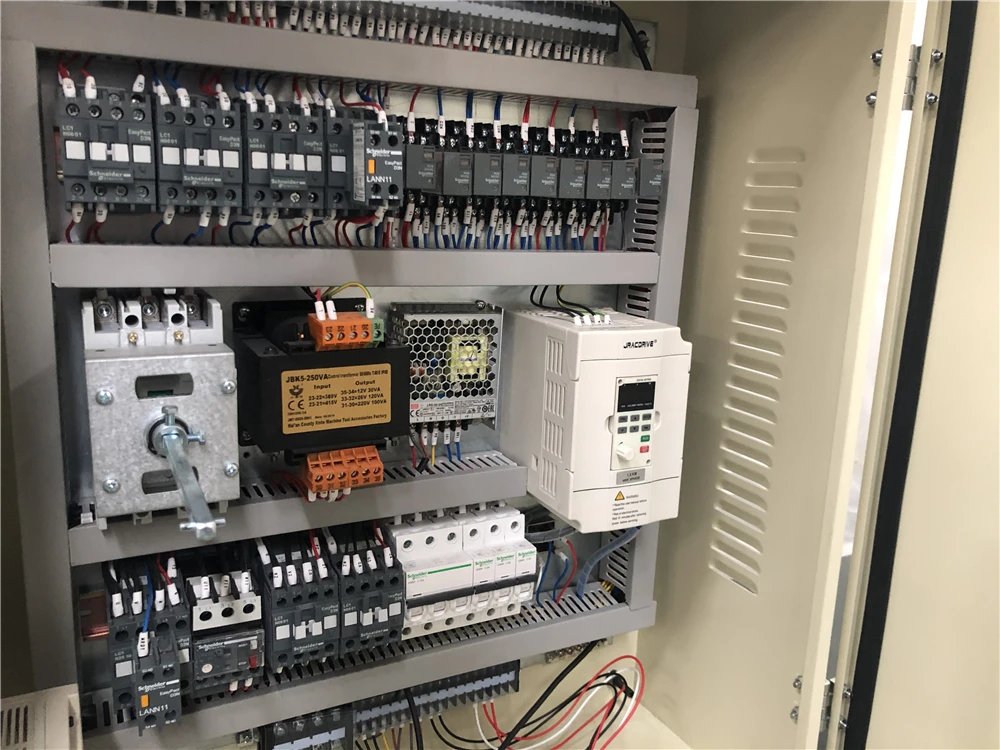

Schneider Electrics
World famous bran, Stable quality. easy to get replace parts
Siemens Motor
Siemens China Factory Made
Taifeng Cylinder
Most Famous brand in China. Life-long time aftersale maintance.
Rexroth Valve
Germany BOSCH Valve. Simple Structure,Easy to repaire
Sunny Oil Pump
American most famous pump brand.
High quality

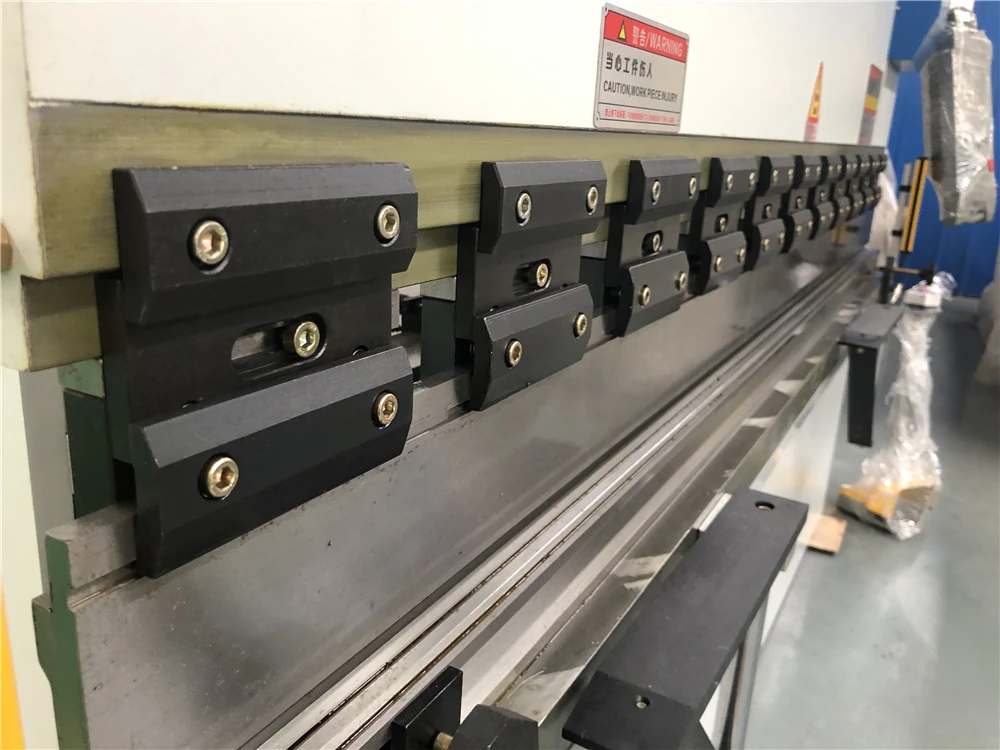

Standard Tool Clamp
Fxied type, can change to fast released type
Front Supporter
Rotate type
Kacon Foot Switch
South Koera CE Standard Foot Switch
GIVI Linear Encoder
High accuracy,stable quality.

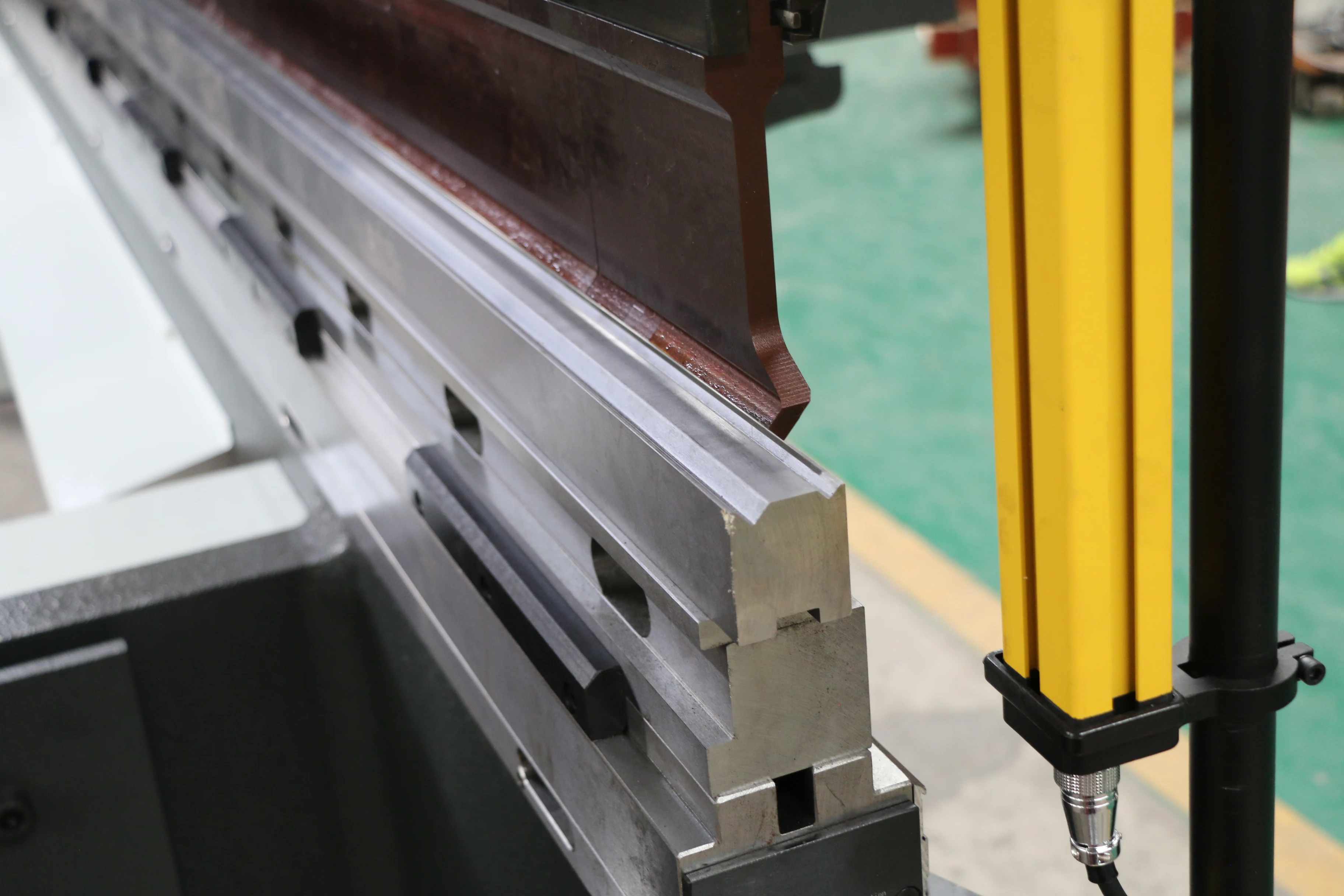

Standard Top&Bottom Toolings
*4-side Bottom Tool, can use for different thickness plate
*Standard top punch
*Standard Segmented in to 835mm length each
*one piece segmented for small part
*Left and Right side with L shape cut
*Other types tooling for optional
Related Products
Optional Parts
Fast Released Clamp
Easy for changing tools

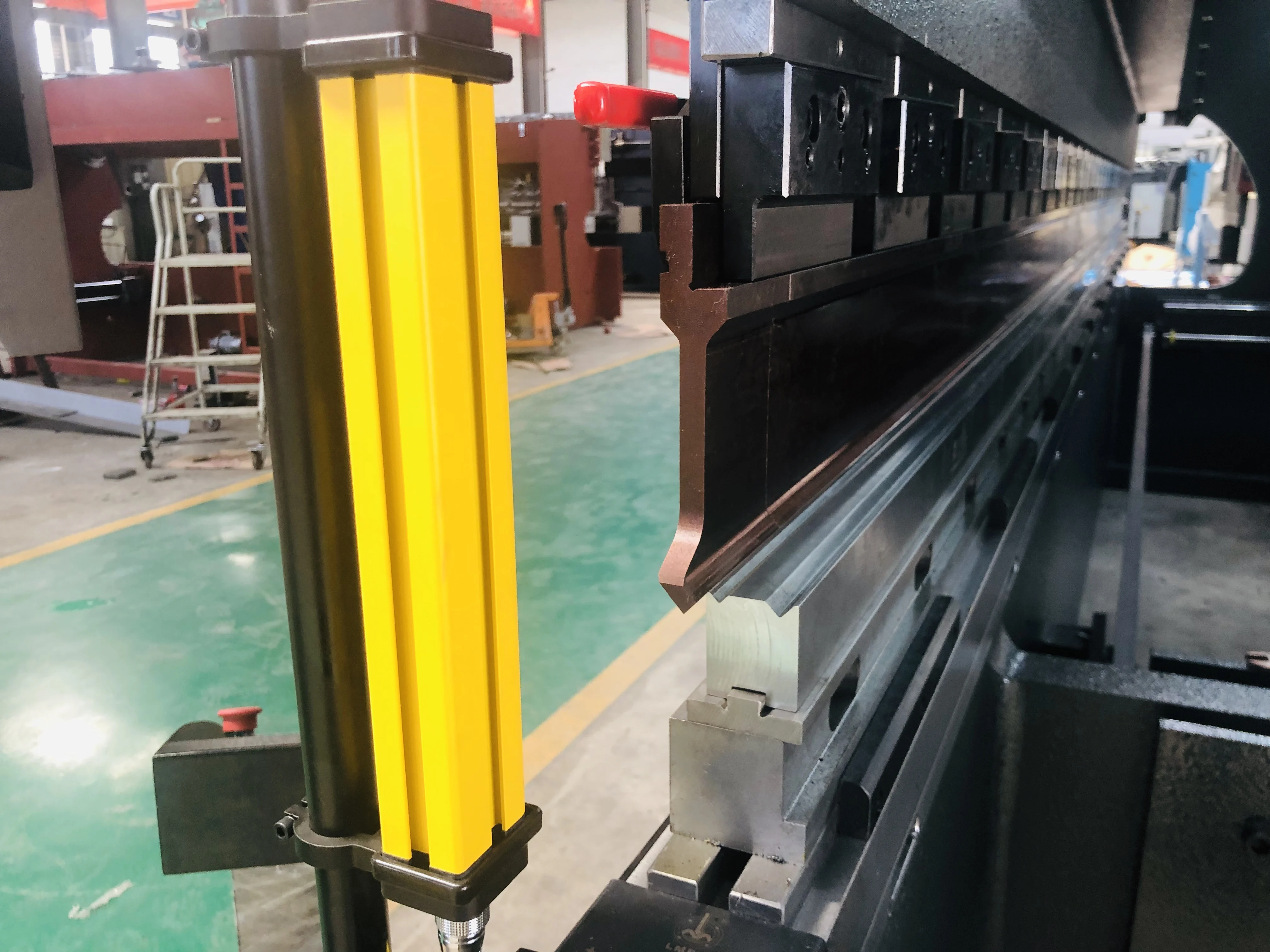

Side Light Curtain
CE Standard, safty device
Amada Type Tool
Bottom Tool Segmented
Packing&Shipping
Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.
