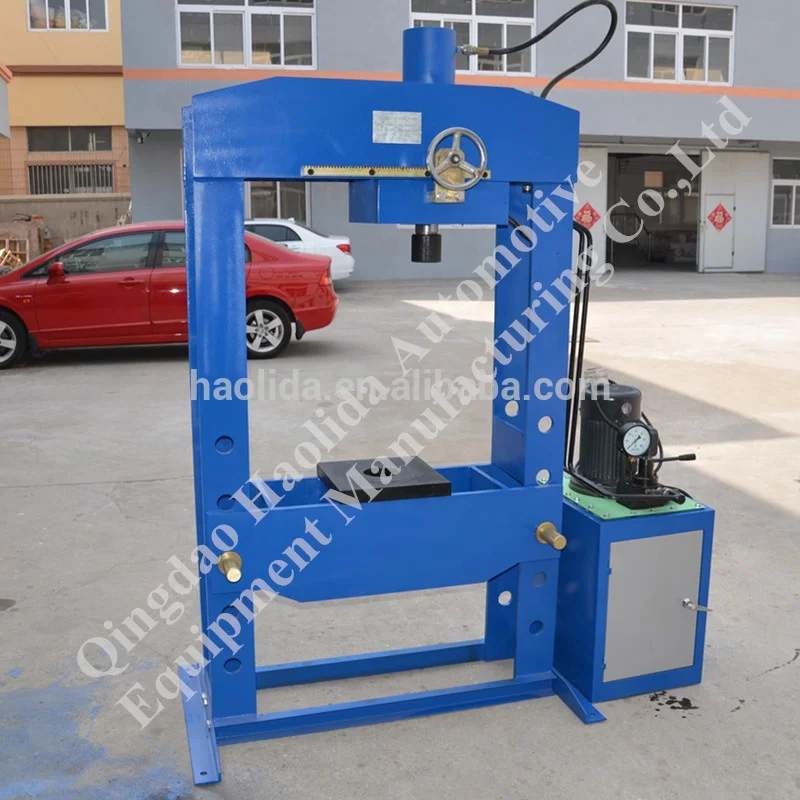

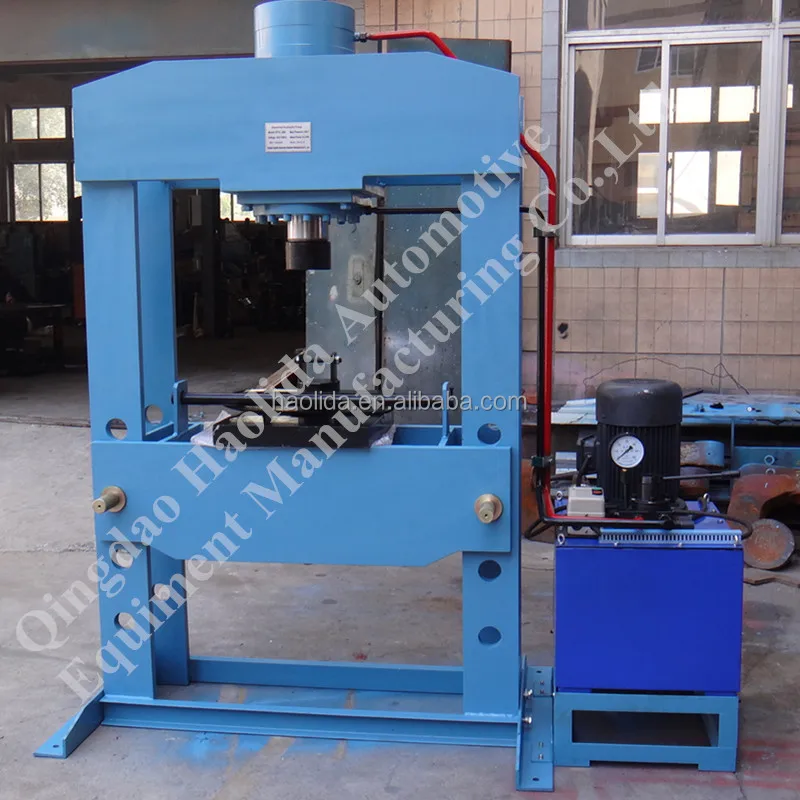

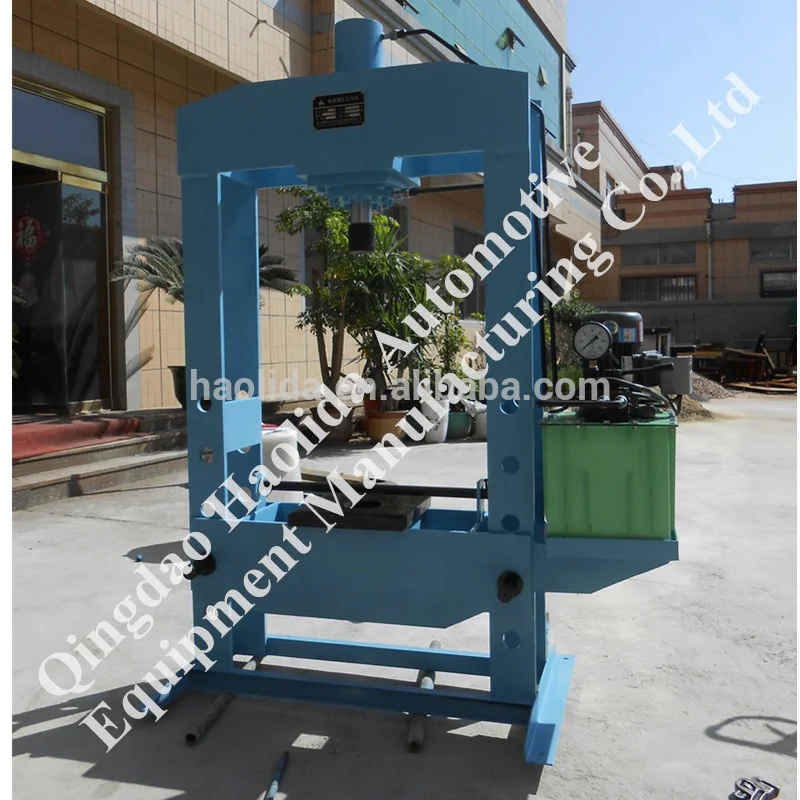

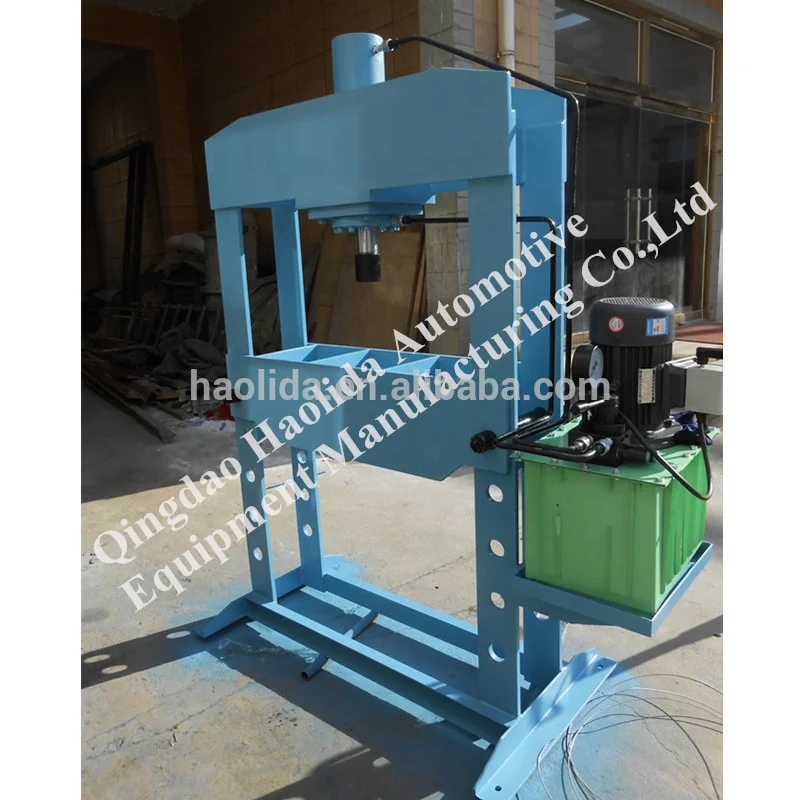

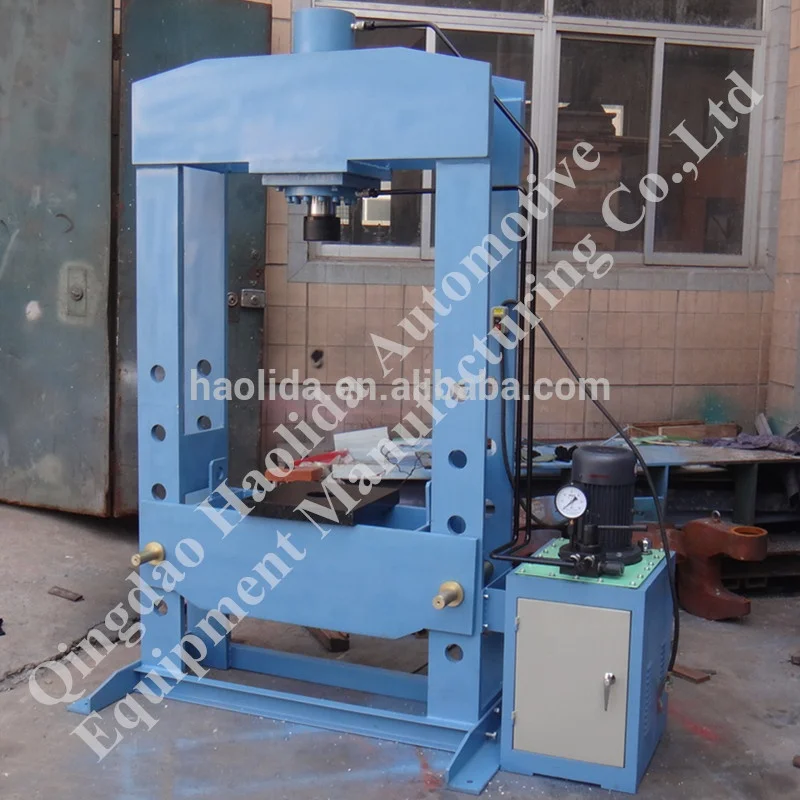

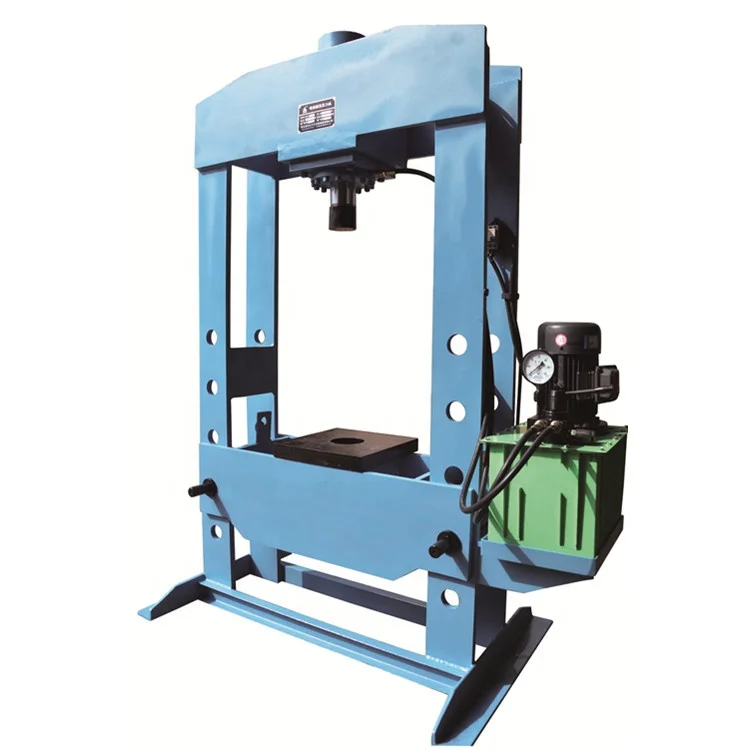

                                        DYYL-100T Electric Hydraulic Press Machine



General introduction:

l  adopts door type steel structure and one piston and double oil cylinders

l  High-low pressure pump with parallel connection

l  Manual direction changing to control stroke of piston rod

l  hydraulic pressure drive workbench to lift

l  Fit for dismantling, installing, straightening, drawing and moulding for machinery industry

l  Fit for cold riveting and moulding of pot-angle tooth

l  It is safe and easy to operate



Technical parameter:



Model no	DYYL-100
Material	U-steel
Painting	High quality paint
Color	Blue
Voltage	220V 50 Hz  (other voltage acceptable)
Motor power	2.2KW
Max working press	1000KN(100T)
Max working height	1050mm
Max working width	900mm
Stroke	350mm
Oil cylinder pressure	47Mpa
Motor power	2.2kw
Total height of the press	2100mm
Total width of the press	1600mm
Accessories:
Working plate,support tools, etc.
Others you may want to know:
MOQ	1set
Warranty period	12 months
Payment term	T/T 50% in advance, the balance should be paid before delivery  (negotiable)
Delivery time	20 days after receiving downpayment
HS code	84639000.90
Packing sizes	1620*800*2120mm=2.75CBM





Why Choose us:



1. 32 years’ design,development and produce experience

2. Professional R&D team

3. Strict QC

4. A good pre-sale and after-sale service

5. Can design and make according to customer’s requests



Established in 1984, Qingdao Haolida Automotive Equipment Manufacturing Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of automobile maintenance and test equipment.

Our main products are automobile test benches, such as electric universal test bench, alternator/generator test bench, starter test bench, engine test bench, turbocharger test bench, air compressor test bench, braking system test bench, steering gear and power pump test bench, AC compressor test bench, clutch test bench, automatic gearbox/transmission test bench, etc, brake shoe riveting and grinding machines, electric/ manual hydraulic presses, auto pit jack/lift, and so on. We can also design and make specially according to customers’ request.
