Характеристики
Bending Machine CNC manual sheet bending machine 63Ton hydraulic press brake metal bending machine
Products Description

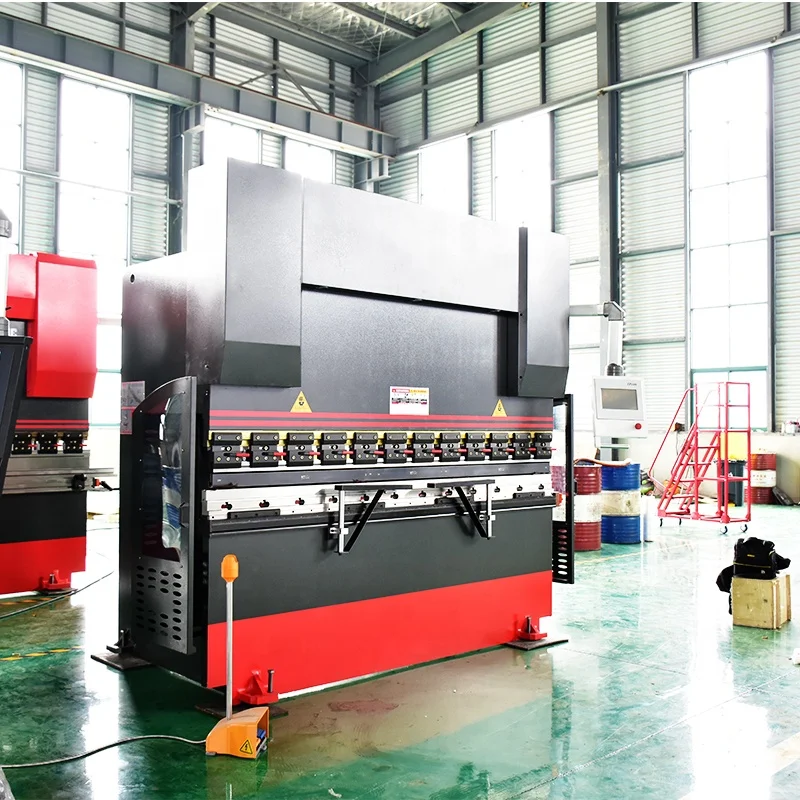

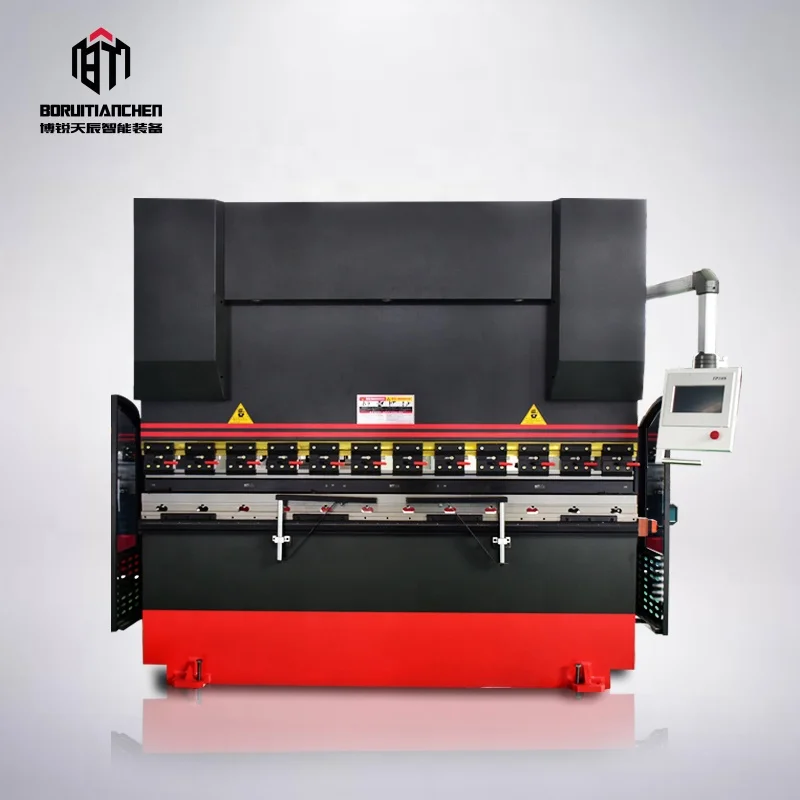

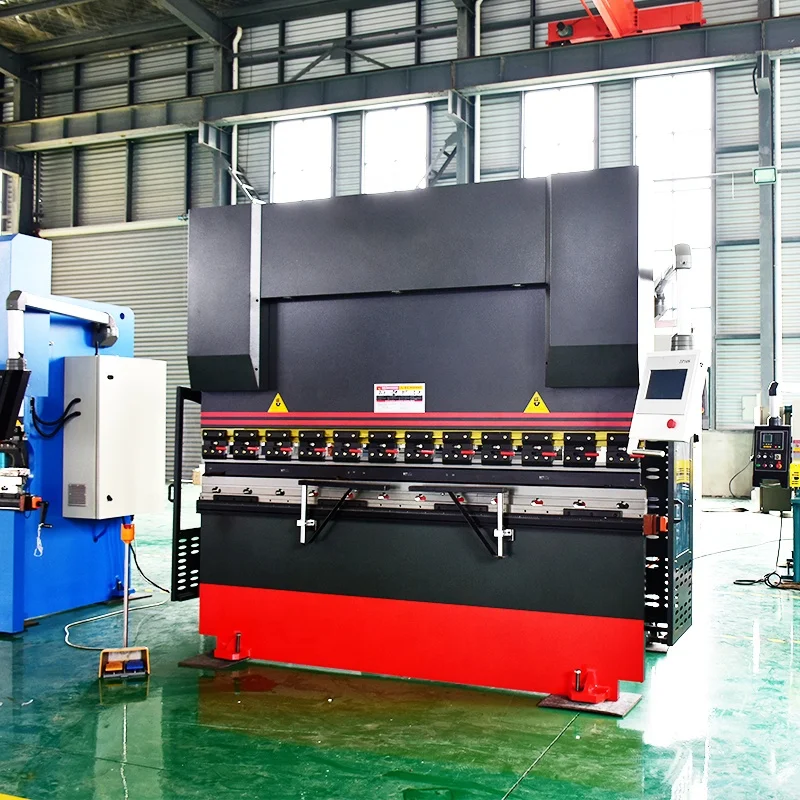

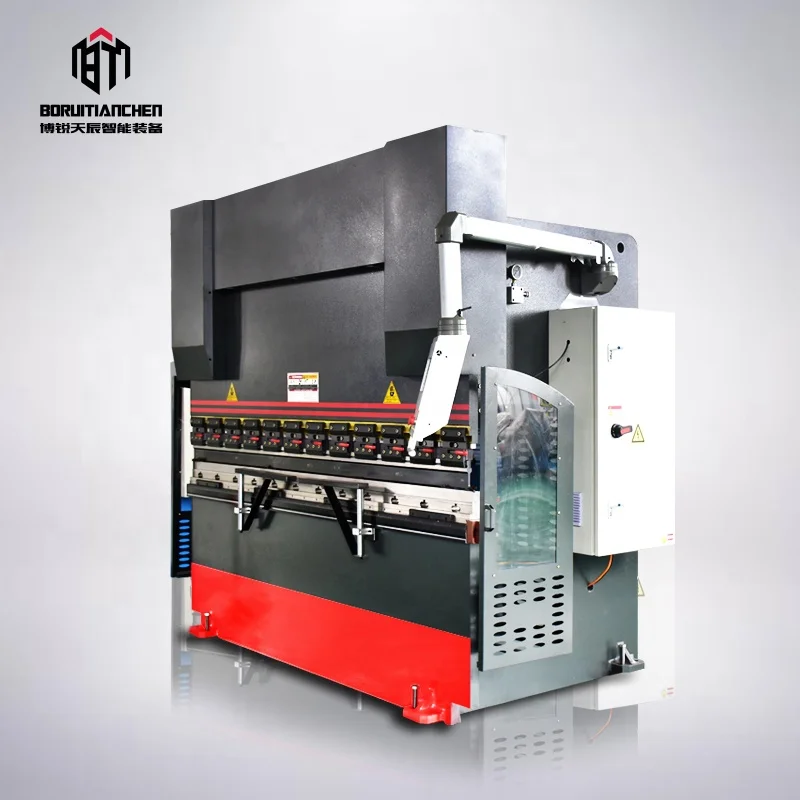

Press brake bending machine
1. The whole machine is designed according to JB/T2257.2-92(China National standard) "plate bending machine technical conditions"and GB/T14349-93 "plate bending machine precision", all the parts of this machine are using computer graphics, computer element analysis, computer aided manufacturing,use CAD, CAE, CAM software for machine structure design, and fully guaranteed the structural strength enough and rigid of each machine component.
1. The whole machine is designed according to JB/T2257.2-92(China National standard) "plate bending machine technical conditions"and GB/T14349-93 "plate bending machine precision", all the parts of this machine are using computer graphics, computer element analysis, computer aided manufacturing,use CAD, CAE, CAM software for machine structure design, and fully guaranteed the structural strength enough and rigid of each machine component.
2.The whole steel frame welded structure, made the press brake thick, high rigidity, strong shock anti-knock.
3.Allocate breaking that the DELEM company produces bending machine special use numerical control system (or customer specify other shears to fold numerical control system);
4.Rear material(X), smooth piece route or distance of travel(Y) control equal reason computer autocontrol;
5.Rear material adopt the average silk pole and precise ball two kind silk poles;
6. Machine steel plate welded strure, using VSR elimimate internal stress, high mechanical strength and good rigidity.
7.Hydraulic double cylinders on the drive, mechanical block, twisting axis synchronization, smooth and reliable operation, high precision.
4.Rear material(X), smooth piece route or distance of travel(Y) control equal reason computer autocontrol;
5.Rear material adopt the average silk pole and precise ball two kind silk poles;
6. Machine steel plate welded strure, using VSR elimimate internal stress, high mechanical strength and good rigidity.
7.Hydraulic double cylinders on the drive, mechanical block, twisting axis synchronization, smooth and reliable operation, high precision.
Type | Nominal Force | Worktabie Length | Poles Distance | Throat Depth | Stroke | Max Open | Pover | Dimension |
(KN) | （mm) | （mm) | （mm) | （mm) | （mm) | (KW) | L*W*H(mm) | |
30T/1600 | 300 | 1600 | 1280 | 200 | 80 | 285 | 3 | 1600*1000*1600 |
35T/2000 | 350 | 2000 | 1480 | 200 | 80 | 285 | 4 | 2000*1100*1800 |
40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2200*1200*1910 |
40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 5.5 | 2500*1200*2000 |
63T/2500 | 630 | 2500 | 1900 | 250 | 120 | 320 | 5.5 | 2500*1300*2210 |
63T/3200 | 630 | 3200 | 2500 | 250 | 120 | 320 | 5.5 | 3200*1300*2210 |
80T/2500 | 800 | 2500 | 1900 | 300 | 120 | 320 | 7.5 | 2500*1400*2300 |
80T/3200 | 800 | 3200 | 2500 | 320 | 120 | 350 | 7.5 | 3200*1500*2300 |
80T/4000 | 800 | 4000 | 3000 | 320 | 120 | 350 | 7.5 | 4000*1500*2400 |
100T/2500 | 1000 | 2500 | 1900 | 320 | 160 | 320 | 7.5 | 2500*1600*2400 |
100T/3200 | 1000 | 3200 | 2500 | 320 | 160 | 370 | 7.5 | 3200*1600*2600 |
100T/4000 | 1000 | 4000 | 3000 | 320 | 160 | 370 | 7.5 | 4000*1600*2700 |
125T/3200 | 1250 | 3200 | 2500 | 320 | 160 | 370 | 7.5 | 3200*1600*2700 |
125T/4000 | 1250 | 4000 | 3000 | 320 | 160 | 370 | 7.5 | 4000*1600*2700 |
160T/3200 | 1600 | 3200 | 2500 | 320 | 200 | 460 | 11 | 3200*1700*2700 |
160T/4000 | 1600 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1700*2800 |
160T/5000 | 1600 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1900*3100 |
160T/6000 | 1600 | 6000 | 4940 | 320 | 200 | 460 | 11 | 6000*1900*3200 |
200T/3200 | 2000 | 3200 | 2500 | 320 | 200 | 460 | 11 | 3200*1950*2800 |
200T/4000 | 2000 | 4000 | 3000 | 320 | 200 | 460 | 11 | 4000*1950*2800 |
200T/5000 | 2000 | 5000 | 4000 | 320 | 200 | 460 | 11 | 5000*1950*3000 |
200T/6000 | 2000 | 6000 | 5000 | 320 | 200 | 460 | 11 | 6000*1950*3300 |
250T/3200 | 2500 | 3200 | 2500 | 400 | 250 | 460 | 18.5 | 3200*2000*3200 |
250T/4000 | 2500 | 4000 | 3000 | 400 | 250 | 590 | 18.5 | 4000*2000*3400 |
250T/5000 | 2500 | 5000 | 4000 | 400 | 250 | 590 | 18.5 | 5000*2000*3400 |
250T/6000 | 2500 | 6000 | 5000 | 400 | 250 | 590 | 18.5 | 6000*2000*3400 |
300T/5000 | 3000 | 5000 | 4000 | 400 | 250 | 570 | 22 | 5100*2600*4000 |
300T/6000 | 3000 | 6000 | 5000 | 400 | 250 | 570 | 22 | 6100*2600*4200 |
300T/7000 | 3000 | 7000 | 5620 | 400 | 250 | 570 | 22 | 7100*2600*4400 |
320T/7000 | 3200 | 7000 | 5620 | 400 | 250 | 570 | 22 | 7100*2600*4400 |
350T/6000 | 3500 | 6000 | 5100 | 450 | 250 | 570 | 30 | 6100*2600*4200 |
350T/7000 | 3500 | 7000 | 5620 | 450 | 250 | 570 | 30 | 7100*2500*4500 |
400T/4000 | 4000 | 4000 | 3100 | 350 | 300 | 620 | 30 | 4100*2700*3800 |
400T/6000 | 4000 | 6000 | 4820 | 400 | 320 | 620 | 30 | 6100*2800*4200 |
400T/6500 | 4000 | 6500 | 5100 | 400 | 320 | 620 | 30 | 6600*2800*4300 |
500T/5000 | 5000 | 5000 | 4100 | 400 | 320 | 620 | 37 | 5100*3000*4400 |
500T/6000 | 5000 | 6000 | 4820 | 400 | 320 | 620 | 37 | 6100*3000*4700 |
500T/7000 | 5000 | 7000 | 5620 | 400 | 320 | 620 | 37 | 7100*3000*4900 |
600T/6000 | 6000 | 6000 | 4820 | 400 | 320 | 620 | 45 | 6100*2965*4900 |
600T/7000 | 6000 | 7000 | 5620 | 400 | 320 | 620 | 45 | 7100*2965*4700 |
