Светодиодный драйвер с регулируемой яркостью PE294B1250 12 Вт светодиодный постоянного тока 12-24 в 500 мА SAA
- Категория: Светодиодный драйвер >>>
- Поставщик: Shenzhen,Starwell,Technology,Co.,Ltd.Shenzhen,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 674.90 $* | 708.23 $* |
| Aug-16-2025 | 668.99 $* | 701.30 $* |
| Jul-16-2025 | 560.30 $* | 588.15 $* |
| Jun-16-2025 | 657.36 $* | 690.97 $* |
| May-16-2025 | 572.77 $* | 601.48 $* |
| Apr-16-2025 | 645.7 $* | 677.40 $* |
| Mar-16-2025 | 640.14 $* | 672.68 $* |
| Feb-16-2025 | 634.64 $* | 666.14 $* |
| Jan-16-2025 | 628.61 $* | 659.53 $* |
Характеристики
PE294B1250 12W triac dimmable led driver 12-24V 500mA constant current led driver SAA CE
Products details
12W Triac Dimmable Led Driver
input voltage: | 90-140V ac ,170-250V ac |
output current: | 500ma triac dimming led driver |
output voltage: | 25-42V (can adjust automaticly) |
output power: | 12W triac dimming led driver |
power factor: | >0.98 full load |
effeciency: | >85% |
drive mode: | dimming led driver |
Technology: | PFC ,constant current,triac dimmable led dirver , constant current dimming led driver |
current accuracy: | 300mA ≤±3%(can do customized ) |
Temperature rise: | 10~15 degree |
certificate: | CE,ROHS,GS,SAA |
protection: | overload protection ,short circuit protection,over current ,over voltage protection , over temperature protection , can recovery when remove |
working temperature: | 30°~ +60°C |
storage temperature: | 40°~ +85°C |
Hnmidity: | 5% ~ 95%RH |
Cooling method: | Nature cool |
vibration resistance: | 5 ~ 55HZ/2g 30 mins |
impact resistance: | 1g/S |
MTBF | 50,000 hours with full load condition |
Safty: | EN55015/ CLASS B , *EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-3-2 , IEC/ EN60968-1:2004+A1:2006 , IEC/EN60968-2-1:1989 |
User guide :
Our product carried with 2 group wires , one is AC input wires with blue and brown color connect to"N" , "L" ,
the other one with RED and Black color connect to "+","-" Pin .
Attention :
If meet any problem with the goods pleasse contact us in time to reslove it .
1. application for LED tubes , led bulbs , led lighting , E27, E24, MR16 PAR30 ,PAR38, led bulbs etc.
2. Patent design. Long lifetime.
3. Designed base on UL/CE standard.
4. Constant current driver 6-25W LED tubes.
5. Open / short / over-current protection.
The product utilizes the Daliled Technologies innovative unique technologies specifically developed for the high power solid state lighting devices.

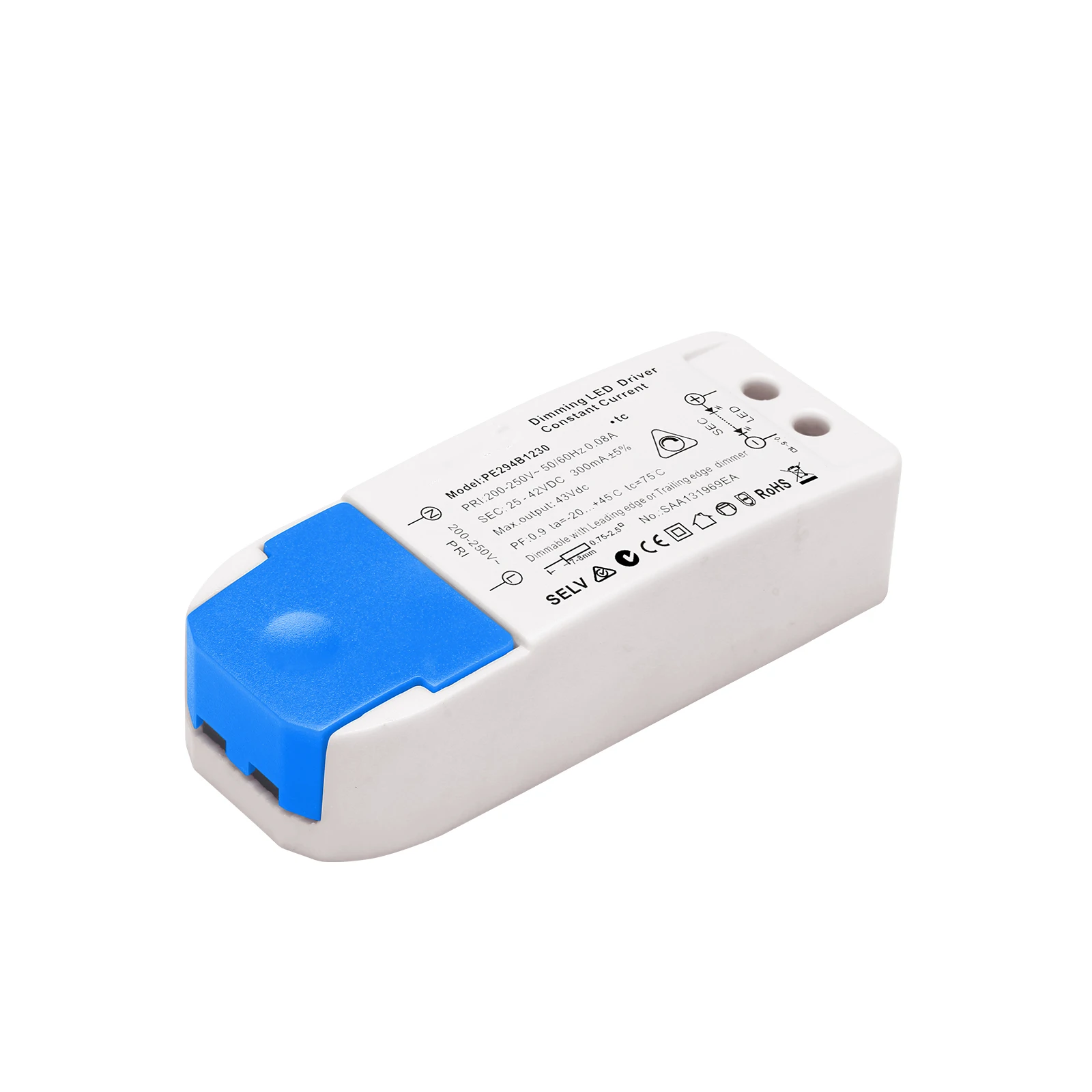

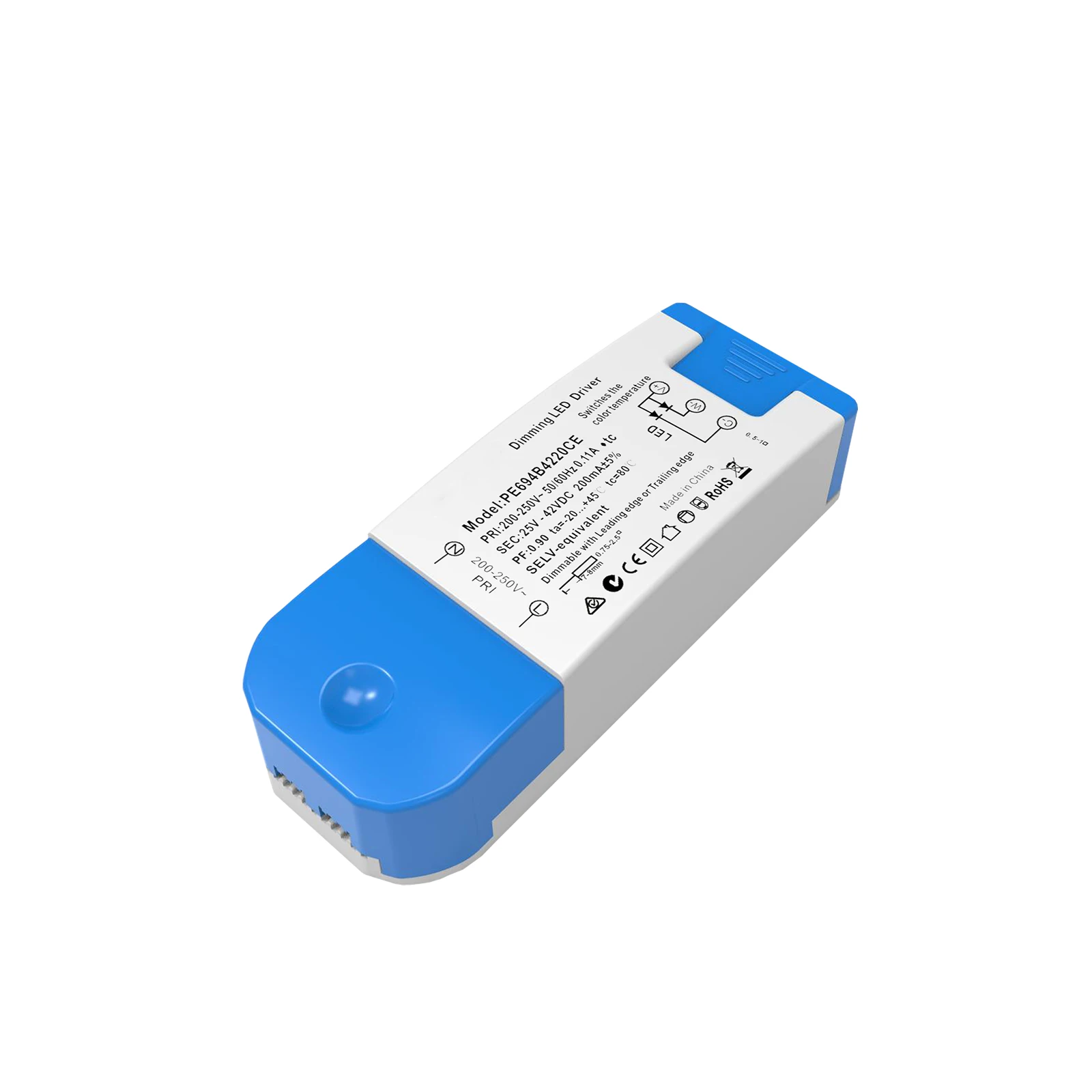

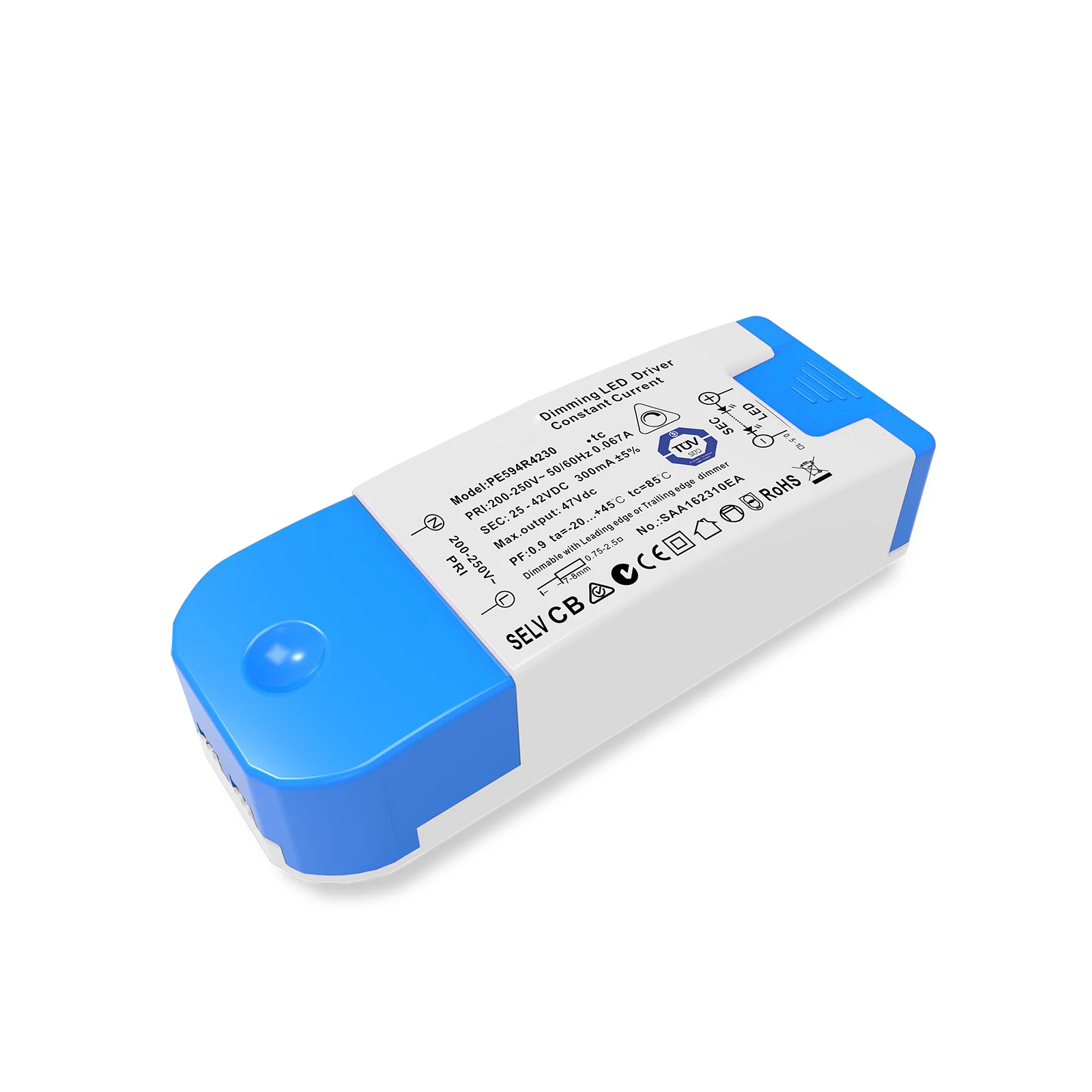

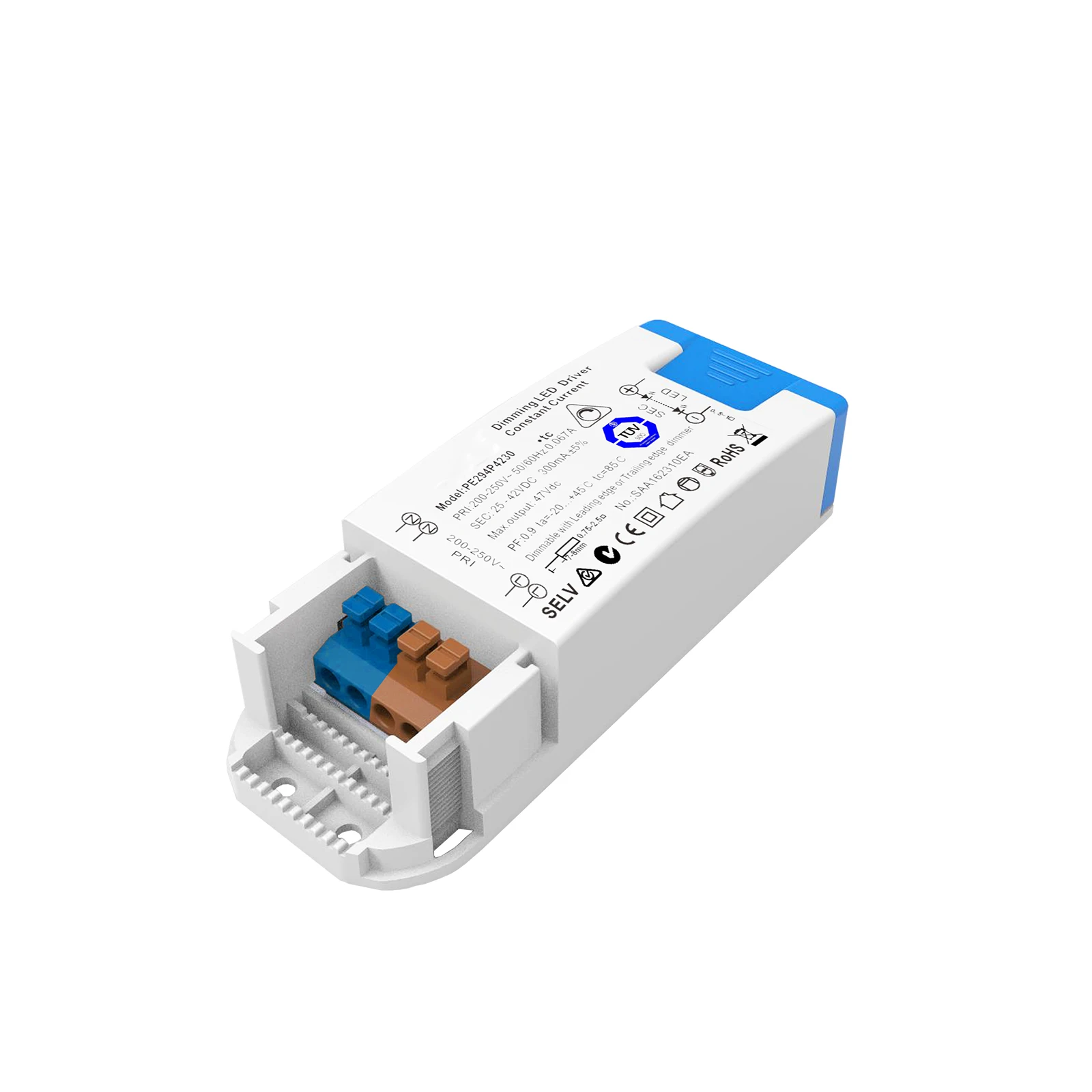

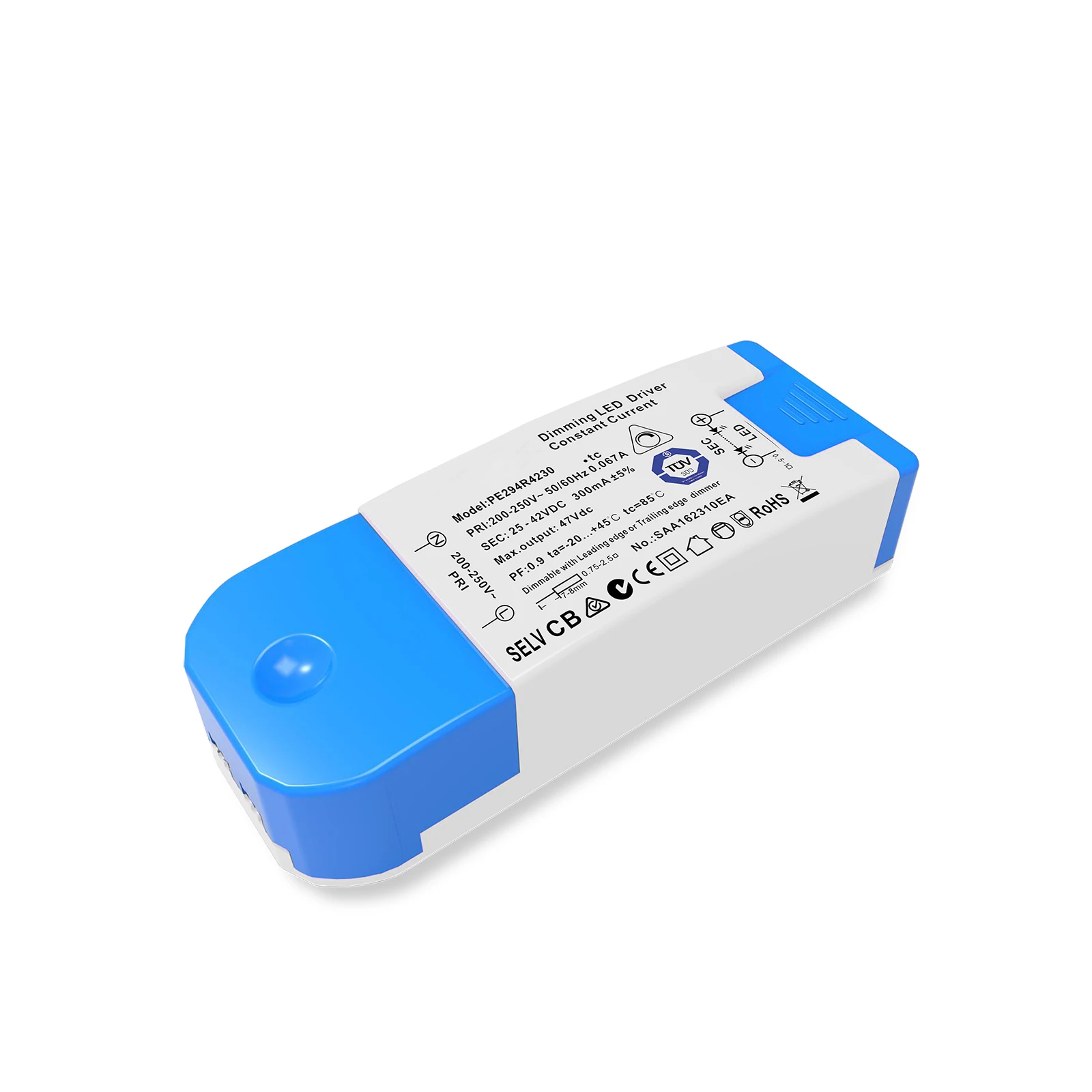

Photos
pictures as reference
Model list
| MODEL | POWER | INPUT | OUTPUT VOLT | OUTPUT CURRENT | PF | PHOTO |
| PE292B2455 | 24W | 170~250VAC (PE292BXX) 90~140VAC (PE292AXX) | 25~42V | 0~550mA±1% | >0.93 |  |
| PE292B2480 | 12~24V | 0~800mA±1% | ||||
| PE292B2490 | 12~24V | 0~900mA±1% | ||||
| PE292B3035 | 30W | 43~70V | 0~350mA±1% | |||
| PE292B3040 | 43~70V | 0~400mA±1% | ||||
| PE292B3045 | 43~65V | 0~450mA±1% | ||||
| PE292B3050 | 43~60V | 0~500mA±1% | ||||
| PE292B3060 | 25~42V | 0~600mA±1% | ||||
| PE292B3065 | 25~42V | 0~650mA±1% | ||||
| PE292B3070 | 25~42V | 0~700mA±1% | ||||
| PE292B3075 | 25~38V | 0~750mA±1% | ||||
| PE292B3080 | 25~32V | 0~800mA±1% | ||||
| efficiency: 90% | Dimension:158*44*31mm | CE, SAA, ROHS | ||||
| Dimming type:Leading/trailing edge triac dimming | ||||||
| MODEL | POWER | INPUT | OUTPUT VOLT | OUTPUT CURRENT | PF | PHOTO |
| PE299B36150 | 36W | 170~250VAC (PE299BXX) 90~140VAC (PE299AXX) | 12~24V | 1500mA±1% | >0.93 |  |
| PE299B3685 | 25~42V | 850mA±1% | ||||
| PE299B3680 | 25~42V | 800mA±1% | ||||
| PE299B36105 | 25~35V | 1050mA±1% | ||||
| PE299B3650 | 43~70V | 500mA±1% | ||||
| efficiency: 90% | Dimension:183*50*32mm | CE, SAA, ROHS | ||||
| Dimming type:Leading/trailing edge triac dimming | ||||||
