Прямая поставка с завода автомобильная распылительная камера

Описание и отзывы

Трекер стоимости

Характеристики

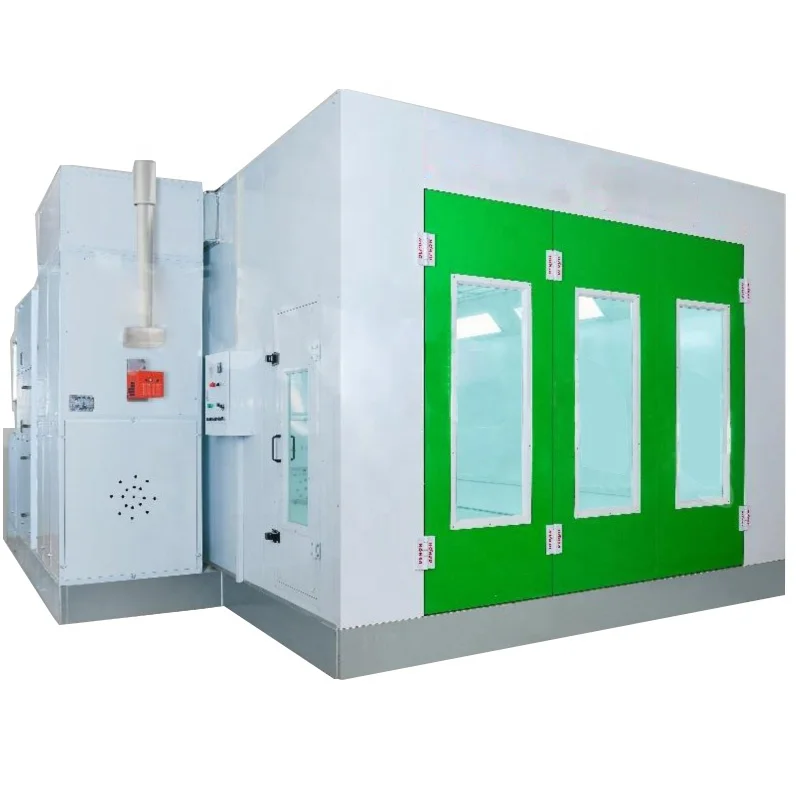

Factory Direct auto spray booth for car

Components	Description

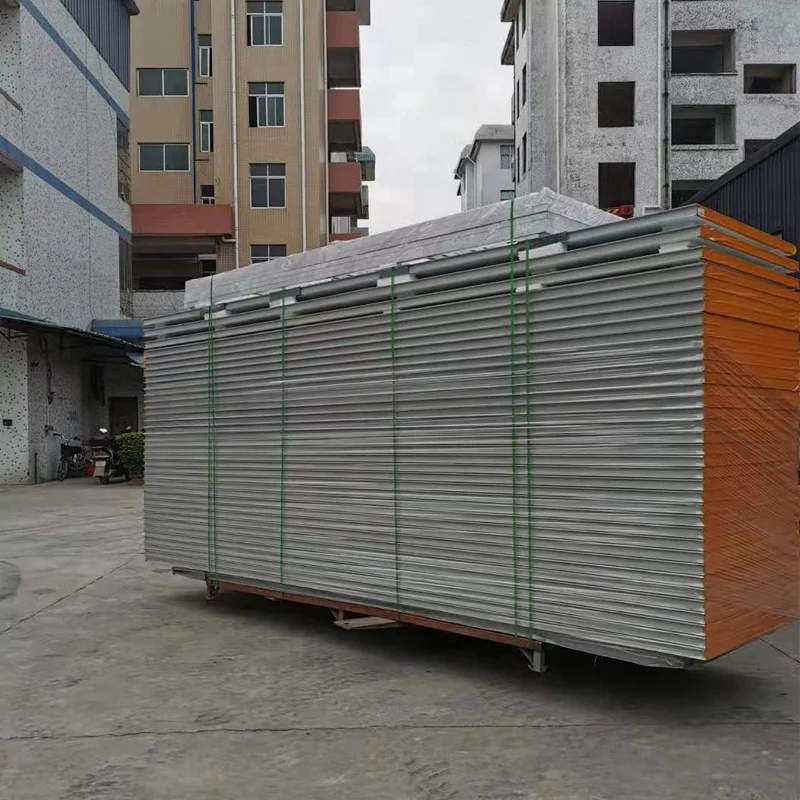

Wallboard	thickness: 50mm with edge seal
	Colorful steel board
	EPS (epispastics polystyrene) inside, 14kg/m³
	Roof panel: 0.7mm,galvanized
Door	Sheet metal luxury doors 3pcs with BIG WATCHING WINDOW 1.5MX550MM size: 3000(w)x2650(h)mm
	Emergency doors: 800(w)x2000(h)mm

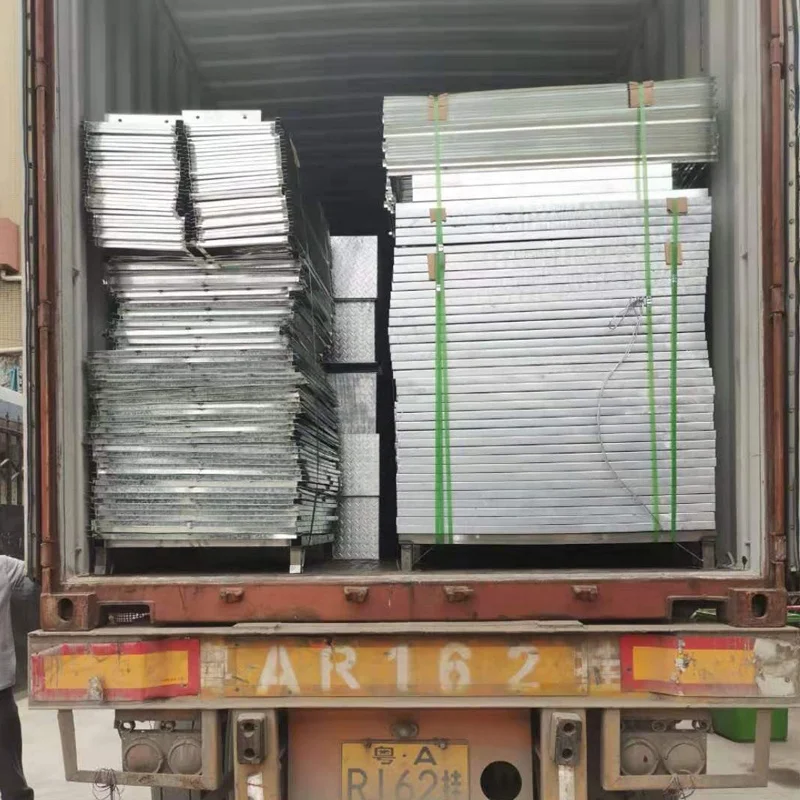

Foundation	Hot-dipped galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates . 2 pcs of ramps.

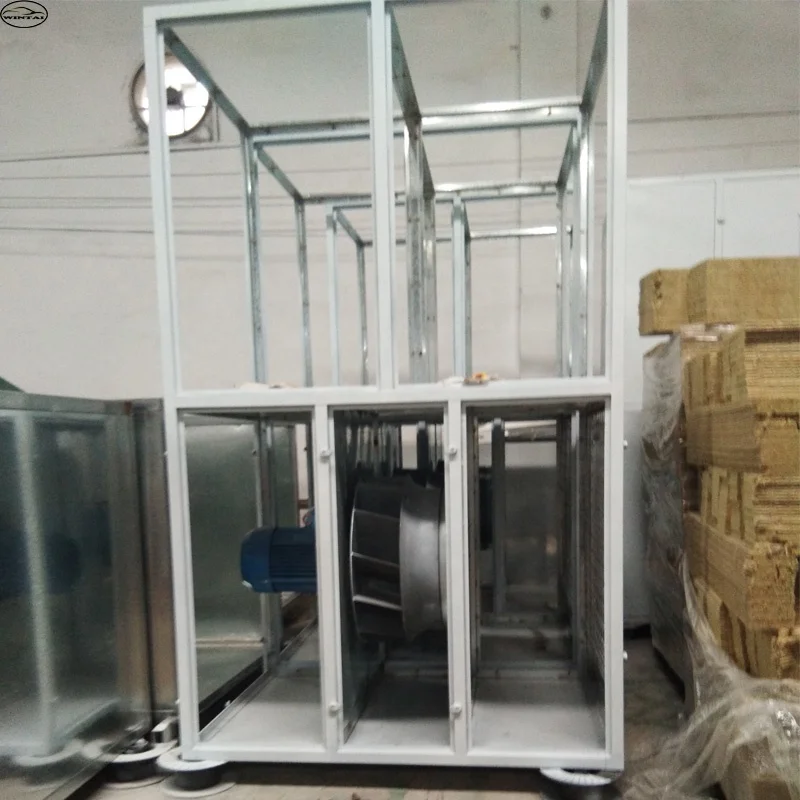

Air intake system	1x4KW European type large impeller intake fan, air flow is 18000m3/h. Motor is outside,easy for maintenance.
Air exhaust system	1x4KW European type large impeller intake fan, air flow is 18000m3/h.Motor is outside,easy for maintenance.
Heating System	I unit of Italy Riello G10 diesel burner, Max. temperature at 80.C. 6.  Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System	Ceiling lights: 8unitsx3pcs of 18W LED lamps,24pcs total
	Side lights: optional
Air Purification	Primary filter:  G2 grade
	Ceiling filter : 600g/m2, F5 grade
	Rear wall filter: multi-layer fiberglass filter
Control box	Function: Painting, constant temperature painting ,lighting, painting time  setting ;emergency stop switch, failure indication,







Factory direct:
