Покрасочная камера для автомобилей окрашенных поверхностей автомобиля покрытый меламином TG-80A мишень б/у кузова камеры окрашивания распылением
- Категория: Spray Booths >>>
- Поставщик: Yantai,Target,Electromechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.51 $* | 0.98 $* |
| Aug-15-2025 | 0.69 $* | 0.2 $* |
| Jul-15-2025 | 0.27 $* | 0.8 $* |
| Jun-15-2025 | 0.12 $* | 0.97 $* |
| May-15-2025 | 0.71 $* | 0.7 $* |
| Apr-15-2025 | 0.95 $* | 0.21 $* |
| Mar-15-2025 | 0.7 $* | 0.38 $* |
| Feb-15-2025 | 0.89 $* | 0.83 $* |
| Jan-15-2025 | 0.47 $* | 0.41 $* |
Характеристики
Product Description
Successful Cases

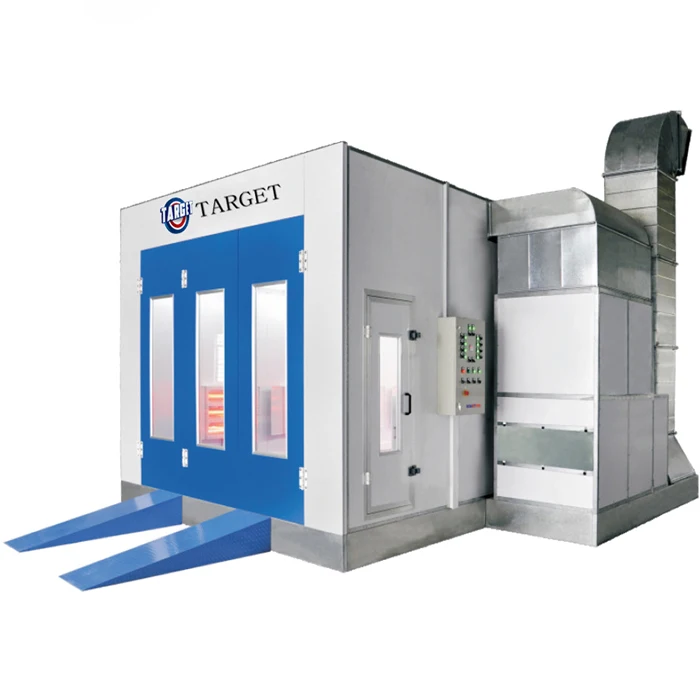

SPECIFICATIONS FOR TG-80A auto paint booth/car spraying oven/paint booth | ||
Inside Dimension | 6900*4000*2650 (LxWxH) | |
Outside Dimension | 7050*5560*3400 (LxWxH) | |
Main Door | 3-folds,3000*2600 mm(W×H) | |

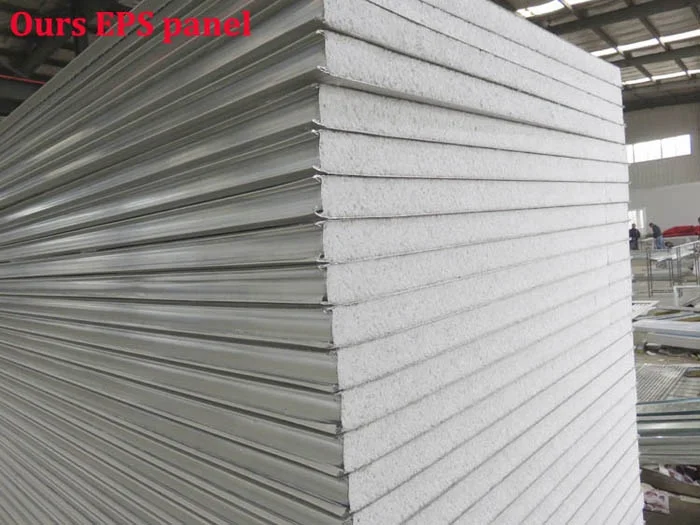

Wall Panels | EPS (epispastics polystyrene) colorful steel skin panel, EPS foam Density is 12kg/m³,50mm thick,steel 0.5mm thick, compound construction, anti-flame and heat-insulation, galvanized steel roof panel. | |
Basement and Floor | 300mm depth ,Galvanized steel sheet and square steel pipe assembling,2 rows of grid plates made by flat bar and round steel,3 rows of diamond plates, galvanized. 2 ramps, external setting, 750 x 2000 mm ( W * L )/pc | |

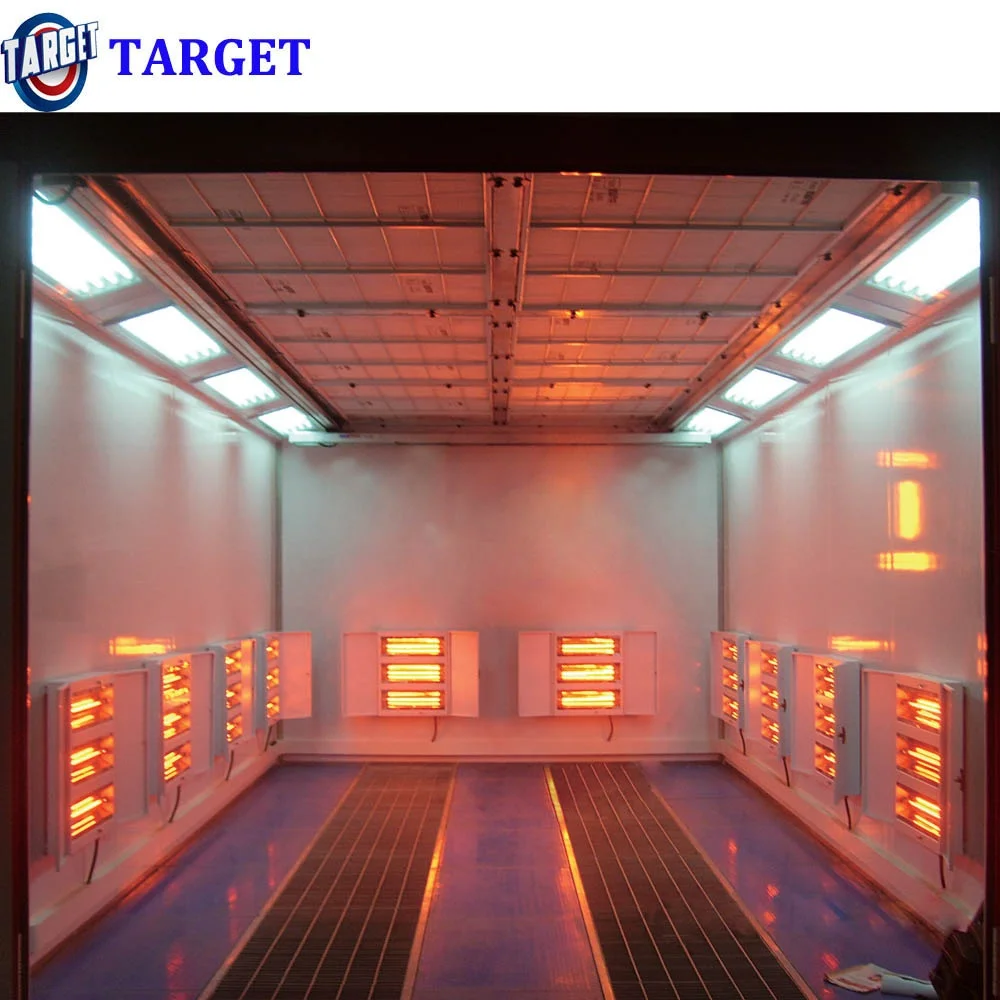

Heating System | 10 units infrared curing lamps for heating, 3pcs of each unit,1KW/pc. Total power:30KW. | |
Intake Air Fan | 1×7.5KW Double-intake centrifugal fan,air capacity:20000m³/h | |
Extract Air Fan | 1×5.5KW turbo fans,air capacity:15000m³/h | |
Lighting | Ceiling lights:8 units×4pcs×18w; 1200 LUX LED Side lights: 6 units×2pcs×18w 1200 LUX LED | |

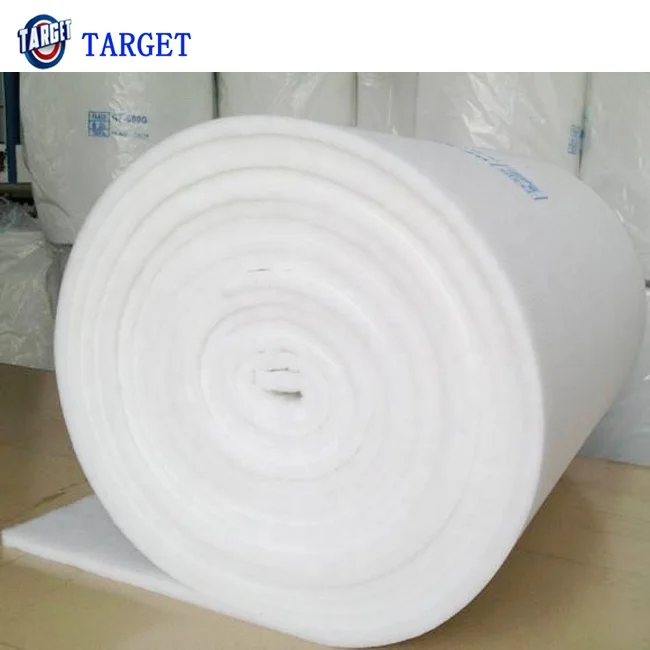

Purification System | Dual filtering structure Primary filter :Can Capture Granules ≥10μm Ceiling filter :600g high efficiency filter, can Capture Granules ≥4μm Floor filter: fiberglass filter,Filtering rate>98% | |
Control System | Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start. | |
Total Power | 44 Kw | |
Main Features
1) 2 years warranty
2) Effective filter system
3) 30 pcs of high quality infrared lamps for heating,fast baking and long working life.
4) Multi-Layer Fiberglasses Filter and active-carbon ensure a qualified exhaust according to the relevant state standards
5) 15 years experienced working team
6) Customized service
7) Life long technical support service
Detailed Images
Our Equipment
One Corner Of The Factory
Trade Shows
Certifications
Our Service
1. OEM ODM service.
2. Customized service: The color and size of the product can be customized.
3. Two Years Quality warrant service, during the period spare part supplied free if you pay for shipping.
4. Professional team supply service for life long time. Oversea service if need.
Why Choose TARGET Equipment
1. Easy way to submit the order , you can submit the order list in our website , after we get the list, we will issue the PI to you to save your time !
2. Warranty. All TARGET Equipment have two years warranty. Longlife time service. 15 years servce team.
3. Delivery time . Standard equipment 7 days , Truck /Bus equipment need customize,about 15--20 days after confirm the order
4. Payment term. T/T, L/C , Third-party credit insurance , etc.
5. Installation , we will supply full 3D drawing, CD after confirm the order ,that will easy for you to install the whole equipment .
6. Oversea service will supply if need.
Payment
1. T/T 30% deposit, 70% balance before shipping.
2. Western Union,
3. Money Gram ,
4. Alibaba Trade Assurance
5. other
Packing & Delivery
Our Company
Yantai TARGET Equipment is a professional Auto Repair Equipment and Environmental Equipment manufacturer in China. Have 15 years' experiences service team for customers , more than 10 engineers support for oversea services.Our main equipments include: Car Body Repair Equipment, Truck Repair Frame Machine, Car Spray Booth, Truck Spray Booth,Powder Coating Spray Booth, Powder Coating Curing Oven, Powder Coating Line , Sand Blast Unit .etc.
Contact Us
Yantai TARGET Electromechanical Equipment Co.,Ltd
Address: No.22 Shuhe Road ,YTEDZ, Yantai City, Shandong PR, China
Contact person: Anna Pang
Email: anna(AT)target66.com
Whatsapp: +86 156 1508 2593
Website: http://www.target66.com
