Характеристики



VR


Products Description

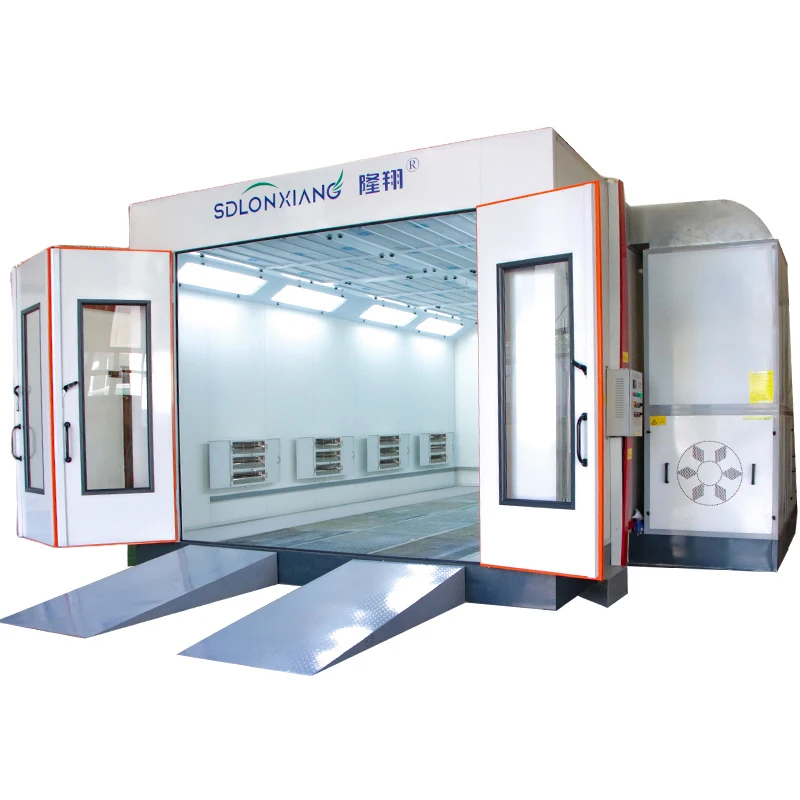

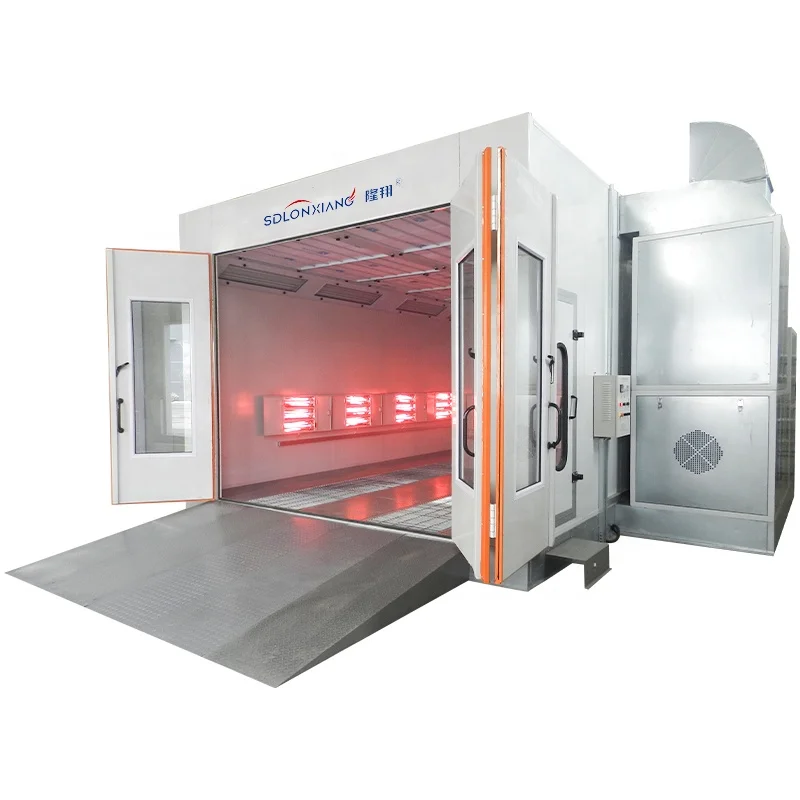

 LX-E2
Outside size
7000×5350×3400mm(L×W×H)
Inside size
6900×3900×2650mm(L×W×H)
Entrance door
3 folds，3000x2600 mm(W×H), bending steel door
Emergency door
650*2000mm(W*H),equipped with handle lock


Main System
Cabin system
Wall panel
-Sandwich style EPS 50mm,0.4mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel.
Basement
-Galvanized steel assemble,280mm high,with steel structure support,2 rows grills ,3 rows of diamond plates.
-2 ramps,external setting,620*2000mm(W*L)/pc
Ventilation system
Inlet fan
1*7.5kw turbo fans, each set air capacity:25000m³/h,
Direct drive.
Outlet fan
1*7.5kw turbo fans, each set air capacity:25000m³/h,
Direct drive.
Cabinet setting type
-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful.
-Cabinet for the fan*1unit ,air duct*2units.
-Elbow:90°*1 unit.
Airflow speed
On-load speed:0.4m/s,ventilation rate:320 times/h

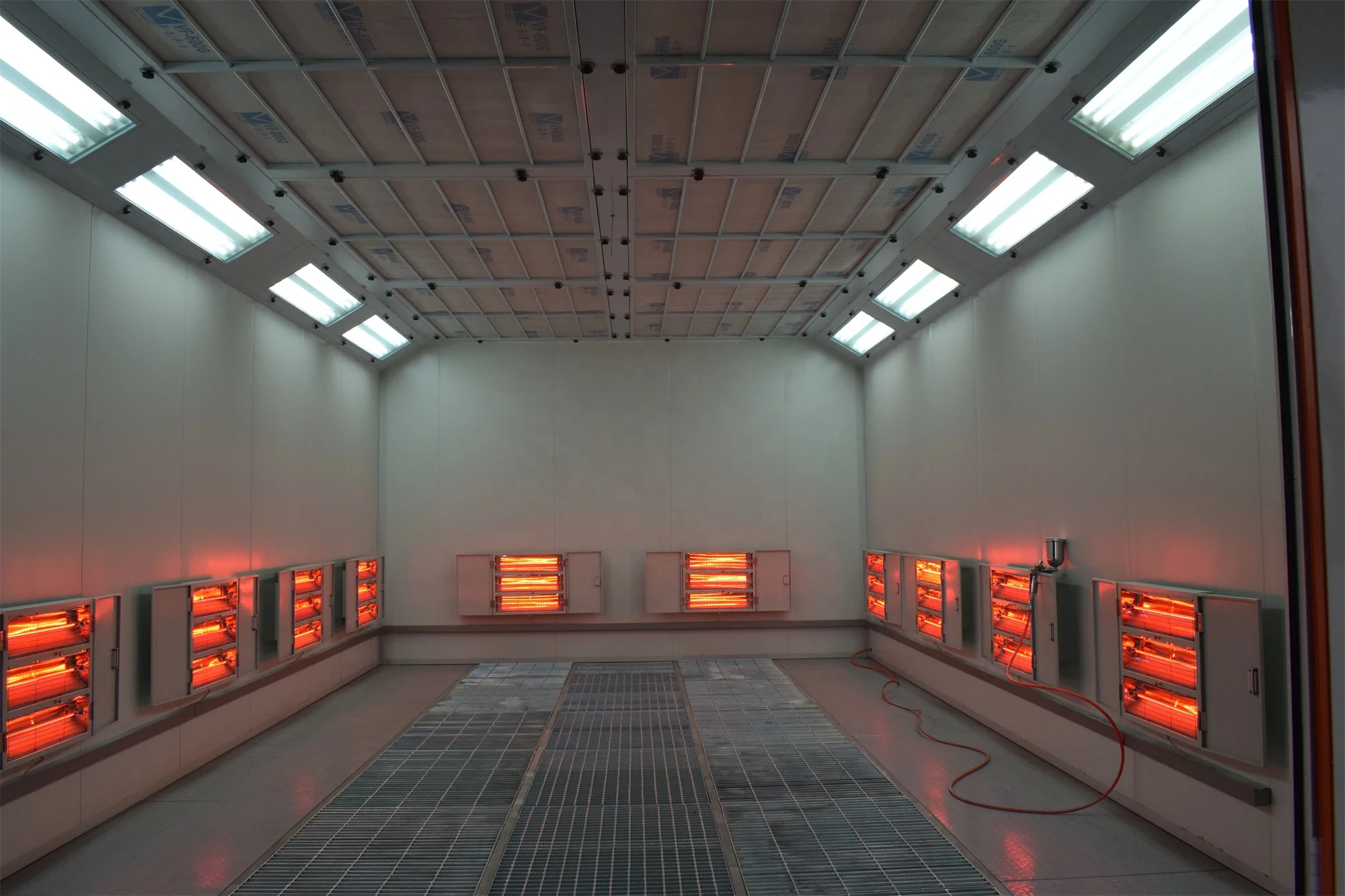

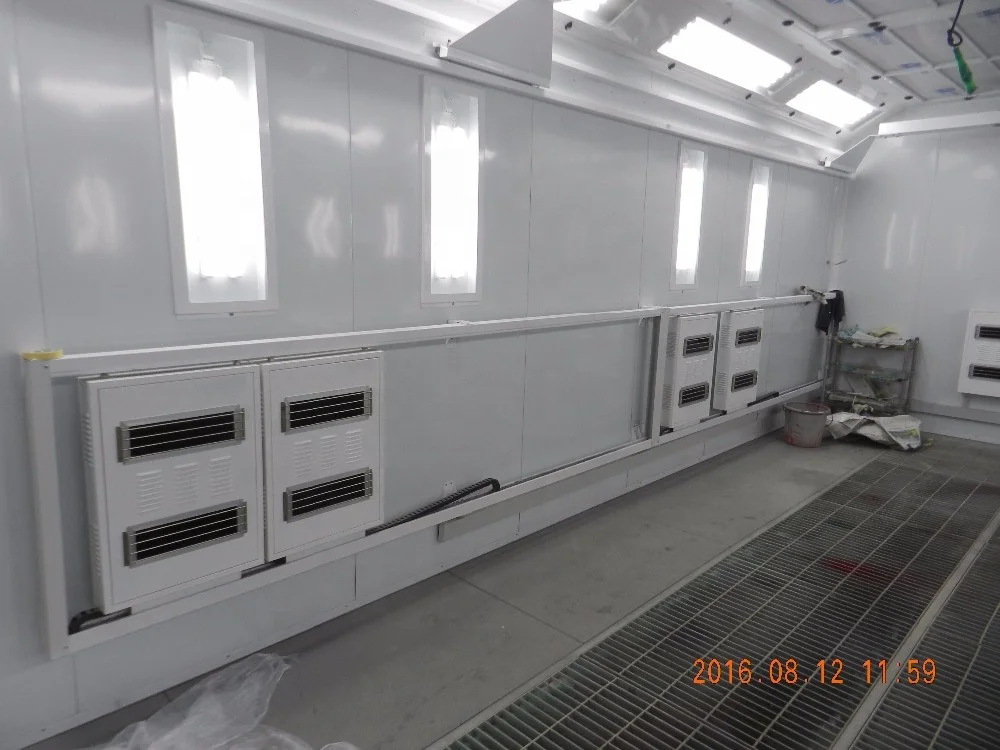

Heating system
Electric
Adopt High efficiency short wave infrared lamp,
10 sets of 3KW far-infrared lamp. Maximum operating temperature: 80℃.
Lighting system
Ceiling lights
8units*4pieces*16w LED Lighting
Side lights
Optional
Filtering system
Primary filter
Grade G2 plate type , filtering rate＞83%

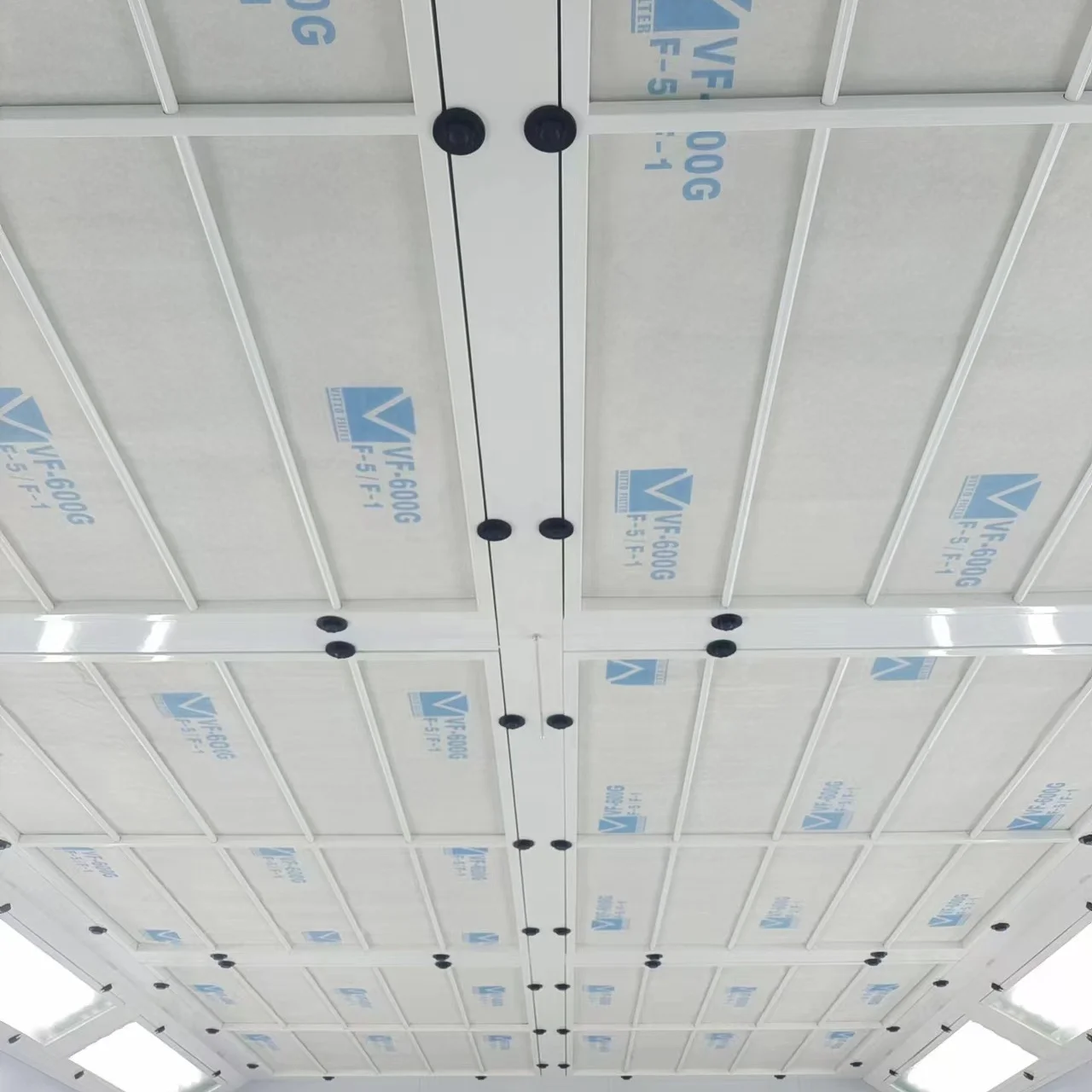

Ceiling filter
EU5 grade high efficient filter,filtering rate＞98%

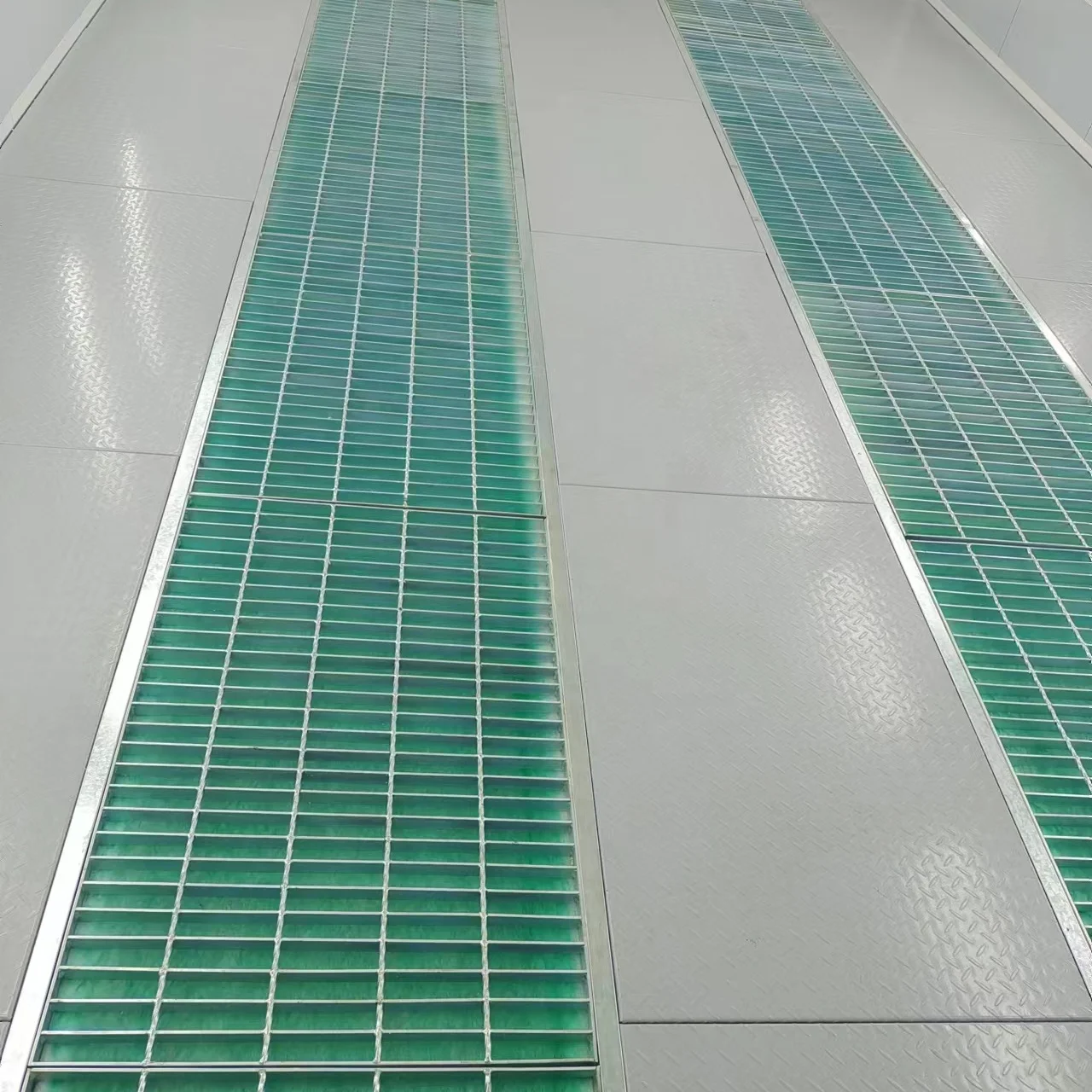

Floor filter
Multi-layer fiberglass filter,filtering rate＞70%
Control system
Control panel
Intelligent control system
Function
Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc
Total power
46.5 KW
Voltage/
frequency
380V,50HZ,3phase
