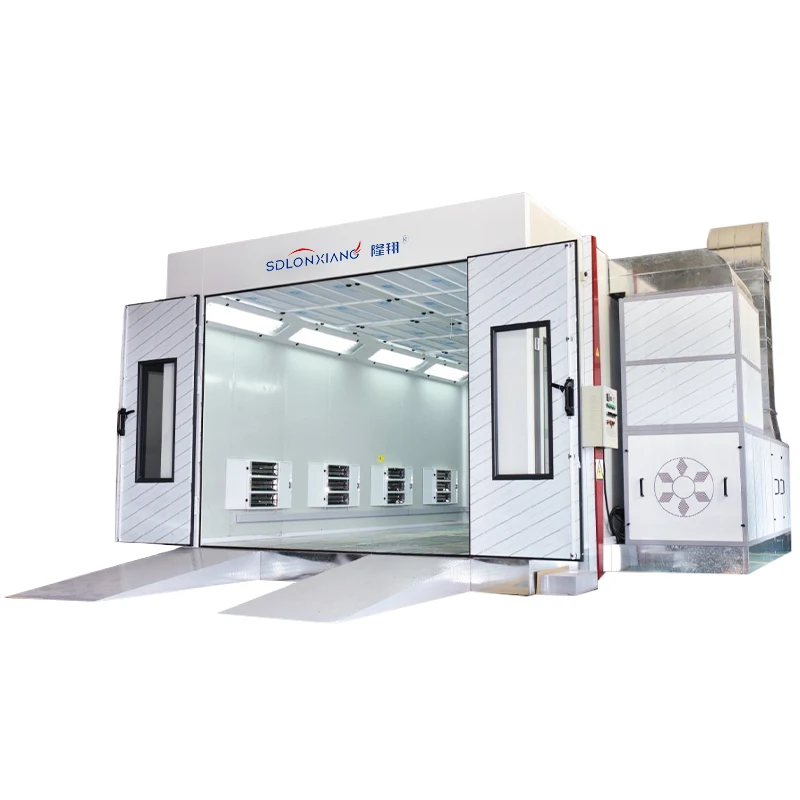

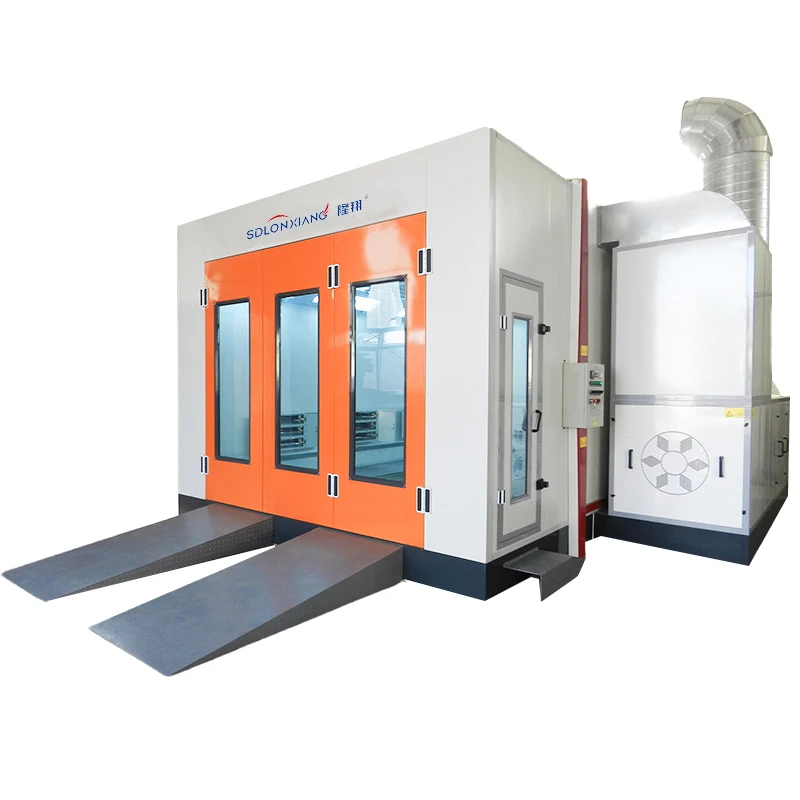

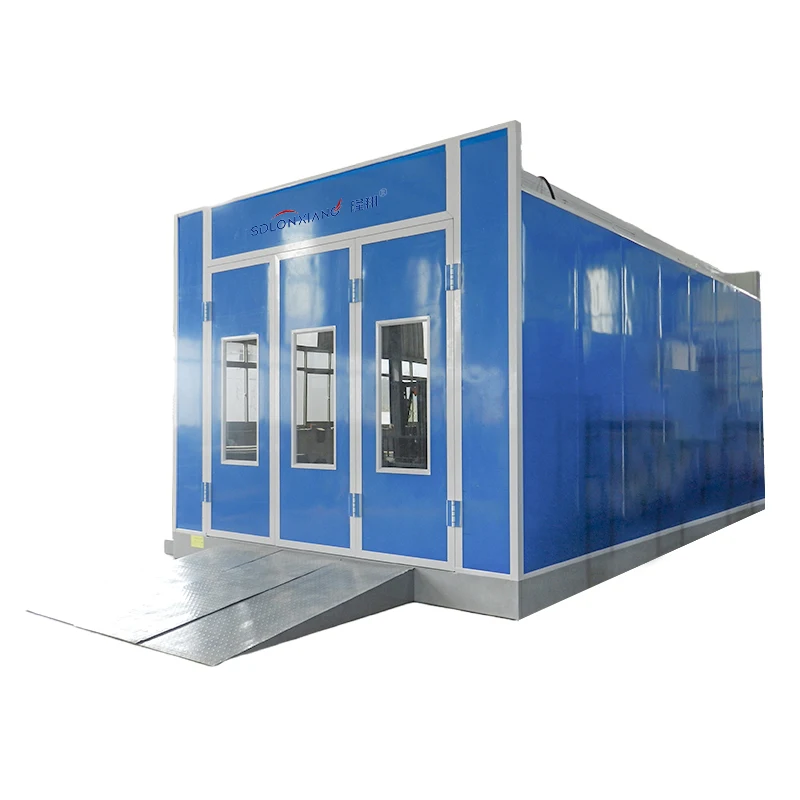

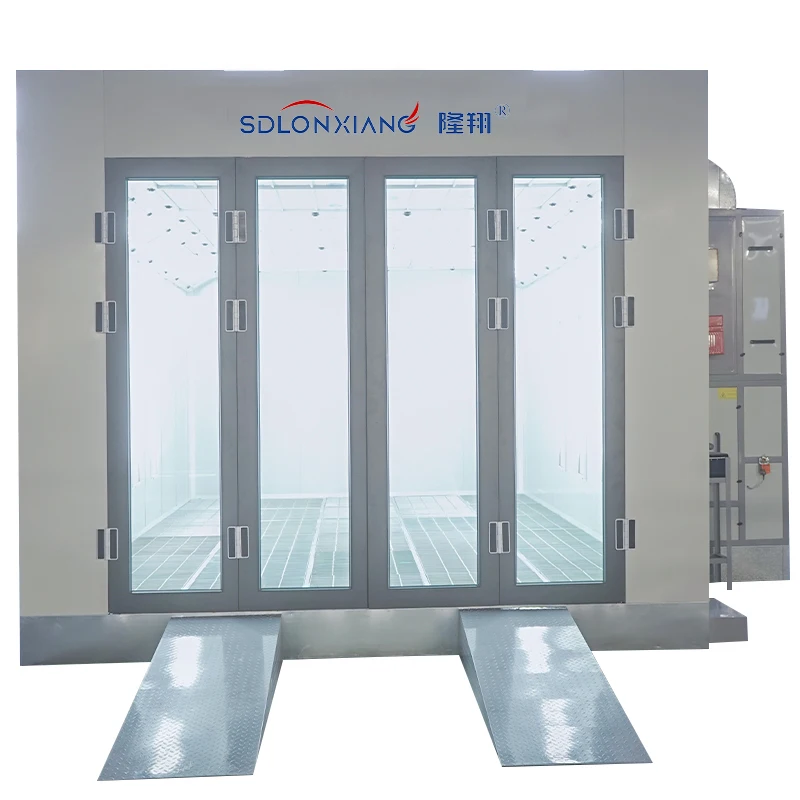

Покрасочная камера

Outside size: 7000*5200*3400 mm (L*W*H)

Inside size: 6900*3900*2650 mm (L*W*H)

Entrance door: 3 folds，3000x2600 mm(W*H),bending steel door,cast aluminum hinge, tempered glass window

Emergency door: 650*2000mm(W*H),with pressure lock，with glass window，with step

Cabin system

Wall panel

-Sandwich style rock wool 50mm,0.5mm thick steel, anti-flame and heat-insulation.
-High quality galvanized steel roof panel.

Basement

-Galvanized steel assemble,280mm high,quadrate steel support,3 rows of 30*5 grills,2 rows of indented plates.
-3 ramps,external setting,970*2000mm(W*L)/pc

Ventilation system

Inlet fan

2*4KW double-intake centrifugal fans, air capacity:12500m³/h for each set

Outlet fan

2*4KW double-intake centrifugal fans, air capacity:12500m³/h for each set

Cabinet setting type

-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful .
-910mm Air duct*2 units
-Elbow:90°*1 unit

Airflow speed

On load 0.3m/s,ventilation rate:315time/h

Heating system

Electricity

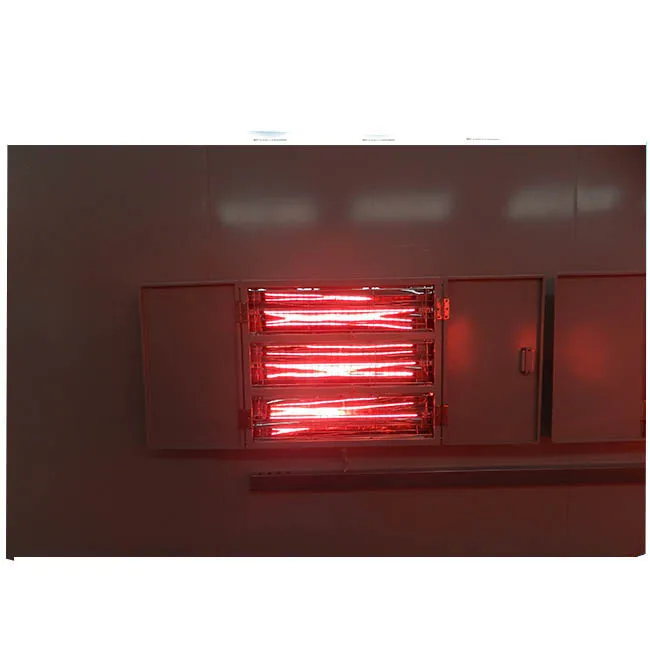

Quantum radiator heating method is adopted. On the top of the booth, there are 2 axially movable quantum radiators (3kw each), 4
axially movable radiators (2kw each) on both sides of the room, and 2 fixed radiators (2kw each) on the back wall , the total
power of the radiator is 26kW. Use group contactors to control in 4 groups. Maximum working temperature: 80°C, heating rate
(20-80°C): 15-20min。

Lighting system

Ceiling lights

8*4pcs*16w LED lighting

Side lights

8*2pcs*16w LED lighting

Filtering system

Primary filter

Grade G2 plate type , filtering rate＞83%

Ceiling filter

EU5 grade high efficient filter,filtering rate＞98%

Floor filter

Multi-layer fiberglass filter,filtering rate＞70%

Active carbon

Grade G4,purifying rate of dust≥85%

Control system

Control panel

Luxury Intelligent control system

Function

Painting, risen-temperature painting, baking, time setting, lighting, failure indication, thermostatic switch, power switch,
emergency stop

Total power

43 KW

Voltage/Frequency

380V 50HZ 3 phase
