Выходное напряжение 12v 24v не обладает водонепроницаемостью: водонепроницаемый светодиодный ультратонкий Встраиваемый потолочный светильник с драйвером тонкий источник
- Категория: Светодиодный драйвер >>>
- Поставщик: Shenzhen,Adled,Light,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.19 $* | 0.95 $* |
| Aug-16-2025 | 0.4 $* | 0.12 $* |
| Jul-16-2025 | 0.30 $* | 0.59 $* |
| Jun-16-2025 | 0.93 $* | 0.15 $* |
| May-16-2025 | 0.16 $* | 0.71 $* |
| Apr-16-2025 | 0.8 $* | 0.90 $* |
| Mar-16-2025 | 0.46 $* | 0.84 $* |
| Feb-16-2025 | 0.18 $* | 0.58 $* |
| Jan-16-2025 | 0.21 $* | 0.53 $* |
Характеристики
Output Voltage 12V 24V 60W 100W 150W 200W 300W LED Driver Ultra Thin LED Power Supply
Features
1. 60W/100W/150W/200W/300W
2. Output Voltage: DC12V/24V
3. Input Voltage: 170-264V AC 50-60Hz
4. Conversion Efficiency: 86%
5. Ripple Noise: <100mVp-p
6. Line Regulation: <1%
7. Load Regulation: <1%
8. Waterproof Grade: IP67
9. Working Temperature: -30~+50℃
10. Storage Temperature: -40~+80℃
10. Storage Temperature: -40~+80℃
11. Warranty: 3 years
12. Certificate: CE, RoHS, EMC, LVD

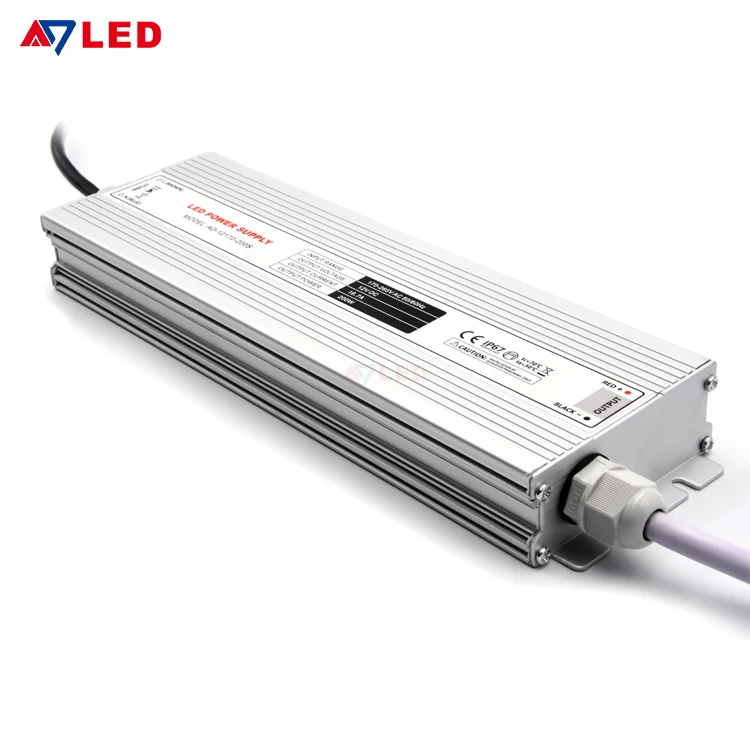

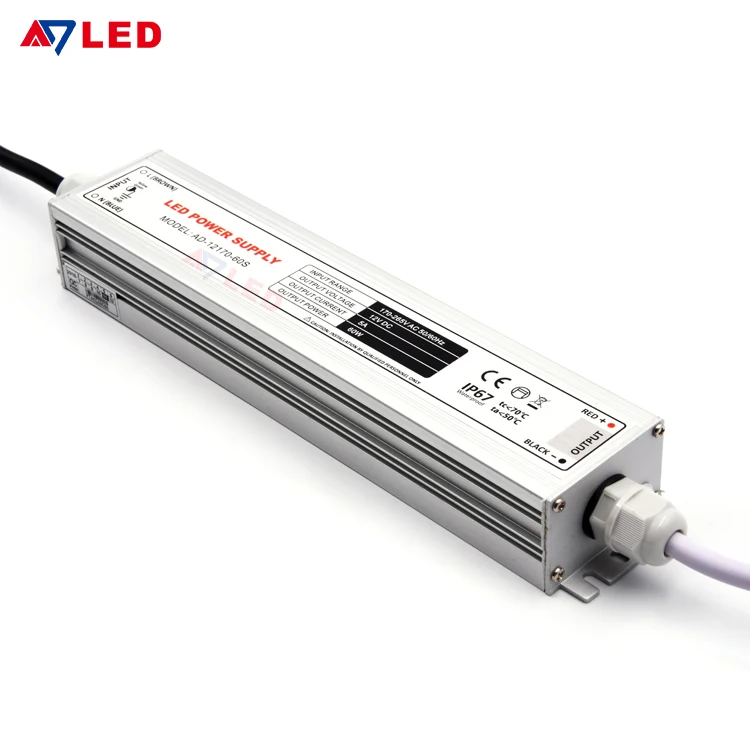

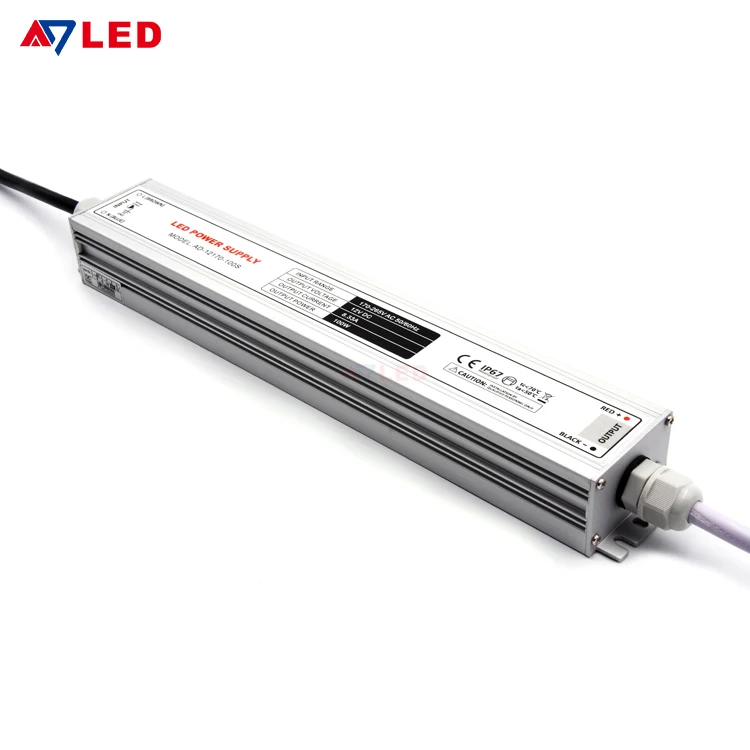

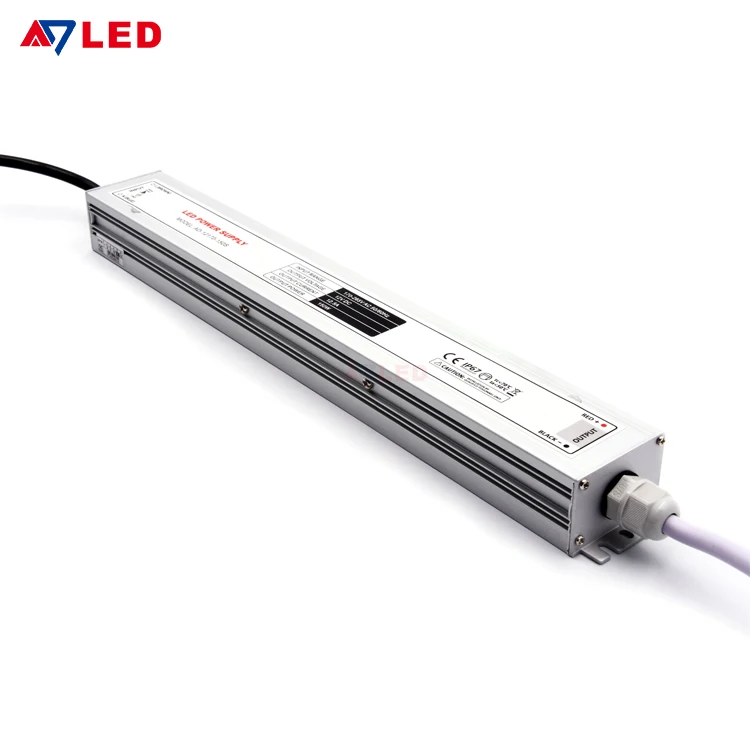

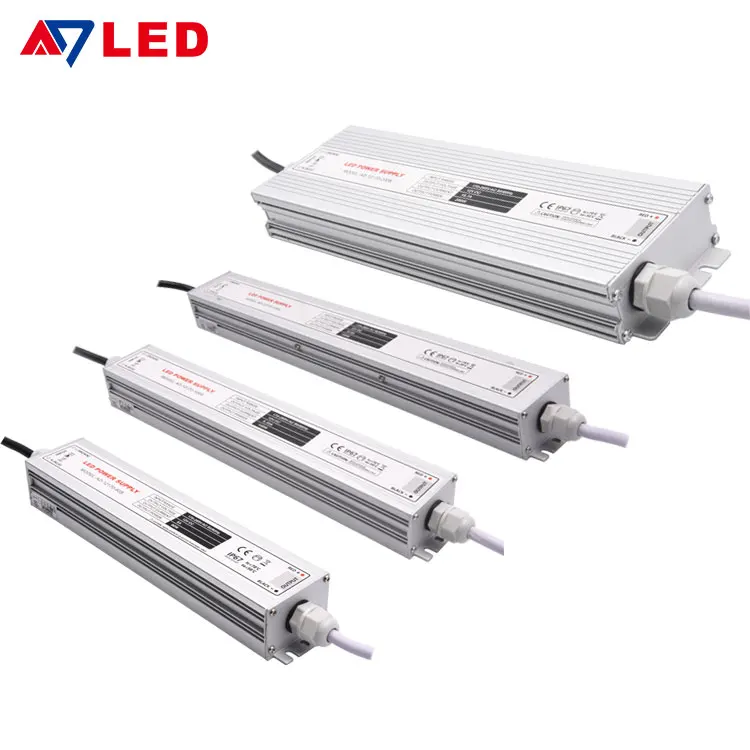

60W AC170-264V Waterproof LED Driver | ||||
Model | AD-12170-60S | AD-24170-60S | ||
Output voltage | DC12V | DC24V | ||
Rated power | 60W | 60W | ||
Output current | 5A | 2.5A | ||
Input voltage | 170-264V AC 50-60Hz | |||
IP grade | IP67 | |||
Dimension | L210*W42*H30mm | |||
100W AC170-264V Waterproof LED Driver | ||||
Model | AD-12170-100S | AD-24170-100S | ||
Output voltage | DC12V | DC24V | ||
Rated power | 100W | 100W | ||
Output current | 8.33A | 4.17A | ||
Input voltage | 170-264V AC 50-60Hz | |||
IP grade | IP67 | |||
Dimension | L260*W42*H30mm | |||
150W AC170-264V Waterproof LED Driver | ||||
Model | AD-12170-150S | AD-24170-150S | ||
Output voltage | DC12V | DC24V | ||
Rated power | 150W | 150W | ||
Output current | 12.5A | 6.25A | ||
Input voltage | 170-264V AC 50-60Hz | |||
IP grade | IP67 | |||
Dimension | L320*W42*H30mm | |||
200W AC170-264V Waterproof LED Driver | ||||
Model | AD-12170-200S | AD-24170-200S | ||
Output voltage | DC12V | DC24V | ||
Rated power | 200W | 200W | ||
Output current | 16.7A | 8.33A | ||
Input voltage | 170-264V AC 50-60Hz | |||
IP grade | IP67 | |||
Dimension | L264*W80*H31mm | |||
300W AC170-264V Waterproof LED Driver | ||||
Model | AD-12170-300S | AD-24170-300S | ||
Output voltage | DC12V | DC24V | ||
Rated power | 300W | 300W | ||
Output current | 25A | 12.5A | ||
Input voltage | 170-264V AC 50-60Hz | |||
IP grade | IP67 | |||
Dimension | L294*W80*H31mm | |||
1. 60W/100W/150W/200W/300W
2. Output Voltage: DC12V/24V
3. Input Voltage: 170-264V AC 50-60Hz
4. Conversion Efficiency: 86%
5. Ripple Noise: <100mVp-p
6. Line Regulation: <1%
7. Load Regulation: <1%
8. Waterproof Grade: IP20
9. Working Temperature: -30~+50℃
10. Storage Temperature: -40~+80℃
10. Storage Temperature: -40~+80℃
11. Warranty: 2 years
12. Certificate: CE, RoHS, EMC, LVD

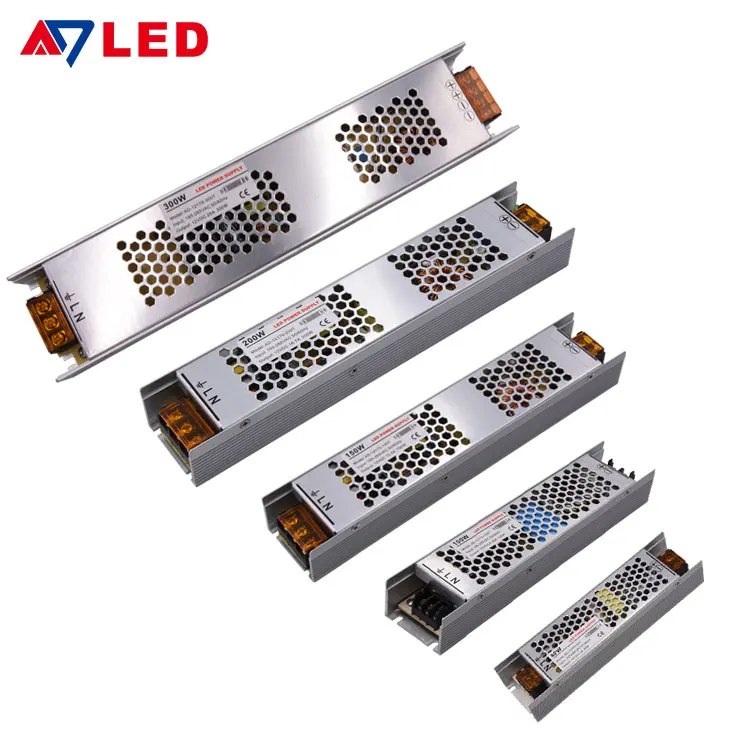

60W Non-waterproof LED Driver | ||||
Model | AD-12170-60T | AD-24170-60T | ||
Output voltage | DC12V | DC24V | ||
Rated power | 60W | 60W | ||
Output current | 5A | 2.5A | ||
Input voltage | 185-264V AC 50-60Hz | |||
IP grade | IP20 | |||
Dimension | L182*W46*H30mm | |||
100W Non-waterproof LED Driver | ||||
Model | AD-12170-100T | AD-24170-100T | ||
Output voltage | DC12V | DC24V | ||
Rated power | 100W | 100W | ||
Output current | 8.33A | 4.17A | ||
Input voltage | 185-264V AC 50-60Hz | |||
IP grade | IP20 | |||
Dimension | L219*W46*H30mm | |||
150W Non-waterproof LED Driver | ||||
Model | AD-12170-150T | AD-24170-150T | ||
Output voltage | DC12V | DC24V | ||
Rated power | 150W | 150W | ||
Output current | 12.5A | 6.25A | ||
Input voltage | 185-264V AC 50-60Hz | |||
IP grade | IP20 | |||
Dimension | L240*W46*H30mm | |||
200W Non-waterproof LED Driver | ||||
Model | AD-12170-200T | AD-24170-200T | ||
Output voltage | DC12V | DC24V | ||
Rated power | 200W | 200W | ||
Output current | 16.7A | 8.33A | ||
Input voltage | 185-264V AC 50-60Hz | |||
IP grade | IP20 | |||
Dimension | L240*W46*H30mm | |||
300W Non-waterproof LED Driver | ||||
Model | AD-12170-300T | AD-24170-300T | ||
Output voltage | DC12V | DC24V | ||
Rated power | 300W | 300W | ||
Output current | 25A | 12.5A | ||
Input voltage | 185-264V AC 50-60Hz | |||
IP grade | IP20 | |||
Dimension | L284*W60*H30mm | |||
Applications
This LED driver can be used in all kinds of outdoor led lights
FAQ
1. What is MOQ?
We can support you any quantity, including the samples order.
2. Can I get free samples?
Yes, we are glad to send you one type sample or mixed types samples.
3. What is delivery time?
For our hot products, we have in stock. Other products takes around 5-7days.
4. Can I also buy LED Power supply from you?
Yes, we are one stop solution provider of illuminated advertising signs, we can supply Mean Well led power
supply and other led transformers.
5. How can I get the best solution for light box?
Please advise your channel letter or light box size to our sales, they will send you the best solution for illuminated signs
within 24 hours.
We can support you any quantity, including the samples order.
2. Can I get free samples?
Yes, we are glad to send you one type sample or mixed types samples.
3. What is delivery time?
For our hot products, we have in stock. Other products takes around 5-7days.
4. Can I also buy LED Power supply from you?
Yes, we are one stop solution provider of illuminated advertising signs, we can supply Mean Well led power
supply and other led transformers.
5. How can I get the best solution for light box?
Please advise your channel letter or light box size to our sales, they will send you the best solution for illuminated signs
within 24 hours.
