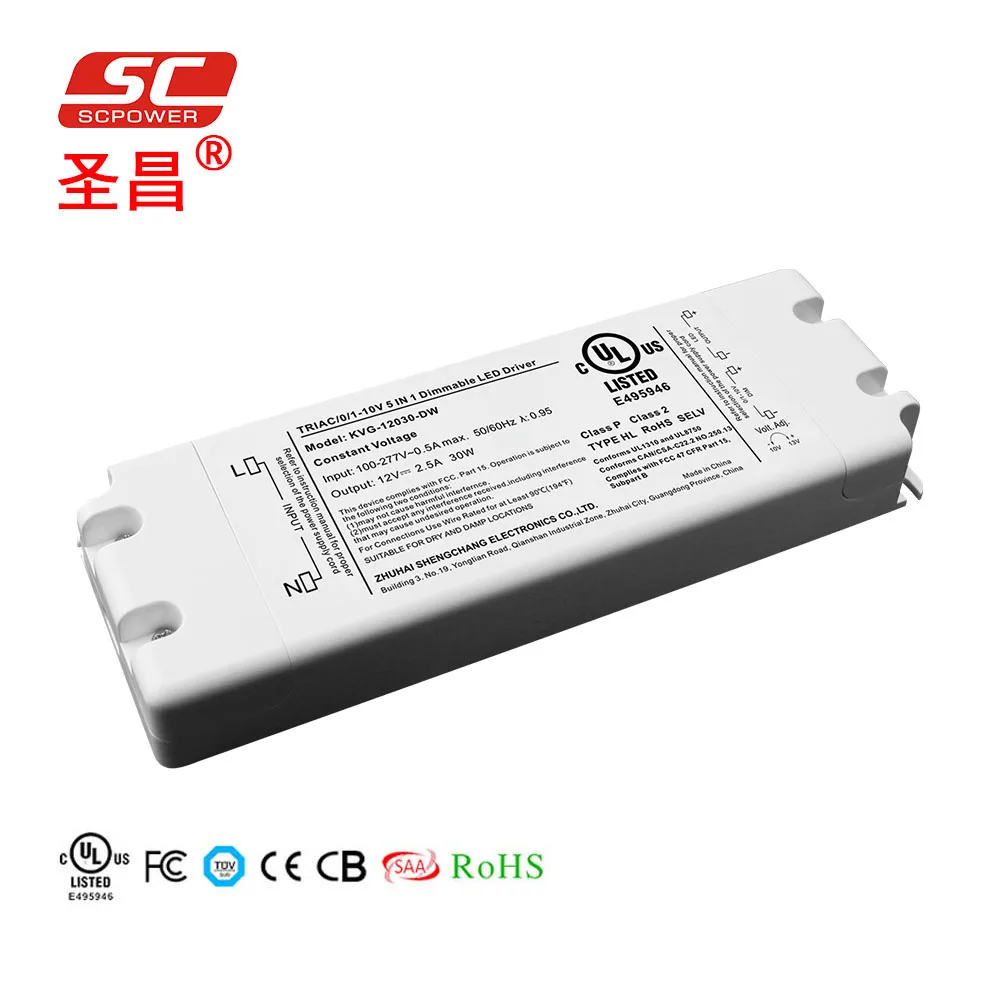

5 в 1 Диммируемый светодиодный драйвер 20 кГц 12 В 24 постоянного тока 30 Вт 60 100 120 150 200 300 360
- Категория: Светодиодный драйвер >>>
- Поставщик: Zhuhai,Shengchang,Electronics,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 52.73 $* | 53.15 $* |
| Jul-16-2025 | 42.19 $* | 43.88 $* |
| Jun-16-2025 | 51.77 $* | 52.99 $* |
| May-16-2025 | 51.57 $* | 52.72 $* |
| Apr-16-2025 | 41.51 $* | 42.85 $* |
| Mar-16-2025 | 50.19 $* | 51.75 $* |
| Feb-16-2025 | 50.86 $* | 51.83 $* |
| Jan-16-2025 | 49.19 $* | 50.4 $* |
Характеристики
Factory live-stream

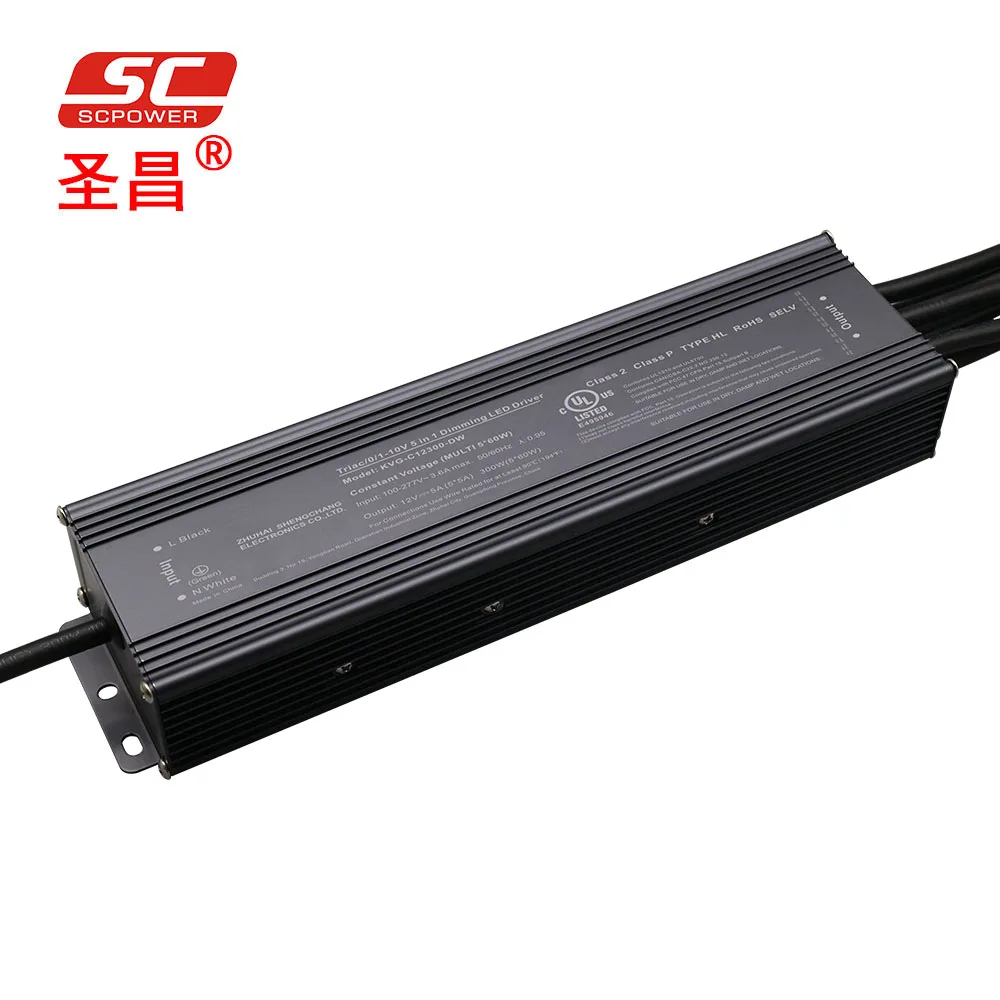

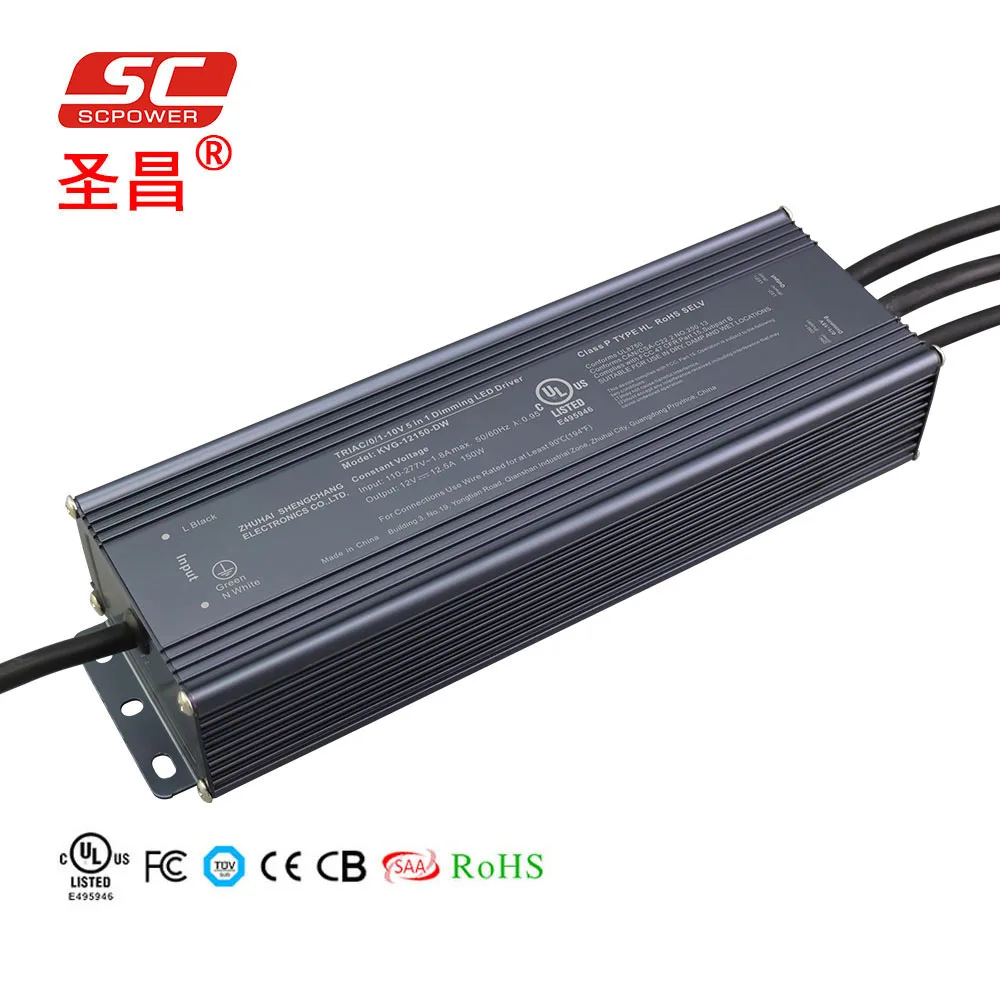

High PWM 20KHz 12V 24V DC 30W 60W 100W 120W 150W 200W 300W 360W 384W 5 in 1 Dimmable LED Driver for 5 years
Features:
·Output constant Voltage
·Range: 100-277VAC
·Built-in active PFC function
·Efficiency up to 86%
·Protections: short circuit/over load/ over temperature
·Cooling by free air convection
·Full protection aluminum housing, for dry, damp, wet locations
·Dimming function:
·Phase dimming: work with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
· Dimming range: 0-100%
· Suitable for LED lighting and moving sign applications
Specification:

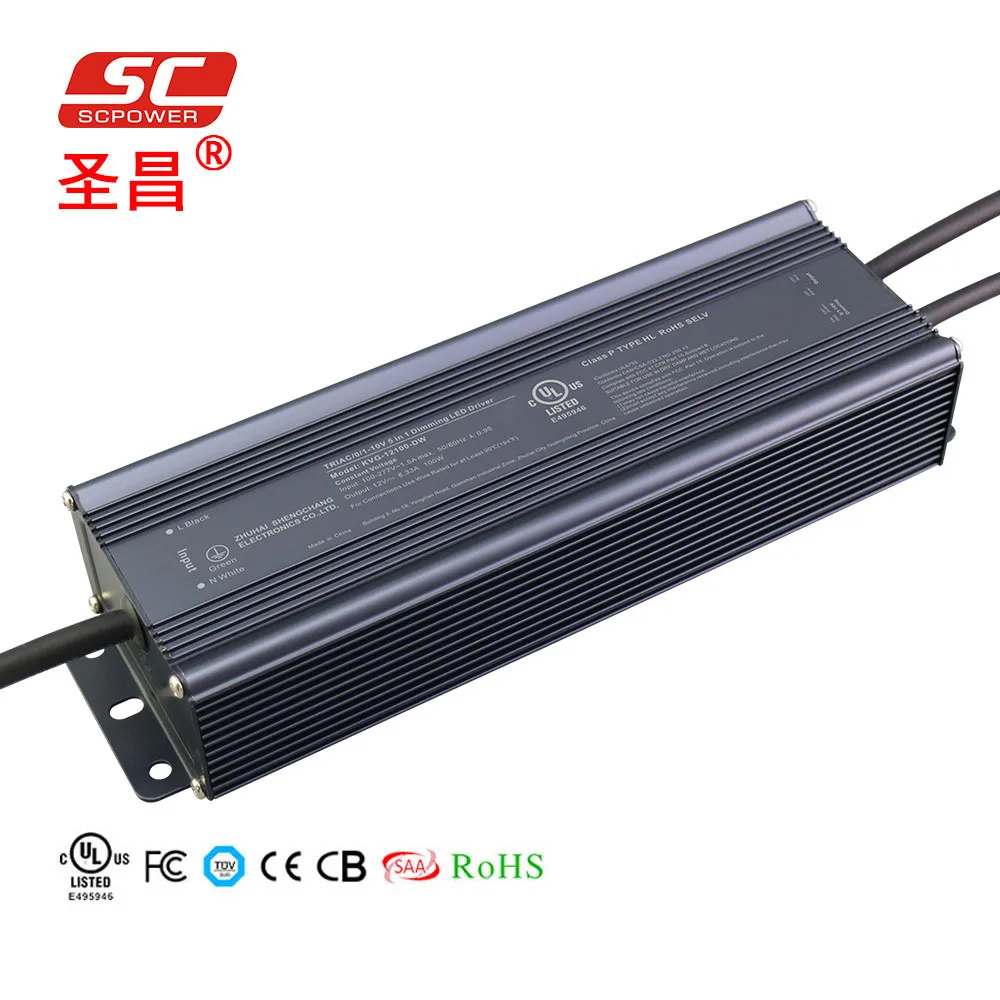

Model | KVG-12100-DW | KVG-24100-DW | |
Certificates | FCC UL cUL | ||
Output | DC Voltage | 12V | 24V |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Rated current | 8.33A | 4.17A | |
Rated power | 100W | ||
Load Regulation | ±1 % | ||
Input | Voltage Range | 100-277VAC | |
Frequency Range | 47 - 63Hz | ||
Power Factor(Typ.)@ full load | 0.99@120VAC 0.96@277VAC | 0.98@120VAC 0.95@277VAC | |
THD(Typ. ) @ full load | <20%@120VAC &277VAC | ||
Efficiency(Typ.)@ full load | 80%@120VAC 83%@277VAC | 83%@120VAC 86%@277VAC | |
AC Current(Max.) | 1.4A | ||
Inrush Current (Typ.) | 20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC | ||
Leakage current | <0.5mA | ||
Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
Over Load | ≤120% constant current limiting, auto-recovery | ||
Over temperature | 100℃±10℃ shut down o/p voltage, automatically recover after cooling. | ||
Others | Net Weight | 1.1Kg | |
Dimension | 230*70*43mm(L*W*H) | ||
packing | 340*275*170mm 10pcs /CTN | ||
Notes | 1. All parameters NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||
