Постоянный ток Входное AC90-265V выход DC12-48V 260mA-900mA затемнения 4 зоны DIY регулировка яркости светодиодный
- Категория: Светодиодный драйвер >>>
- Поставщик: Shenzhen,Hoion,Lighting,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 21.77 $* | 22.42 $* |
| Aug-16-2025 | 21.23 $* | 22.24 $* |
| Jul-16-2025 | 18.10 $* | 19.27 $* |
| Jun-16-2025 | 21.5 $* | 22.21 $* |
| May-16-2025 | 18.18 $* | 19.8 $* |
| Apr-16-2025 | 21.25 $* | 22.62 $* |
| Mar-16-2025 | 20.41 $* | 21.21 $* |
| Feb-16-2025 | 20.93 $* | 21.80 $* |
| Jan-16-2025 | 20.76 $* | 21.95 $* |
Характеристики
Product Description

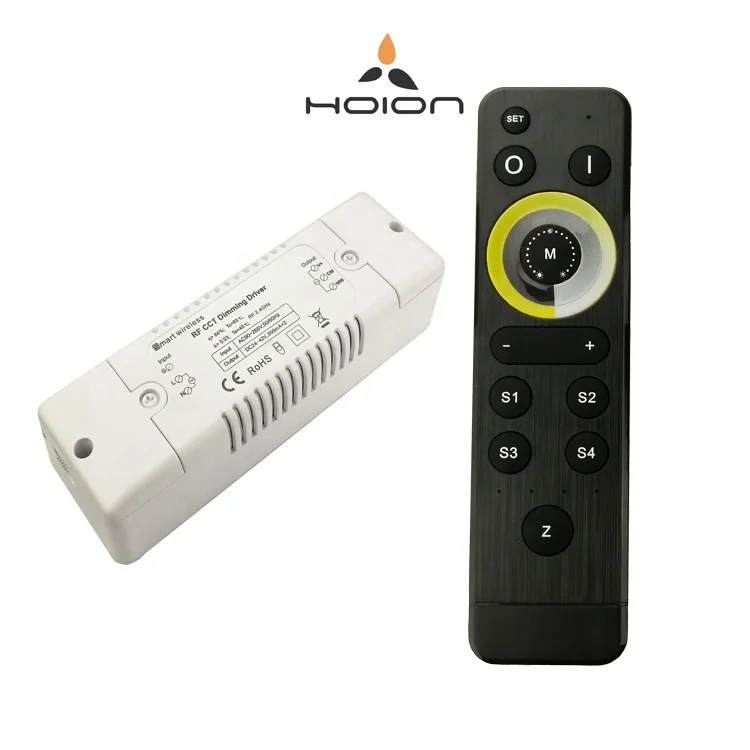

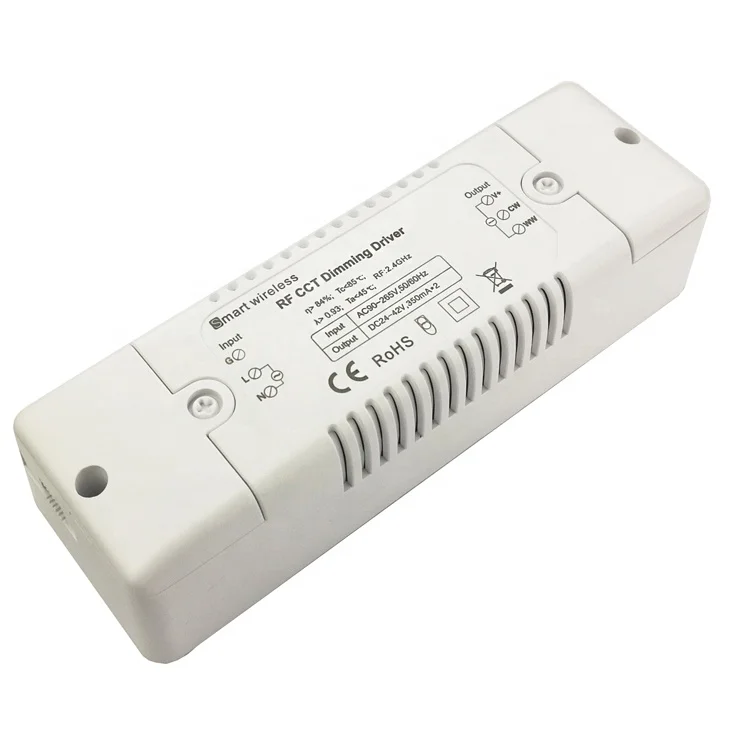

Constant Current Input AC90-265V Output DC12-48V 260mA-900mA Dimming 4 Zone DIY CCT LED Driver
HCBT10-38-090
Driver Feature
1)Isolated driver
2)Adopting advanced PWM technology
3)Higher efficiency, high PF, non-flicker
5)High-quality delicate & soft dimming effect(4096 level)
6)2.4GHz wireless remote control, Air Self-inspection Sync control
7)Compatible with Freelighting APP control system, achieve WIFI intelligent control by your mobile phone.
8)Designed for constant current CW+WW LED Light Fixtures: like LED panel, LED ceiling lamps, LED down light etc.
9)Widely used for intelligent household/commercial indoor lighting, like mall, hotel, office indoor lighting design.
10)3 years warranty
Technical Parameters
Electrical performance tests based on condition of ambient temperature:25 ° C ± 10%, and 230VAC / 50HZ input | ||
Factor | Index | 38W |
Input | Voltage range | 90-264VAC |
Frequency range | 47-63Hz | |
Rated Current | 0.23A(full load) | |
Surge current | <50A | |
Standby power | ≤1.3W | |
Efficiency | >85%( full load) | |
Power factor(PF) | ≥0.91 | |
Port | Three lines input(L/N/FG) | |
Output | No-Load Voltage | 53V |
Voltage range | 18V-42VDC | |
Led string | 6-12 LEDs | |
Rated Current | 650mA-900mA | |
Maximum power supply | 38W(CW+WW) | |
Current Accuracy | ±5% | |
PWM frequency | 3KHz | |
Dimming level | 4096 | |
Dimming range | 2-100% | |
Camera effect | non-flicker | |
Port | Three lines output, common anode | |
Reliability | Power supply solution | isolated power supply |
Life time | 31000hours( based on work environment temperature 25℃±10%,230VAC input,Maximum power load,Case temperature 72℃) | |
Warranty | 3years | |
Safety and EMC | CE-LVD | EN61347-1,EN61347-2-13 |
CE-EMC | EMI(EN55022,EN61000-3-3) EMS(EN55024,EN61000-4-2,3,4,5,6,11) | |
Others | Frequency of RF remote control | 2.4GHz |
Remote control distance | 30m | |
Memory function | Yes | |
G.W | 165g | |
Product dimensions | L135*W45*H31mm | |
Packing dimensions | L140*W48*H35mm | |
| Remark | the sum current of two channels for CCT driver don’t exceed the maximum value of single channel current, that is, the maximum brightness is : 50%CW+50%WW. |

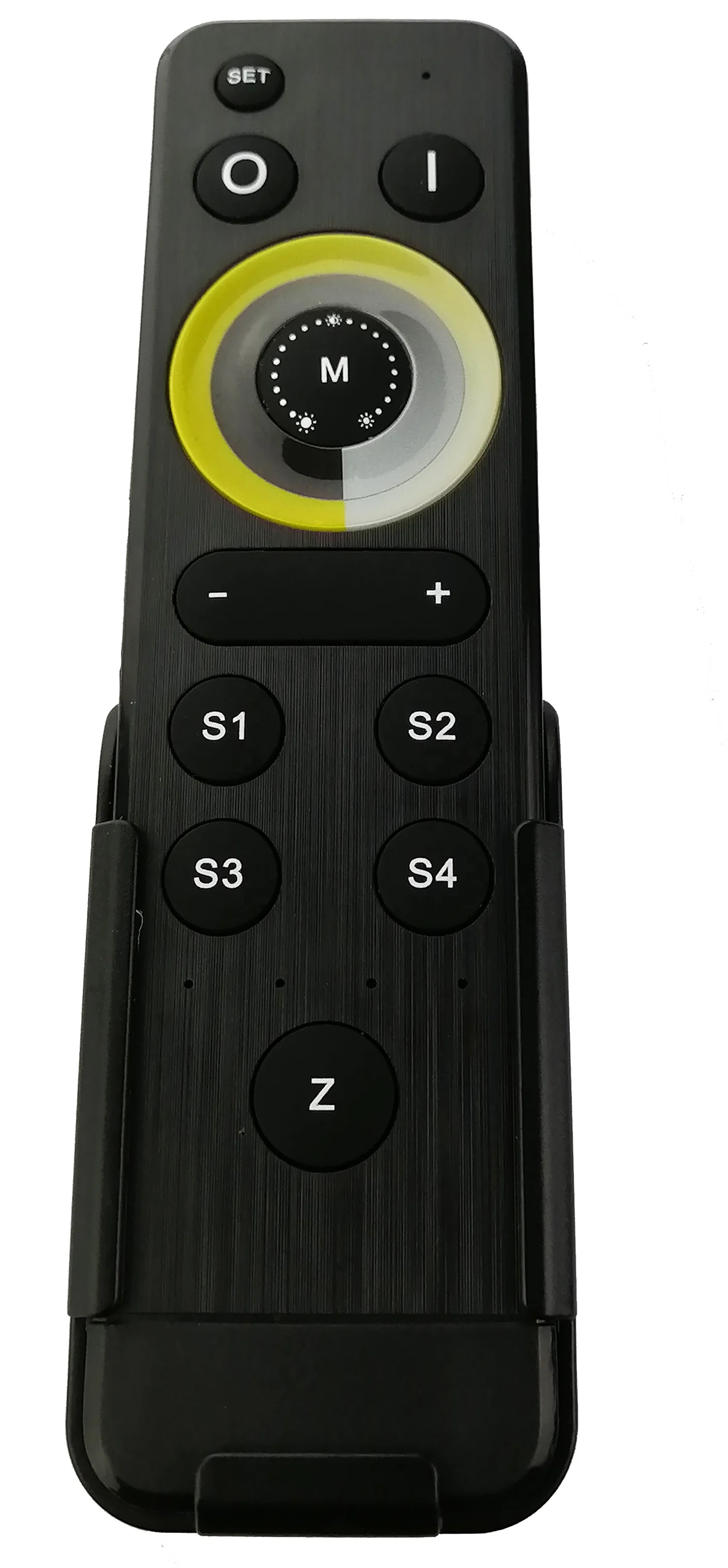

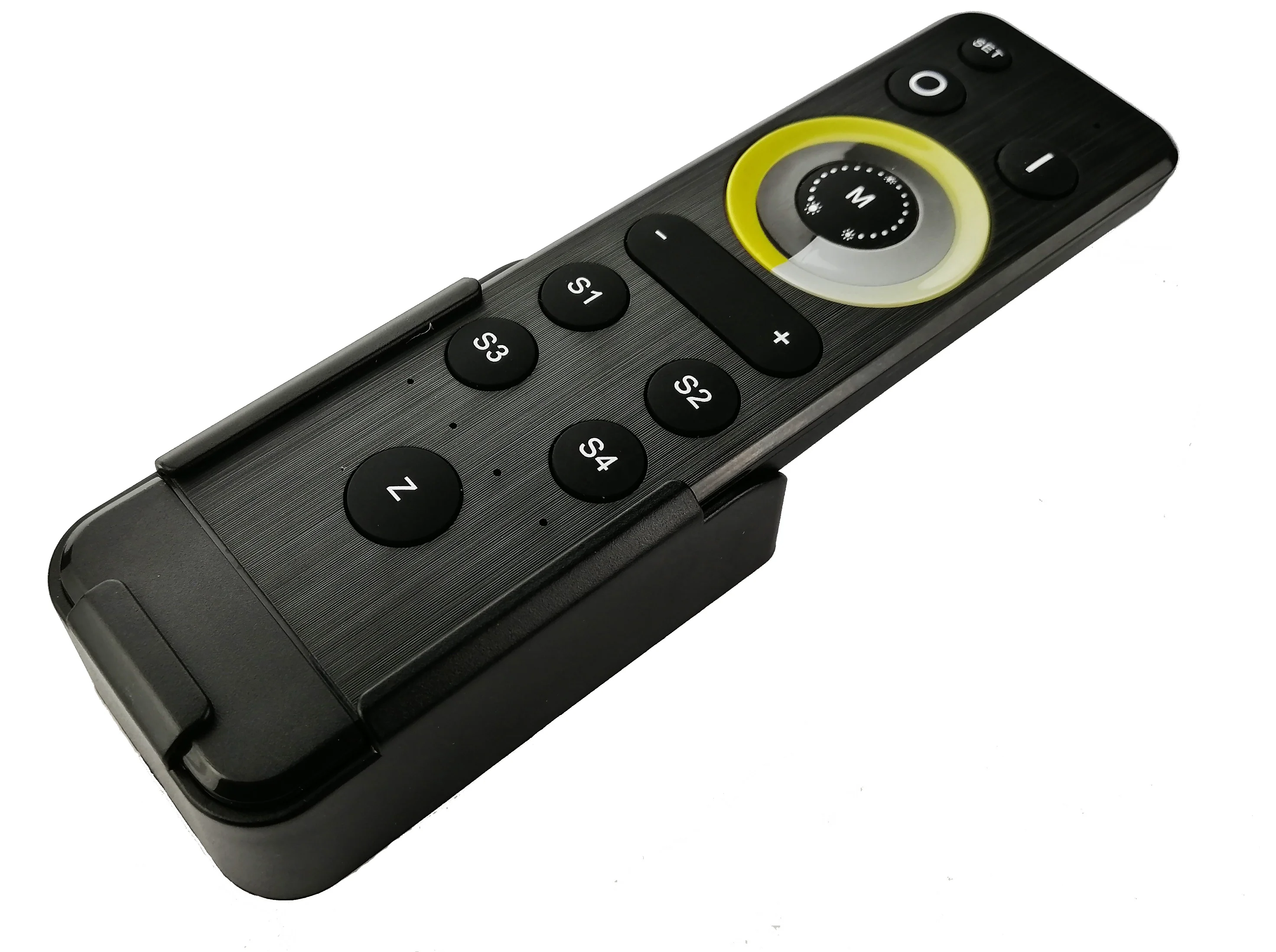

Remote Technical Parameters
Working temperature | -20-60℃ | Working voltage | 3V (AAA*2PCS) |
Sleep current | <25uA | Emission current | <30mA |
Sleep power consumption | <75uW | Emission power consumption | <90mW |
Net weight | 55g | Dimension | L148*W40*38 (mm) |
RF distance | ≤30m | RF frequency | 2.4GHz |
Accessories | Remote control rack, 3M foam sponge glue, M4 double-headed self-tapping screws, φ6 expansion tube, battery, manual | ||

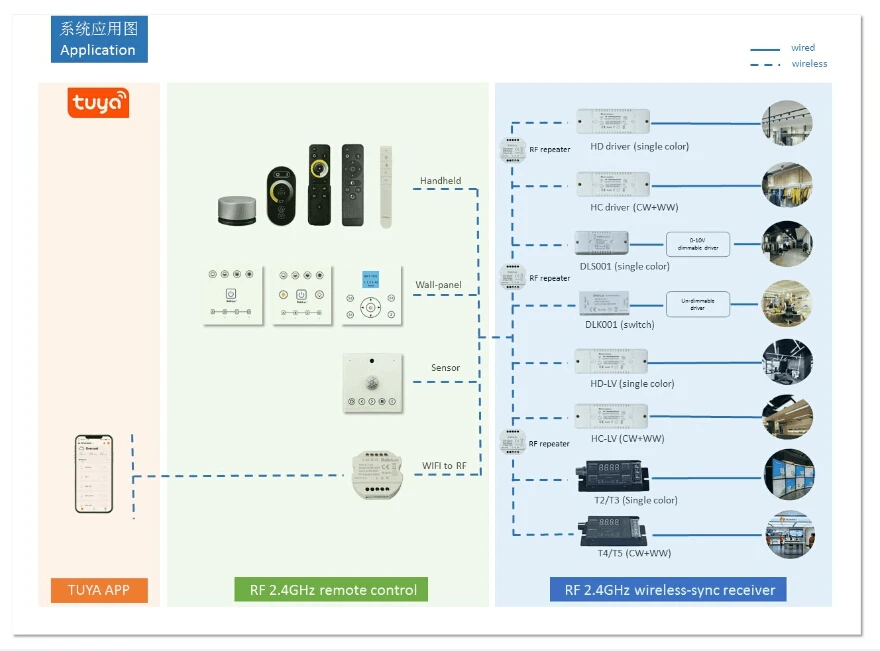

Typical Applications(Support wireless-sync-control,1 remote to multiple drivers)

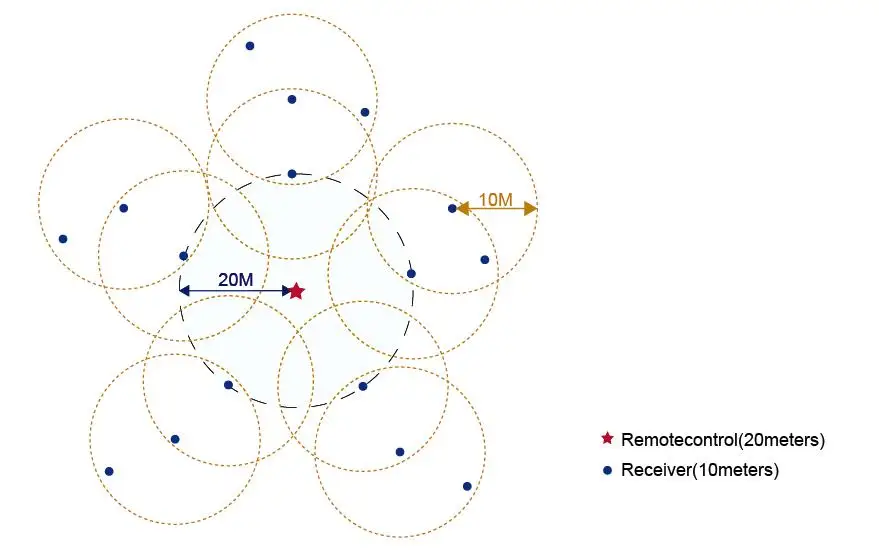

No Limited Wireless Synchronous Control:
