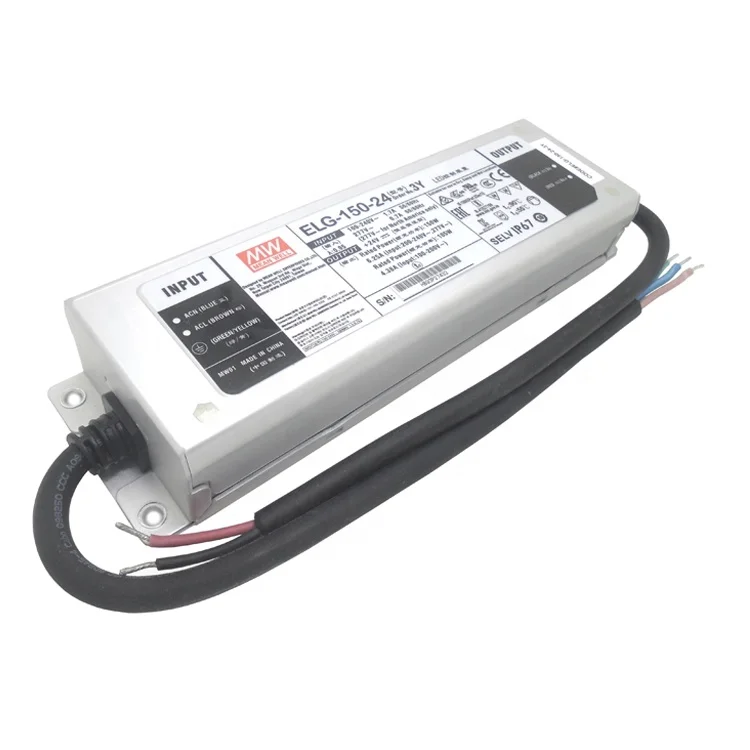

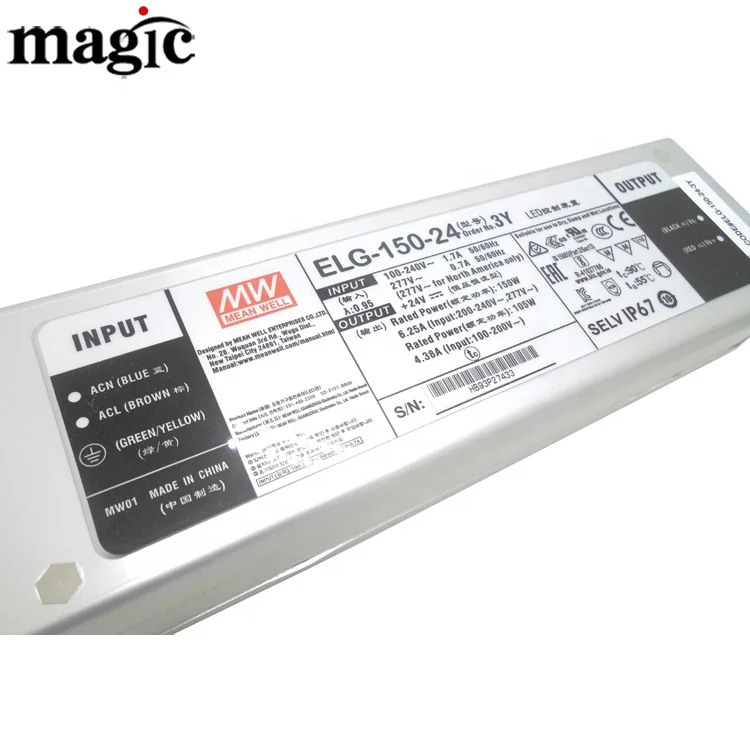

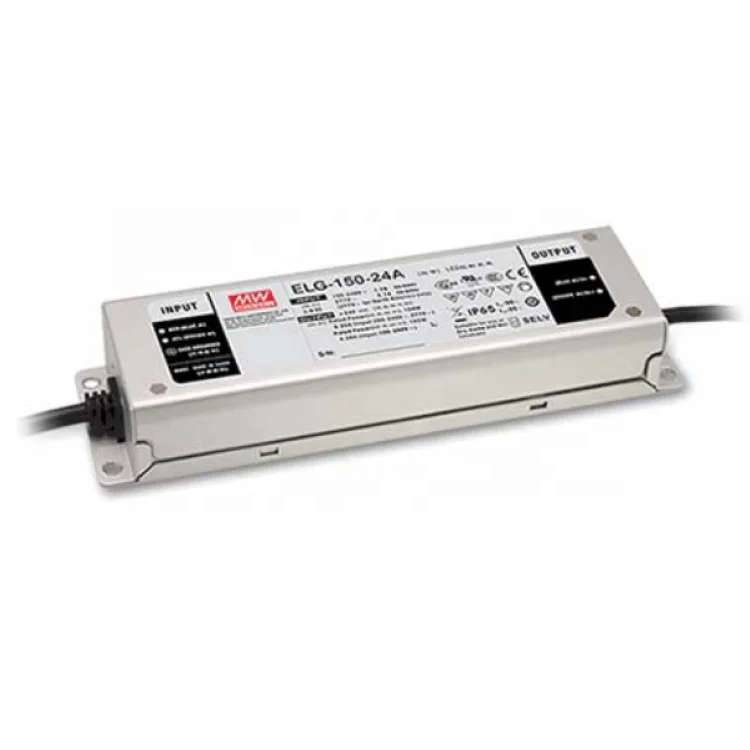

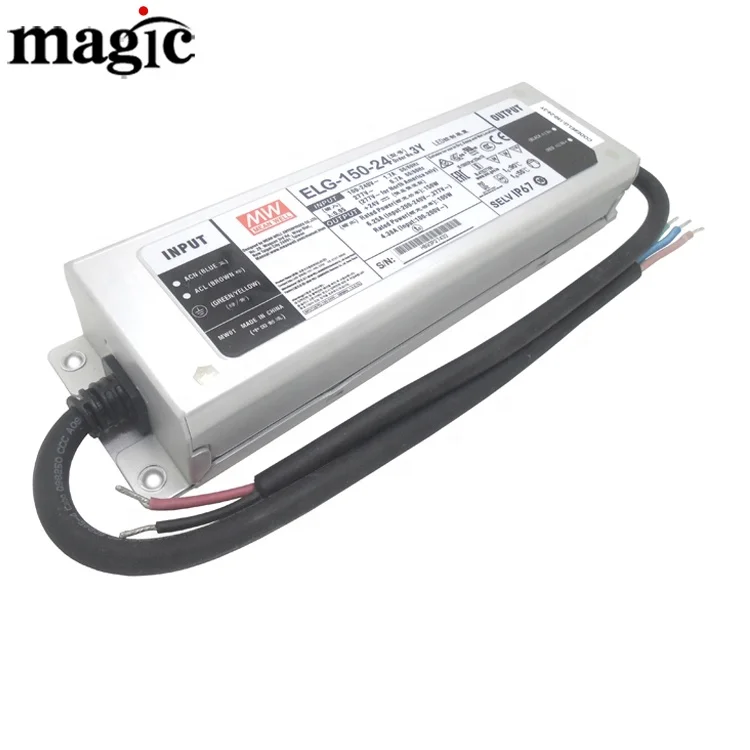

ELG 150 24 водонепроницаемый источник питания Meanwell Вт
- Категория: Светодиодный драйвер >>>
- Поставщик: Shenzhen,Magic,Led,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 34.24 $* | 35.0 $* |
| Jul-18-2025 | 28.87 $* | 29.25 $* |
| Jun-18-2025 | 34.83 $* | 35.64 $* |
| May-18-2025 | 33.90 $* | 34.2 $* |
| Apr-18-2025 | 27.11 $* | 28.86 $* |
| Mar-18-2025 | 33.74 $* | 34.73 $* |
| Feb-18-2025 | 33.23 $* | 34.9 $* |
| Jan-18-2025 | 32.83 $* | 33.47 $* |
Характеристики
Product Description
Features:
Constant Voltage+Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / standby power consumption<0.5W
IP67/IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
3 in 1 dimming (dim-to-off),smart timer dimming:Dali
Auxiliary DC output
Typical lifetime>50000 hours
5 years warranty
Applications:
LED Street lighting
LED architetural lighting
LED bay lighting
LED floodlighting
Type HL for use in Class I, Division 2 hazardous (classified)location
Description
ELG-150 series is a 150W AC/DC LED Driver featuring the dual mode constant voltage and constant current output,ELG-150 operates
from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V .Thanks to the high efficiency up to
91%, with the fanless design, the entire series is able to operature for -40℃~+90℃ case temperature under free air convection.the
design of metal housing and IP67 /IP65 ingress protection level allows this series to fit both indoor and outdoor
applications.ELG-150 is enquipped with various function options,such as dimming methodologies,so as to provide the optimal design
flexibility for LED lighting system
Constant Voltage+Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / standby power consumption<0.5W
IP67/IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
3 in 1 dimming (dim-to-off),smart timer dimming:Dali
Auxiliary DC output
Typical lifetime>50000 hours
5 years warranty
Applications:
LED Street lighting
LED architetural lighting
LED bay lighting
LED floodlighting
Type HL for use in Class I, Division 2 hazardous (classified)location
Description
ELG-150 series is a 150W AC/DC LED Driver featuring the dual mode constant voltage and constant current output,ELG-150 operates
from 100~305VAC and offers models with different rated voltage ranging between 12V and 54V .Thanks to the high efficiency up to
91%, with the fanless design, the entire series is able to operature for -40℃~+90℃ case temperature under free air convection.the
design of metal housing and IP67 /IP65 ingress protection level allows this series to fit both indoor and outdoor
applications.ELG-150 is enquipped with various function options,such as dimming methodologies,so as to provide the optimal design
flexibility for LED lighting system
Model | ELG-150-12 | ELG-150-24 | |||
Output | DC Voltage | 12V | 24V | ||
Constant Current Constant current Region | 6~12V | 12~24V | |||
RATED Current | 10A | 6.25A | |||
Rated Power ,100VAC~ 180VAC Input | 84w | 105W | |||
Rated Power ,220VAC~ 305VAC Input | 120W | 150W | |||
Input | Frequency Range | 47~64HZ | |||
Powerfactor | PF>0.97/115VAC, PF>0.95 230VAC | ||||
Efficiency | 88% | 89% | |||
Warranty | 5 Years | ||||
