Высокоэкспортная продукция 6 метров Рабочий стол wc67y/k 160-3200 гидравлический пресс с
- Категория: Оборудование для обработки металлических листов >>>
- Поставщик: Nantong,Vasia,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11900.6 $* | 12495.83 $* |
| Aug-16-2025 | 11800.53 $* | 12390.86 $* |
| Jul-16-2025 | 9900.36 $* | 10395.2 $* |
| Jun-16-2025 | 11600.19 $* | 12180.44 $* |
| May-16-2025 | 10100.29 $* | 10605.92 $* |
| Apr-16-2025 | 11400.61 $* | 11970.21 $* |
| Mar-16-2025 | 11300.79 $* | 11865.95 $* |
| Feb-16-2025 | 11200.81 $* | 11760.78 $* |
| Jan-16-2025 | 11100.27 $* | 11655.76 $* |
Характеристики

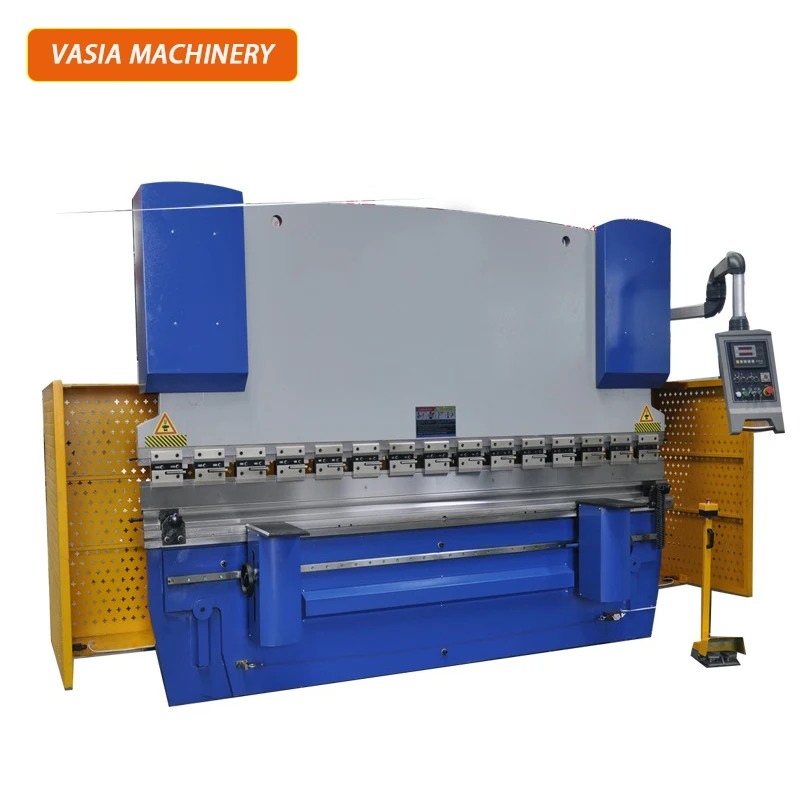

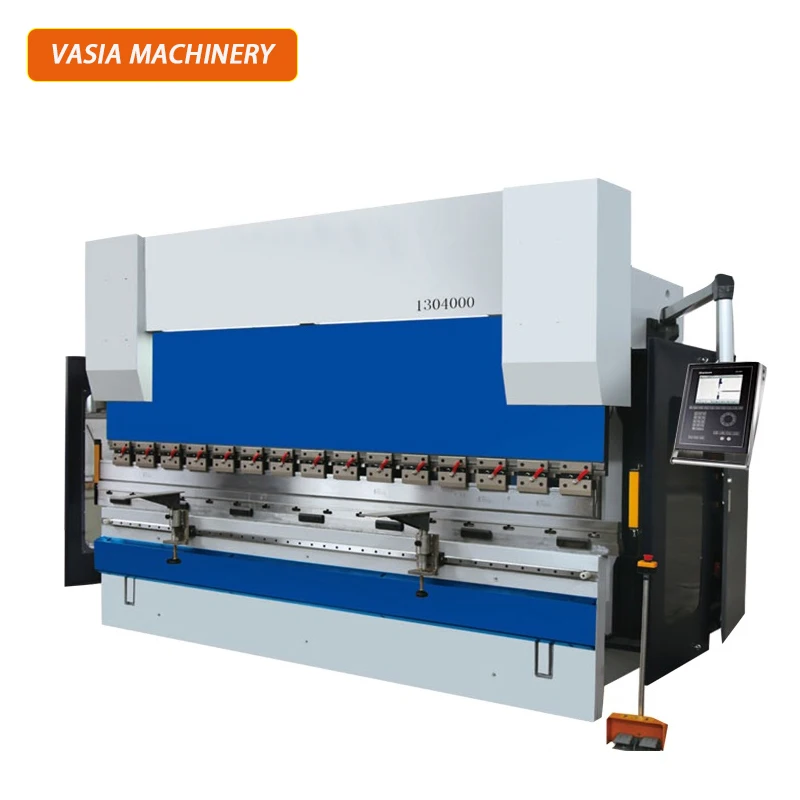

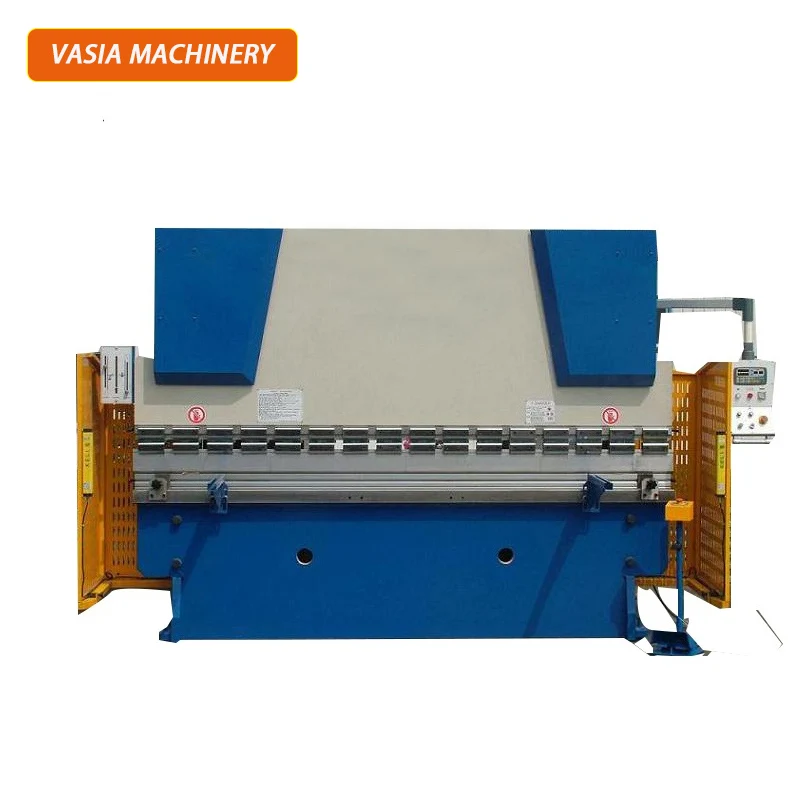

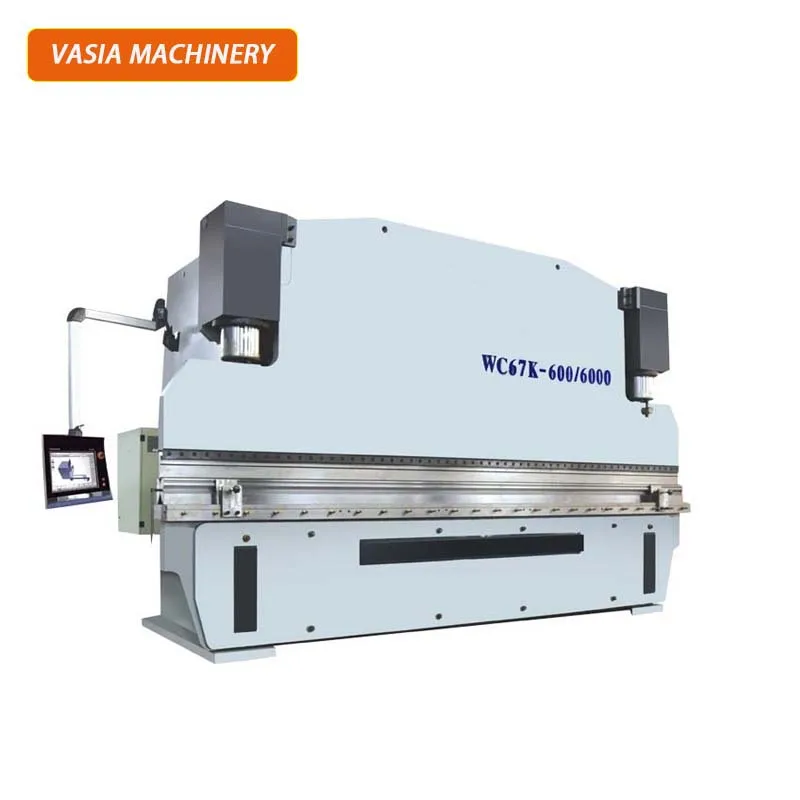

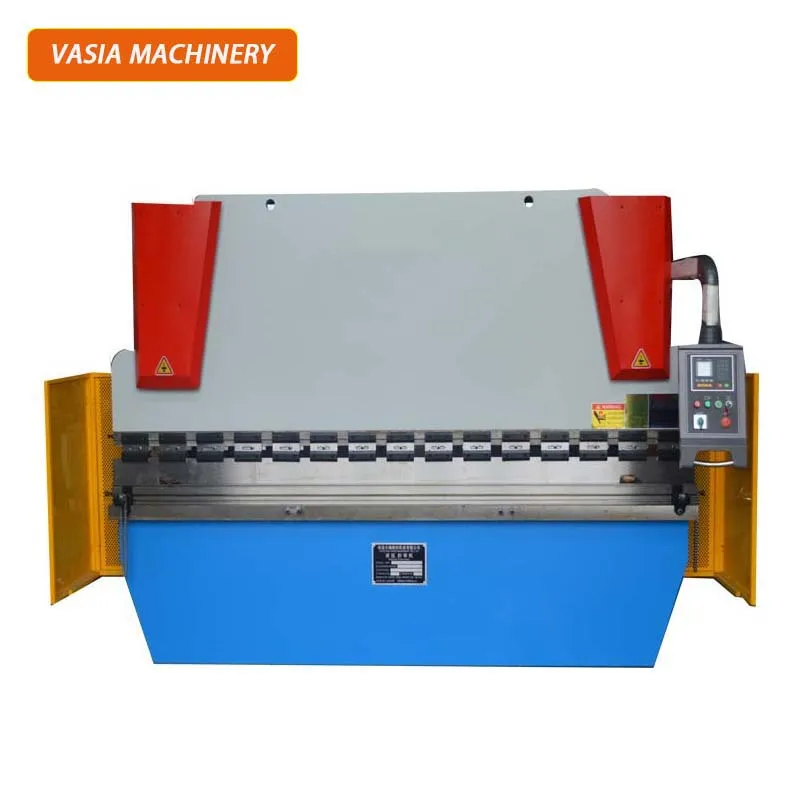

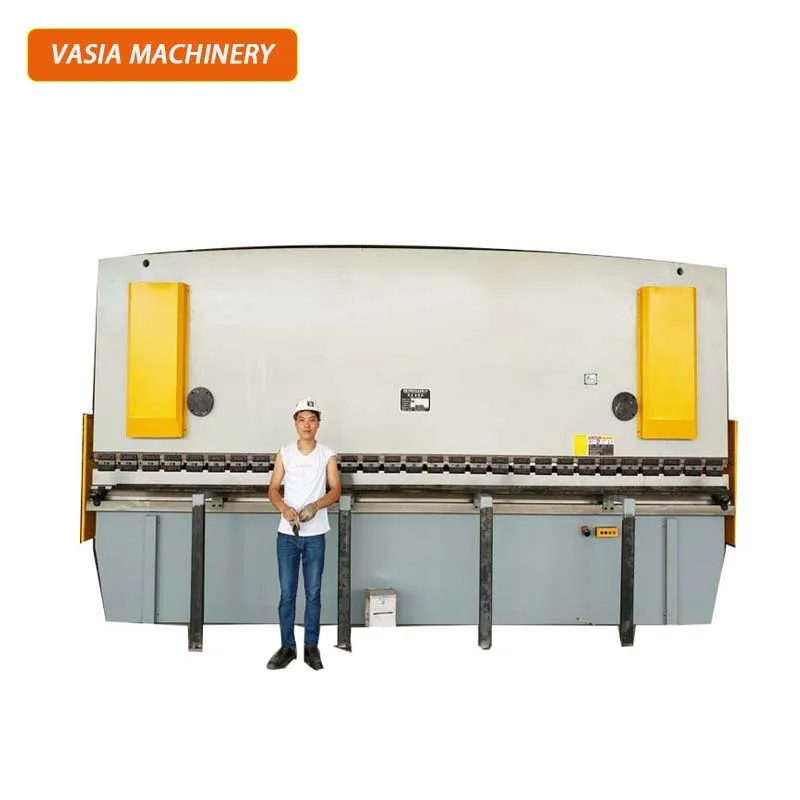

Hydraulic press brake manufacturer
Product Description :
1.The hydraulic press brake WC67Y/K series is equipped with welded steel frame made of ST44 A1 material,
It is rigid to deflection movement and high tensile.
2.This machine is designed in European style with streamlined looking monoblock.
3.VASIA press brake incorporating with ESTUN E21,ESTUN E22,
Holland DELEM DA41,DA52,DA56,DA65 control systems ,
which offers not only failsafe operation of the vital operations, but also provides the operator considerable assistance in carrying out the entire blending process.
4.This machine adopts steel torsion bar synchronized structure,which can guarantee the high precision and fast working efficiency,it has the motorized control of back gauge and ram stroke, data displayed on control panels and with manual setting.
5.Adopting the integrated hydraulic control system, which working is more reliable and easy access to maintenance.
6.Besides, all the main parts of the machine are from well-known companies: the hydraulic system is from Bosch- Rexroth of Germany; all seals in cylinder are Valqua from Japan; The electrical equipments adopted Siemens from Germany or Schneider from France, all of which are the world top brands with good quality and high performance.
7.Moreover, our hydraulic press brake machine has the protective fence and safety interlock to ensure the operator’s safety.
8.Having a movable single-hand pedal switch makes it easy to operate.
Optional Specifications:
No | Model | Pressure KN | Bending Length (mm) | Columns Distance (mm) | Open Height (mm) | Throat Depth (mm) | Slide Stroke (mm) | Motor Power (kw) | Machine Size (mm) |
1 | 40T/2500 | 400 | 2500 | 1900 | 210 | 200 | 110 | 4 | 2600x1270x1980 |
2 | 63T/2500 | 630 | 2500 | 1900 | 235 | 250 | 120 | 5.5 | 2600x1360x2050 |
3 | 63T/3200 | 630 | 3200 | 2600 | 235 | 250 | 120 | 5.5 | 3300x1360x2050 |
4 | 80T/2500 | 800 | 2500 | 1900 | 320 | 320 | 150 | 7.5 | 2600x1400x2380 |
5 | 80T/3200 | 800 | 3200 | 2600 | 320 | 320 | 150 | 7.5 | 3300x1400x2380 |
6 | 80T/4000 | 800 | 4000 | 3100 | 320 | 320 | 150 | 7.5 | 4100x1400x2380 |
7 | 100T/2500 | 1000 | 2500 | 1900 | 330 | 320 | 150 | 7.5 | 2600x1400x2380 |
8 | 100T/3200 | 1000 | 3200 | 2600 | 330 | 320 | 150 | 7.5 | 3300x1400x2380 |
9 | 100T/4000 | 1000 | 4000 | 3100 | 330 | 320 | 150 | 7.5 | 4100x1400x2380 |
10 | 100T/5000 | 1000 | 5000 | 4100 | 330 | 320 | 150 | 7.5 | 5100x1400x2380 |
11 | 125T/2500 | 1250 | 2500 | 1900 | 330 | 320 | 150 | 7.5 | 2600x1400x2380 |
12 | 125T/3200 | 1250 | 3200 | 2600 | 330 | 320 | 150 | 7.5 | 3300x1400x2380 |
13 | 125T/4000 | 1250 | 4000 | 3100 | 330 | 320 | 150 | 7.5 | 4100x1400x2380 |
14 | 125T/5000 | 1250 | 5000 | 4100 | 330 | 320 | 150 | 7.5 | 5100x1400x2380 |
15 | 160T/2500 | 1600 | 2500 | 1900 | 400 | 320 | 200 | 11 | 2600x1550x2580 |
16 | 160T/3200 | 1600 | 3200 | 2600 | 400 | 320 | 200 | 11 | 3300x1550x2580 |
17 | 160T/4000 | 1600 | 4000 | 3100 | 400 | 320 | 200 | 11 | 4100x1550x2580 |
18 | 160T/5000 | 1600 | 5000 | 4100 | 400 | 320 | 200 | 11 | 5100x1550x2580 |
19 | 160T/6000 | 1600 | 6000 | 4800 | 400 | 320 | 200 | 11 | 6100x1550x2580 |
20 | 200T/2500 | 2000 | 2500 | 1900 | 435 | 320 | 200 | 15 | 2600x1650x2900 |
21 | 200T/3200 | 2000 | 3200 | 2600 | 435 | 320 | 200 | 15 | 3300x1650x2900 |
22 | 200T/4000 | 2000 | 4000 | 3100 | 435 | 320 | 200 | 15 | 4100x1650x2900 |
23 | 200T/5000 | 2000 | 5000 | 4100 | 435 | 320 | 200 | 15 | 5100x1650x2900 |
24 | 200T/6000 | 2000 | 6000 | 4800 | 435 | 320 | 200 | 15 | 6100x1650x2900 |
25 | 250T/2500 | 2500 | 2500 | 1900 | 435 | 320 | 200 | 18.5 | 2600x1750x3070 |
26 | 250T/3200 | 2500 | 3200 | 2600 | 435 | 320 | 200 | 18.5 | 3300x1750x3070 |
27 | 250T/4000 | 2500 | 4000 | 3100 | 435 | 320 | 200 | 18.5 | 4100x1750x3070 |
28 | 250T/5000 | 2500 | 5000 | 4100 | 435 | 320 | 200 | 18.5 | 5100x1750x3070 |
29 | 250T/6000 | 2500 | 6000 | 4800 | 435 | 320 | 200 | 18.5 | 6100x1750x3070 |
30 | 300T/3200 | 3000 | 3200 | 2600 | 435 | 350 | 200 | 22 | 3300x1850x3285 |
31 | 300T/4000 | 3000 | 4000 | 3200 | 435 | 350 | 200 | 22 | 4350X1900X3400 |
32 | 300T/5000 | 3000 | 5000 | 4000 | 435 | 350 | 200 | 22 | 5200X1950X3480 |
33 | 300T/6000 | 3000 | 6000 | 4800 | 450 | 350 | 220 | 22 | 6100X2050X3500 |
34 | 400T/5000 | 4000 | 5000 | 4000 | 450 | 350 | 250 | 30 | 5200X2100X3550 |
35 | 400T/6000 | 4000 | 6000 | 4800 | 450 | 350 | 250 | 37 | 6200X2100X3550 |
36 | 500T/6000 | 5000 | 6000 | 4800 | 450 | 350 | 250 | 37 | 6250X2200X3580 |
37 | 600T/6000 | 6000 | 6000 | 4800 | 480 | 400 | 280 | 45 | 6300X2250X3600 |
38 | 1000T/6000 | 10000 | 6000 | 4800 | 500 | 400 | 300 | 75 | 6300X2400X3800 |
