Характеристики


CLW Synchronous Chip Sealer Truck


  • Jiefang FAW 4x2 luxury chassis, 290HP diesel engine, 5000mm wheelbase, power steering wheel, 10-speed gearbox, air brake, 11.00-20 tires, 90km/h
  • CLW high end professional bitumen and gravel spraying & controlling system, import components, burner, control, pump, nozzles, etc
  • Asphalt tank + Gravel tank, asphalt spreading and gravel spreading at the same time
  • 0.8~3L/cbm spraying capacity, 4.5~6m  spraying width
  • High end equipment for road construction



Product Description
Synchronous chip sealer truck is developed by our company on its own design, with independent intellectual property rights of the synchronous gravel sealing machine, the machine is in the same model of synchronous gravel has been improved to make it even worse Conditions of construction operations, enhance the stability of equipment operation. Reached the machine, electricity, liquid integrated operation, equipment operation process is simplified, simple operation, the whole machine has reached the advanced world level.

Synchronous Chip Sealer Spreader Truck

Product NameSynchronous chip sealer spreader
Volume of Asphalt Tank6cbm
Volume of Gravel Hopper8cbm
Overall Dimension8990*2500*3450mm
Tank materialCarbon steel + stainless steel+thermal insulation material
Thickness of Insulation Layer100mm insulation layer in middle of tank body
Gross Weight18000kg
Curb Weight10600kg
Payload7200kg
Wheelbase5000mm
Fuel TypeDiesel
EngineJiefang, 220HP, 4764cc, 6 stoke, turbocharged intercooled,water cooling
TransmissionManual, 8 front gears and 1 rear gear
BrakeAutomatically air cut-off brake
Axle & Tire2 axle, 7 * 11.00R20 Linglong brand tires
Max speed80km/h



Bitumen Spray System Options (Please select which type you need when inquiry)
Type-Standard TypeSmart Type
Volume of Asphalt Tank-66
Volume of Gravel Hopper-88
Model of asphalt pump-QGB950(950L/min)TGGP-185-125(950L/min)
Origin of asphalt pump-China madeChina made
Medium -Hot/Dilute/Emulsify asphaltHot/Dilute/Emulsify asphalt
Hydraulic System-Shanxi YUCIShanxi YUCI
Proportional Valve-Taiwan EFBG-03-160-HFTaiwan EFBG-03-160-HF
Reversing Valve-
Relief Valve-
Model of Hydraulic Pump-50-20-16German Rexroth
Model of Hydraulic Motor-05-110-BD3105-110-BD31
Radiator-RISHENG brandRISHENG brand
Control System-German Siemens CLW-32-01German Siemens CLW-32-01
Control Type-Computer smart control, 1-control-1Computer smart control, 1-control-1
Operation Person Number-1 persons1 persons
Asphalt Nozzle Number-3232
Heating TypeHeat conducting oil automatically heating
Conducting OilHebei,China
BurnerItaly import G10
Power of Engine6KWHONDA 5.5KWHONDA 5.5KW
Spraying Capacity0.3~3.5L/min0.3~3.5L/min0.2~4L/min
Spraying Error ±2%±2%±2%
Spraying Width4m4m4m
RemarkIf you need to sprinkle rubber asphalt, please call 0086 18372220016



* More details or special requirements about our synchronous chip sealer truck, please contact us by 0086 18372220016(whatsapp/phone).

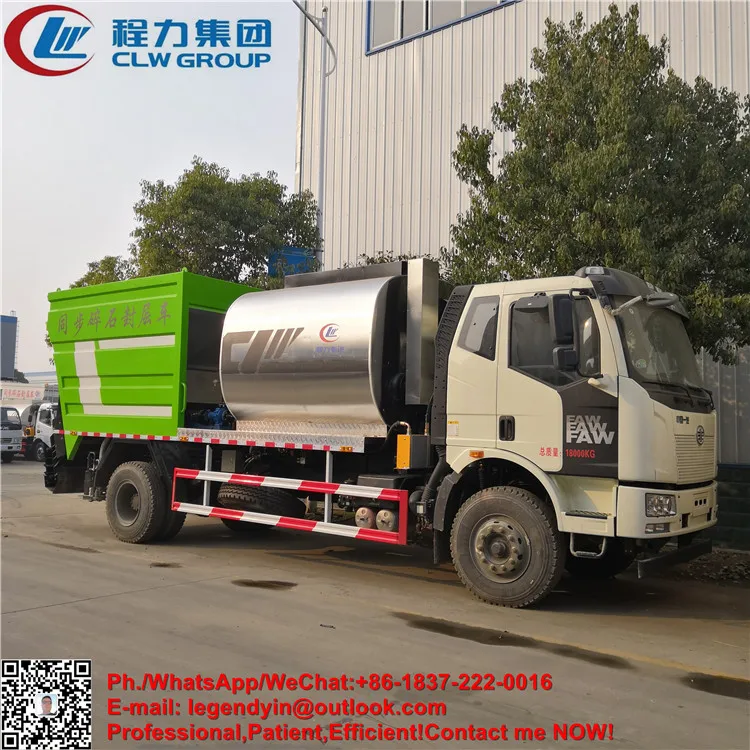

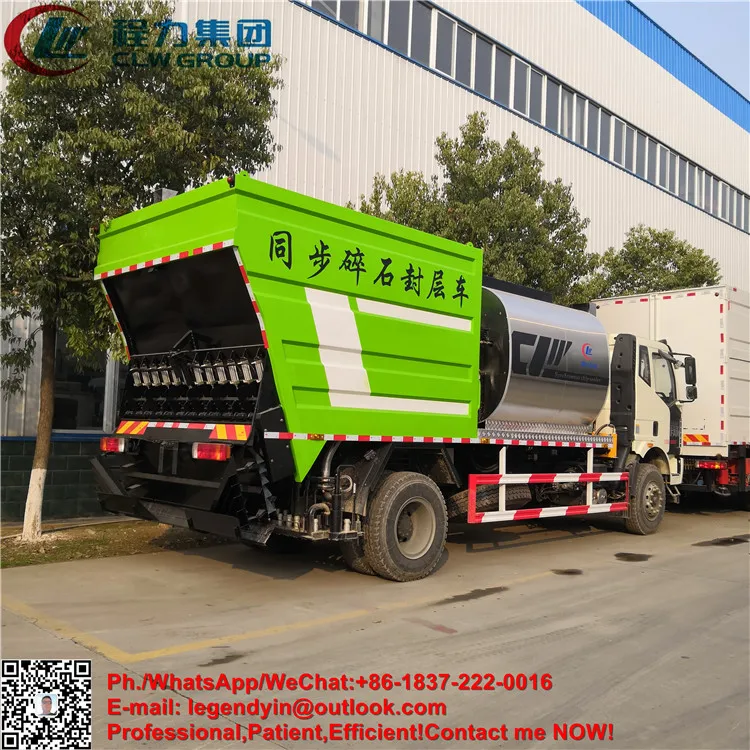

Images of Synchronous Chip Sealer Spreader:





Synchronous chip sealer mainly includes: asphalt distribution system, stone spreading system, electrical operating system, auxiliary system components.

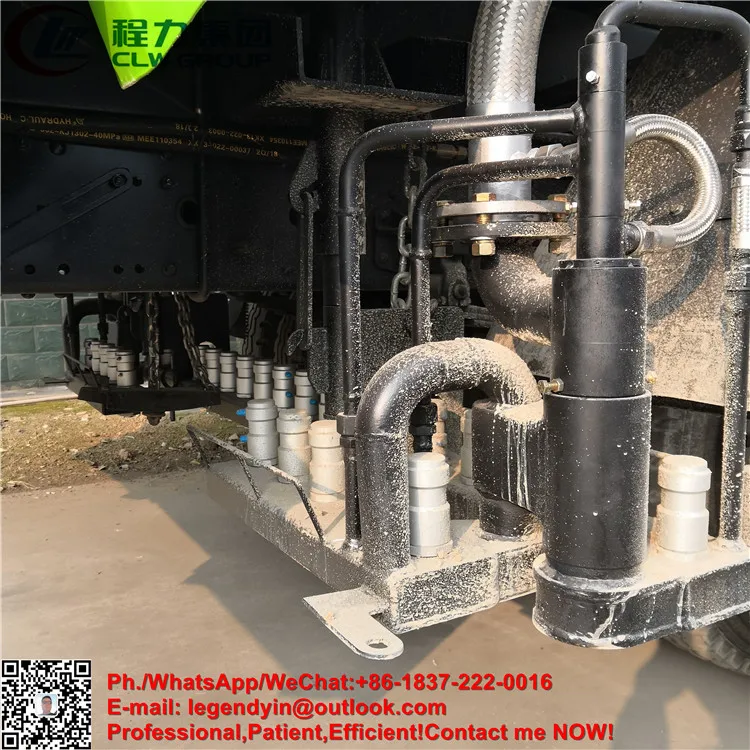

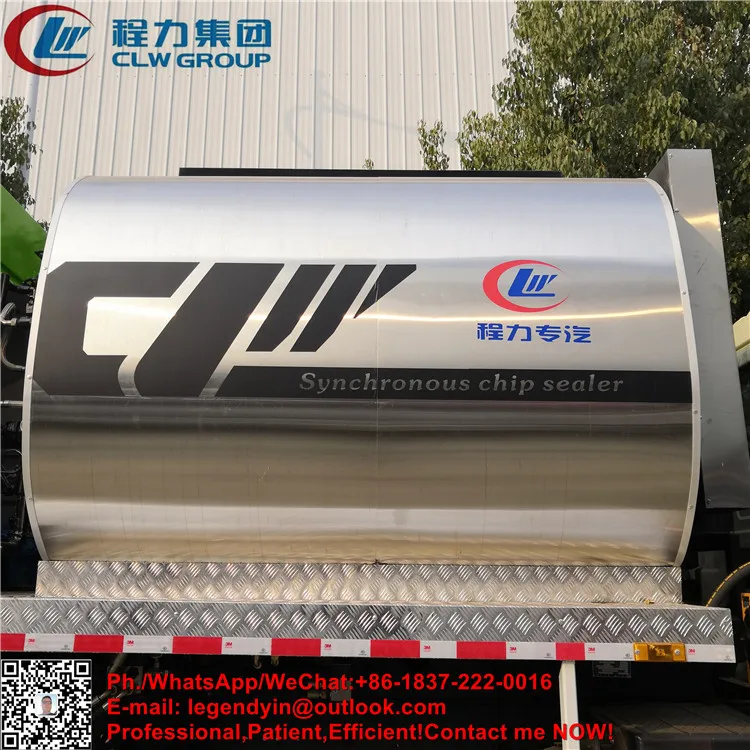

Asphalt sprinkling system: Sprinkler system mainly asphalt tank, heating part, hydraulic part, the control part and spray part.

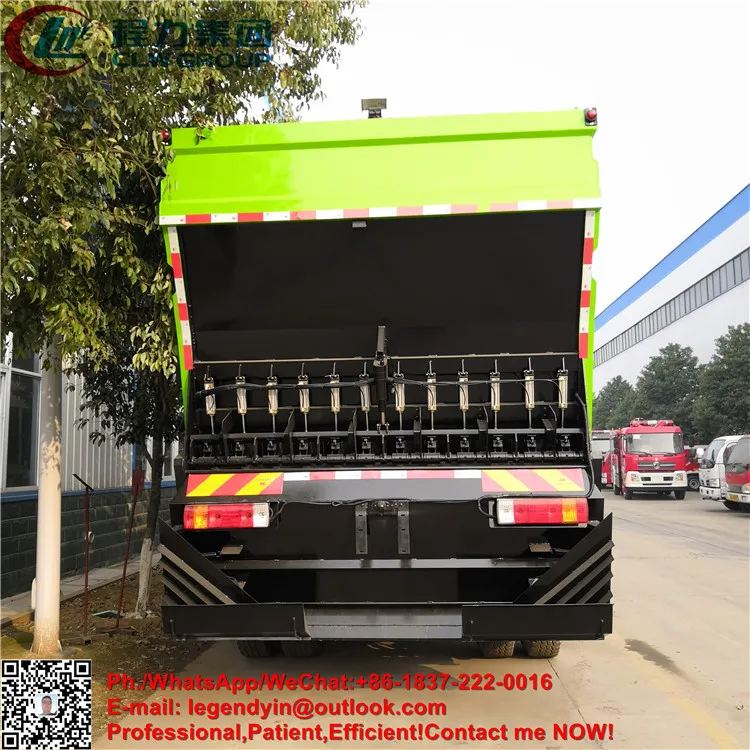

Gravel Spreading System:

Stone sprinkling system has silos, material door control mechanism and spreader.

The silo is installed with the inner shadow Tibetan-style overhead turning shaft with through shaft to ensure the stability of the silo rise; material door is 16-way control, the angle of the helix angle controller, to make the material door to a certain opening, Can be set on the angle controller door opening angle, very convenient and accurate. Effectively adjust the spreading uniformity, changing the uneven distribution of the traditional stone situation; the distribution plate and the cutting board adjustment range, for different specifications (S3 ~ S24mm) of stone.


Electrical Operating System:

1, according to different needs of the operator to provide accurate sprinkling parameters.

After setting the display parameter of the stage, the continuous change of the actual measurement parameters can accurately reflect the operation of the equipment.

2, manual operation is simple, can achieve manual / automatic switching, improve work efficiency.

3, according to the width of the road to adjust spray asphalt, spreading the width of stone.

4, the use of limit switch device, the nozzle rack, silo lift control to avoid over-man-machine damage.

5, configuration automatic oil heat conduction device, with the upper limit, lower limit alarm, asphalt lower limit alarm indication.



Company Information

timg.jpgChengli Special Automobile Co.,Ltd

ChengLi Group, located in the Southern Suburb of Zengdu District, Suizhou City, is a diversified group company integrating automobile technology research and development, automobile manufacturing, automobile modification, auto parts, finance, education and home investment.

company iamge.png


CLW Group "CHENGLIWEI" brand special trucks are the best sells in whole nation, and exported to South America, the Middle East, Central Asia, Southeast Asia, Africa, more than 30 countries and regions.

CLW Group "CHENGLIWEI" brand products occupy an important share in the domestic and international market. The leading products include: all kinds of water trucks, garbage trucks, suction sewage trucks, road sweeper trucks, fuel tank trucks, chemical trucks, wrecker trucks, aerial work trucks, fire trucks, truck mounted crane, refrigerated trucks, van trucks,LPG(pressure vessel), highway maintenance trucks, flatbed transport trucks,  bulk grain trucks, stage trucks, LED advertising trucks, mobile sales truck, heavy duty truck mounted crane, concrete pump trucks, drug transport trucks, new energy trucks, and other series of more than 800 varieties.



Factory Images:

.jpg


We have passed certifications of ISO9001-2008 Quality Management, ISO 14001 Environmental Management, OHSAS18001 Occupational Health And Safety Management System Certification, 3C Mandatory Certification, GJB9001B-2009 National Military Standard Certification and Confidentiality Certification (national level 3), the Bational Weapons and Equipment Production License, Energy-saving Environmental Certification, Automotive Exemption Certification, the US Mechanical Rngineer Asme (ASME) Certification, the EU Agreement ADR Certification. We have obtained production license qualification for special trucks including : A2, C2, C3 pressure vessels, truck mounted crane, crane trucks, fire trucks, buses, new energy vehicles production and other qualifications.

Certificates:

.jpg

Packaging & Shipping

Packaging: nude packaged, waxed

Transport type: Land transport, train transport, ship transport according to detail situation.

                             Ship type: ro/ro ship, bulk ship, container ship(20GP/40GP/40HQ/40OT,etc)

Marine shipping time: 7 days~45 days according to distance.

*Remark: for details about packaging and shipping, please confirm before placing an order.
