LINGQIAO большой автоматический высокоскоростной цементный смеситель интеллектуальная бетонная


Поделиться:


Цена:7 329,39 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 9308.96 $* 9494.67 $*
Jul-15-2025 7549.63 $* 7700.51 $*
Jun-15-2025 9161.83 $* 9344.63 $*
May-15-2025 9088.62 $* 9270.57 $*
Apr-15-2025 7256.72 $* 7401.97 $*
Mar-15-2025 8941.7 $* 9120.5 $*
Feb-15-2025 8868.86 $* 9045.32 $*
Jan-15-2025 8795.22 $* 8971.49 $*

Характеристики


Automatic intelligent concrete mortar grouting machine High speed cement mixer



Product Description

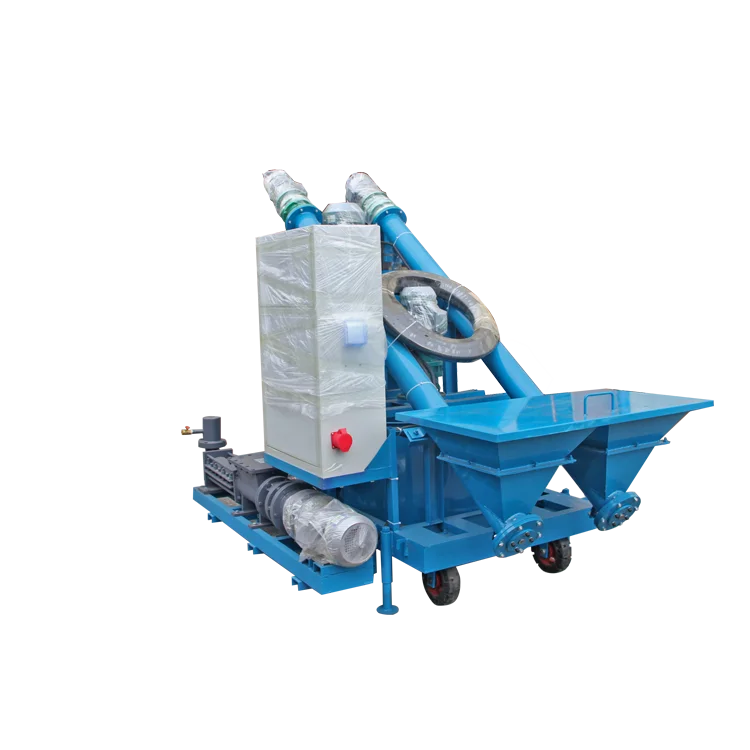

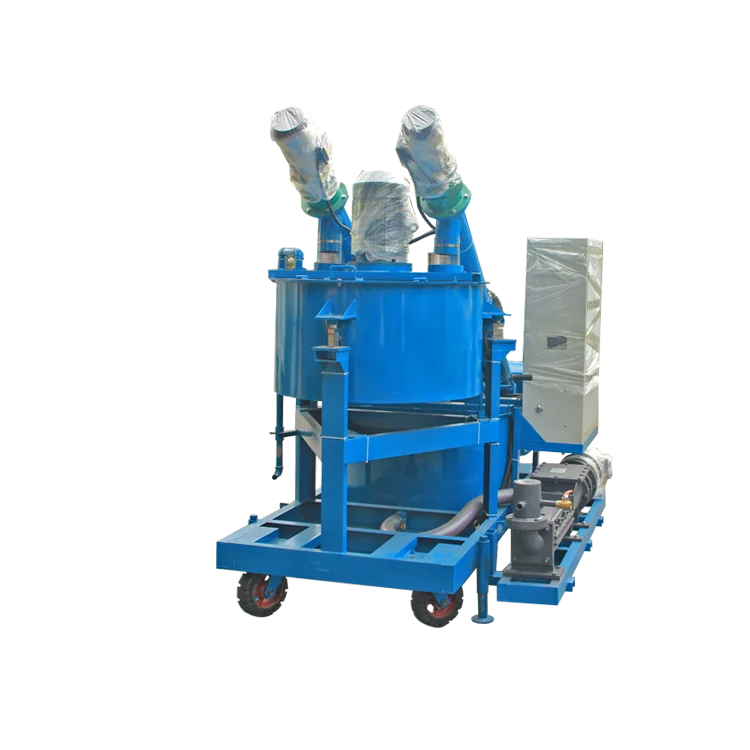

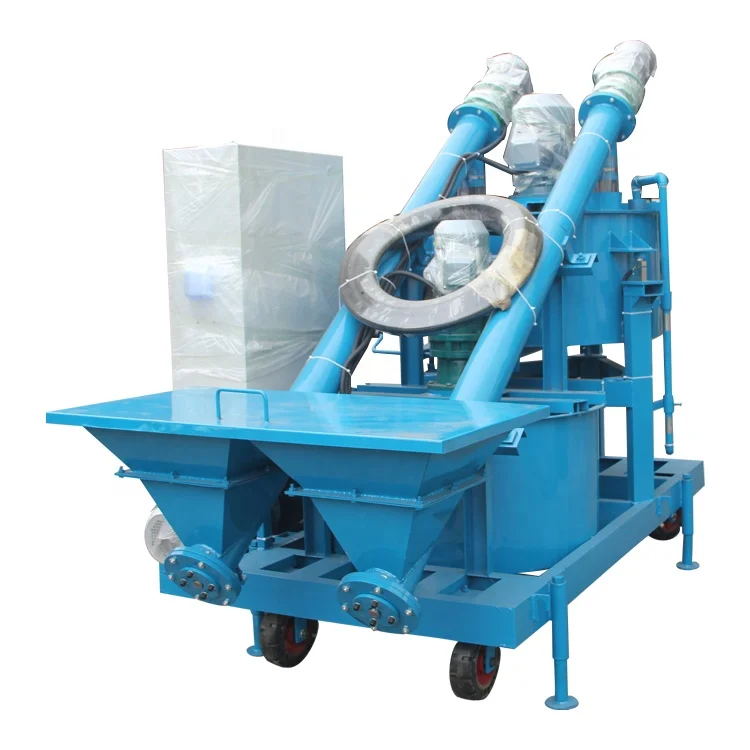

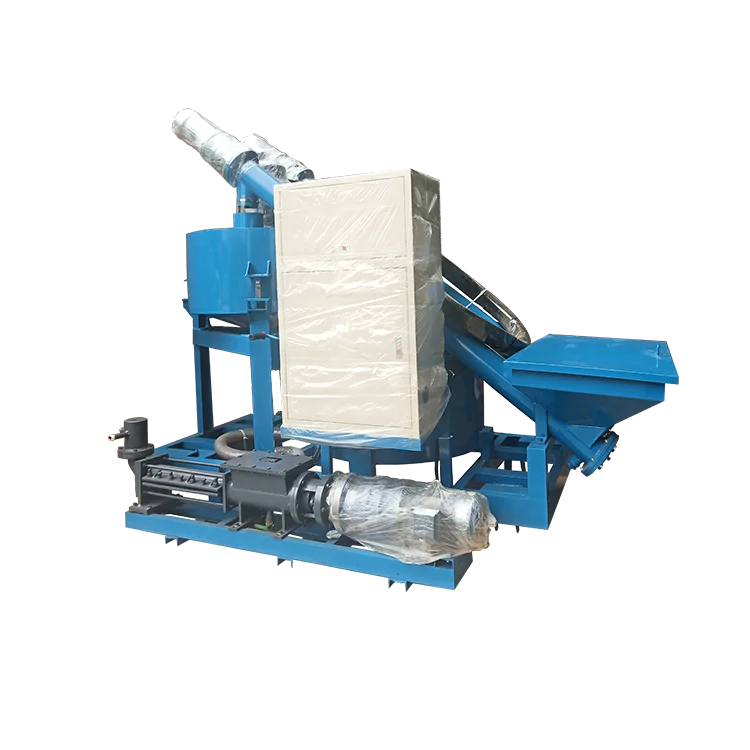

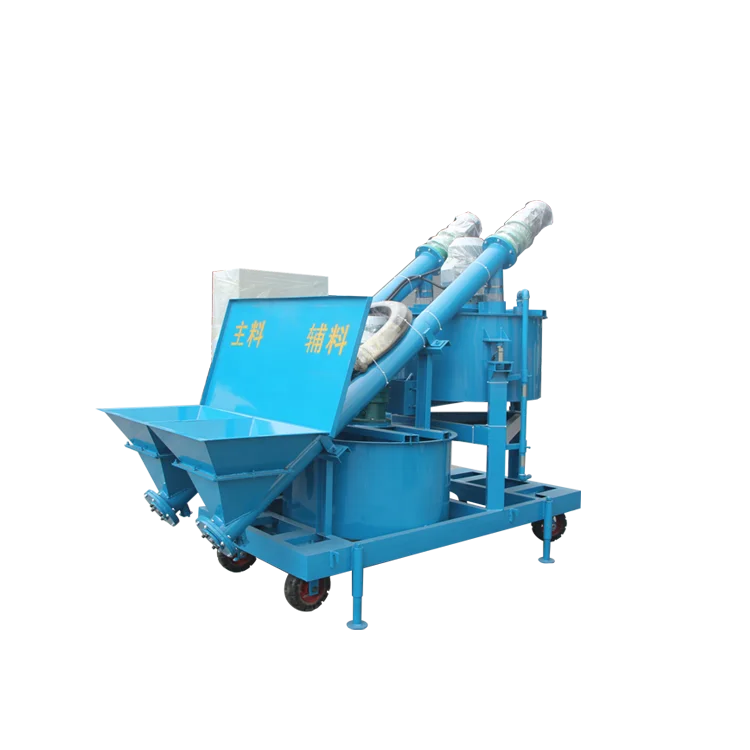

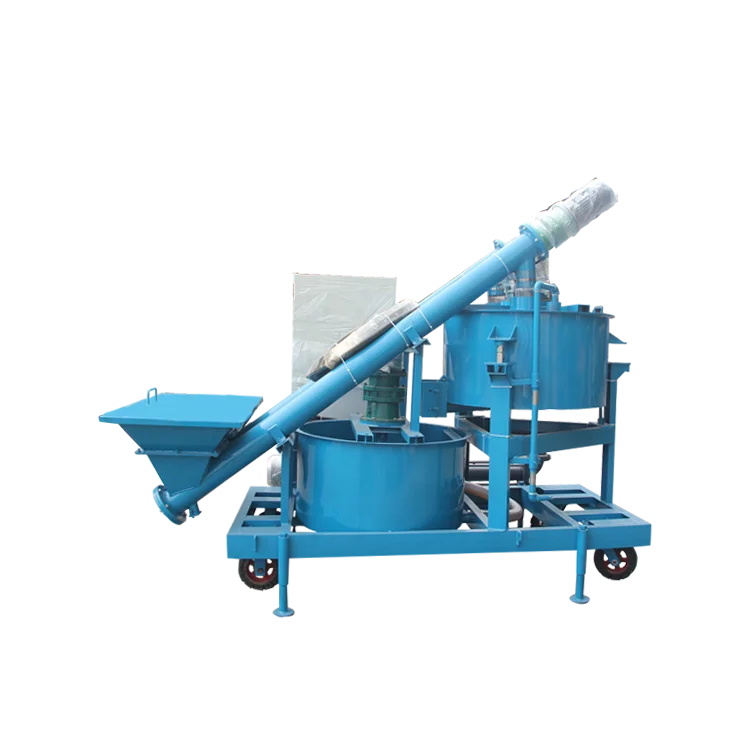

 The trolley is designed to be mobile, mainly composed of automatic feeding system, automatic weighing system, microcomputer automatic control system (with memory function, accurate measurement to two decimal places), high and low speed mixing system, water supply system and walking system. The high-speed mixing part of the equipment can mix up to 350 kg of slurry at a time and 4000-7000 kg of slurry per hour (when controlled manually). In addition, a low-speed mixing storage bucket is provided to accommodate the slurry that has been stirred by the high-speed mixing bucket. With the combination of high and low speed mixing drum, the continuous feeding to the grouting equipment can be realized.







Product Parameter





Main performance parameters





High speed mixing section


Speed of agitator:  1430r/min


Measuring accuracy:   better than +-1% (rated mixing volume)


Stirring quantity per time: 350kg


Power of motor: 7.5kw





Low speed mixing section (storage barrel)


Speed of agitator:   45r/min


Storage volume:   400kg


ower of motor:  2.2kw





Automatic charging system


Working way:    screw conveying


Power of motor:    2 sets 1.5kw





Electronic control system


System Name:  Liuzhou automatic grouting control system





Dragging frame


Drag speed:  less than 20km/h





External dimension of whole machine:


2800*1450*2200mm (L*W*H)


Total weight of whole machine:  887kg





Prodection details










Application




Used in building construction, Bridges





Packaging & Shipping







Certificate


Our enterprise has aiready passed ISO9001:2008 and CE certifications


We adhere to tenet of"People-Oriebted,Focus On Innovation.Base On Sincerity and Honesty,Have a Self-Established Brad".Meanwhile,we presist in"Safety Goes First,Precaution Crucial,Comprehensive Handling:.With the mature marketing,after-sale service and sciebtific research systems,our aim is to  push forward the development of the prestressing force industry in China.
