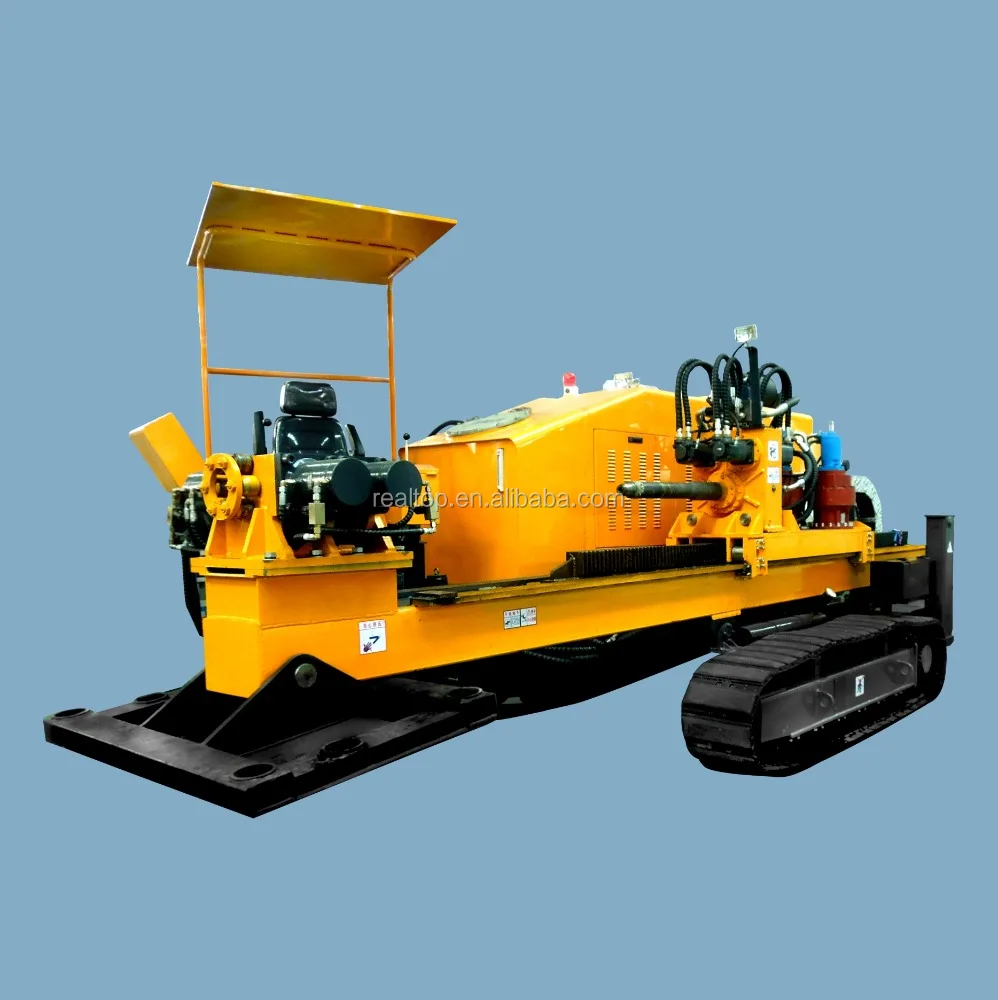

32TONS Horizontal Directional Drilling  Machine  H320B



Product Description

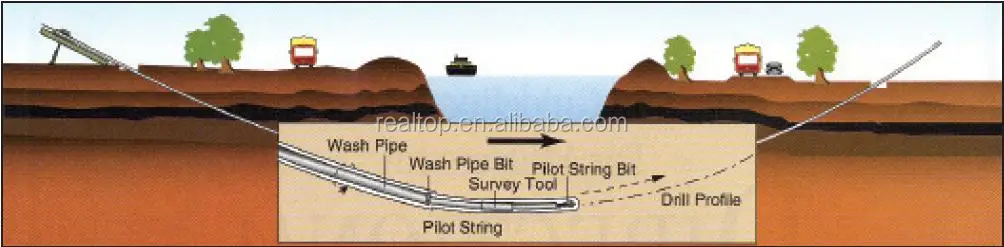

1.  The horizontal directional drill machinemainly used for laying and replacing various pipelines; eg,water

       supply,coal gas, cables

2.Optional pipe automatic disassemly and assembly devicecan improve the working efficiency, relieves the

    labor intensity and manual error operation of the operators, and reduces the construction personnel and the

    construction cost.

3.Optional Automatic anchor: the down and up of the anchor is driven by bydraulics. The anchor is great in

    force and is easy and convenient to operate.

4. Optional Operation room and air condition

1011



H320B Horizontal Directional Drilling  Machine Specs



Model

Unit

H320B

Engine power

KW

142

Max. Pull / Push force

KN

320

Max. Pull / Push speed

m/min

20.3

Max.Torque

N.M

12000

Max. Slewing speed

r/min

106.5

Max. Flow of slurry pump

L/min

320

Max.pressure of slurry pump

Mpa

8

Max. drill pipe diameter

mm

900

Max. Working distance

m

500

Crawler speed

Km/h

2.2

Drilling rod

mm

73/76x3000

Push-pull type



Sprocket chain

Max. gradeability

°

20°

Drillling Angle

°

12-23°

Weight

T

10

Dimension(L*W*H)

mm

6617*2215*2405
















































Our Services

1. On site service support;

2. 12month warranty;

3. Life time service support,

4. HDD machine drilling rigs also available.

Company Information



1.Headquarter located in the capital of construction machinery-Changsha City, Hunan, China,

2.REALTOP belongs to national-owned enterprise.

3.Products are serving in 20 countries worldwide, including Asia, Africa, M. East, and Latin America.

4. Main machines as below,

    Tunnel Machinery-pipe jacking machine,shield tunneling machine,  Horizontal Directional Drilling machine

    Concrete Machinery - HBT trailer mounted concrete pump, concrete placing boom.

    Piling Machinery - Hydraulic vibratory pile hammer, Electric Vibratory pile hammer.

Packaging & Shipping

 1.  L/T :7~21days depending on inventory and models of HDD machine

 2.  Nude packing and well loaded in container
