MXL-150D производитель DTH молоток Ударная дрель водой опасных рок основы арматурные инженерно-якорь буровой

MXL-150D производитель DTH молоток Ударная дрель водой опасных рок основы арматурные инженерно-якорь буровой

Категория: Other Construction Machinery >>>
Поставщик: Wuxi,Antian,Engineering,Technology,Co.,Ltd.

Цена:34 943,00 $ - 35 143,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	44378.93 $*	45266.19 $*
Jul-15-2025	35991.96 $*	36711.40 $*
Jun-15-2025	43679.91 $*	44553.19 $*
May-15-2025	43329.2 $*	44196.43 $*
Apr-15-2025	34594.31 $*	35286.55 $*
Mar-15-2025	42630.30 $*	43483.8 $*
Feb-15-2025	42281.37 $*	43127.18 $*
Jan-15-2025	41932.52 $*	42771.20 $*

Характеристики

Application

Products Description

MXL-150D

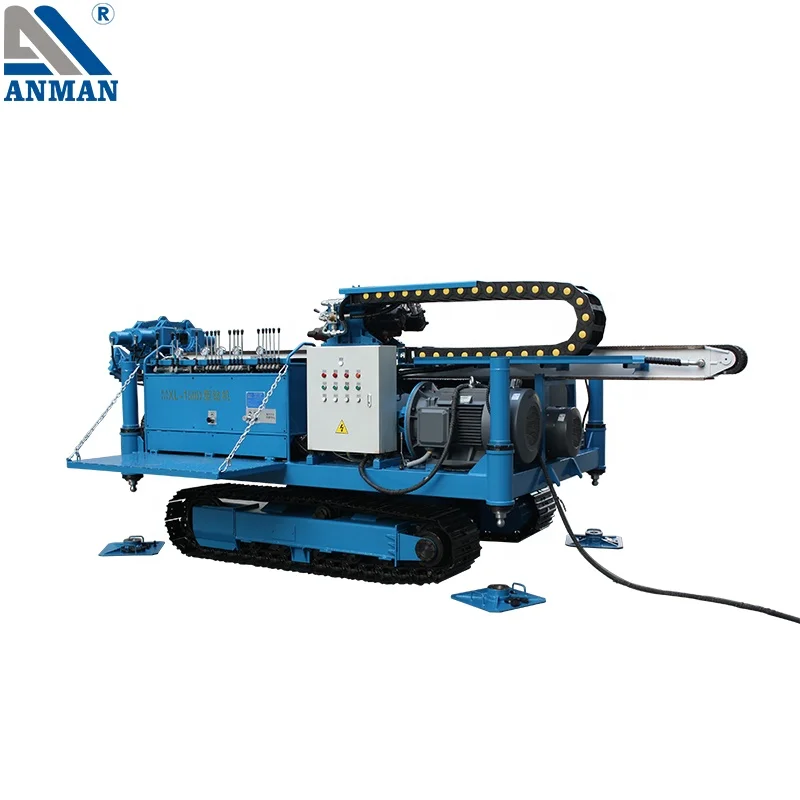

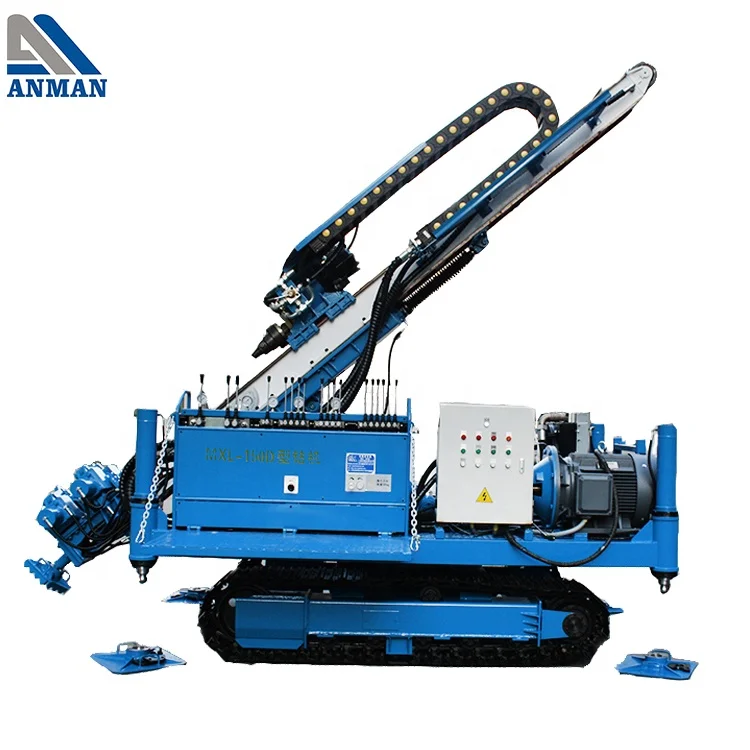

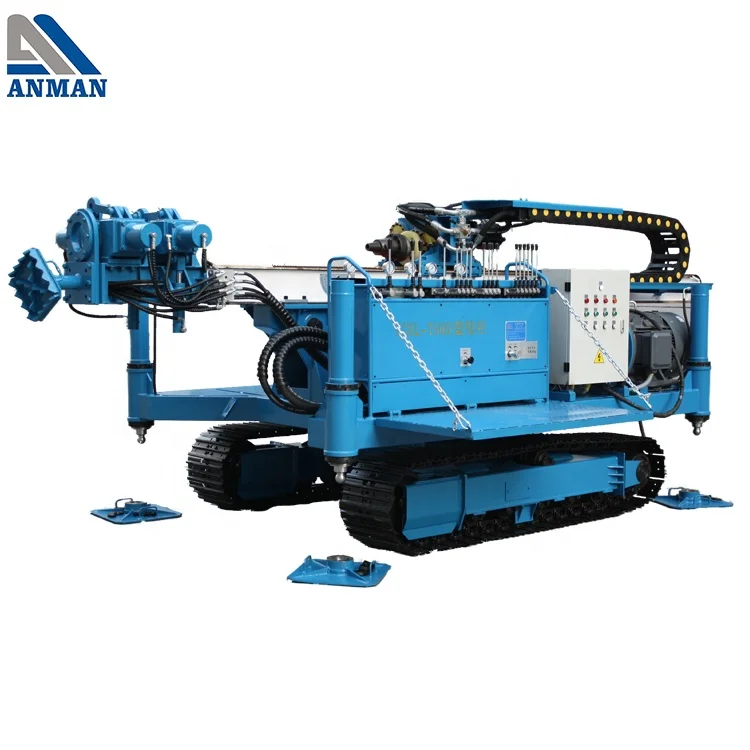

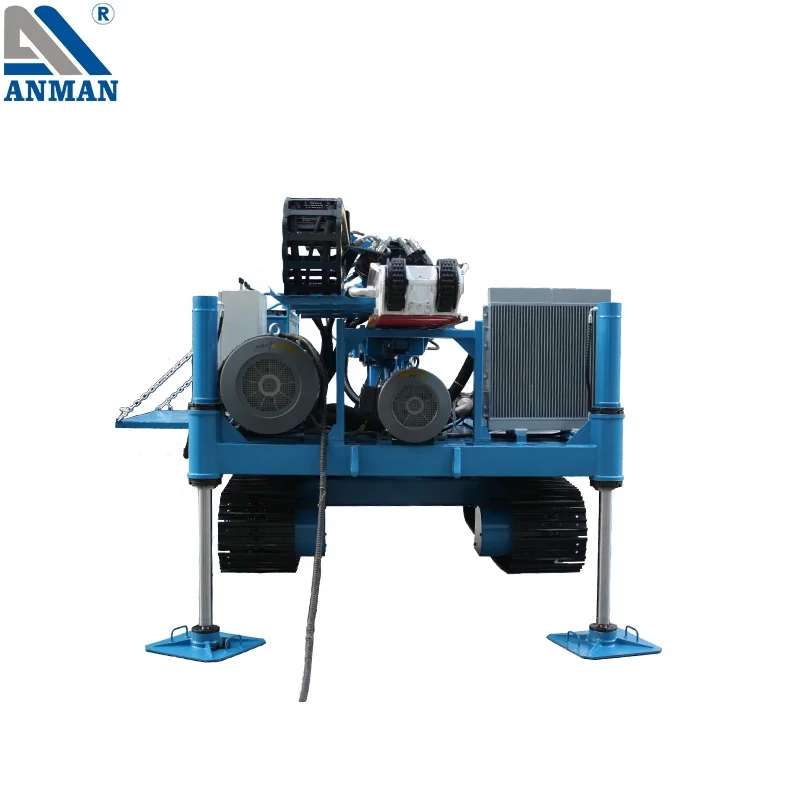

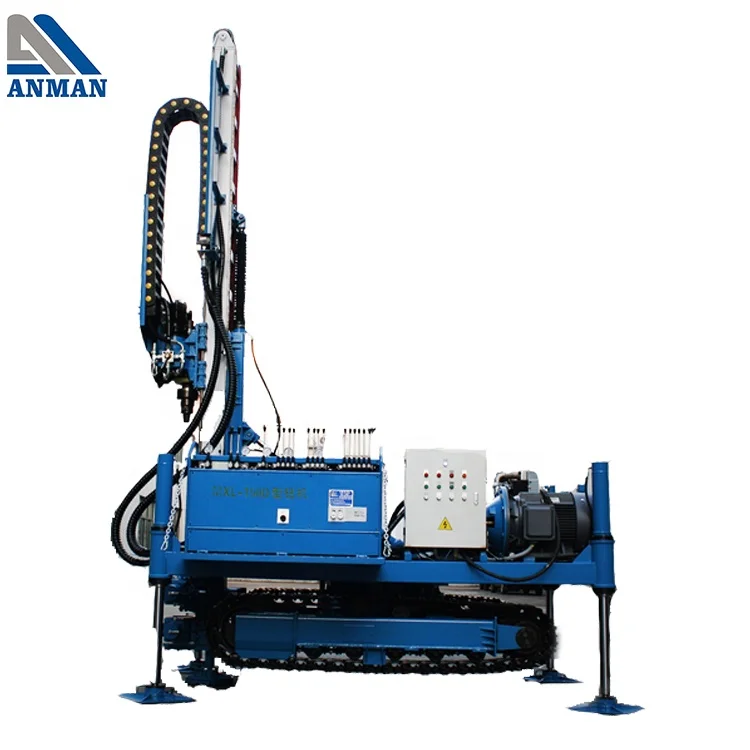

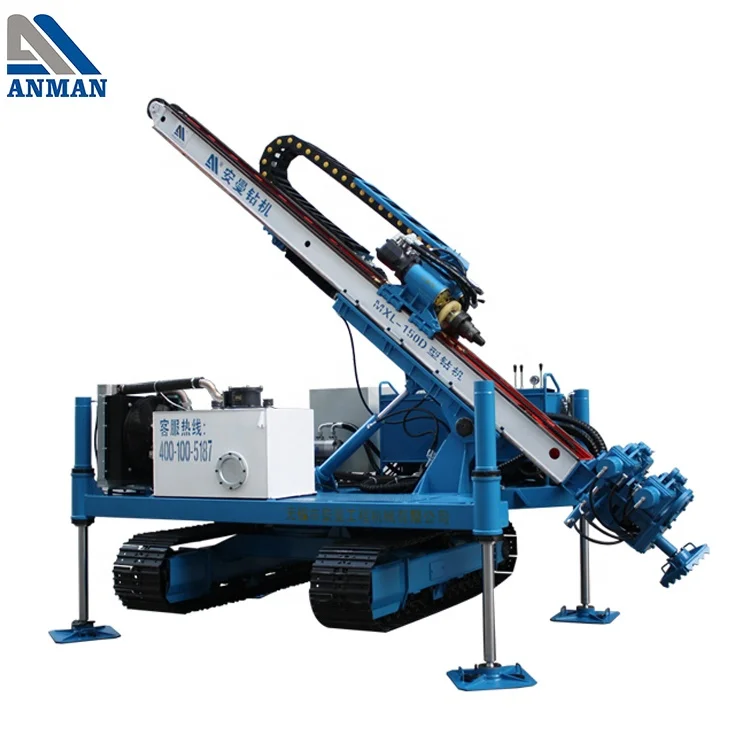

MXL-150D Deep Foundation Crawler Drilling Rig is a high efficiency drilling rig mainly for anchoring, jet-grouting and dewatering,which is well designed and produced by Wuxi Anman Construction Machinery Co., Ltd. This series of drilling rig is all-hydraulic operated drill in accordance with the construct requirements of subway, high-rise building, airport and the other deep foundation pit.

PRODUCT SPECIFICATIONS

MXL-150D Manufacturer DTH hammer impact drill by water dangerous rock groundwork reinforcing engineering anchor drilling rig

Model number	MXL-150D
Model number	MXL-150D
Hole diameter(mm)	Φ150~Φ250
Hole depth(m)	130~170
Rod diameter(mm)	Φ73,Φ89,Φ102,Φ114, Φ133, Φ146, Φ168
Hole angle(°)	0~90
Output speed of rotary head(max)(r/min)	170
Output torque of rotary head(max)(N.m)	7500
Stroke of rotary head(mm)	3400
Stroke of slide flame(mm)	900
Lifting force of rotary head(kN)	70
Lifting speed of rotary head(m/min)	0~5/7/23/30
Feeding force of rotary head(kN)	36
Feeding speed of rotary head(m/min)	0~10/14/46/59
Input power(Electromotor)(kW)	55+22
Dimension(LWH)(mm)	540021002000
Weight(kg)	6000
Walking speed(m/h)	800
