GX-1 TD гидравлическая буровая установка шпинделя и

GX-1 TD гидравлическая буровая установка шпинделя и

Категория: Other Construction Machinery >>>
Поставщик: Chongqing,Gold,Mechanical,&,Electrical,Equipment,Co.,Ltd.

Цена:100,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	119.69 $*	125.1 $*
Aug-15-2025	118.31 $*	124.94 $*
Jul-15-2025	99.1 $*	104.21 $*
Jun-15-2025	116.30 $*	122.43 $*
May-15-2025	101.93 $*	106.47 $*
Apr-15-2025	114.38 $*	120.5 $*
Mar-15-2025	113.94 $*	119.50 $*
Feb-15-2025	112.91 $*	118.70 $*
Jan-15-2025	111.25 $*	117.65 $*

Характеристики

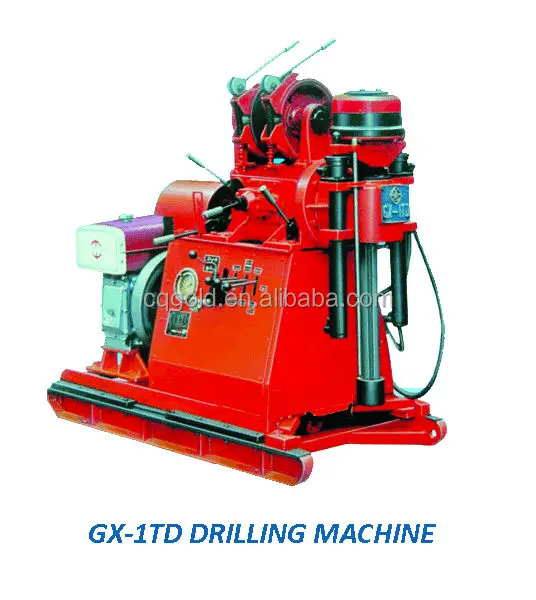

GX-1TD SpindleType Hydraulic Feed Drilling machine

APPLICATIONS:
Geological drilling for railroad, highway, bridge tunnel, power station foundation, civil and industrial buildings and blasting hole etc.

FEATURES:
1.Spindle type, mechanical transmission, hydraulic feeding, and steel skid frame mounted.
2.Hydraulic retracting lets drill body away from the drill hole, in order to hoist or lower the drilling tools.
3.Hydraulic chuck, labor saving.
4.Advanced design, multi-function, compact structure, lightweight, good detachability, easy to operate.
5.Large-powered, reasonable range of speeds, large torque, suitable for many drilling methods.
6.According to user's requirements the drilling machine can be equipped with mudpump, a variety kinds of drilling tools, A-derrick etc, for client choice.

Technical Specifications

final hole dia (mm)		150;130;110;91;75
drilling capacity (m)		30;50;70;100;150
angle rangle		0-90°
spindle speeds (r/min)		90;191;360;600
max torque (Nm)		1000
Max pull force (KN)		27
spindle stroke (mm)		450
max hoisting force with single line (KN)		14.7
Oil pump		CB32
Power unit	diesel engine	S1100A 2200r/min 11KW
	electric motor	Y160M-4 1460r/min 11KW
Weight (Excluding power)(kg)		500
overal dim(L×W×H)(mm)		1560×620×1205
