Характеристики
CE slim small size constant voltage 15w 20w 30w ip44 led driver 24v
Product Description

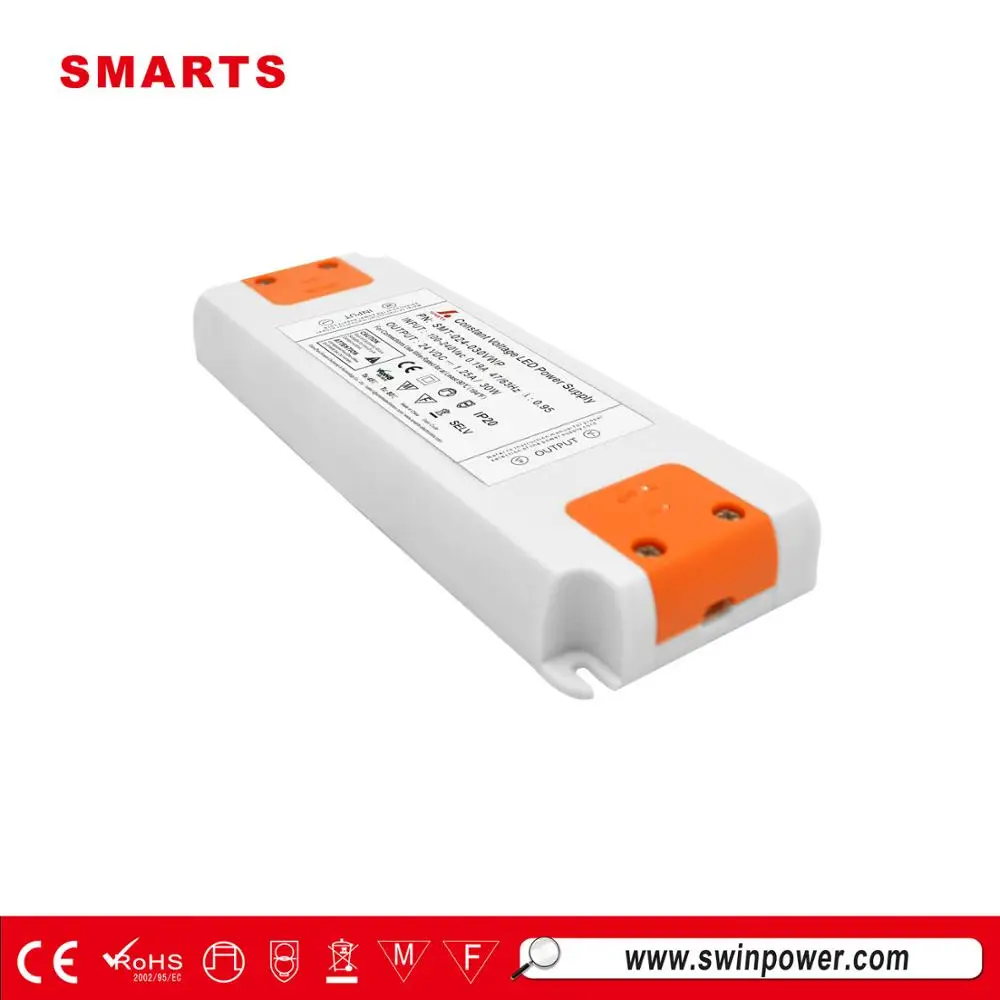

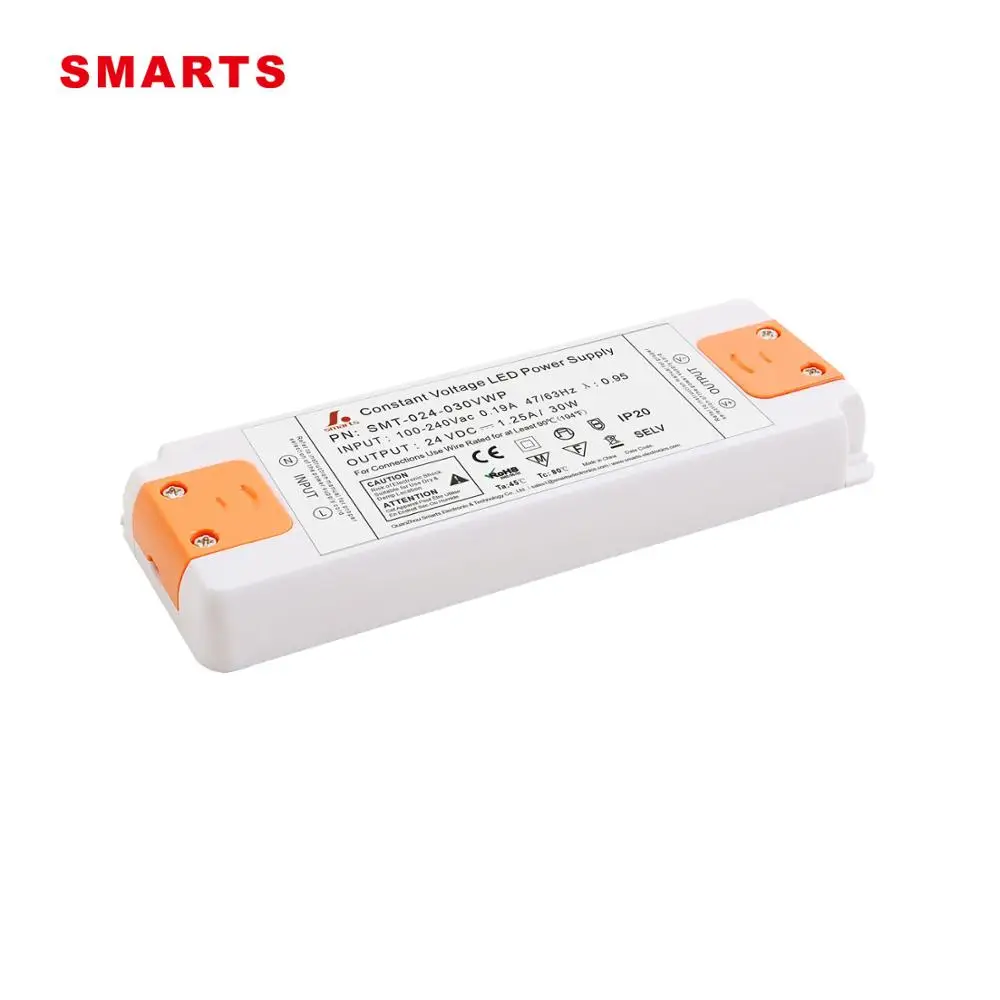

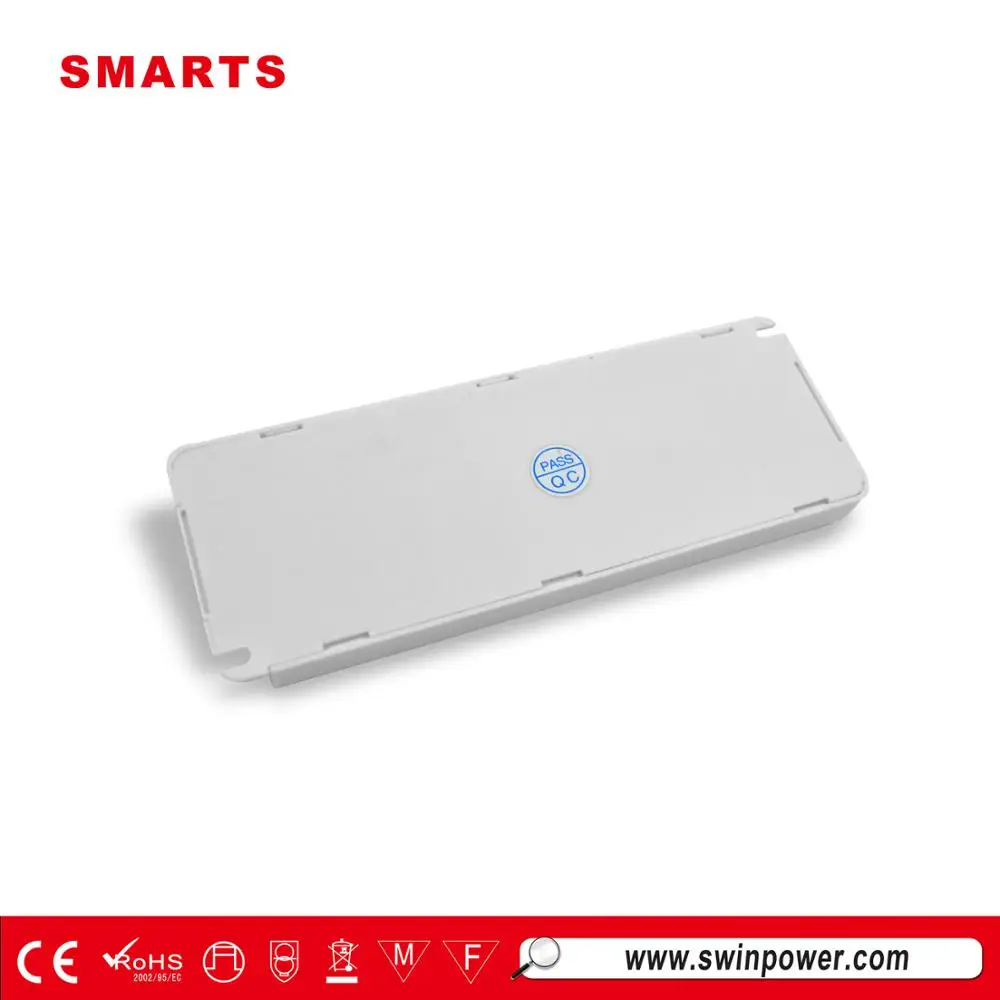

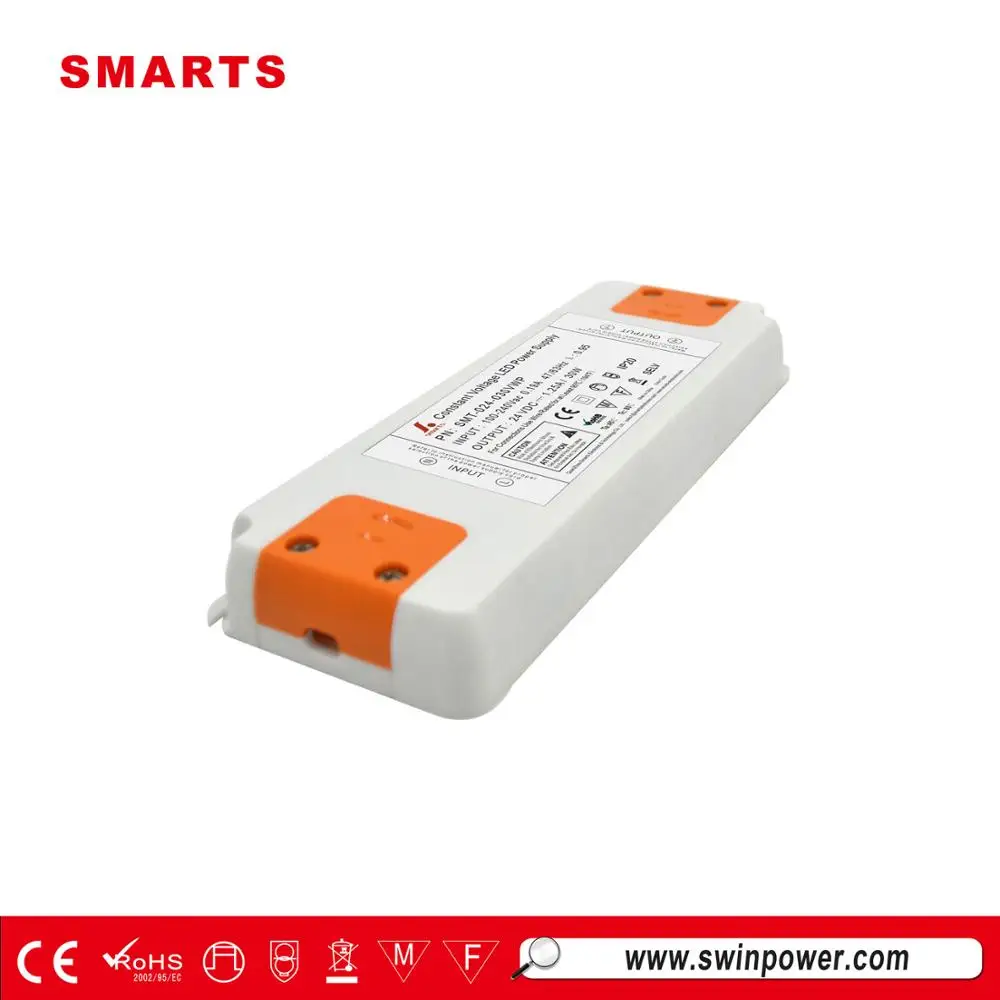

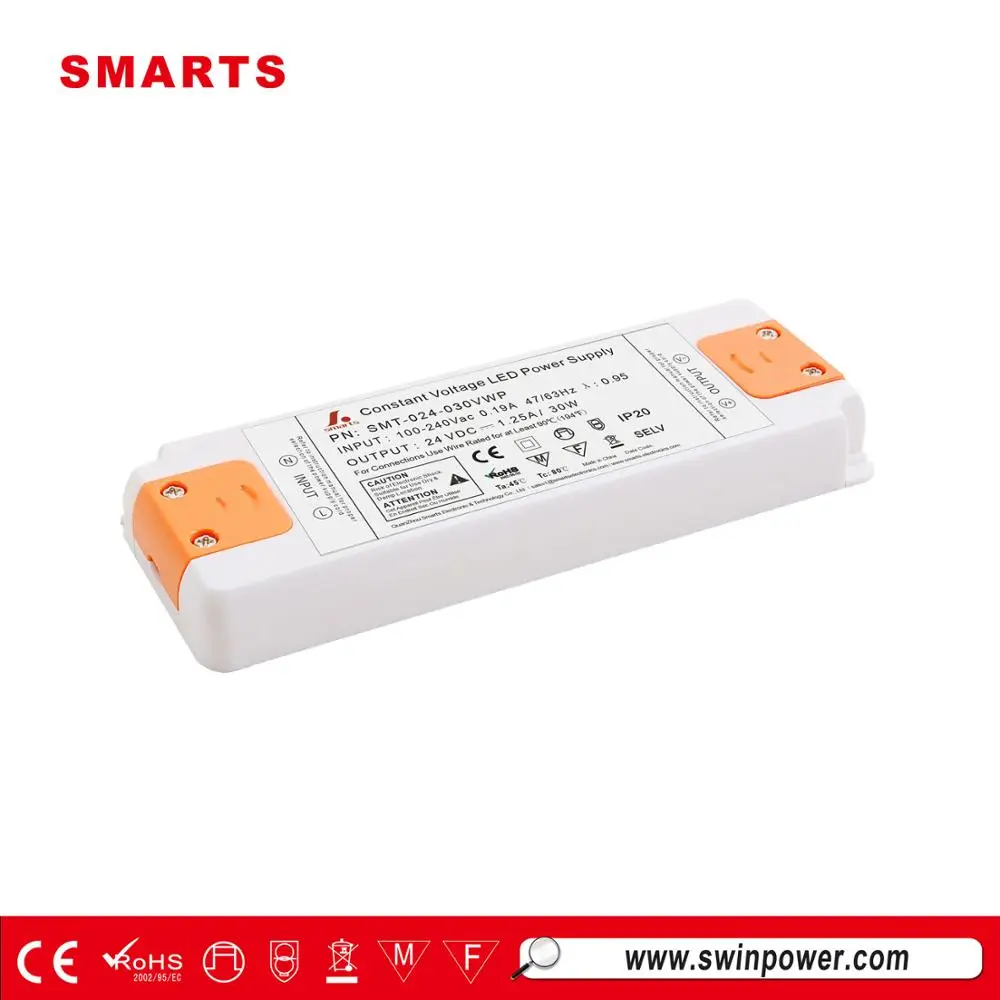

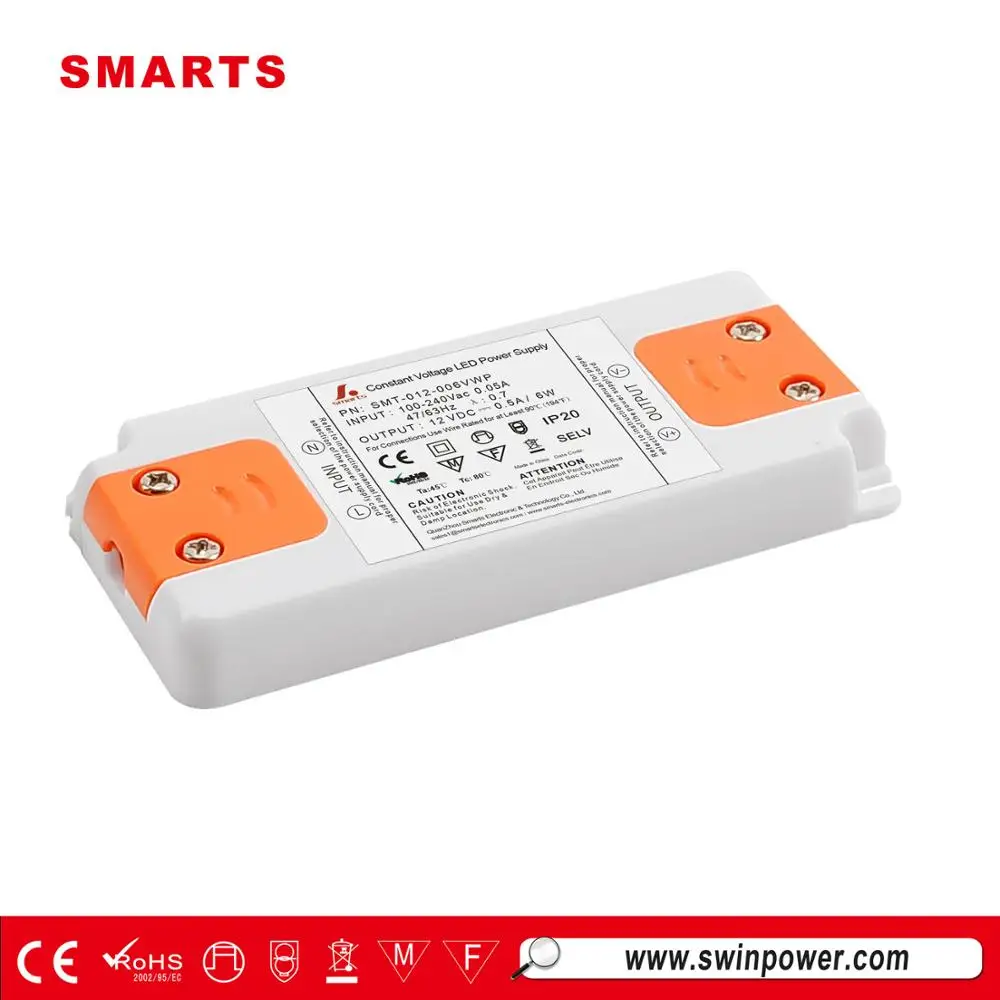

SMARTS Electronics slim series 12vdc 24vdc 6w ~ 60w LED power supplies with plastic housing. Buit in terminal screw connection, follow EMC and LVD of CE compliant, IP44 suitbale for dry and indoor locations.
slim size of each item are below:
- 12V/24V 6W size: L98.5* W45.8 *H12mm
- 12V / 24V 15W size: L127.5* W50 *H12mm
- 12V / 24V 20W size: L127.5* W50 *H12mm
- 12V / 24V 30W size: L160 * W57.6 *H19mm
- 12V / 24V 42W size: L160 *W57.6 *H19mm
- 12V / 24V 50W size: L160 *W57.6 *H19mm
- 12V / 24V 60W size: L185 *W63.5* H23mm
high PF : 0.95
efficency: 85%
| Label |
 |
Specification
| MODEL | SMT-012-030VWP | SMT-024-030VWP | |
| OUTPUT | DC VOLTAGE | 12V | 24V |
| RATED CURRENT | 1.5Amp | 1.25Amp | |
| VOLTAGE RANGE | |||
| RATED POWER | 30Watt | 30Watt | |
| RIPPLE&NOISE(max) | 300mV | 300mV | |
| VOLTAGE TOLERANCE | ±5% | ±5% | |
| LINE REGULATION | ±1% | ±1% | |
| LOAD REGULATION | ±2% | ±2% | |
| INPUT | VOLTAGE RANGE | 100-265VAC | 100-265VAC |
| FREQUENCY RANGE | 47-63Hz | 47-63Hz | |
| POWER FACTOR(Typ.) | |||
| EFFICIENCY(Typ.) | >83% | >84% | |
| AC CURRENT(Typ.) | 0.31A/110VAC, 0.17A/220VAC | ||
| PROTECTION | SHORT CIRCUIT | Protection type:recovers automatically after condition is removed | |
| OVER CURRENT | overload protected@145-160% above peak rating | ||
| OVER VOLTAGE | Protection type:Shut down o/p voltage,re-power on to removed | ||
| ENVIRONMENT | WORKING TEMP. | -10~+50℃ (Refer to output load derating curve) | |
| WORKING HUMIDITY | 20~99% RH non-condensing | ||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||
| SAFETY&EMC | SAFETY STANDARDS | EN61347-1;EN61347-2-13; CE /ROHS approval | |
| WITHSTAND VOLTAGE | I/P-O/P:2KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||
| EMC Test Standards | EN55015;EN61000-3-2;EN61000-3-3; | ||
| EN61547;EN61000-4-2,3,4,5,6,8,11; | |||
Mechanical Specification
