240 Вт Inventronics водонепроницаемый IP67 Светодиодный драйвер постоянного тока 100 в Выход
- Категория: Светодиодный драйвер >>>
- Поставщик: Hangzhou,Moonlight,Box,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 36.18 $* | 38.1 $* |
| Aug-19-2025 | 35.50 $* | 37.6 $* |
| Jul-19-2025 | 30.6 $* | 32.3 $* |
| Jun-19-2025 | 35.15 $* | 37.38 $* |
| May-19-2025 | 30.62 $* | 32.38 $* |
| Apr-19-2025 | 34.99 $* | 36.95 $* |
| Mar-19-2025 | 34.8 $* | 36.55 $* |
| Feb-19-2025 | 34.82 $* | 36.34 $* |
| Jan-19-2025 | 33.1 $* | 35.41 $* |
Характеристики
More models optional

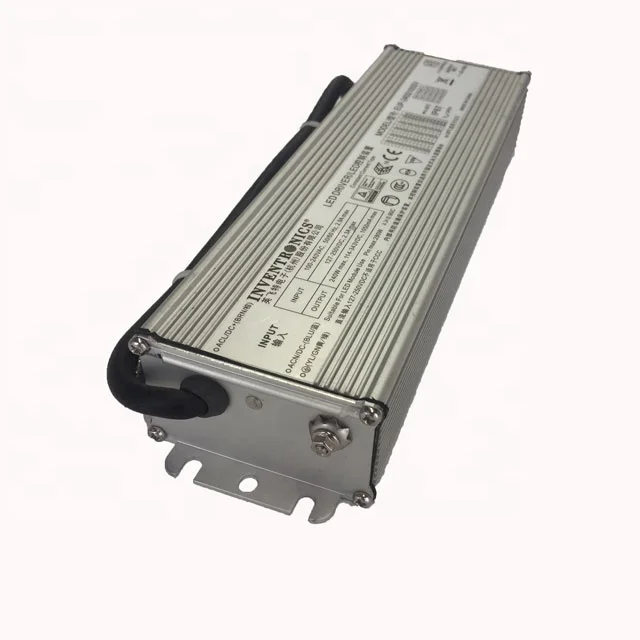

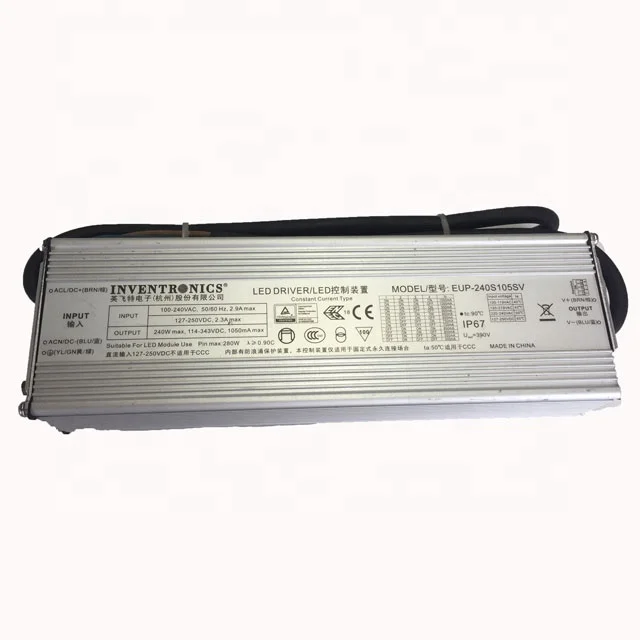

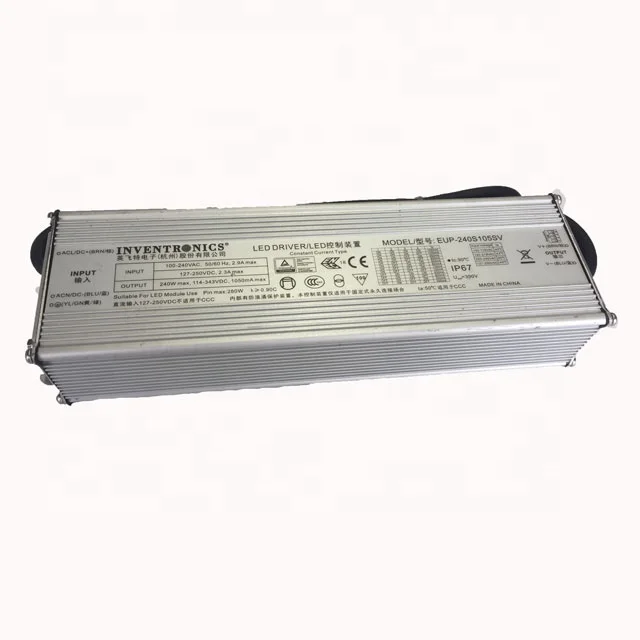

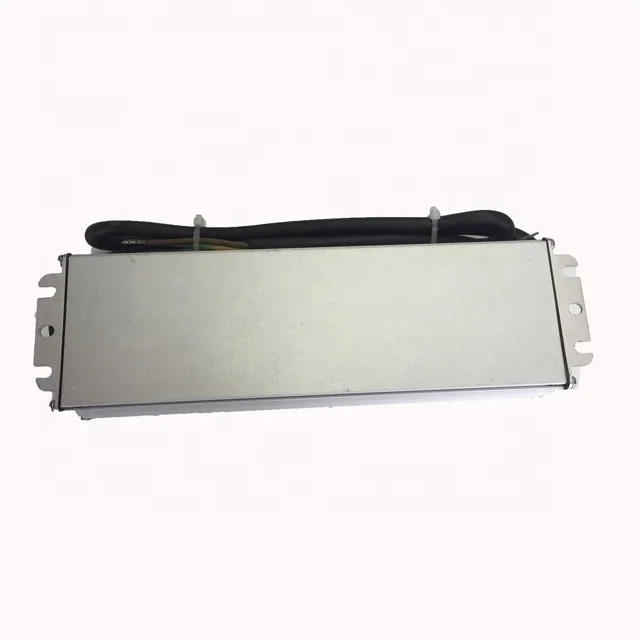

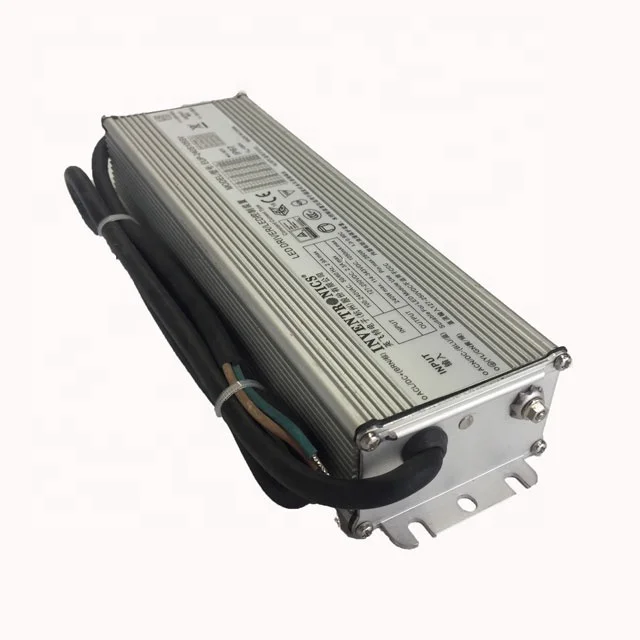

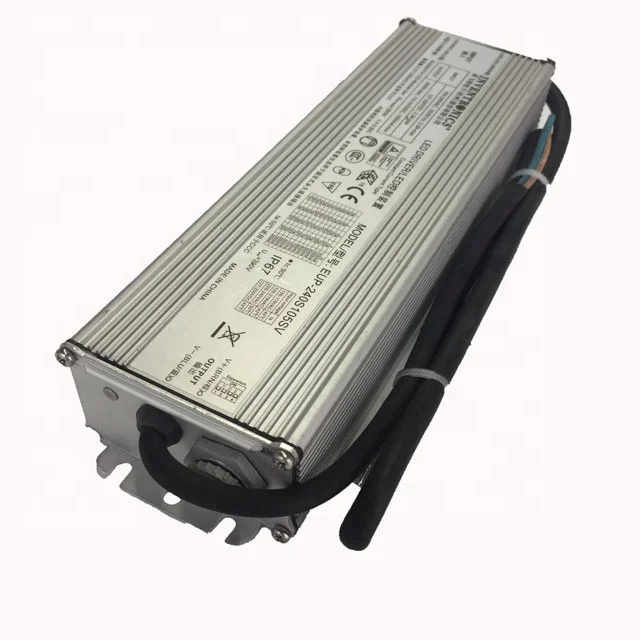

240W Inventronics Waterproof IP67 constant current led driver 100v dc output led driver
Features
- Ultra High Efficiency (Up to 93.5%)
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Dip-switch
- Non-dimming Control
- Input Surge Protection: 6 kV line-line, 10 kV line-earth
- All-Around Protection: OVP, SCP, OTP
- Waterproof (IP67)
- SELV Output
- Suitable for Independent Use
- 5 years warranty
Description
The EUP-240SxxxSV series is a 240W, constant-current, AOC IP67 LED driver that operates from 90-305 Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast, sports and roadway. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Models
| Adjustable Output Current Range | Full-Power Current Range (1) | Default Output Current | Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency (3) | Power Factor 120Vac | Power Factor 220Vac
| Model Number(4) |
| 500-1050mA | 700-1050mA | 700 mA | 90~305Vac 127~250Vdc | 114~343Vdc | 240W | 93.5% | 0.99 | 0.96 | EUP-240S105SV |
| 850-1500mA | 1050-1500mA | 1050 mA | 90~305Vac 127~250Vdc | 80~229Vdc | 240W | 93.5% | 0.99 | 0.96 | EUP-240S150SV |
| 1000-2100mA | 1400-2100mA | 1400 mA | 90~305Vac 127~250Vdc | 57~171Vdc | 240W | 93.5% | 0.99 | 0.96 | EUP-240S210SV |
| 2000-4200mA | 2800-4200mA | 4200 mA | 90~305Vac 127~250Vdc | 29 ~ 86Vdc | 240W | 92.5% | 0.99 | 0.96 | EUP-240S420SV (5) |
| 3400-6700mA | 4600-6700mA | 6700 mA | 90~305Vac 127~250Vdc | 18 ~ 52Vdc | 240W | 92.0% | 0.99 | 0.96 | EUP-240S670SV (5) |
Notes: (1) Output current range with constant power at 240W
(2) Certified voltage range: 100-240Vac or 127-250Vdc (except CCC, PSE, KS and BIS)
(3) Measured at 100% load and 220Vac input (see below “General Specifications” for details).
(4) All the models are certificated to KS,except EUP-240S105SV
(5) SELV Output.
More requirements about the item,Please send quote request
More requirements about the item,Please send quote request
More requirements about the item,Please send quote request
Output Current vs. Dip Switch Setting
More requirements about the item,Please send quote request
FAQ
1. What is the warranty of the driver?
-- It's 5 years warranty
2 .What is MOQ of the led driver?
--1pcs
3.Can we get samples for testing?
-- Yes,sample order welcomed.
4.What is delivery of the sample and bulk order?
-- 7working days for samples, 15-25days for the bulk order after receiving payment.
5.What is the payment?
--Paypal,T/T in advance,LC,western Union,visa,credit card,MoneyGram,30% deposit,70% against documents.
USD, EURO are acceptable here.
6.How to delvery the samples and bulk order goods?
--We can supply professional packing and delivery service as follows.
More requirements about the item,Please send quote request
Company Information
Hangzhou Moonlight Box Technology Co.,Ltd specializing led modules for outdoor led lighting retrofit and Inventronics & Meam well brand power supply. Our advantages as below:
* Over 14 years exporting experience
* Guaranteed by Alibaba
* With US $516,000 Alibaba insurance
* With an honest and high-effi executive team
* A willing heart without no excuse to deal with warranty and after-sale service
Warehouse and Container loading:
More requirements about the item,Please send quote request
