Водонепроницаемый светодиодный трансформатор питание от переменного тока до 50 Вт постоянного 12
- Категория: LED Driver >>>
- Поставщик: Shenzhen,Fangsheng,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 5.57 $* | 5.31 $* |
| Aug-16-2025 | 5.92 $* | 5.58 $* |
| Jul-16-2025 | 4.47 $* | 4.13 $* |
| Jun-16-2025 | 5.92 $* | 5.83 $* |
| May-16-2025 | 4.75 $* | 4.47 $* |
| Apr-16-2025 | 5.40 $* | 5.75 $* |
| Mar-16-2025 | 5.79 $* | 5.85 $* |
| Feb-16-2025 | 4.21 $* | 4.80 $* |
| Jan-16-2025 | 4.90 $* | 4.19 $* |
Характеристики
Product Description

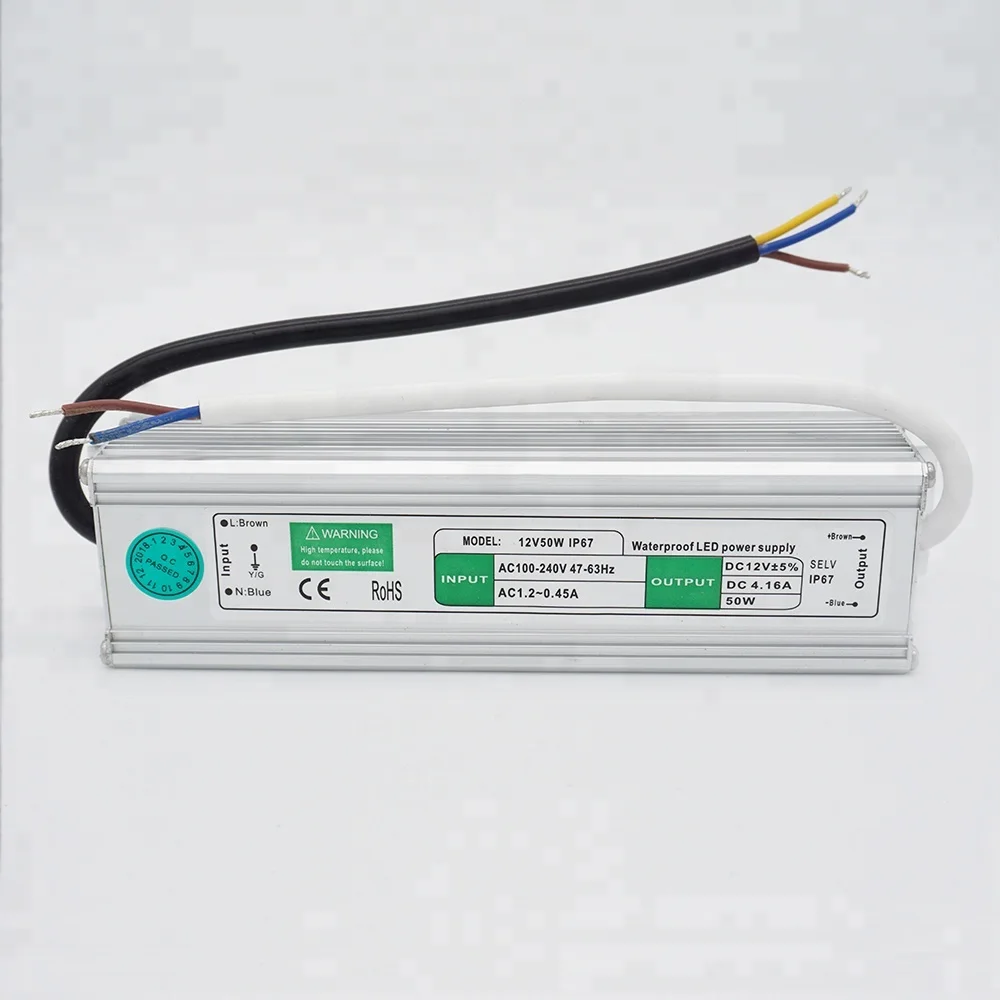

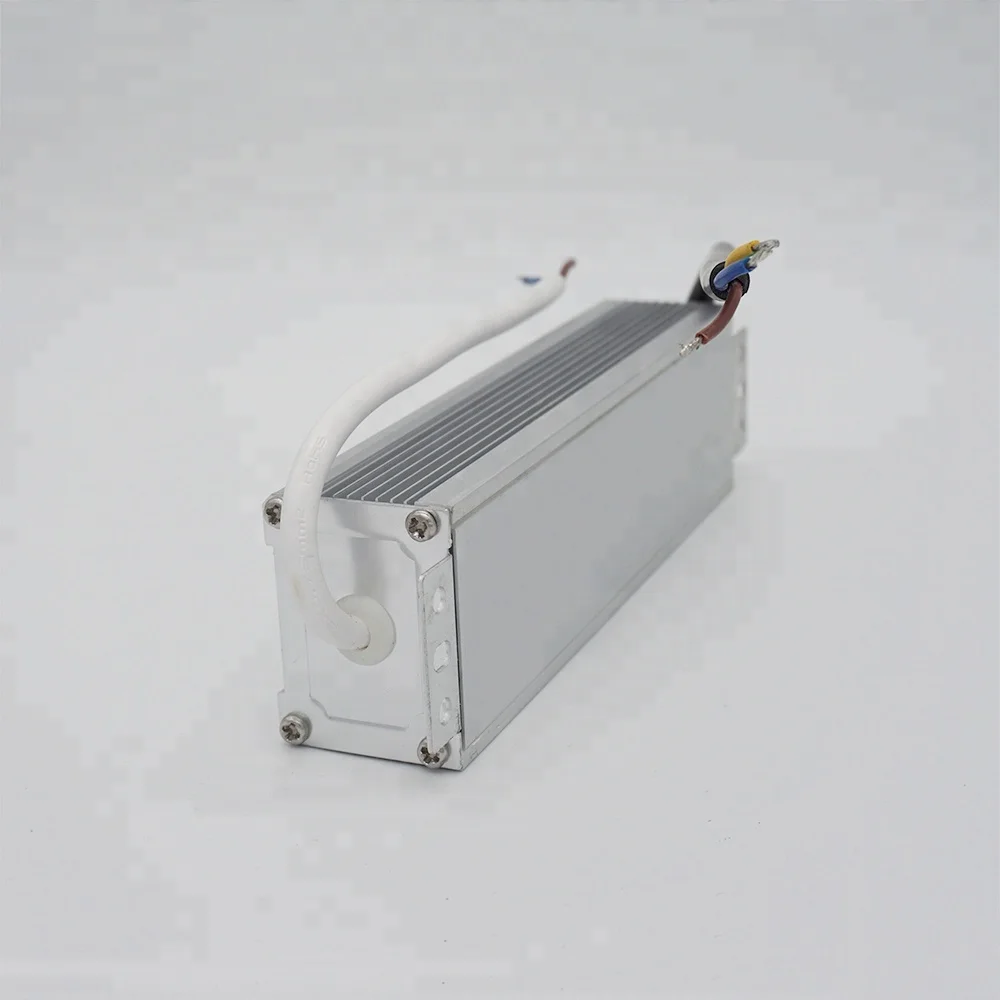

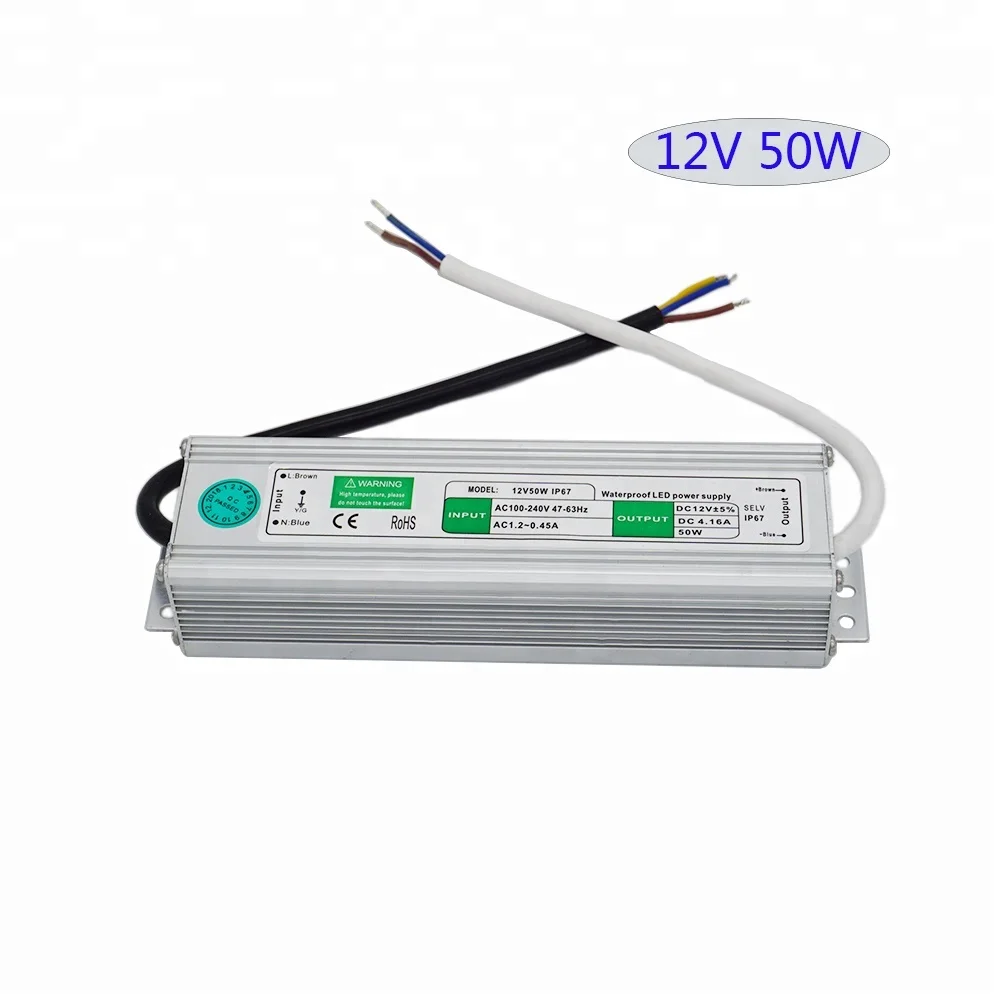

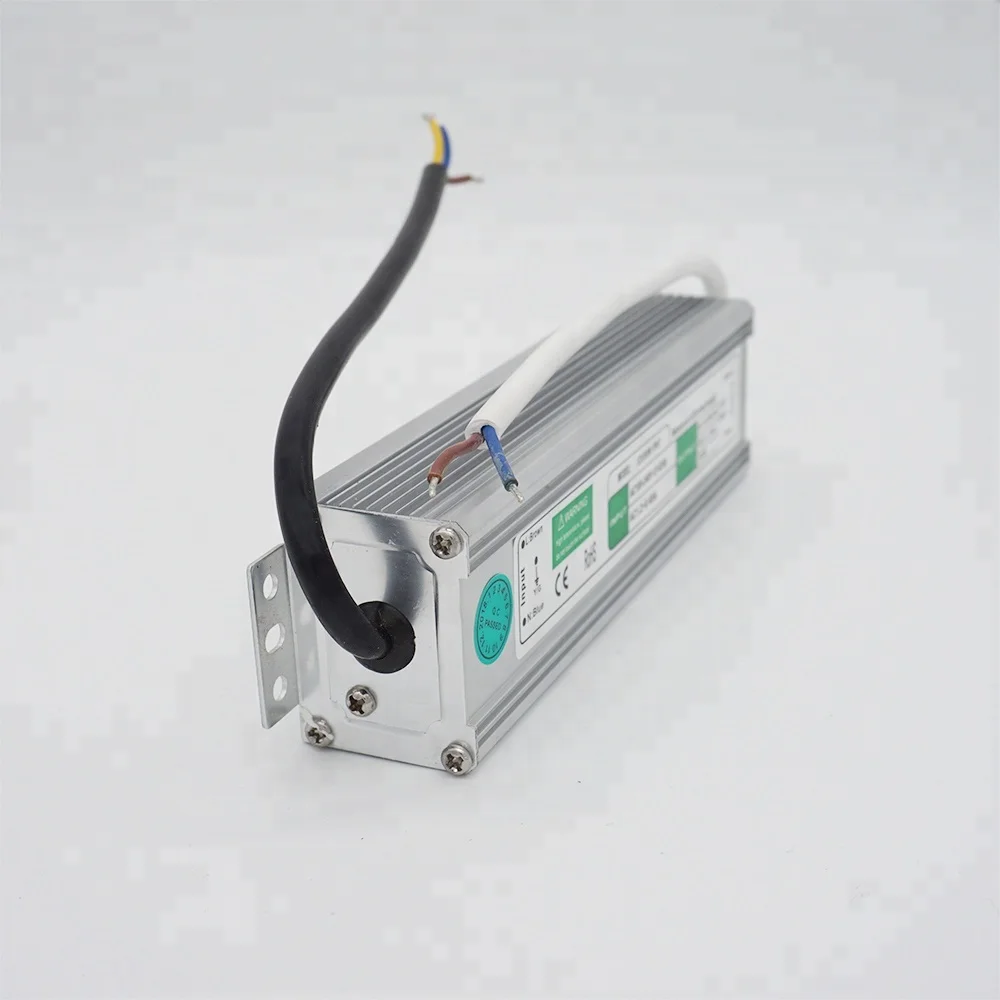

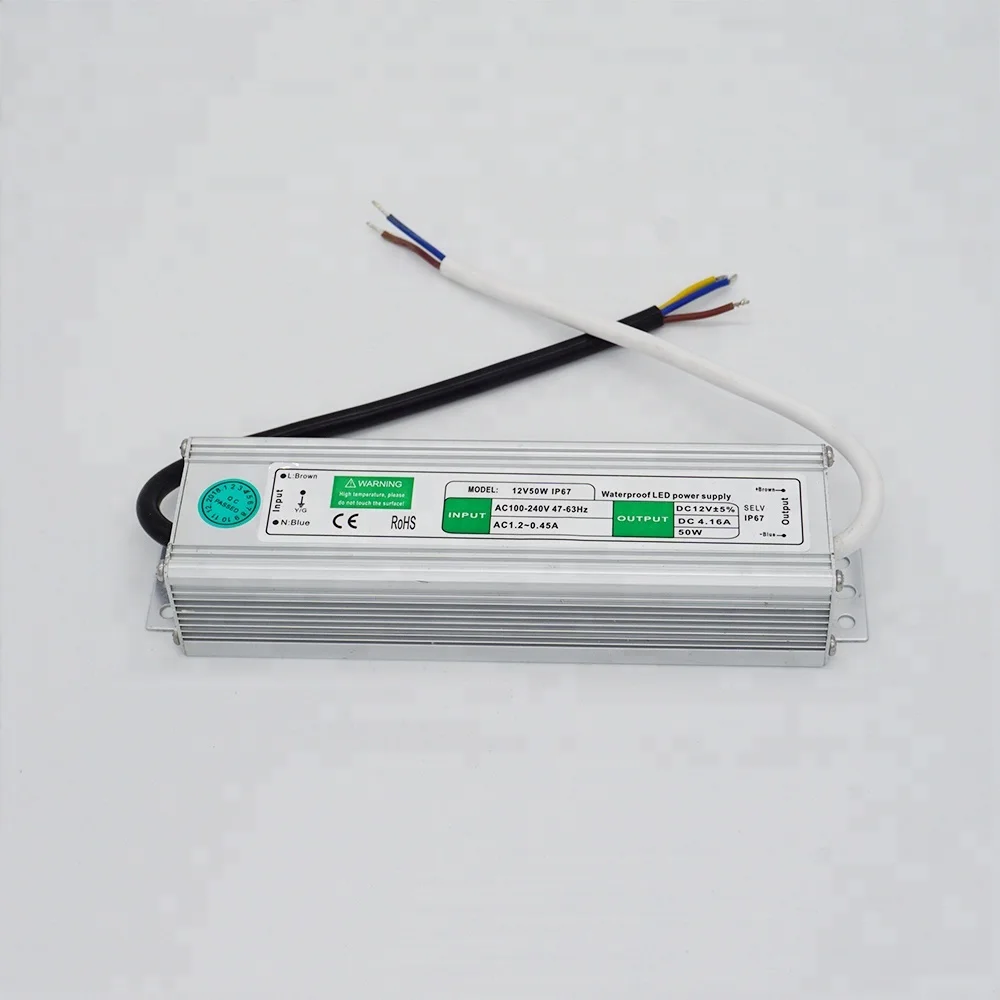

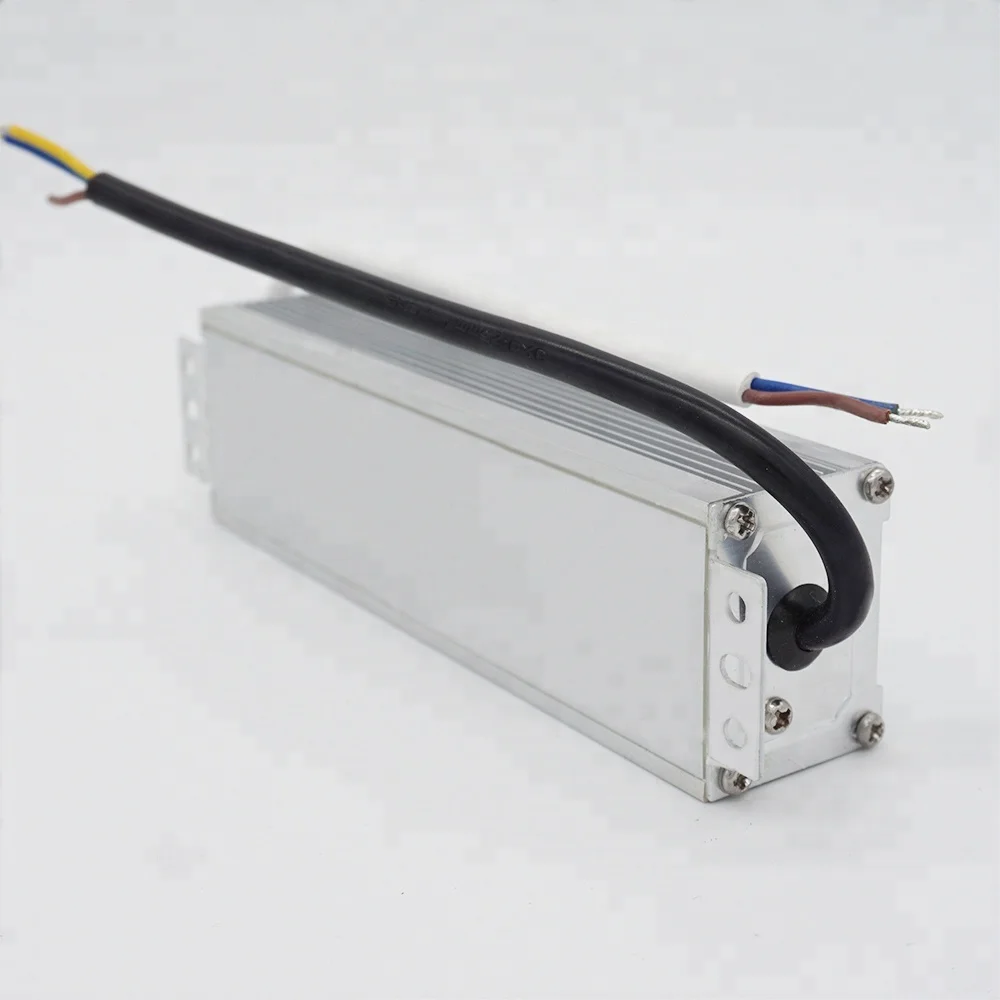

Waterproof 50W AC Power To DC Power Supply 12V 50W IP67 LED Driver LED Transformer
| Model | 12V50W IP67 |
| Specification | 12V 4.16A 50W |
| DC output voltage | 12V |
| Output voltage error | ±5% |
| Rated output current | 4.16A |
| Output current rage | 0-4.16A |
| Wave and noise | 120mVp-p |
| Inlet stability | ±0.5% |
| Load stablity | ±1% |
| DC output power | 50W |
| Efficiency | 85% |
| Adjustable range for DC voltage | +10,-5% |
| AC input voltage range | 85-264VAC 47-63Hz |
| Input current | 0-4.16A |
| Leakage current | <3.5mA/240VAC |
| Overload proctection | 105%~150% Tpye pulsing hiccp shutdown Reset:auto recovery |
| Over-voltage protection | 115%~135% |
| High-temperature protection | 65℃ |
| Temperature coefficient | ±0.03%/°C(0~50%) |
| Setup rise hold up time | 800ms,50ms,10ms/115V 300ms,50ms,80ms/230VAC |
| Vibration | 10-500HZ,2G 10min,/1cycle,Period for 60min,Each axes |
| Withstand voltage | Input and output internal ,1.5KVAC,Input and enclosure,.5KVAC,Output and enclosure,0.5KVAC |
| Isolation resistance | Input and output internal,Input and enclosure,Output and enclosure,500VDC/100MΩ |
| Working temperature and humidity | -10°C~+60°C(Refer to output derating curve),20%~90%RH |
| Store temperature and humidity | -20°C~+85°C,10%~95%RH |
| Overall dimension(mm) | 160*42*32 |
| Weight(g) | 360 |
| Application | LED strip light,LED down light,led panel light, Outdoor etc. |
Packaging & Shipping
White box for single item, 40 pieces per ourter carton. 22.5kg/ctn. 38*25.5*21cm. DHL/UPS/EMS/TNT/SEA Shipment
Company Information
As a leading member of switching power supply manufacturer in China,Shenzhen FaoSun Lighting Co.,Ltd is a hi-tech enterprise, specializing in the research, development and production of AC/DC, DC/DC series switching power supply, adapter, and DC/AC inverter, etc. Our factory located in DongGuang city and sales centre in Shenzhen.
Our products are widely used in many industries, like LED display screen industry, postal service, communications industry, power industry, instrument and meter industry, semiconductor refrigeration and heating industry, medical equipment industry, monitor system industry, automatic control industry, and railway signal industry, etc.
It's widely exported to europe, north America and southeast asian countries, well received by customers.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
