Paint booth from China

Product description

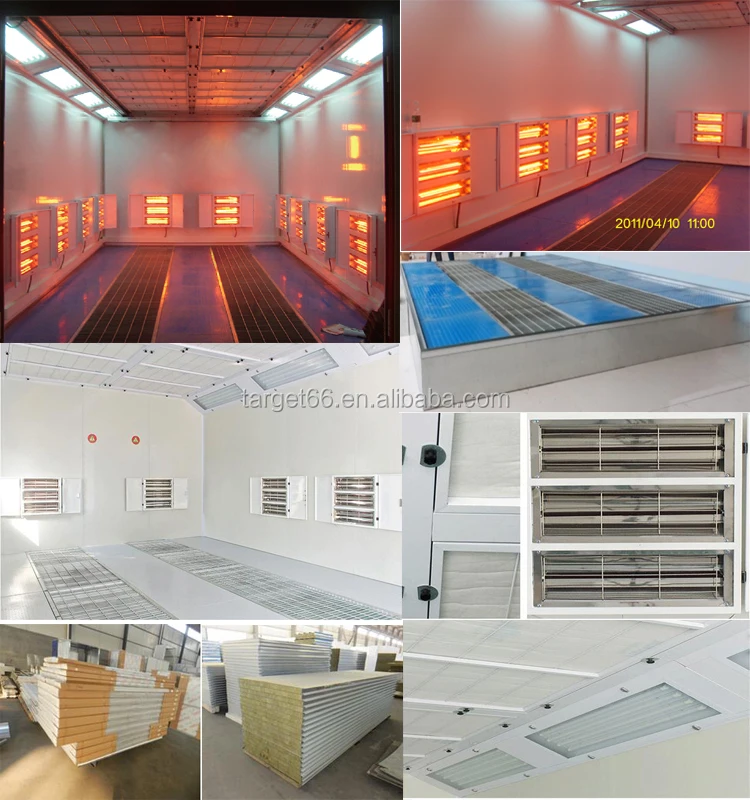

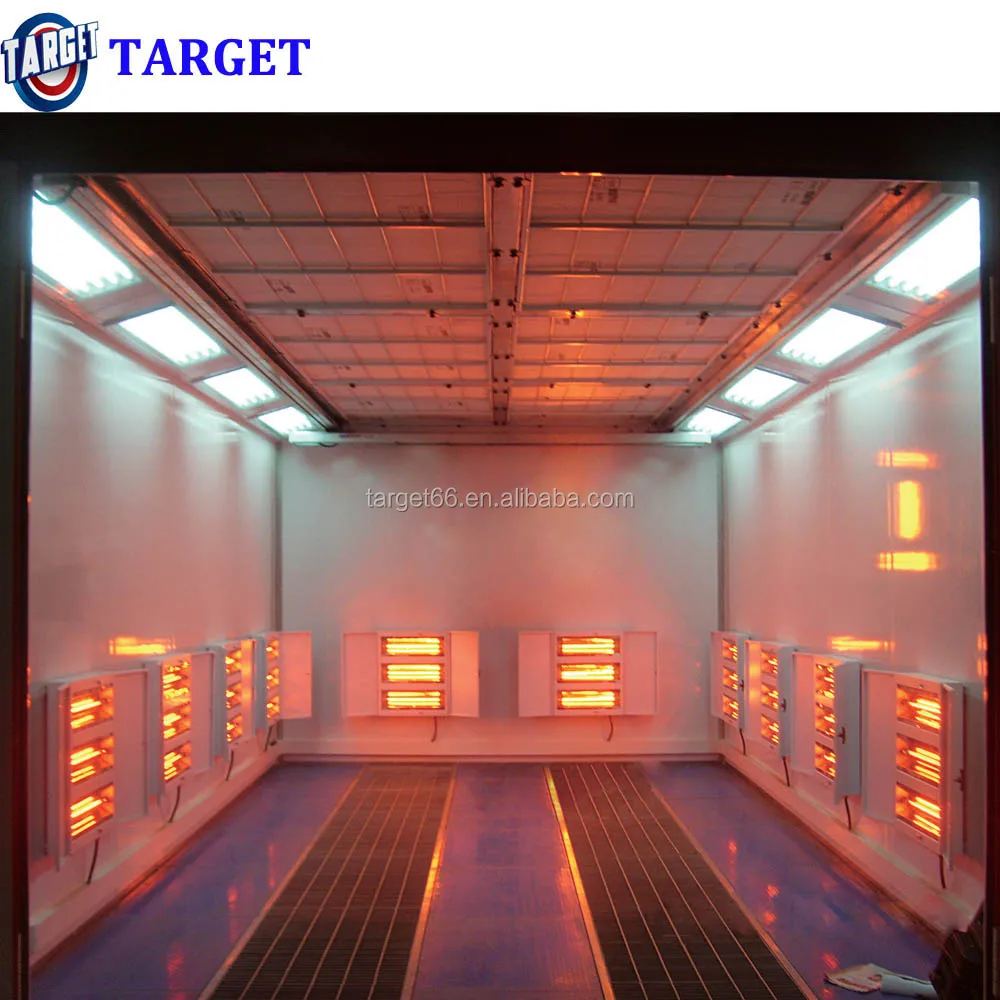

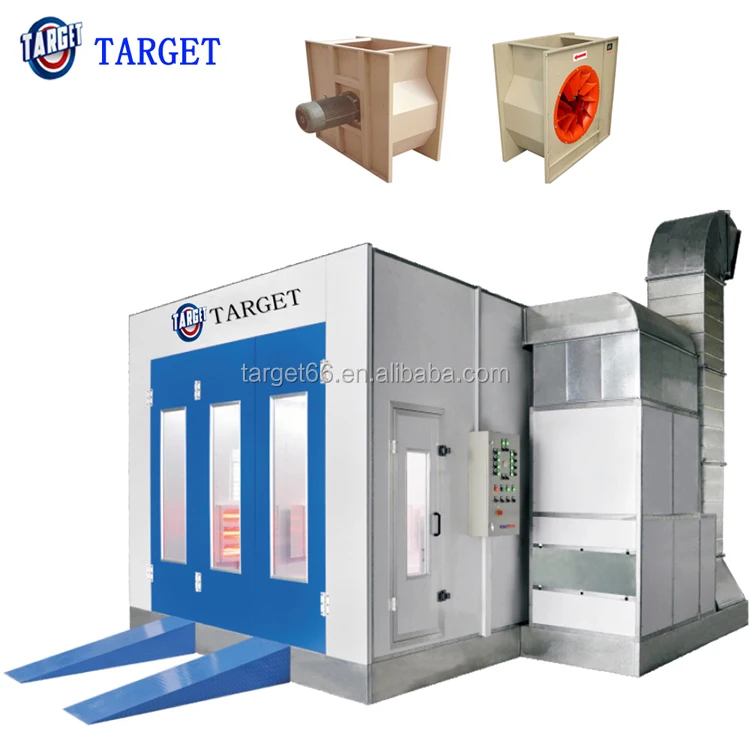

Spray Booth Electric infrared lamp heating TG-80A

Inside dimension

6900*4000*2800 (LxWxH)

Front door(mm)

3000*2700 mm(W×H)

Outside dimension

7050*5560*3650 (LxWxH)

Total Power(Kw)

44 Kw

Cabin System

Wallboard

Rock wool colorful steel skin board,75mm thick,steel 0.5mm thick, compound construction, anti-flame and heat-insulation, galvanized steel roof panel.

Basement

350mm depth,Galvanized steel sheet and square steel pipe assembling,2 rows of grid plates made by flat bar and round steel,3 rows of diamond plates, galvanized.2 ramps, external setting, 750 x 2000 mm ( W * L )/pc

Air Circulation System

Intake Fan

Blower Capacity:  25000m³/h

Exhaust Fan

Blower Capacity:  20000m³/h

Power:  7.5kw/pc,970 rpm

Power:  5.5kw/pc ,970 rpm

Quantity:  1 pc

Quantity:  1 pc

Model: turbo fan

Model: turbo fan

Air Volume: 25000m³/h,Air flow speed in the cabin:0.25m/s

Heating system

10 units infrared curing lamps for heating, 3pcs of each unit,1KW/pc.Total power:30KW.

Filter system

Dual-filtering structure

Primary filter :Can Capture Granules Larger than 10μm

Ceiling filter :600g high efficiency filter,can Capture Granules Bigger than 4μm

Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>95% ,TSP≤1.4mg/m3

Lighting system

Ceiling lights

8Units×4Pcs=32Pcs×36W >900Lux,with anti-explosion design .

Side lights

no

Control system

Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start.

Environmental  System

Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
