MEANWELL HLG-480H-C 480W 1400ma 2800ma 3500ma Водонепроницаемый 7 лет 0-10В 10В ШИМ смарт-таймер затемнения светодиодный драйвер постоянного
- Категория: Светодиодный драйвер >>>
- Поставщик: Hangzhou,Moonlight,Box,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 136.12 $* | 143.10 $* |
| Aug-16-2025 | 135.57 $* | 142.64 $* |
| Jul-16-2025 | 113.22 $* | 119.57 $* |
| Jun-16-2025 | 132.91 $* | 139.64 $* |
| May-16-2025 | 115.16 $* | 121.55 $* |
| Apr-16-2025 | 130.57 $* | 137.72 $* |
| Mar-16-2025 | 129.20 $* | 135.9 $* |
| Feb-16-2025 | 128.75 $* | 134.63 $* |
| Jan-16-2025 | 127.9 $* | 133.20 $* |
Характеристики
More Meanwell led power supply:

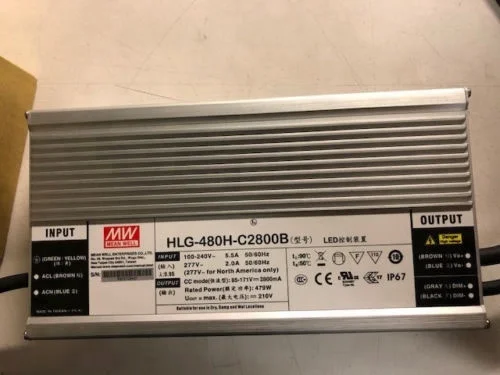

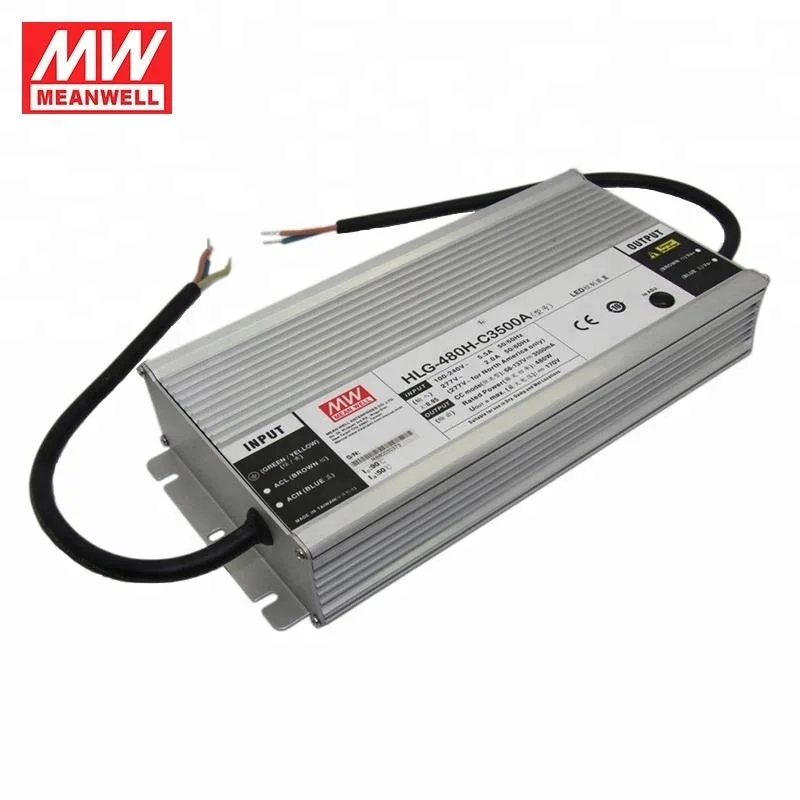

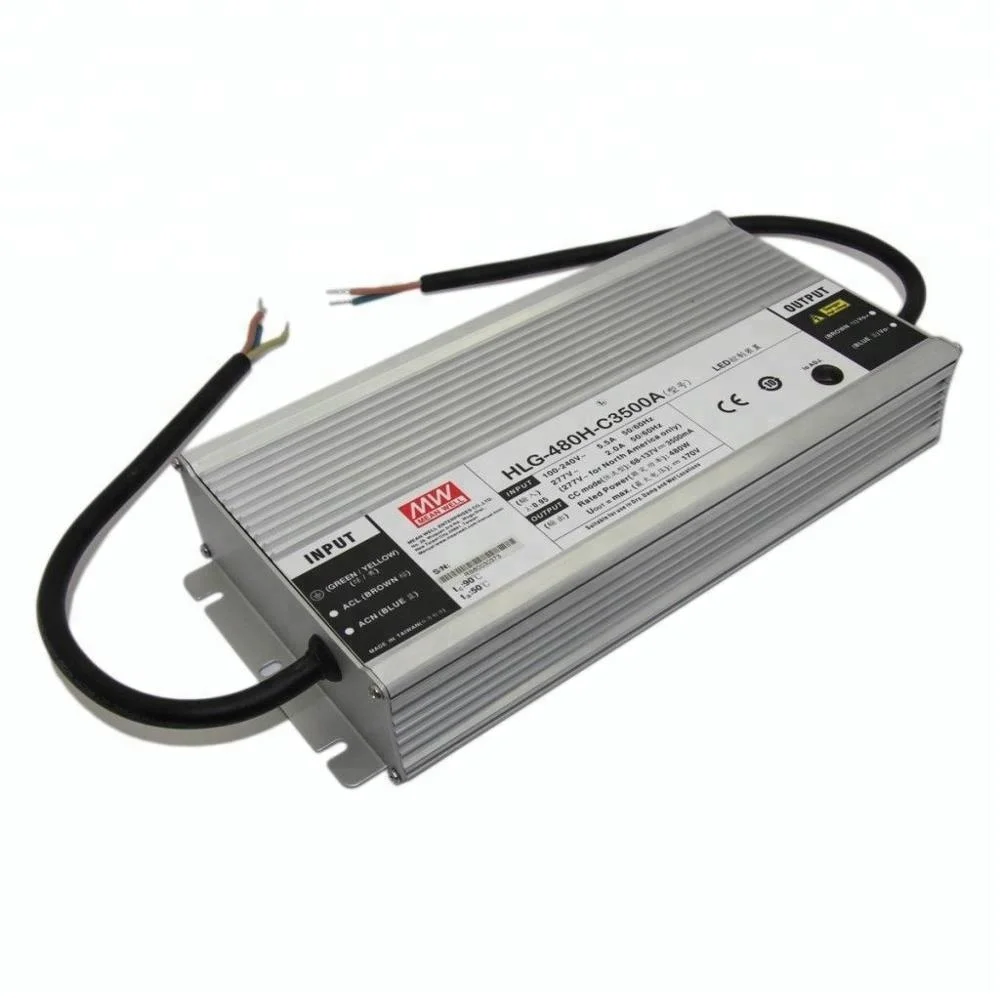

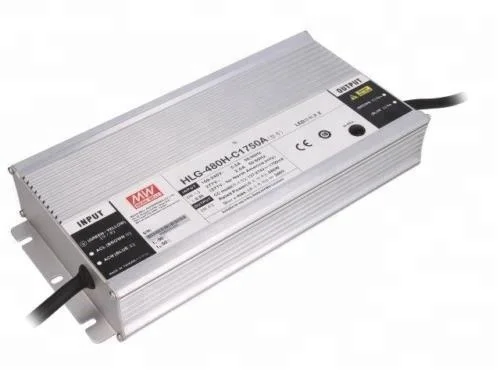

MEANWELL HLG-480H-C 480W 1400ma 2800ma 3500ma waterproof 7 years 0-10v 10v pwm smart timer dimming constant current led driver
QUICK OVERVIEW
A Type: Io adjustable through built-in potentiometer and environment adaptiveness
B Type: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance) and environment adaptiveness
Constant current design
Protections: Short circuit / Over voltage / Over temperature
Other features:
- IP67 / IP65 design for indoor or outdoor installations
- Metal housing with class I design
- Function options : output adjustable via potentiometer; 3 in 1 dimming; Smart timer dimming
- IP67 design for indoor or outdoor installations
- Typical lifetime >62000 hours
- 7 years warranty
Applications:
- LED harbor lighting
- LED greenhouse lighting
- LED statium lighting
- led minning lighting
- Type "HL" for use in Class 1, Division 2 hazardous(Classified)location.
Models:
| HLG-480H-C1400A | HLG-480H-C1400B | HLG-480H-C1750A | HLG-480H-C1750B | HLG-480H-C2100A | HLG-480H-C2100B | HLG-480H-C2800A | HLG-480H-C2800B | HLG-420H-C3500A | HLG-480H-C3500B | |
| Output Current (A) | 1400mA | 1400mA | 1750mA | 1750mA | 2100mA | 2100mA | 2800mA | 2800mA | 3500mA | 3500mA |
| Input Voltage (V) | 90-305VAC 127-431VDC | |||||||||
| Output Voltage Options | Single | |||||||||
| Working Temperature | Tcase= -40~+90°C (Refer to “Output load vs temperature” section of the datasheet) | |||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2 Class C (@ load >50%) ; EN61000-3-3, GB17743, GB17625.1 Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) | |||||||||
| Dimensions (LxWxH) mm | 262x 125x 43.8 | |||||||||
| Packaging | 8pcs/16kg/0.92CUFT | |||||||||
More requirements about the item,Please send quote request
More models:
View detail information about the item,Please send quote request
MECHANICAL SPECIFICATION:
View detail information about the item,Please send quote request
View detail information about the item,Please send quote request
FAQ
1. What is the warranty of the driver?
-- It's 7 years warranty
2 .What is MOQ of the led driver?
--1pcs
3.Can we get samples for testing?
-- Yes,sample order welcomed.
4.What is delivery of the sample and bulk order?
-- 7working days for samples, 15-25days for the bulk order after receiving payment.
5.What is the payment?
--Paypal,T/T in advance,LC,western Union,visa,credit card,MoneyGram,30% deposit,70% against documents.
USD, EURO are acceptable here.
6.How to delvery the samples and bulk order goods?
-- By DHL,UPS,FedEX,TNT,EMS for samples,
-- By air or by sea for bulk order
View detail information about the item,Please send quote request
Company Information
Hangzhou Moonlight Box Technology Co.,Ltd specializing led modules for outdoor led lighting retrofit and Inventronics & Meam well brand power supply. Our advantages as below:
* Over 14 years exporting experience
* Guaranteed by Alibaba
* With US $516,000 Alibaba insurance
* With an honest and high-effi executive team
* A willing heart without no excuse to deal with warranty and after-sale service
Warehouse and Container loading:
View detail information about the item,Please send quote request
