Pneumatic Concrete Scabbler



Applications of Scabbler



•Usually used in the cast-in-place concrete structure.

•Remove the broken ground raised part.

•Epoxy resin ground chiseling.

•Anti-slip surface.





Catagories



1. Pneumatic Hand Hold Type

2. Pneumatic Hand Push Type

3. Electric Hand Hold Type

4. Electric Hand Push Type





Parameters and Product  Display

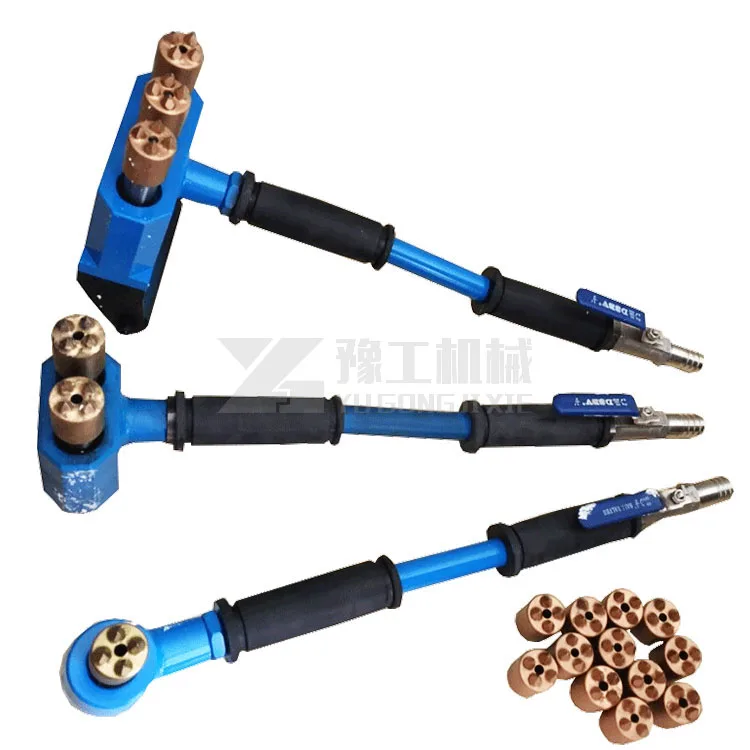

1.Pneumatic Hand Hold Type



Model	YG-1A	YG-2A	YG-3A
Working Depth(mm)	31	69	100
Gas Consumption(L/min)	500	700	900
Working Efficiency(m2/h)	3-10	3-15	3-20
Chisel Depth(mm)	1-3	1-3	1-3
Air Compressor(m3)	1	1	1

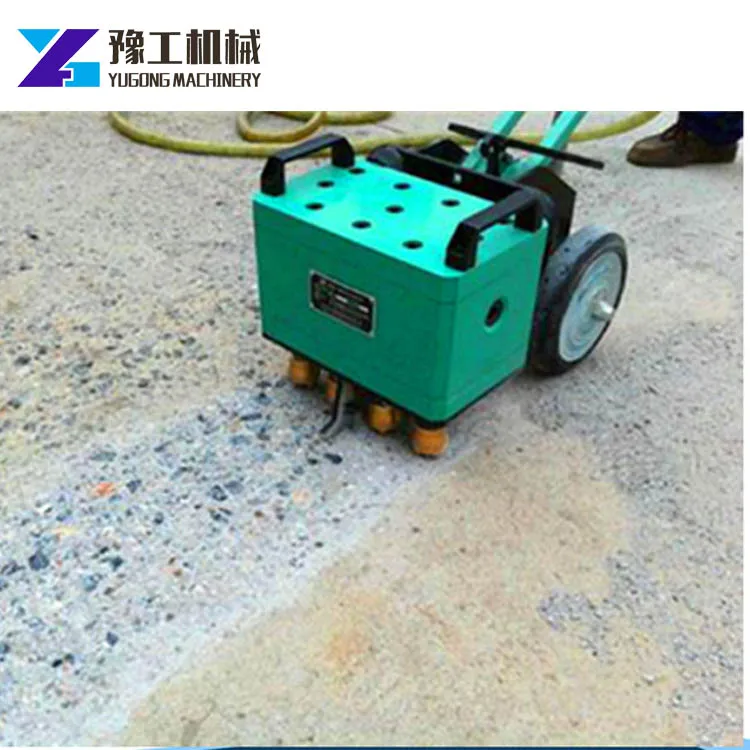

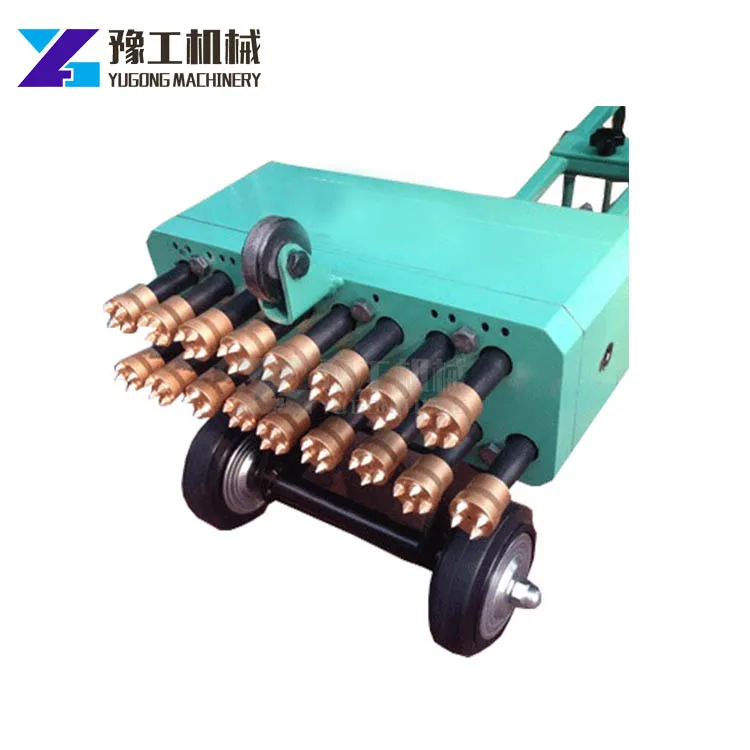

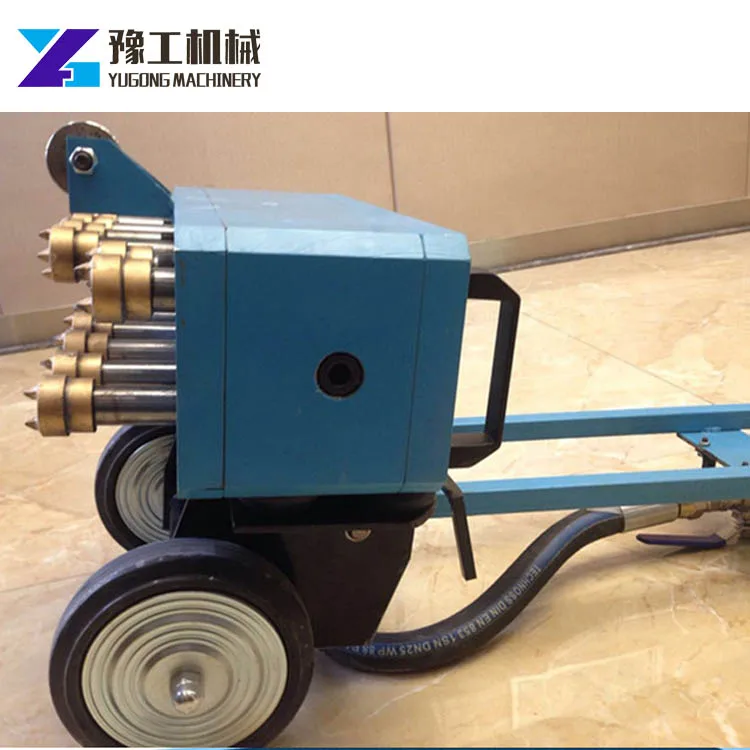

2.Pneumatic Hand Push Type



Model	YG-11A	YG-23A
Air Compressor(m3/min)	3	3
Air Compressor Pressure(Mpa)	0.7	0.7
Chisel Depth(mm)	1-3	1-3
Chisel Width(mm)	283	535
Working Efficiency(m2/h)	45-100	45-150
Gas Consumption(L/min)	1600	3200
Weight(kg)	80	156

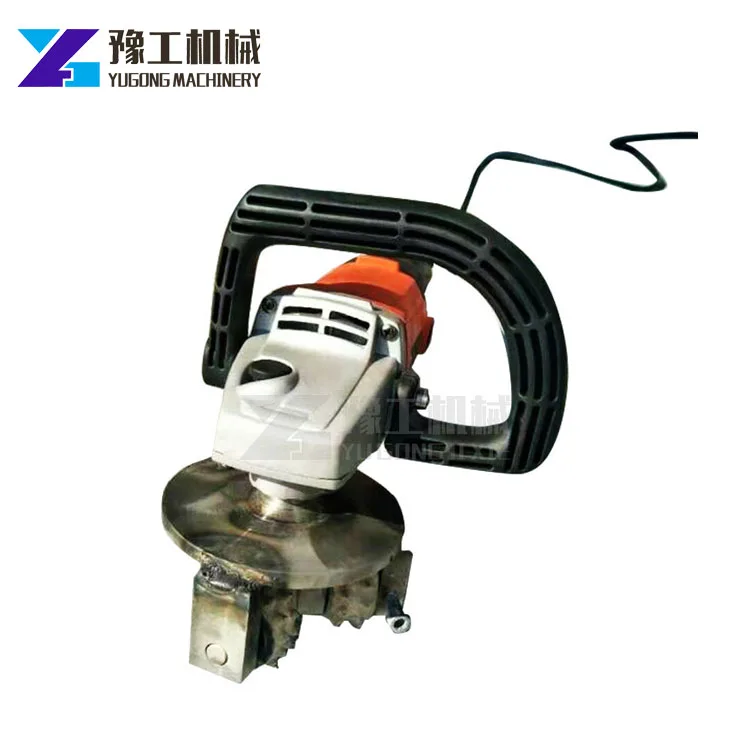

3.Electric Hand Hold Type



Power	1.1kw
Working Depth	90mm
Working Width	3-5mm
Weight	10kg
Working Efficiency	12-15m3/h
Dimension	390*150*250mm

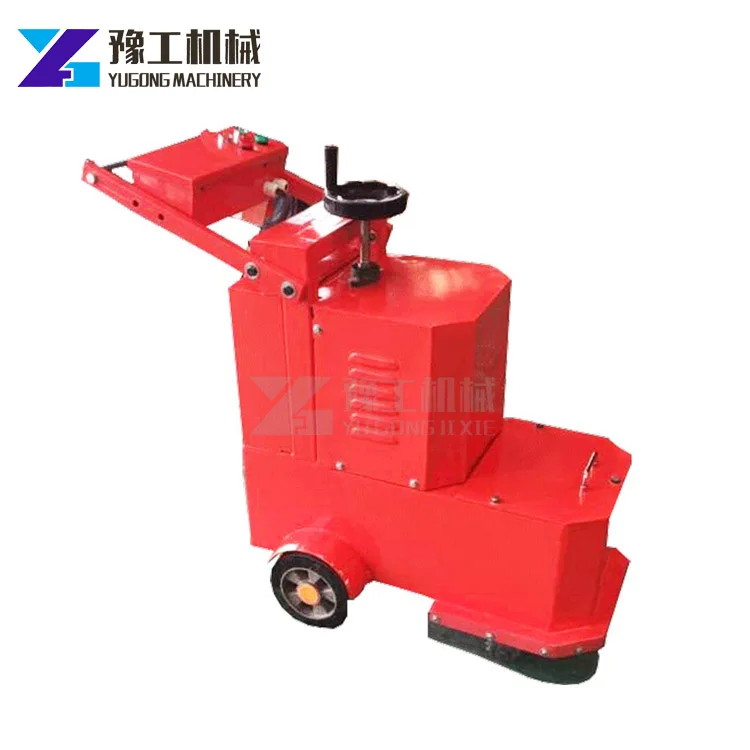

4.Electric Hand Push Type



Inverter Motor	4KW (Fast and Slow)
Dimensions	1000*600*900mm
Weight	160kg
Motor Speed	1440r/s
Chisel Wheel Speed	900r/s (5 Chisel Head)
Chisel Depth(mm)	3-10mm
Chisel Efficiency(m2/h)	200-500







Differences Between Hand-held and Hand-push



•Small hand-held machine can be used for small areas (local), and will not damage the original structure,.

•Hand-push machine for a large area of road , bridge deck.



Advantages of Electric Concrete Floor Scabbler



1. Electric, not need to be equipped with air compressor, easy to move.

2. Hand push: adjustable depth, automatic walking
