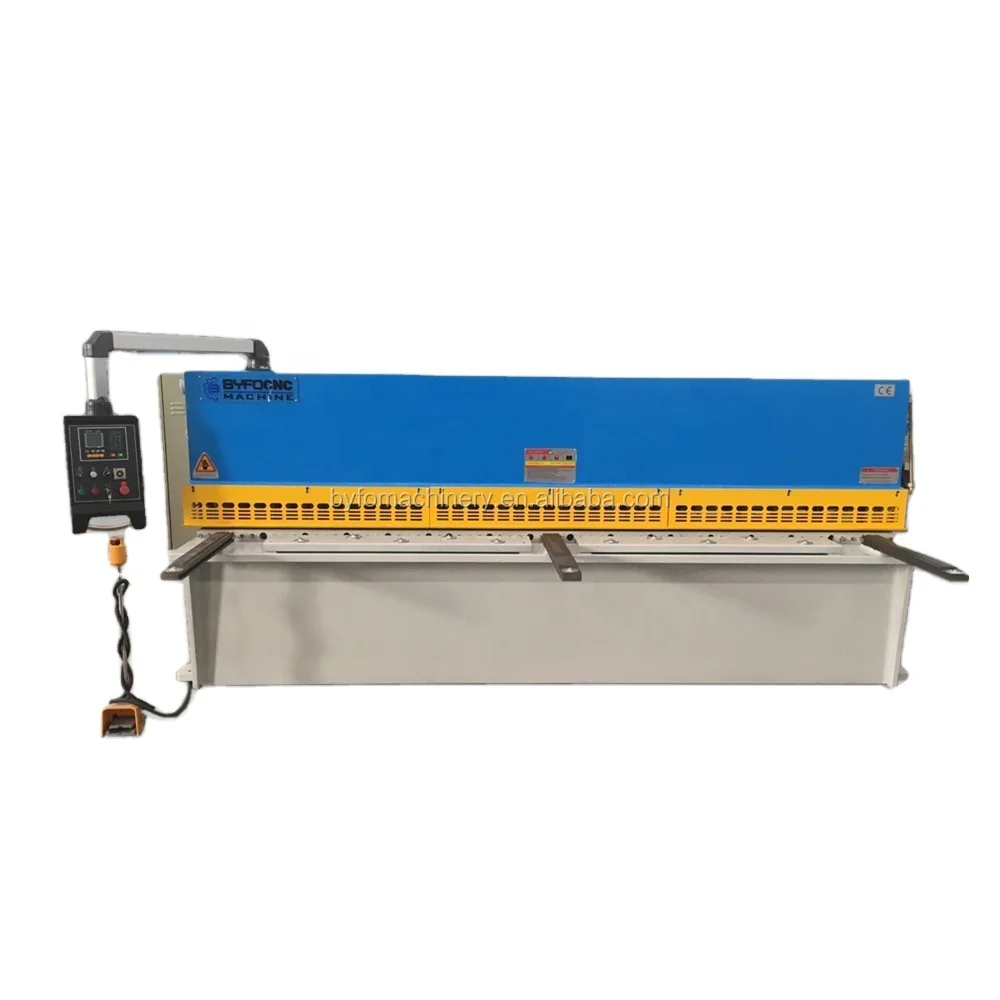

Гидравлический резак с ЧПУ бренда BYFO гидравлический для листового

1. Main Features:

• Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

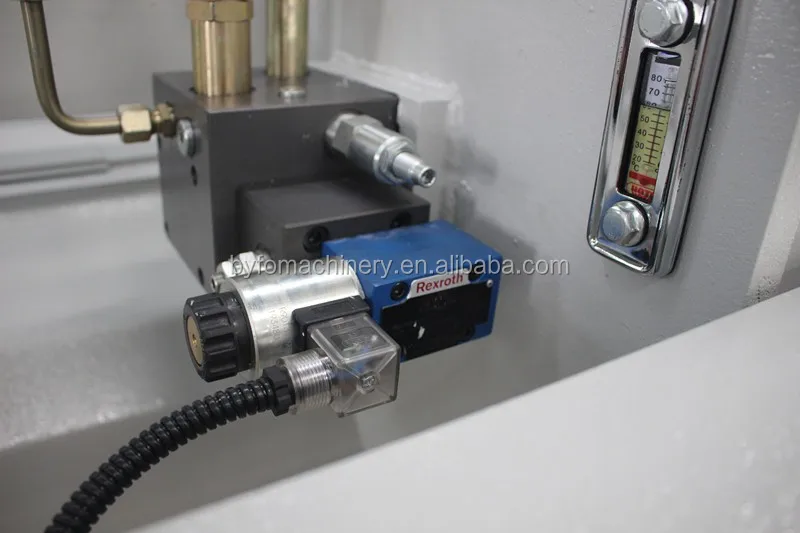

• Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany,
• The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
• The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21S with Delta inverter.
• Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.

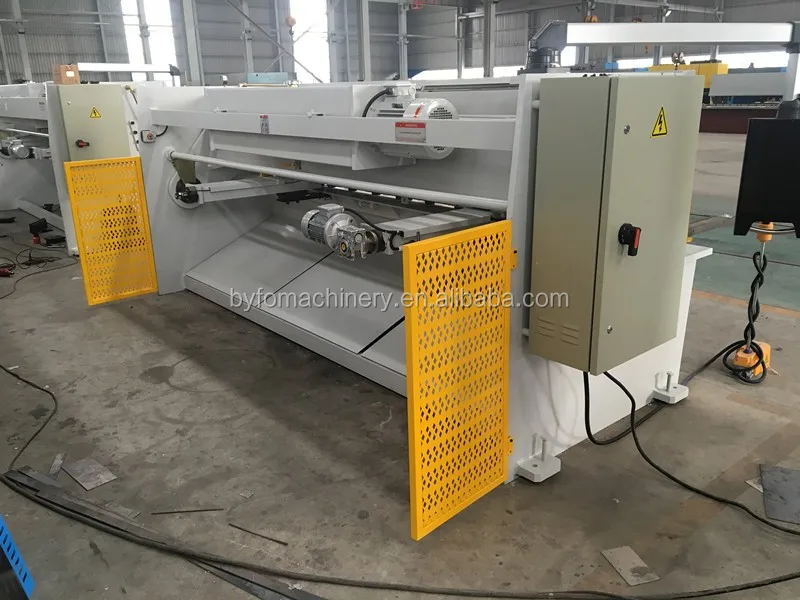

• Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

2.Standard Equipment:

• Estun E21S NC control system
• Powered Back guage X-axis
• DELTA Inverter controlled back guage
• HIWIN Ball screws &Polished rod with 0,05mm accuracy
• Squaring Arm and Front Support Arms
• Germany Bosch-Rexroth Hydraulic
• Germany EMB Tubing connector
• Germany Siemens Main Motor
• Telemecanique/Schneider Electrics
• Hydraulic &Electrical overload protection
• Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)

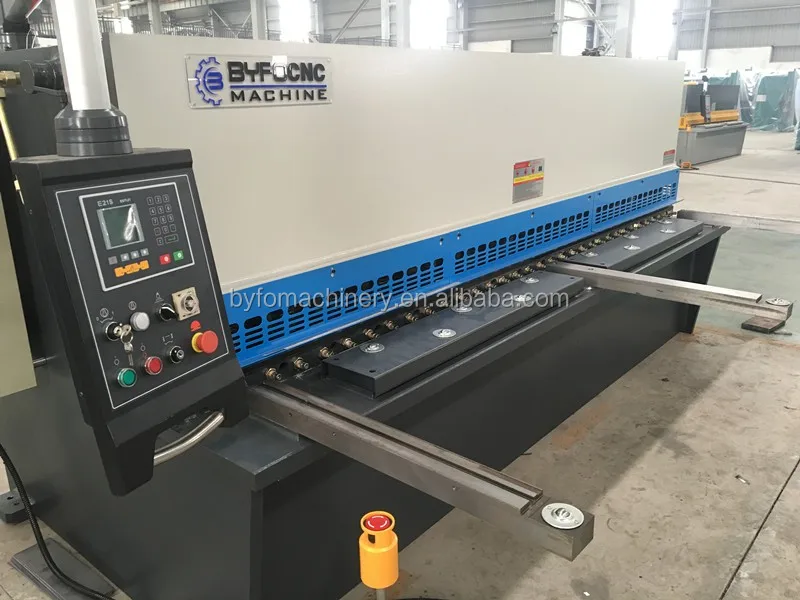

3.Estun E21S NC control System

• Backgauge control
• Control for general AC motors,frequency inverter
• Intelligent positioning
• Double programmable digital output
• Stock counter
• Program memory of up to 40 programs Up to 25 steps per program
• One side positioning
• Retract function
• One key backup/restore of parameters
• mm/inch
• Chinese/English
