Product Description

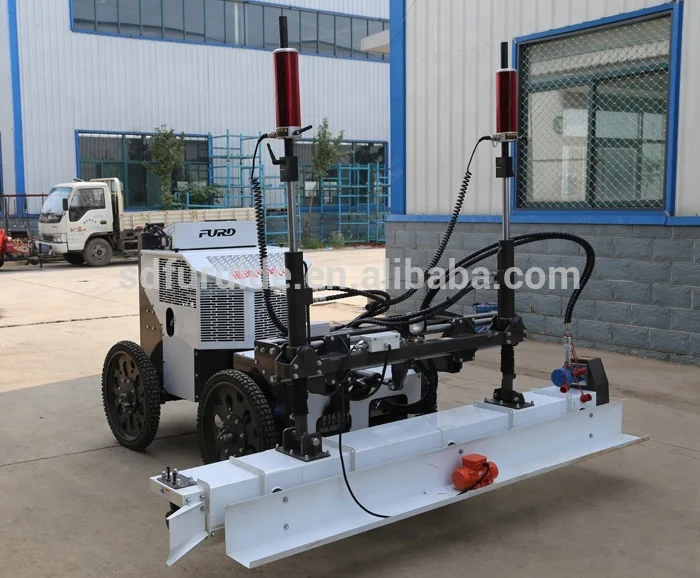

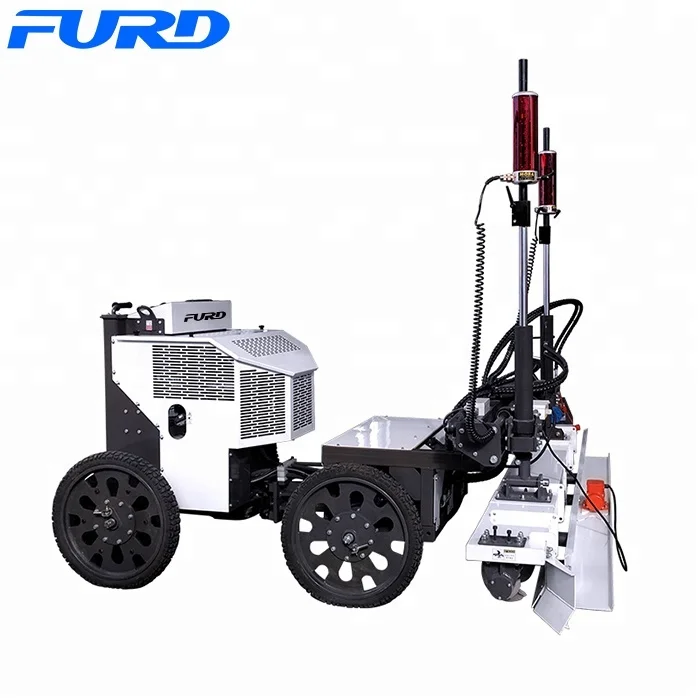

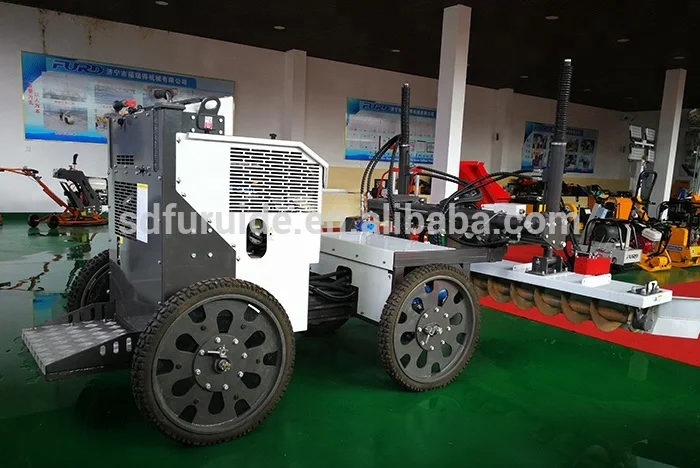

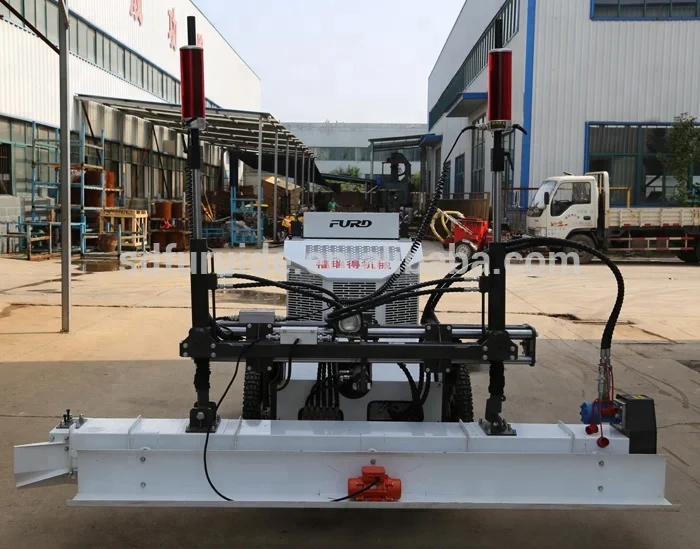

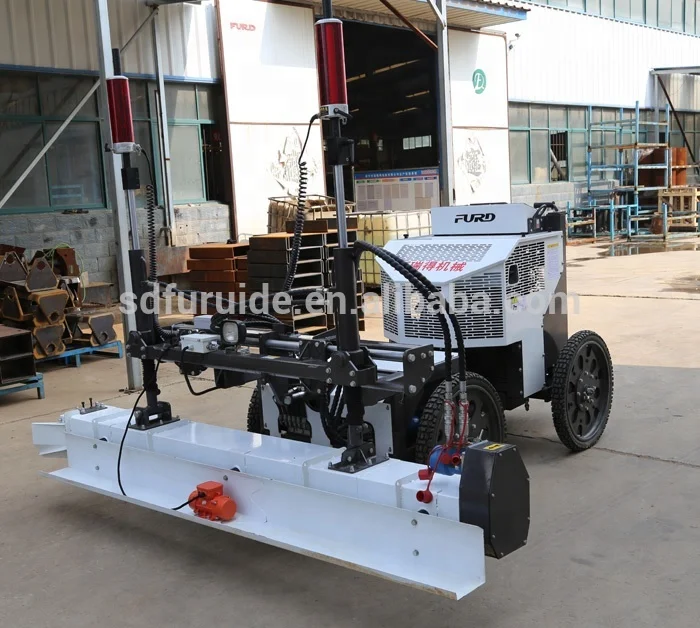

Laser Concrete Machine mainly used for large area concrete construction concrete screeding, such as square, workshop, airport, playground and so on. Laser screeds can realize the high planeness and levelness of concrete screeding requirement. FJZP-220 laser screed can used in flat, slope, double slope road concrete screeding and rebar concrete project.

FJZP-220 use Trimble laser system

FJZP-220 use Leica laser system

\t SPECIFICATIONS FOR FJZP-220 LASER SCREED
\t Engine		\t Leveling System
\t Model	\t Honda GX630 Electric Start	\t Width	\t 2500mm
\t Type	\t Gasoline Engine, OHV, Double Cylinder	\t Paving Mode	\t Paving Auger
\t Power	\t 20HP/3600rpm	\t Power Auger	\t High Torque, Hydraulic Motor
\t Fuel Tank Capacity	\t 40L	\t Centrifugal Force	\t 500N
\t Lubricant	\t 1.5L	\t Vibration Frequency	\t 50Hz
\t Fuel Consumption	\t 313g/kwh	\t Screed Head Type	\t Swing Type
\t Travel System		\t Screed Plate Height	\t 330mm
\t Drive	\t Four-wheel hydraulic motor	\t Paving Depth	\t 30-200mm
\t Wheel	\t Solid puncture prddf tyre	\t Translational Range	\t 500mm
\t Speed	\t 0-50m/min	\t Operation
\t Laser Control		\t Forward, backward	\t Electric Proportional, CVT
\t Control	\t Microcomputer laser scanning	\t Steering	\t Hydraulic Control, Steering Angle around 30 degree
\t Control Effect	\t Plane, slope or dual slope (three-dimensional)	\t Dimensions and Weight
\t Dimensions	\t 294025002360mm	\t Weight	\t 1200kg

Main Features

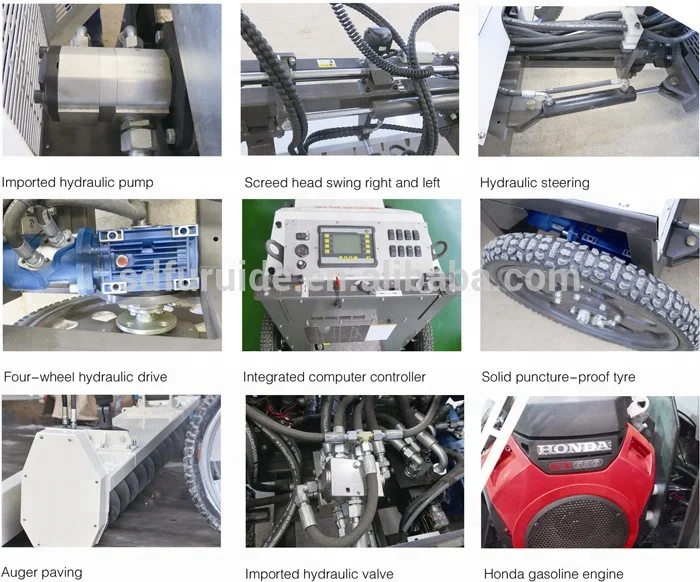

1) Used high accuracy laser device, close loop control technology and precision integrated hydraulic system, and microcomputer automatic control.Laser Concrete Machine

2) Screed assembly is hydraulic controlled. Integrated with laser system and computer control system, the machine will self-level and finish the screeding work with high efficiency.

3) The laser transmitter which measures the elevation is independent located, so there is no worry about the accumulative error. Compared with the traditional way, the construction joints will be greatly reduced, so the maintenance cost and slab use will be down greatly.

4) The flat and dual slope can be fully automatic controlled by the transmitter. For the complex floor which has high requirement for drainage, the 3-D floor processing system can be used.

5)Steering, forward and reverse of the machine are all controlled by the integrated handles. Operation buttons and controller.
