KX-SP3200B Automotive Car Painting Spray Booth Oven For Sale

Product Description

KX-SP-3200B is a new product researched by our company. The booth could be used for common paint painting and water- based paint painting.

The special advantage is following:

¶ Gas or electric heating powder is optional.

¶ Using water rotary machine to handle the extra paint mist so that the exhaust gas could reach Euro Ⅲ standard.

¶ The water based paint could be reused after filtering by untrafilter system. The common filter could be fired or buried.

¶ The heating energy recycling system could recycle 60% heat energy for reusing.

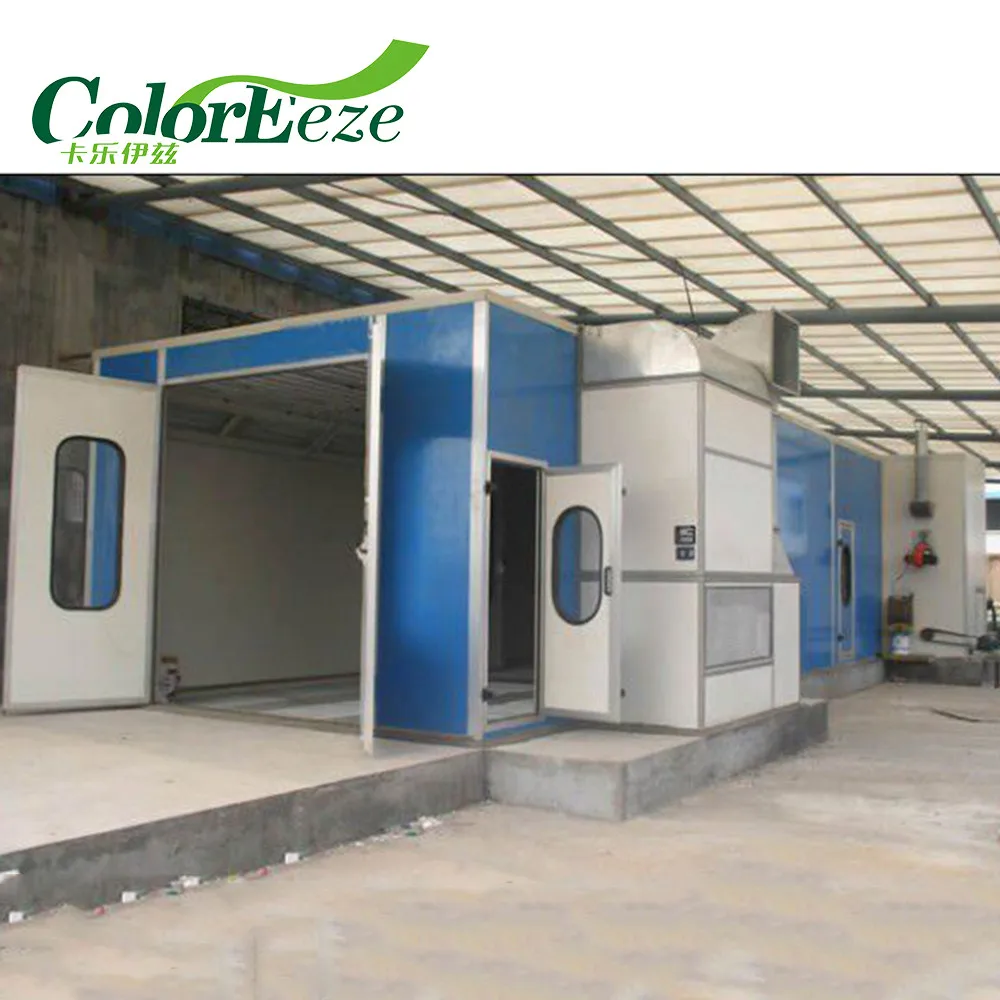

Detail show

Product Specification

Overall Size(mm)	700052504100
Outer Size(mm)	700040003400
Inner Size(mm)	690039002700
Entry Door Size(mm)	3000*2600
Personnel Door(mm)	750*2000

Spray booth with CE suitable for EU market

Features	Total Power 58kw;380v/3phase/50hz Noise<80db
1.Wallboard & roof panel	-EPS colorful steel panel board, 75mm thick, tongue & groove style, steel 0.6mm thickness. Compound construction, anti-flame and heat-insulation, galvanized steel roof panel.
2. Basement	- Metal Pedestal (Galvanized then powder coated on the surface), with Filter Tray* 5rows & Ramps a couple
2. Basement	- Grid Plates (Galvanized)* 5rows
3. Heating System (gas and electricity)	- Gas Burner (Italy Riello,FS20,200000Kcal/h)* 1unit - Heating Exchanger (Stainless Steel material)* 1unit - Electric heating: Quantum radiator 36kw, part of them could be moved. - Heating energy recycling: One set of heating energy recycling system to recycle 60% heat energy for reusing. - 5-10 minutes reaching the baking temperature 60-80°C - Cabinet (rock wool insulation) for the burner & heat exchanger* 1unit; Air Ducts* 2pcs
4. Four-stage Filter System	- A Primary Filter* 1set, HP Ultrathin filter - B Air-Intake Filter* 1set, CC-600G high efficiency filter(ceiling filrer), flame-resisting levelclass F5, thickness 25mm. - C Air-Exhaust Filter* 2set of fiberglass flter. - D Air-Exhaust Filter* 1set of worm curtain and ultrafilter. The worm curtain made by 304 stainless Steel, the ultrafilter could be reused.
5. Air circulation System	- Air-Intake Fan* 1unit, DDF-630B turbo Fan with 7.5kw motor air flow 22000m3/hour. - Air-Exhaust Fan* 1unit, DDF-630B turbo Fan with 7.5kw motor air flow 22000m3/hour. - Exaust air pressure regulator* 1 set. - Cabinet for the fans* 1 unit, the frame made by 5050 powder coated square steel, the cabinet panel made by powder coated galvanized steel, 0.8 thickness, insulated with 30mm rockwool. - Air Ducts 3pcs, and Air Damper (pneumatic)* 1 unit.
6. Water-based paint system	- Spary nozzle59pcs, direction adjustable. The air duct made by 0.7mm galvanized steel. - Air intake fan 2set, YDW4.5AL, air flow 20000m3/hour.
7. Illumination	- Ceiling Lights* 32pcs, 36w each, with electronic ballasts, powder-coated light box, tempered glass. - Side Lights* 20pcs, 30w each, with electronic ballasts, powder-coated light box, tempered glass.
8. Control Panel	- *1 unit, PLC control, including Power switch, common paint spary/baking switch, water-based paint spray/baking, light switch, temperature display, humidity display, time setting, fault alarm, emergency stop, etc.
9. Eviromental handling	- Water rotary machine* 1 unit, to handle the exhause paint mist. - The water base paint could be reused after filtered by untrafilter system. The common paint could be fired or be buried.
