Сверхмощный гидравлический листогибочный пресс с ЧПУ цена на изгиб листового металла из нержавеющей
- Категория: Оборудование для обработки металлических листов >>>
- Поставщик: Jiangsu,HT-Metalforming,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.36 $* | 0.45 $* |
| Aug-19-2025 | 0.51 $* | 0.27 $* |
| Jul-19-2025 | 0.94 $* | 0.68 $* |
| Jun-19-2025 | 0.52 $* | 0.41 $* |
| May-19-2025 | 0.89 $* | 0.39 $* |
| Apr-19-2025 | 0.55 $* | 0.27 $* |
| Mar-19-2025 | 0.30 $* | 0.2 $* |
| Feb-19-2025 | 0.48 $* | 0.30 $* |
| Jan-19-2025 | 0.42 $* | 0.1 $* |
Характеристики
Product Overview

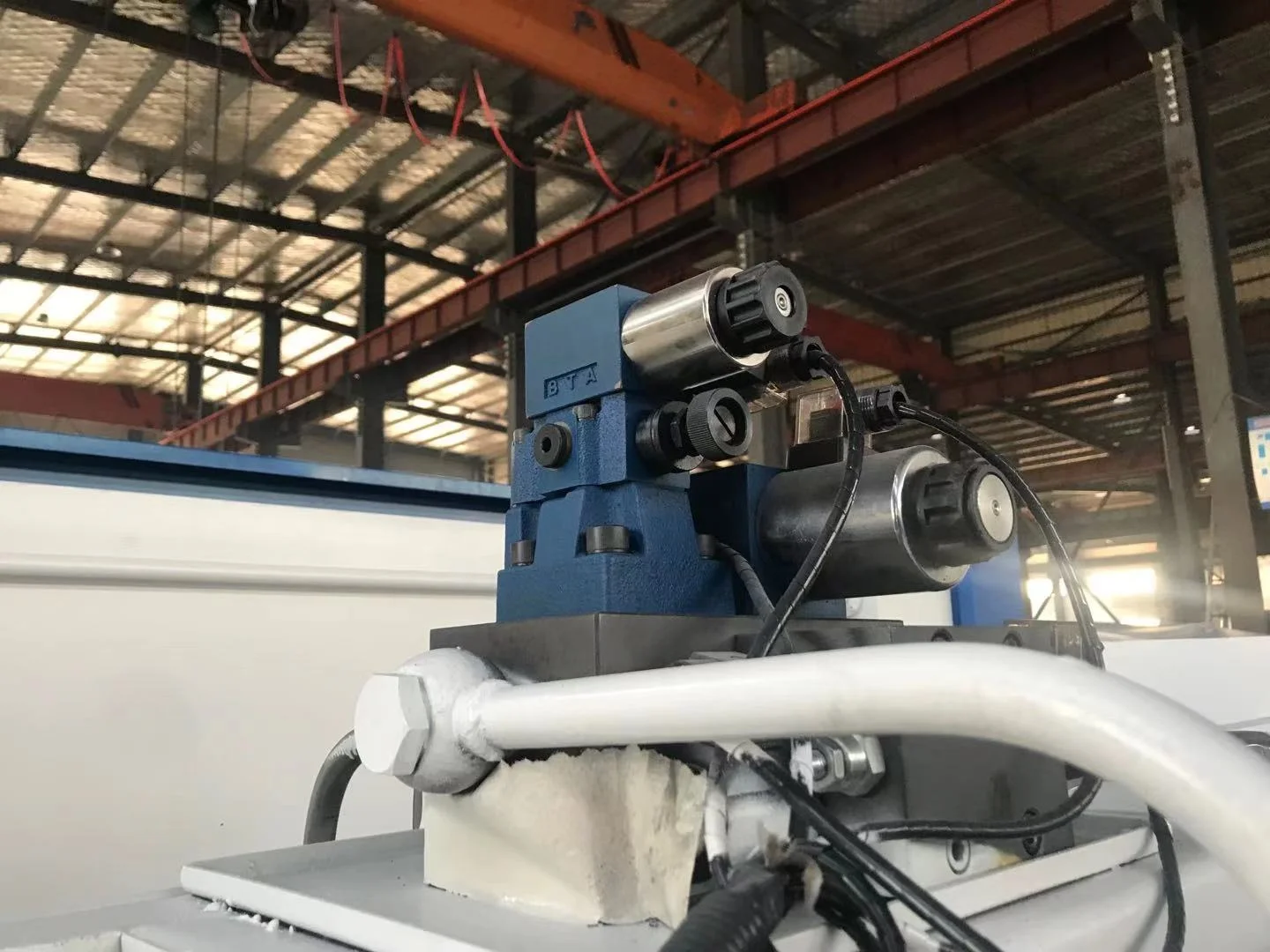

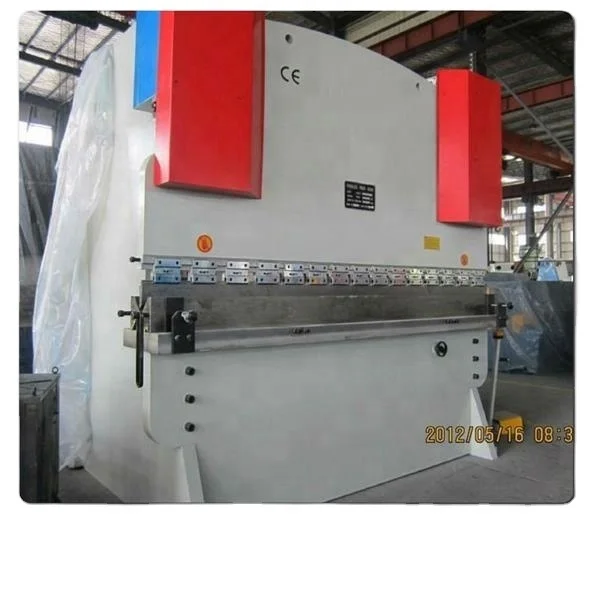

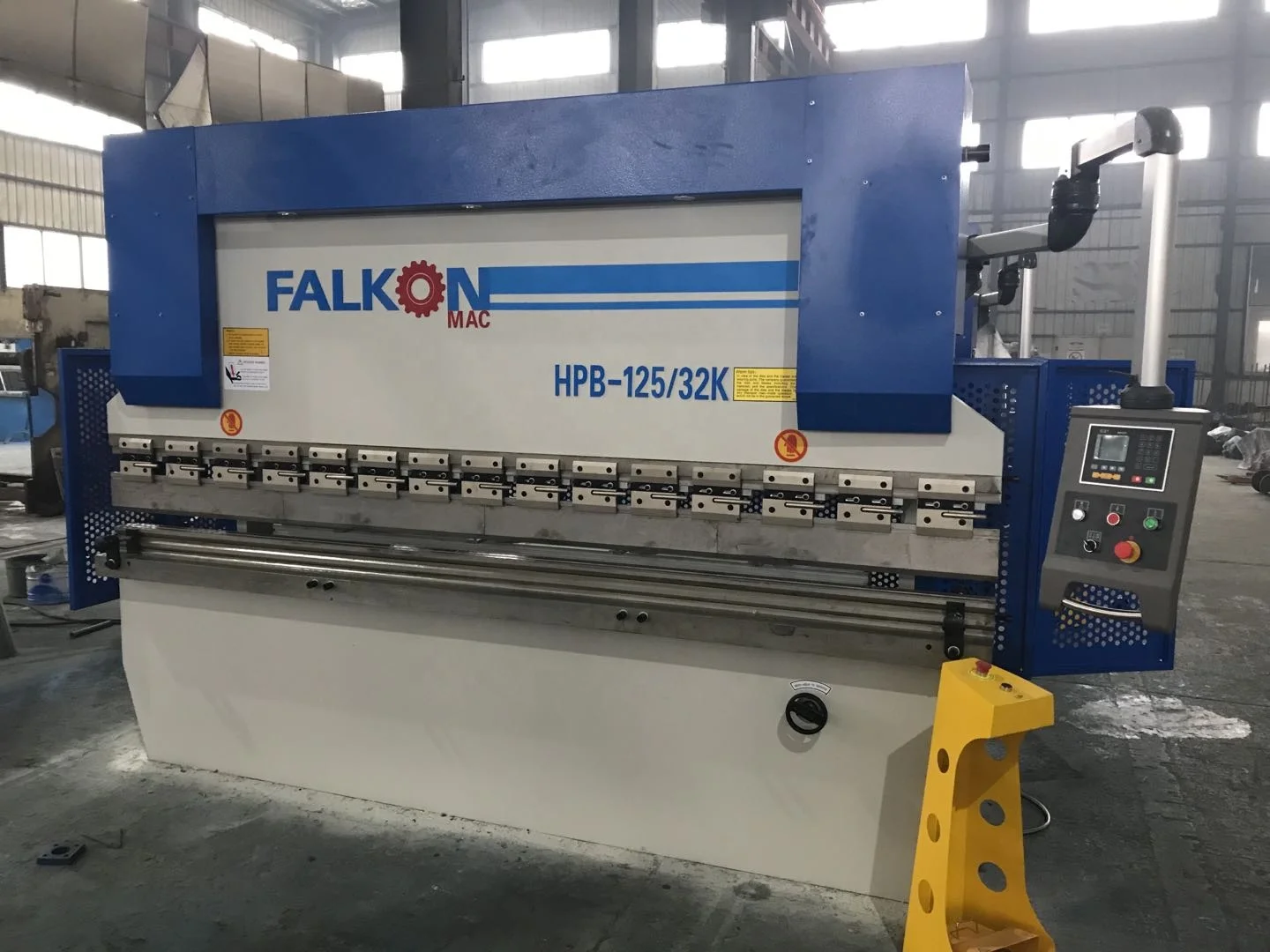

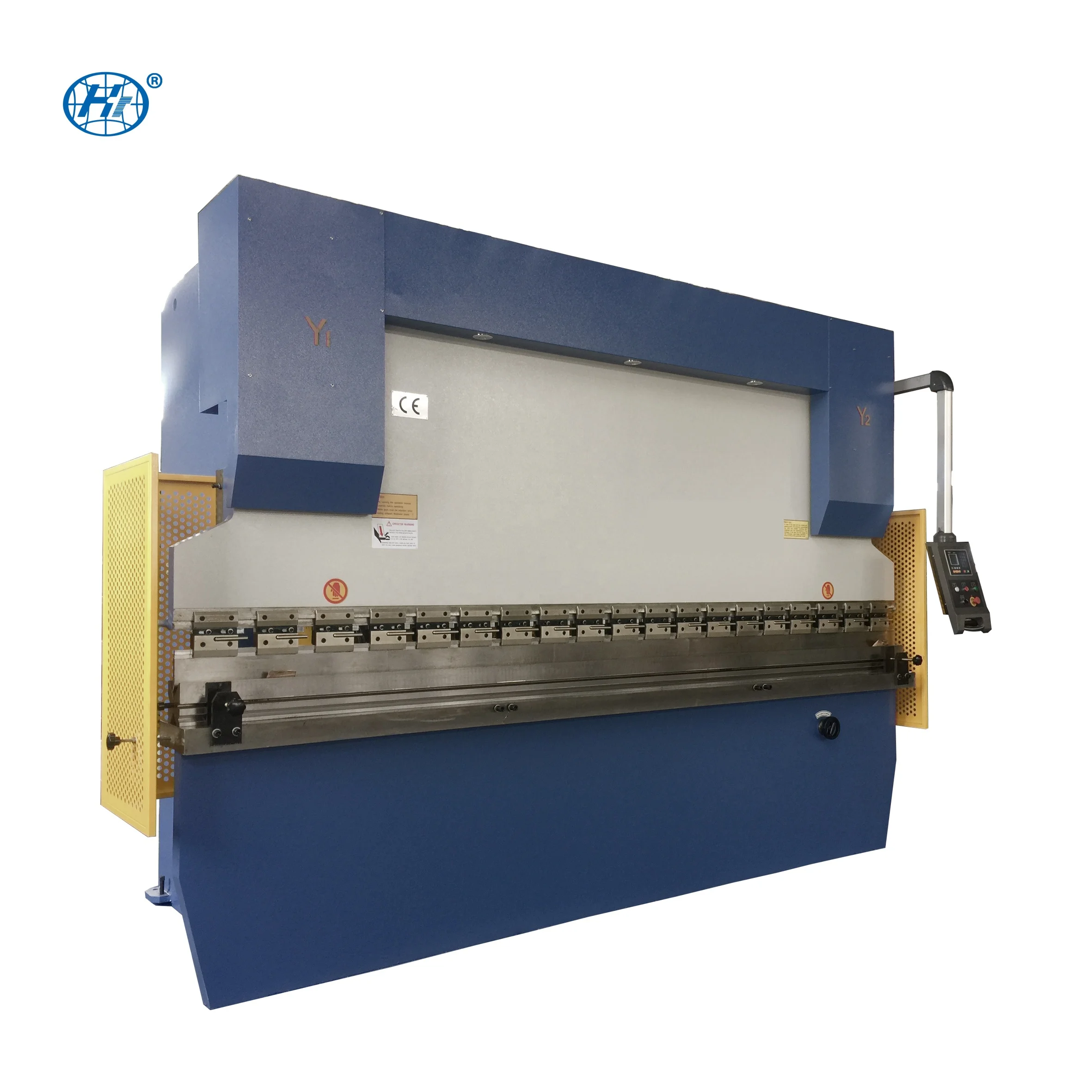

WC67Y Hydraulic Press Brake
1. Steel- welded construction, standard upper and lower dies,vibration to eliminate inner stress,hydraulic transmission
system,foot pedal with emergency stop.with high strength and good rigidity.
2.Hydraulic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar to maintain synchronization, with high
precision.
3.Motorized-adjusting device for backgauge and ram’s stroke, DRO for backgague and ram stroke.
4.Deflection compensation unit installed under the worktable.
5.Manual crowned lower die holder is adopted for the machine above 250 tons.
6.DRO to display the values of back gauge and ram stroke.
system,foot pedal with emergency stop.with high strength and good rigidity.
2.Hydraulic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar to maintain synchronization, with high
precision.
3.Motorized-adjusting device for backgauge and ram’s stroke, DRO for backgague and ram stroke.
4.Deflection compensation unit installed under the worktable.
5.Manual crowned lower die holder is adopted for the machine above 250 tons.
6.DRO to display the values of back gauge and ram stroke.
FEATURES AT A GLANCE
Quick clamps
To change upper mould easier and faster.
Power off device for door opening
When the operator opens the back fence the machine power will be cut off to protect operator's safety
Servo control backguage
The backguage is controlled by servo motor,it can move faster and more accurate
Siemens motor and cooling system
To make sure the whole machine working steadily and save power,and keep the oil inside of tank in a stable temperature so that the whole machine will be efficient.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Nominal Force | 1250 KN |
2 | length of worktable | 3200 mm |
3 | Ram stroke | 120 mm |
4 | Opening height | 380 mm |
5 | Times of Stroke | 6-12 Times/min |
6 | Main motor power | 7.5 KW |
7 | Dimension | 3200x1560x2300 mm |
8 | Net weight | 6500 KG |
