Портативный напольный фрезерный станок используемый для создания пазов в

Портативный напольный фрезерный станок используемый для создания пазов в

Категория: Other Construction Machinery >>>
Поставщик: Changzhou,Jiehe,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.22 $*	0.90 $*
Aug-18-2025	0.35 $*	0.51 $*
Jul-18-2025	0.76 $*	0.97 $*
Jun-18-2025	0.31 $*	0.19 $*
May-18-2025	0.45 $*	0.98 $*
Apr-18-2025	0.10 $*	0.24 $*
Mar-18-2025	0.32 $*	0.73 $*
Feb-18-2025	0.29 $*	0.26 $*
Jan-18-2025	0.73 $*	0.33 $*

Характеристики

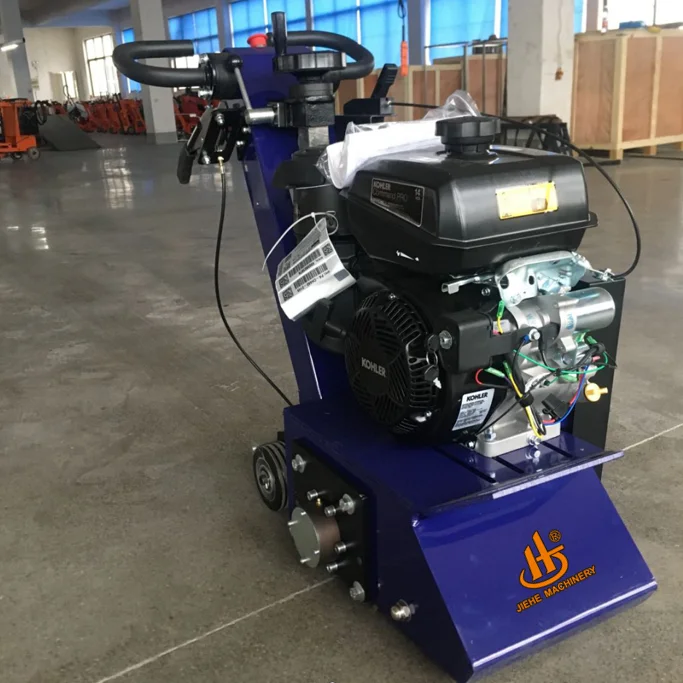

Portable FLOOR Milling Machine Used For Creating Grooves In Concrete

Jiehe concrete and milling machine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results.A tripled drum bearing and hardened cutter shafts make it particularly reliable.

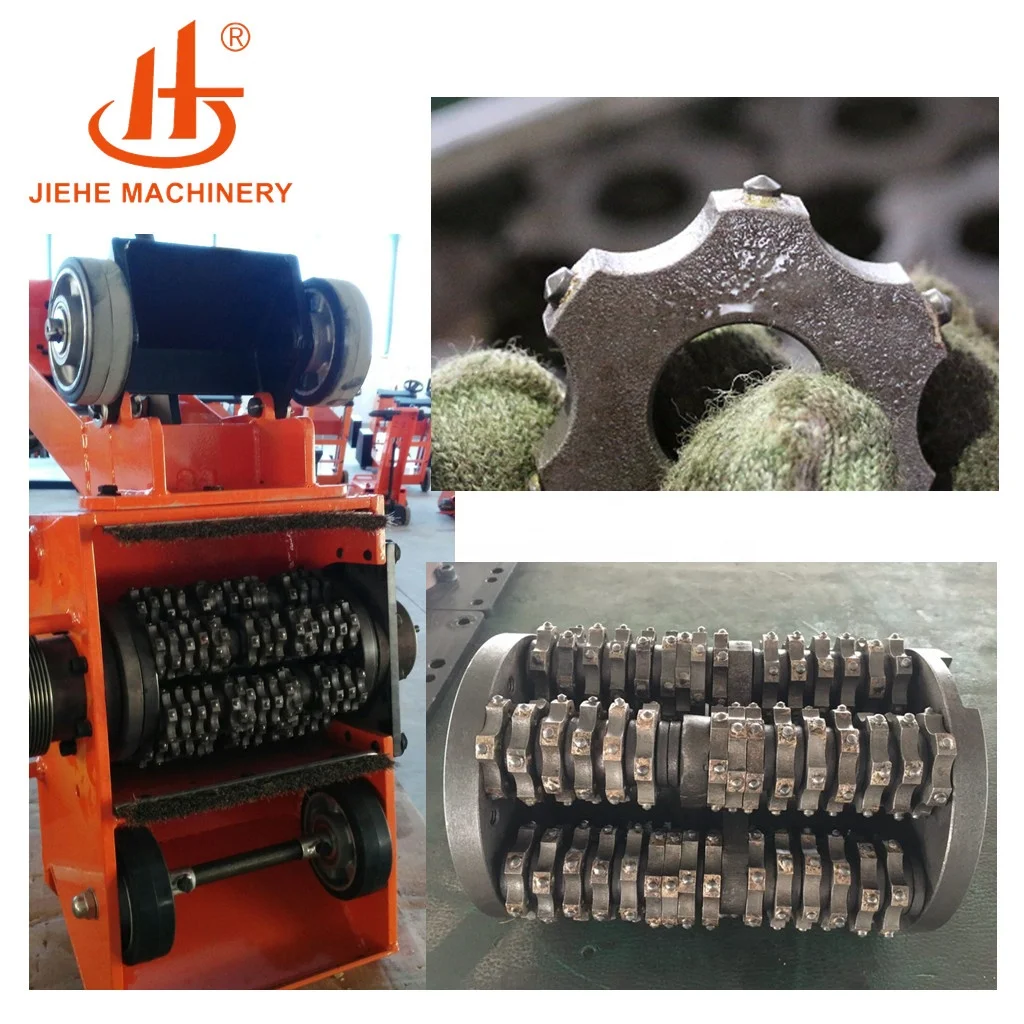

Product detail

handle 1.png Shaft 3.png adjustable handle 5.png

Case

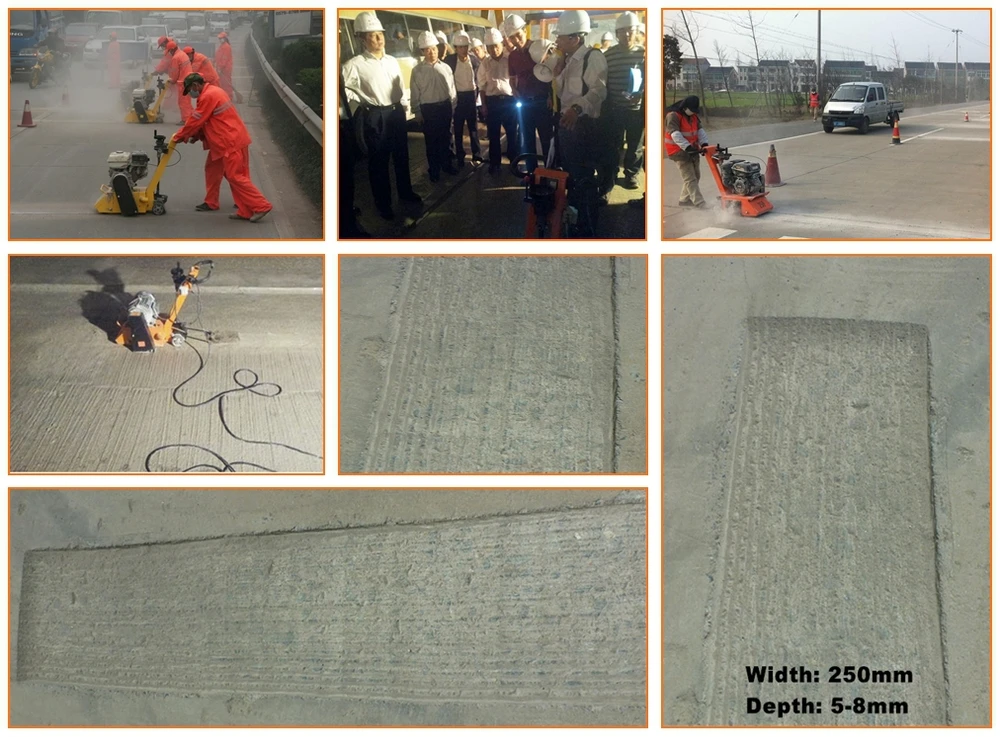

We have provided customized products for constructions of the Hong Kong-Zhuhai-Macao Bridge, including scarifying machines to ensure flatness of bridge joints as well as custom-made dust-free cutting machines to avoid secondary pollution to construction sites. They have tremendously saved construction time and perfectly coordinated with progress of the project.

_20190711180025

What's the Specifications?

13HP Honda GX390 engine and super four or six bearings;

Drum is heat treated specially;

Exclusive supply good quality cutter;

Drum can be replaced easily;

With a dust-proof device

Parameter

Model	JHE-250	JHE-250E	JHE-250K	JHE-250D
Power Source	GX390 Honda/ GX270	Siemens Electrical motor	Kohler CH440/ CH395	186F Diesel Gasoline engine
Horse Power	13HP/9HP	7.5KW	14HP/9.5HP	10 HP
Working width	250mm	250mm	250mm	250mm
Working depth	0-10mm	0-10mm	0-10mm	0-10mm
No. of shaft	6pieces	6pieces	6pieces	6pieces
No. of cutter	90pieces	90pieces	90pieces	90pieces
Power Drive	Manual	Manual	Manual	Manual
Working area	25-50 m2 / H	25-50 m2 / H	25-50 m2 / H	25-50 m2 / H
Net Weight	178KG	201KG	132KG	199KG
L× W× H	910×470×880mm	910×470×880mm	910×470×880mm	910×470×880mm
Drum Rotation	Down cut (clock wise)
Milling mode	downward cut
Depth Control	Adjustable
