aluminum injection packer for pu grouting machine





Specifications

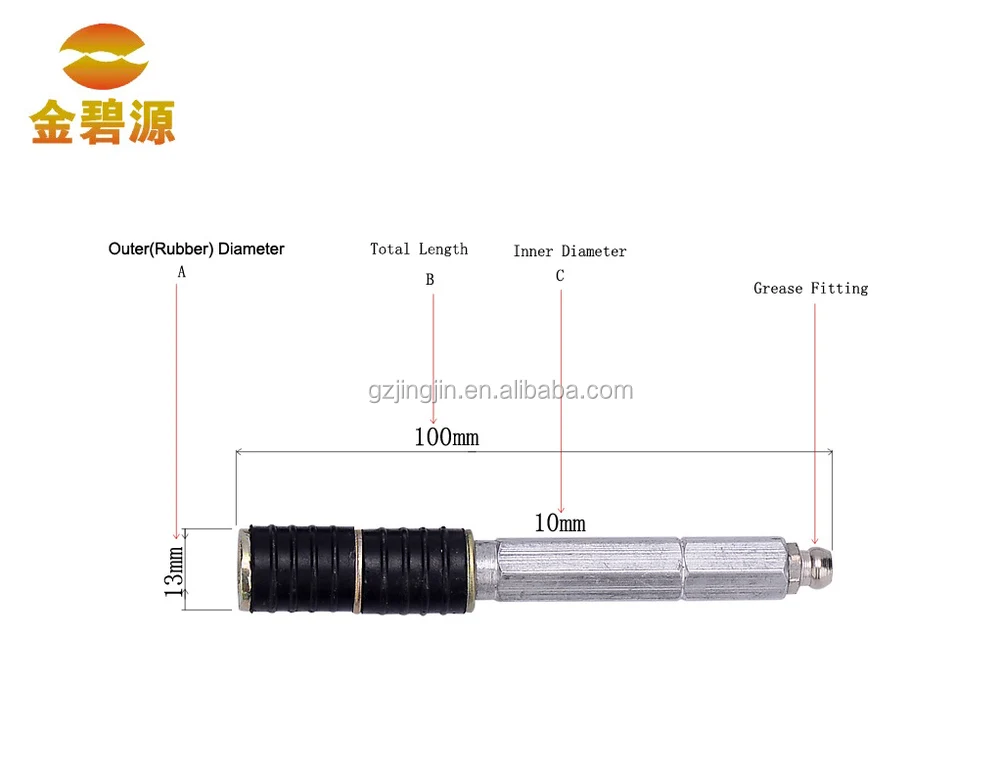

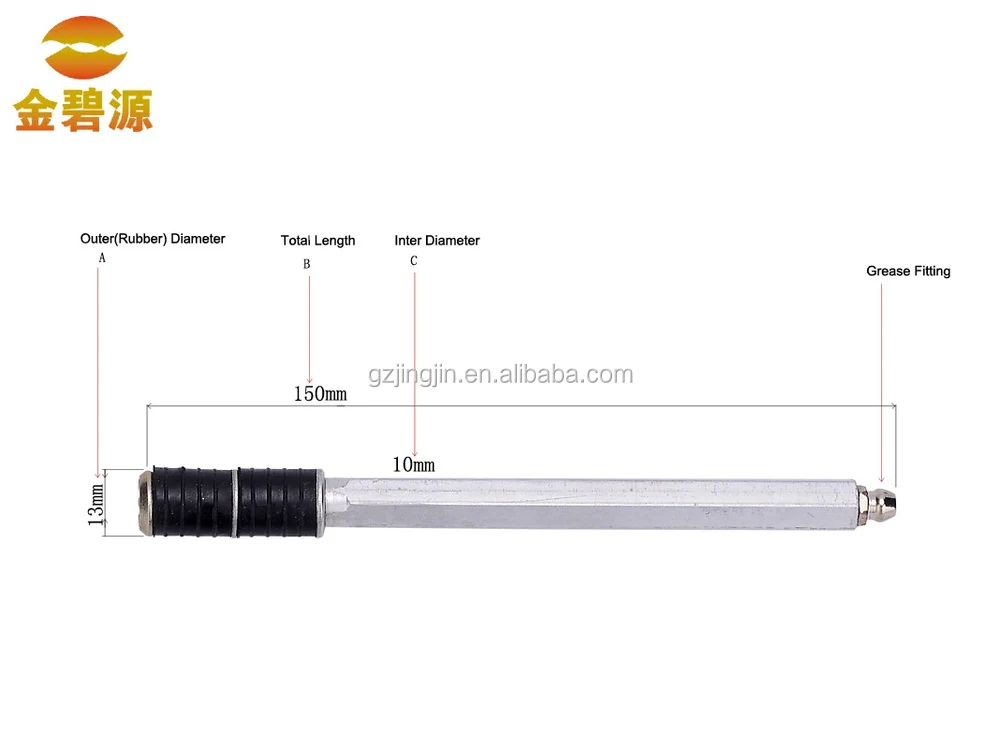

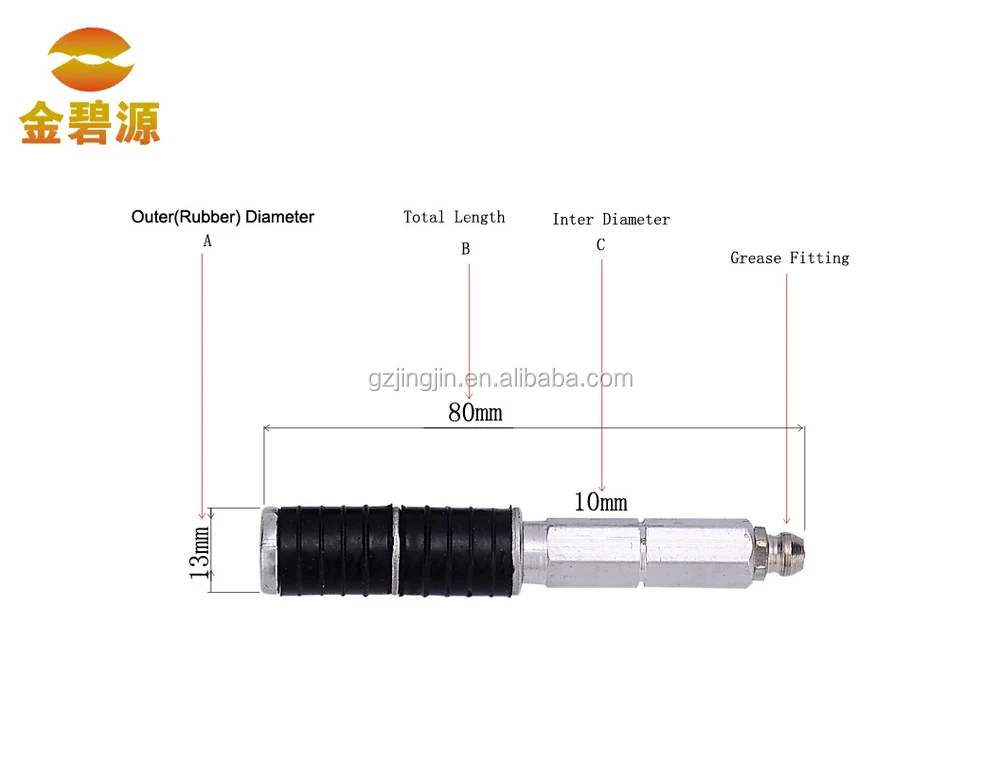

Mode	Length	Diameter(Nipple)	Unit	Note
A8	80	13	mm	Please remark the Mode when placing order, leave massage to us if any question.
A10	100	13	mm
A15	150	13	mm
A20	200	13	mm
B8	80	10	mm
B10	100	10	mm

A8, 13mm*80mm,  $60/carton                                                                                         A10,13mm*100mm,  $70/carton                                                                                     A150,13mm*150mm,  $80/carton                                                                                     B8, 10mm*80mm,  $70/carton                                                                                         B10, 10mm*80mm,  $80/carton                                                                         50pc/bag, 500 or 1000pcs/carton

Application range :
1.Subway,tunnel,culvert,activated sludge tank,Concrete crack seepage,leakage stopunder water.
2.Basement,underground garage,underground passage,crevice in concrete slab
3-through- wall pipe,corner,leakage of water;
4-Concrete structures leaking,Board structure cracks;
5- Injection for the PU grout and epoxy resin grout


Advantage:

Endurable in high pressure,  good waterproof effect,         stable quality,  convenient operation

High toughness rubber, not easy to be fragile
High quality aluminum, not easy to be bent



Application Places







Injection Method Statement

1. Identify the crack.

2. Drill the holes 5 to 10 cm away from the crack at 45 toward the crack.

3. Clean the hole properly.

4. Insert the packer.

5. Fix and tight the packer.

6. Connect the pump to the packer and start injecting.

7. After injection material is totally dry remove the packer.





Tips:   When injecting tight cracks, we have found high success rates by drilling straight into the crack to a depth of 2/3 the thickness of the wall (always measure and tape your drill bit for depth). High pressures can be maintained with virtually no spalding blow-outs (as opposed to angle drilling) and excellent grout penetration. Space the packers every 2.5 - 3 inches and a depth of 5 inches for an 8 inch thick residential wall. Use a low viscosity resin such as Leak-Proof polyurethane foam to assure 100% penetration.
