Характеристики

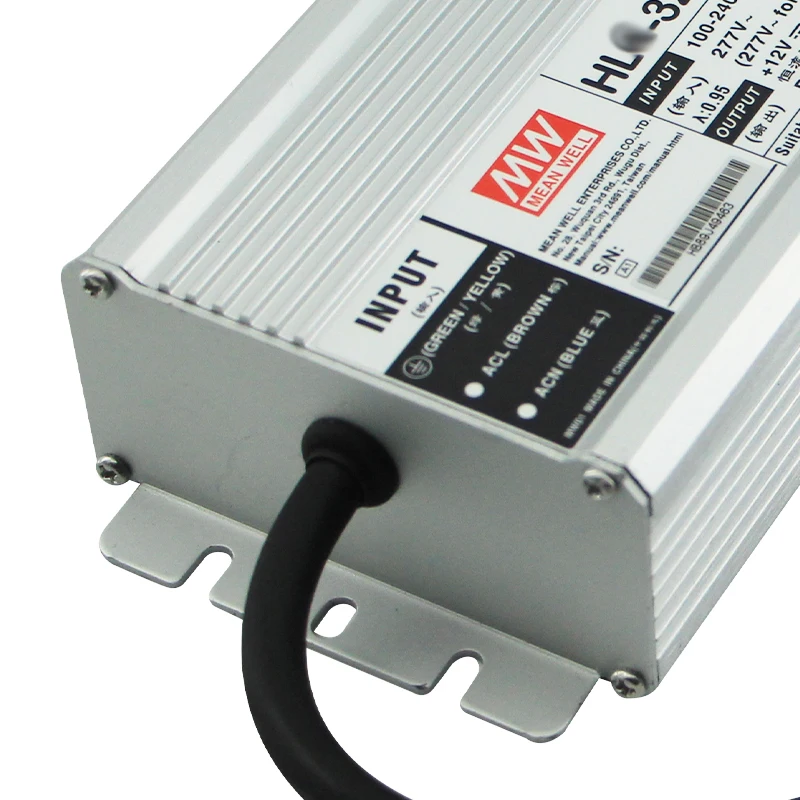

48V DC LED Driver 320W Meanwell HL-320H-48B Power Supply 48 Volt
Product Overviews
Features:
- Meanwell Power Supply 48 Volt
- Built-in active PFC function
- High efficiency up to 95%
- Protections:Short circuit / Over current / Over voltage /Over temperature
- Cooling by free air convection
- OCP point adjustable through output cable or internal potentiometer
- IP67/IP65 design for indoor or outdoor installations
- Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires
- Three in one dimming function(0~10Vdc or PWM signal or resistance)
- Suitable for LED lighting and street lighting applications
- Compliance to worldwide safety regulaitons for lighting
- Suitable for dry/ damp/wet locations
- 7 years warranty (Note.8)
Model Series:
HL-320H-12B / HL-320H-15B / HL-320H-20B / HL-320H-24B / HL-320H-30B
HL-320H-36B / HL-320H-42B / HL-320H-48B / HL-320H-54B
Detailes:
| MODEL | HL-320H-48B | |
| OUTPUT | DC VOLTAGE | 48V |
| CONSTANT CURRENT REGION | 24 ~ 48V | |
| RATED CURRENT | 6.7A | |
| RATED POWER | 321.6W | |
| RIPPLE & NOISE (max.) | 250mVp-p | |
| VOLTAGE ADJ. RANGE | 43 ~ 52V | |
| CURRENT ADJ. RANGE | Can be adjusted by internal potentiometer A type only | |
| 3.35 ~ 6.7A | ||
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 2500ms,80ms at full load 230VAC /115VAC | |
| HOLD UP TIME (Typ.) | 15ms at full load 230VAC /115VAC | |
| INPUT | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve) | |
| EFFICIENCY (Typ.) (230Vac) | 95% | |
| EFFICIENCY (Typ.) (277Vac) | 95% | |
| AC CURRENT(Typ.) | 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC | |
| INRUSH CURRENT (Typ.) | COLD START 70A(twidth=1010μs measured at 50% Ipeak) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | |
| OVER VOLTAGE | 53.5 ~ 60V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | 100°C±10°C(RTH2) | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +70°C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40~+80°C,10~95% RH | |
| TEMP. COEFFICIENT | ±0.03%/ °C(0 ~ 50°C ) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min.each along X, Y,Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | U8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent (except for HL-320H C type),IP65 or IP67, J61347-1,J61347-2-13 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH | |
| EMC EMISSION | Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (≥50% load) ; EN61000-3-3 | |
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A | |
| OTHERS | MTBF | 157.1K hrs min. MIL-HDBK-217F (25°C) |
| DIMENSION | 252*90*43.8mm (L*W*H) | |
| PACKING | 1.88Kg; 8pcs/16Kg/0.92CUFT | |
48V DC LED Driver 320W Meanwell HL-320H-48B Power Supply 48 Volt

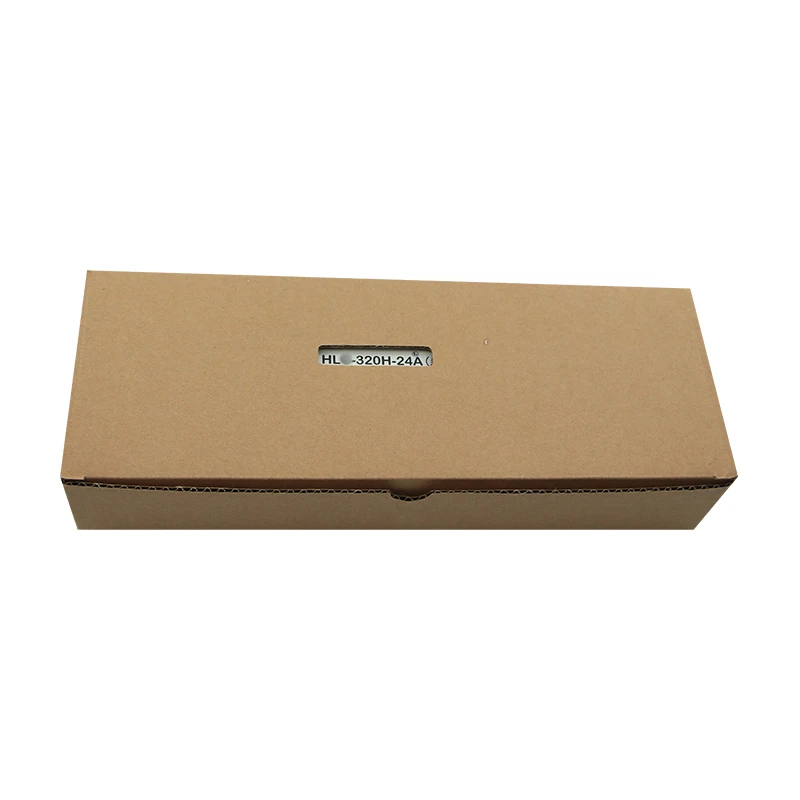

Packing
