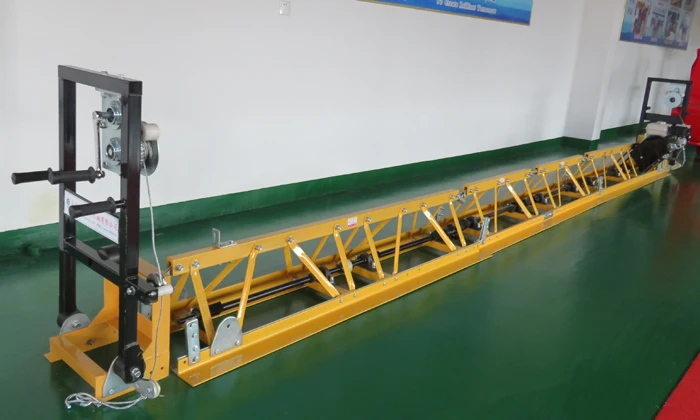

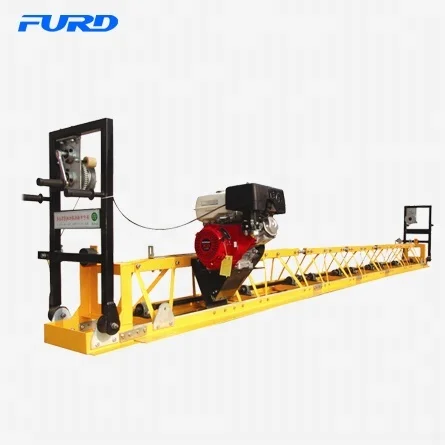

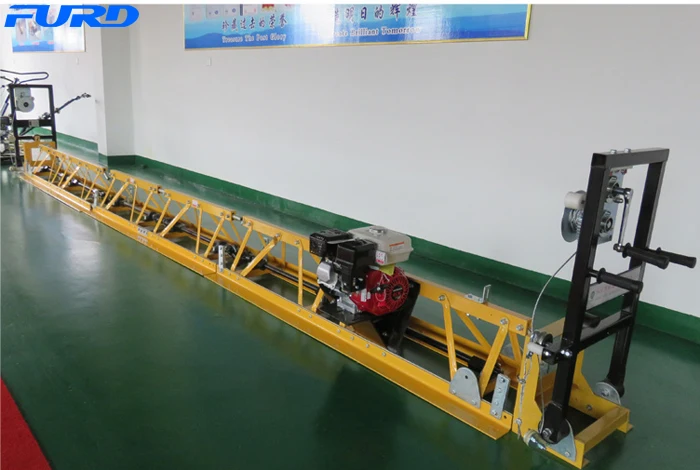

10m Truss Screed Machine, Concrete Screed Vibration (FZP-90)

Product Description: concrete power screed

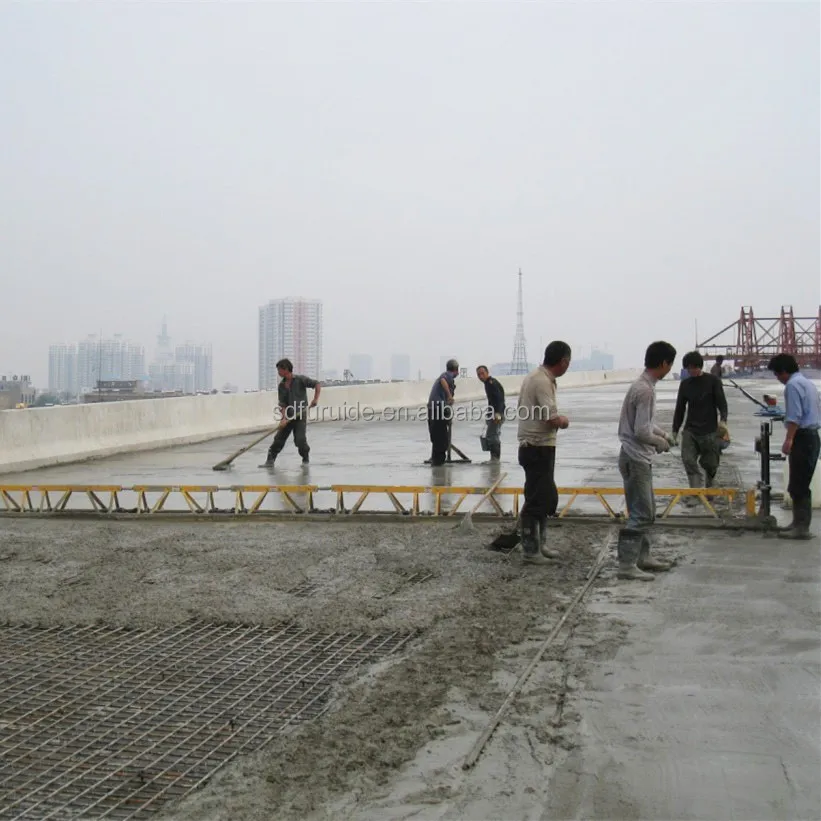

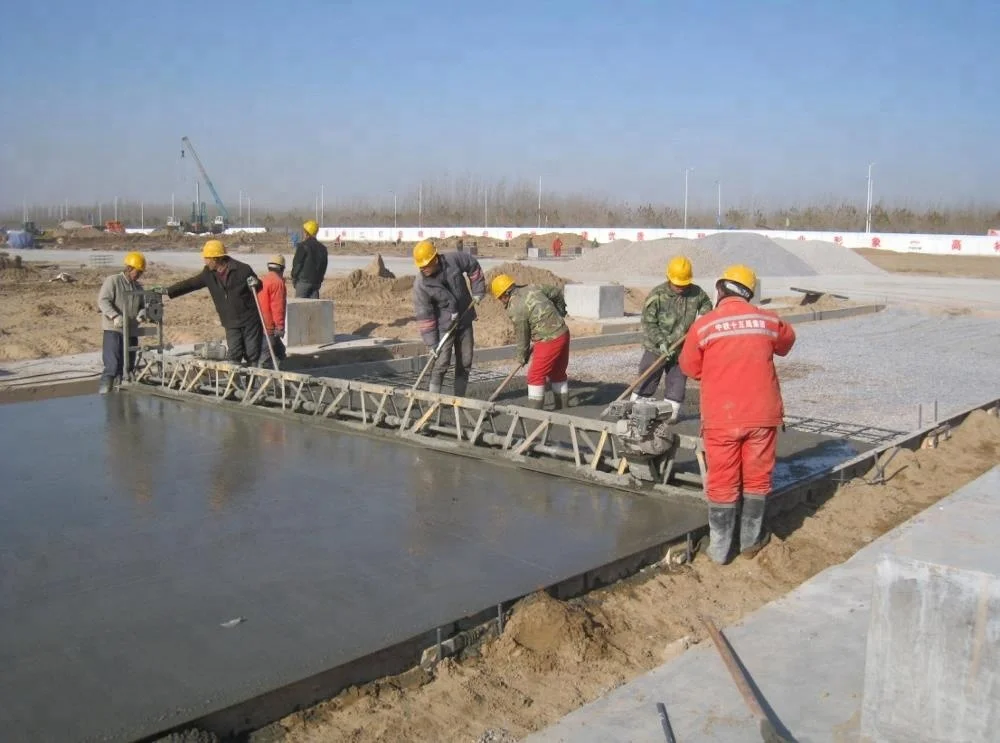

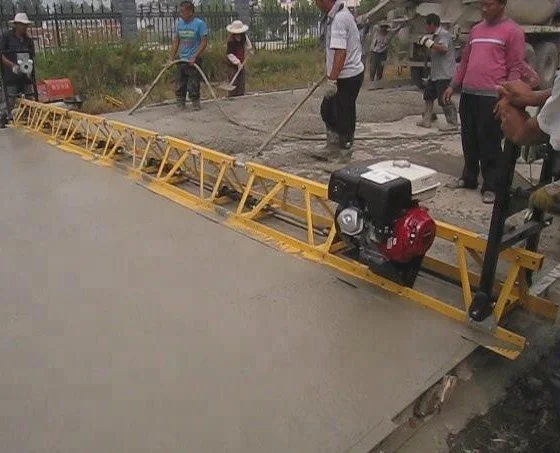

Automatical concrete power screed machine is applied to slurry extracting,compaction and leveling of concrete road surface. Using for concrete road (land/ bridge) surface lift pulp, vibrated, leveling. It is new equipment for roads, squares and modern factory building. And it is a traditional paver upgrading products. Can choose gasoline engine or electromotor.

Technical Parameter: concrete screed vibration

Model	FZP-55	FZP-90	FZP-130
Engine Model	HONDA GX160	HONDA GX270	HONDA GX390
Power	5.5HP/4.0kw	9HP/5.5kw	13.0HP/7.5kw
Engine Type	Gasoline engine, air-cooled 4-stroke, OHV, single cylinder
Working Width	4m-7m	8m-12m	12m-16m
Working Depth	260mm
Vibration Frequency	70Hz
Induced Vibration Force	11kN/(≤)2000mm
Fuel Tank Capacity	3.6L	6L	6.5L
The Amount of Lubricating Oil	0.6L	1.1L
The Amount of Fuel Consumption	313g/kWh
Dimensions
Standard Knot	1000/2000mm
2m  Linker	400mm×2000mm		68kg
1m Single Linker	400mm×1000mm		35kg
0.5m Single Linker	400mm×250mmX2		15kg

Features: concrete screed vibration

1). HONDA power (or famous electric) brand quality assurance, superior performance, easy to start.

2). Truss screeds baseplate select cold rolled sheet, wear and corrosion resistance.
3). The overall frame adopts full steel structure, strong earthquake, won't be hard deformation.
4). Removable and free combination design, greatly reduces the maintenance and transportation cost.

5). The whole meters can fast joint together, reduce the cost.

Engine Optional: concrete screed vibration

Honda Gasoline Engine/ Mitsubishi Gasoline Engine/ Briggs & Stratton Gasoline Engine

Types of Concrete Screed Machine:

Concrete Laser Screed & Concrete Truss Screed & Walk Behind Concrete Screed
