Характеристики
Products Description

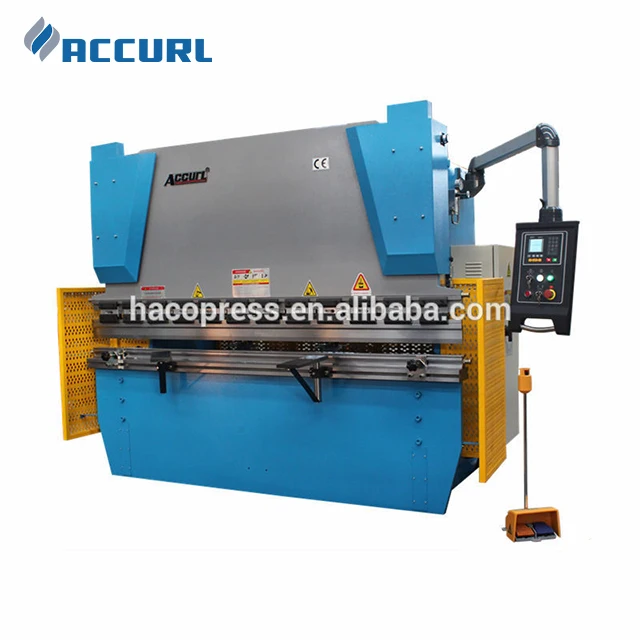

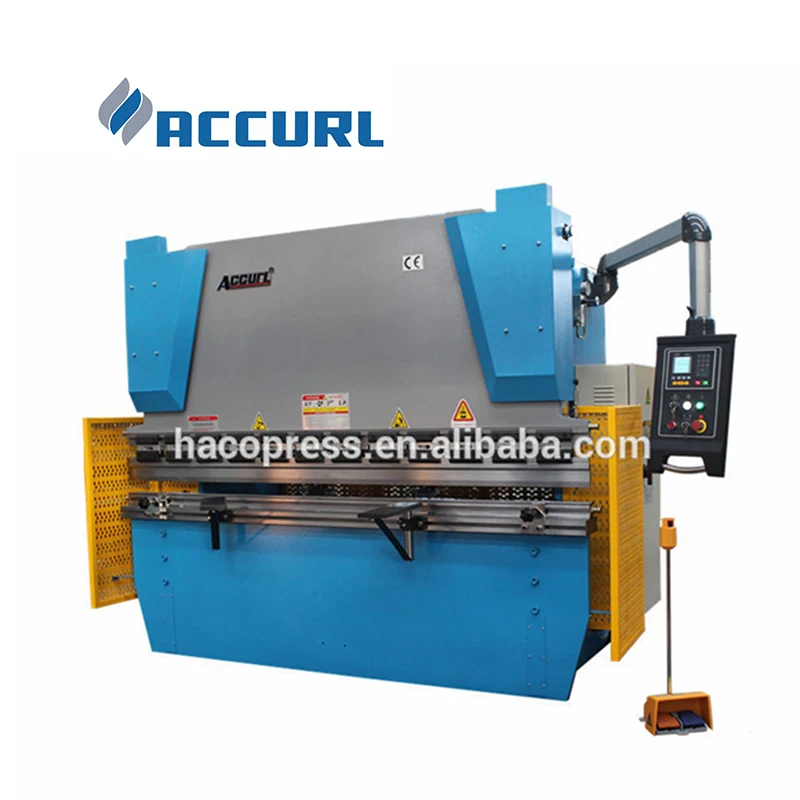

Hydraulic Torsion Bar Synchro Press Brake AC/MB7-100Tx3200
■You may not wish higher specification machine but of course this not mean you can not have accuracy and precision.
We designed AC‐MB7 Series press brake for simple to use,performance and precision.and also for high quality bend accuracy and repetability at least two‐fold higher than conventional Press Brake.
■AC‐MB7 Series press brake adopt steel torsion bar synchro system.for this reason these machines are called torsion bar synchro press brake machines.
■A AC‐MB7 Series press brake are very simple to use and can work in severe conditions and its choosen by semi‐finished plates traders, steel construction productions,allow yuo to use at dusty place or rigors of the weather.
We designed AC‐MB7 Series press brake for simple to use,performance and precision.and also for high quality bend accuracy and repetability at least two‐fold higher than conventional Press Brake.
■AC‐MB7 Series press brake adopt steel torsion bar synchro system.for this reason these machines are called torsion bar synchro press brake machines.
■A AC‐MB7 Series press brake are very simple to use and can work in severe conditions and its choosen by semi‐finished plates traders, steel construction productions,allow yuo to use at dusty place or rigors of the weather.
Details Images

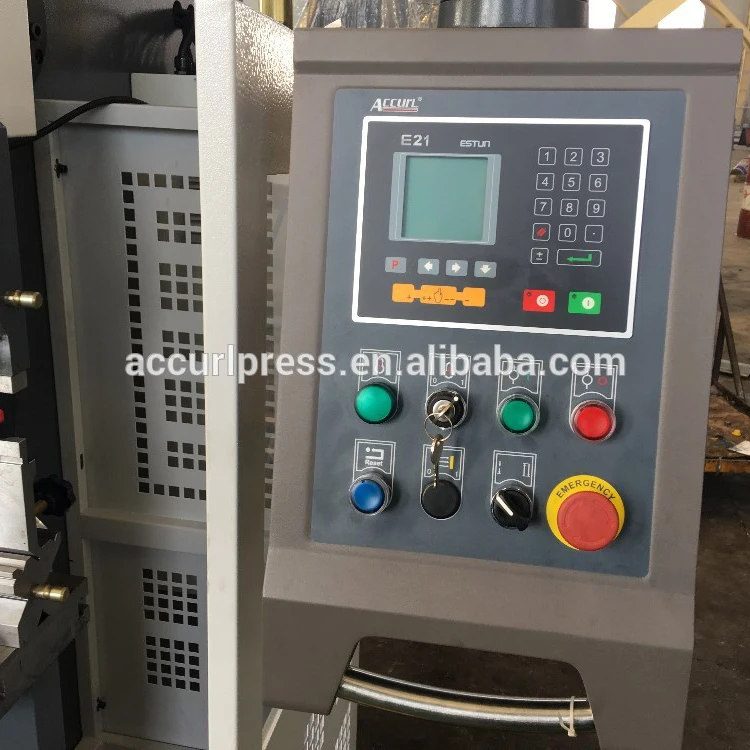

ESTUN E21 NC CONTROL UNIT
■ The compact Estun E21 is a complete NC solution for conventional as well as synchronised press brakes.
■ In view of characteristics of press brakes, photoelectric encoder is equipped to display position of backgauge and dead block.
■Integrated with time replay, soft limit switch and power down position memorization function, E21 provides a high cost
performance.
■ Main features:
* Position display of backgauge(X-axes), resolution in 0.01mm.
* Backgauge Control.
* Control for general AC motors or frequency inverter.
* Intelligent positioning.
* Program memory of up 40 programs up to 25 steps per program.
* Retract function.
* One key backup /restore of parameters.
* Supports mm & inches conversion.
■ In view of characteristics of press brakes, photoelectric encoder is equipped to display position of backgauge and dead block.
■Integrated with time replay, soft limit switch and power down position memorization function, E21 provides a high cost
performance.
■ Main features:
* Position display of backgauge(X-axes), resolution in 0.01mm.
* Backgauge Control.
* Control for general AC motors or frequency inverter.
* Intelligent positioning.
* Program memory of up 40 programs up to 25 steps per program.
* Retract function.
* One key backup /restore of parameters.
* Supports mm & inches conversion.

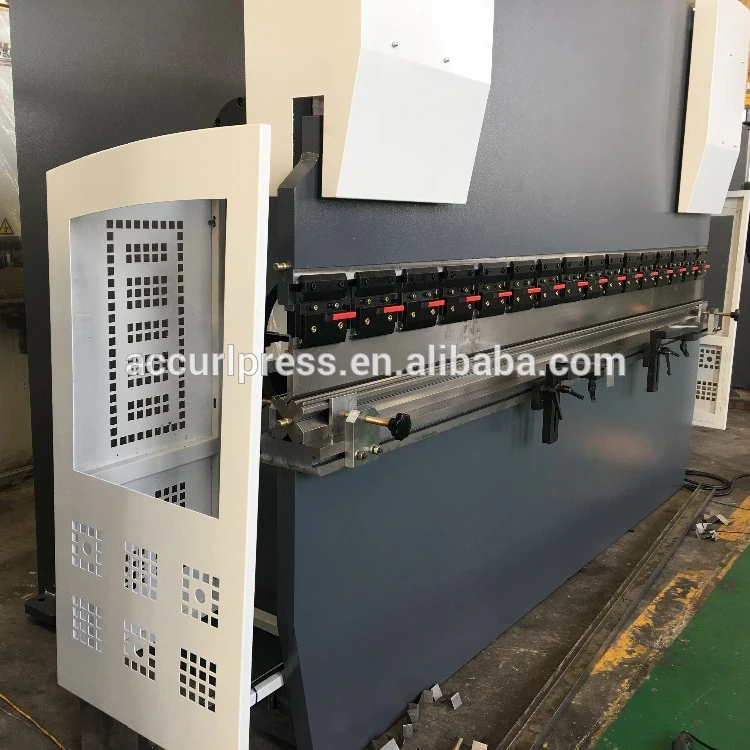

XR AXES CNC BACK GAUGE SYSTEM
■BACK GAUGE STRUCTURE
* E21 NC (Inverter)controlled back gauge that automatically adjusts the X (depth)axes to ensure your material isalways positioned accurately, resulting in higher quality finished parts.
* E21 NC (Inverter)controlled back gauge that automatically adjusts the X (depth)axes to ensure your material isalways positioned accurately, resulting in higher quality finished parts.
■BACK GAUGE DRIVES
* X-axes movements are driven byDelta InverterDrives. Usingthe best components, such as HIWIN linear guides, ball screws, our
back gauge movements are fast and precise,
■BACK GAUGE STROKE & FINGERS
* X-axes movements Stroke 600mm,with X‐axis speeds up to 150 mm/sec and accuracy to 0,01mm.
* Special design foldable back gauge fingers.
* X-axes movements are driven byDelta InverterDrives. Usingthe best components, such as HIWIN linear guides, ball screws, our
back gauge movements are fast and precise,
■BACK GAUGE STROKE & FINGERS
* X-axes movements Stroke 600mm,with X‐axis speeds up to 150 mm/sec and accuracy to 0,01mm.
* Special design foldable back gauge fingers.

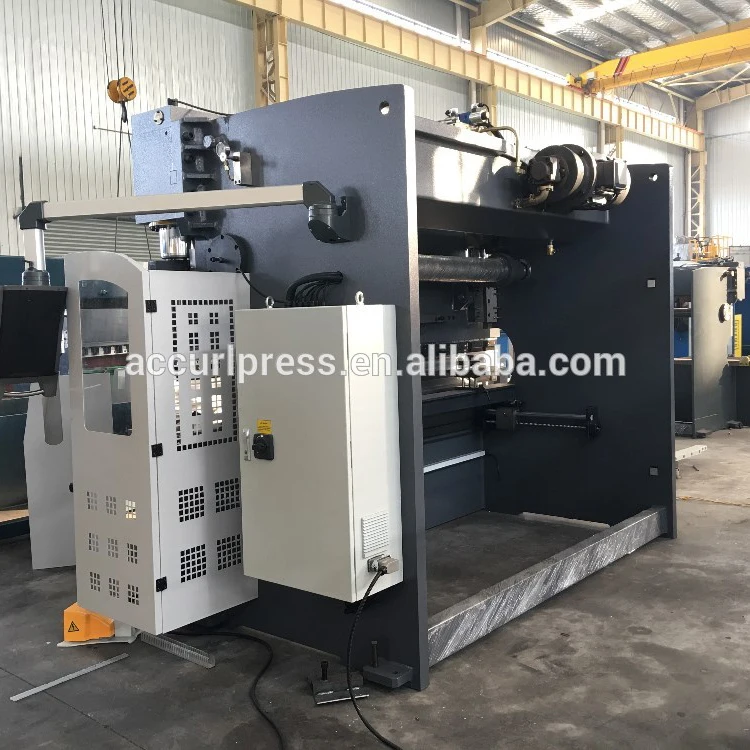

MACHINE DESIGNED
■ Machine Frame
* AC-MB7 seriesmachine features a rigid frame for min deflection under the load.
■ Frame welding
* The frame steels are steel origin,ultrasonic controlled,Monoblock by welding Robots & apart.
■ Frame processing
* After the welding,we make stress relief process by Annealing treatment.
* The machineframe goes to CNC 5 axes machining centers for accuracy.
* AC-MB7 seriesmachine features a rigid frame for min deflection under the load.
■ Frame welding
* The frame steels are steel origin,ultrasonic controlled,Monoblock by welding Robots & apart.
■ Frame processing
* After the welding,we make stress relief process by Annealing treatment.
* The machineframe goes to CNC 5 axes machining centers for accuracy.
MANUAL FIESSLER SAFETY SYSTEM
■ BACK SAFETY
* Protective fence and the safety interlock to ensure the operation safety.
* Back metal safe fence and install two point safety door switchwith CE standards.
■FOOT SWITCH SAFETY
* Foot pedal is produced according to CE standardswith category 4 safety standards.
■SAFETY LIGHT CURTAIN SYSTEM
* Innovative finger guarding system for press brakes by following LASER optical safety light grids in front of the tool.
* The entire equipment totally security (according to CE &NR12) &defined as Level 4 of safety.
* Protective fence and the safety interlock to ensure the operation safety.
* Back metal safe fence and install two point safety door switchwith CE standards.
■FOOT SWITCH SAFETY
* Foot pedal is produced according to CE standardswith category 4 safety standards.
■SAFETY LIGHT CURTAIN SYSTEM
* Innovative finger guarding system for press brakes by following LASER optical safety light grids in front of the tool.
* The entire equipment totally security (according to CE &NR12) &defined as Level 4 of safety.
HYDRAULIC SYSTEM
■ Pipe Connection:
* All pipe connection using the EMB from Germany Brand.
* All pipe connection using the EMB from Germany Brand.
■ Hydraulic System:
* Adopt integrated hydraulic control system, more reliable &easy for maintenance. The hydraulic system is the from Bosch - Rexroth, Germany.
* Adopt integrated hydraulic control system, more reliable &easy for maintenance. The hydraulic system is the from Bosch - Rexroth, Germany.
MAIN CONFIGURATIONS
Main configuration list | ||||
1 | NC Control system | ■E21 NC System □E200 NC System □E10D NC System | ||

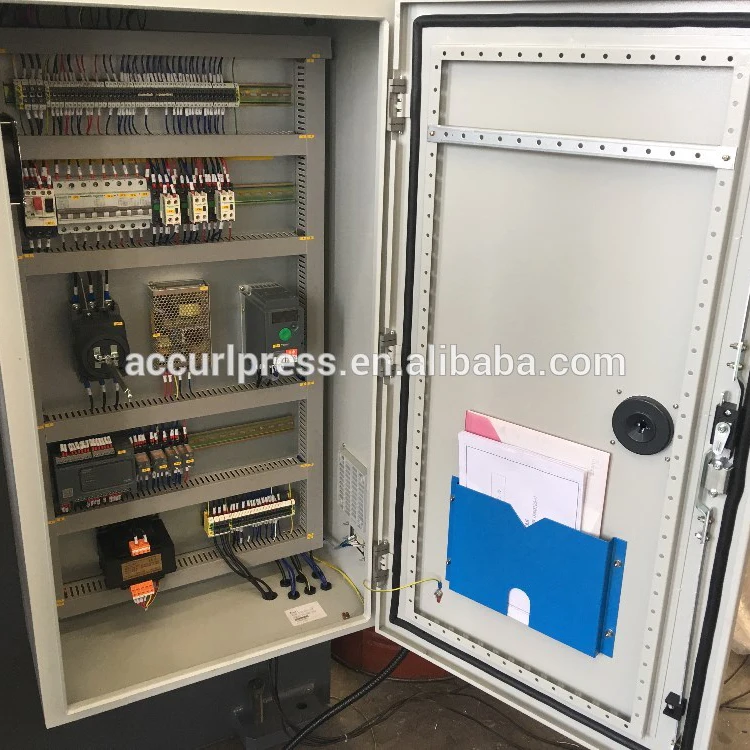

2 | Electrical components | Schneider Electrical from French | ||
3 | Main Motor | Siemens from Germany Brand | ||
4 | BackGauge & RAM Drive | Inverter from Taiwan delta | ||
5 | Travel switch | Schneider Electrical from French | ||
6 | Foot switch | KACON from South Korea | ||
7 | Hydraulic System | Bosch-Rexroth form Germany | ||
8 | Hydraulic Pump | SUUNY or SAEMP form Taiwan | ||
9 | Sealing Element | PARKER from U.S.A Brand | ||
10 | Tubing connector | EMB form Germany Brand | ||
11 | Ball screw/ Polished rod | HIWIN from TaiWan Brand | ||
12 | Three color Alarm Lamp | □Yes ■No | ||
Safety Configuration | ||||
1 | Warning of high oil temperature | ■Yes □No | ||
2 | High oil pressure protection | ■Yes □No | ||
3 | Motor overload protection | ■Yes □No | ||
4 | Oil inlet filter jammed warning | ■Yes □No | ||
5 | Laser Safety Protection | □Yes ■No | ||
6 | Left & Right side protection | ■Yes □No | ||
7 | Electricity leakage protection | ■Yes □No | ||
8 | Safety Relay | □Yes ■No | ||
9 | Monitoring and Redundant valves | □Yes ■No | ||
10 | Safety standards | ■CE □CSA □NR-12 □OSHA | ||
