Светодиодный драйвер постоянного тока HLG 240 Вт с защитой от влаги IP67 PFC
- Категория: Светодиодный драйвер >>>
- Поставщик: Zhejiang,Hengwei,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.7 $* | 0.55 $* |
| Aug-18-2025 | 0.29 $* | 0.19 $* |
| Jul-18-2025 | 0.55 $* | 0.13 $* |
| Jun-18-2025 | 0.38 $* | 0.31 $* |
| May-18-2025 | 0.33 $* | 0.24 $* |
| Apr-18-2025 | 0.62 $* | 0.85 $* |
| Mar-18-2025 | 0.23 $* | 0.35 $* |
| Feb-18-2025 | 0.47 $* | 0.23 $* |
| Jan-18-2025 | 0.78 $* | 0.44 $* |
Характеристики
LED driver dc power supply HLG 240W with warterproof IP67 PFC function
Product Description
HLG-240W series Full function adjustable waterproof power supply
Features:·universal AC input
·BUilt-in power factor correction
·Protections:short circuit/over load/over voltage/over temp
·Cooling by free air convection
·OCP point adjustable through output cable or internal potentiometer
·IP67/65 design for indoor or outdoor installations
·Suitble for LED lighting and moving sign applications
·3Year warranty
Model | HLG-240-20 | HLG-240-24 | HLG-240-36 | HLG-240-42 | HLG-240-48 | HLG-240-54 | |
output | DC voltage | 12V | 24V | 36V | 42V | 48V | 54V |
Constant current region | 6~12V | 12~24V | 18~36V | 21~42V | 24~48V | 27~54V | |
Rated current | 16A | 10A | 6.7A | 5.72A | 5A | 4.45A | |
Rated power | 192W | 240W | 241.2W | 240.2W | 240W | 240.3W | |
Ripple&noise | 150mvp-p | 150mvp-p | 250mvp-p | 250mvp-p | 250mvp-p | 350mvp-p | |
Voltage ADJ range | 11.2~12.8V | 22.4~25.6V | 33.5~38.5V | 39~45V | 44.8~51.2V | 50~57V | |
Current ADJ range | Can be adjusted by internal potentiometer or through output cable | ||||||
8~16A | 5~10A | 3.3~6.7A | 2.86~5.72A | 2.5~5A | 2.23~4.45A | ||
Voltage tolerance | ±2.5% | ±1% | ±1% | ±1% | ±1% | ±1% | |
input | Voltage range | 90~264VAC,47~63HZ ,127~370VDC | |||||
AC current | 4A/115VAC,2A/230VAC | ||||||
Power factor | PF>0.95/230VAC,PF>0.98/115VAC Start overload protection | ||||||
efficiency | 90% | 93% | 93% | 93% | 93.5% | 94% | |
Inrush current | Cold start current 35A/115VAC,75A/230VAC | ||||||
Leakage current | < 0.75mA/240VAC | ||||||
protection | Over current | 95%~108% | |||||
protection type :Constant current limiting ,auto-recovery after fault condition is removed | |||||||
Short circuit | Hiccup mode,recovers automatically after fault condition is remove | ||||||
Over voltage | 15.5~18V | 26~33V | 40~48V | 46~50V | 53~62V | 59~65V | |
protection type:Shut down o/p voltage re-power on to recover | |||||||
Over temperature | 105℃±10℃(RTH2) | ||||||
protection type:Shut down o/p voltage re-power on to recover | |||||||
environment | Working temp,humidity | -20℃~+60℃,20%~90%RH | |||||
Storagetemp,humidity | -40℃~+85℃,10%~95%RH non-condensing | ||||||
Withstand vibration | 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||||||
safety | Withstand voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||
Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||||||
Fitstandard | Safety standard | Fit UL1310 CLASS2,TUV EN61347-1,EN61347-2-13, IP65approved | |||||
EMC standard | Fit EN55015,EN61000-3-2 ClassC(>60%load):EN61000-3-3 | ||||||
others | Dimension | 247*69*39mm (L*W*H) | |||||
Weight/packing | 1.3kg/20pcs/27kg/0.033m³/1.15CUFT | ||||||
note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||
Certifications
Packaging & Shipping
Company Information

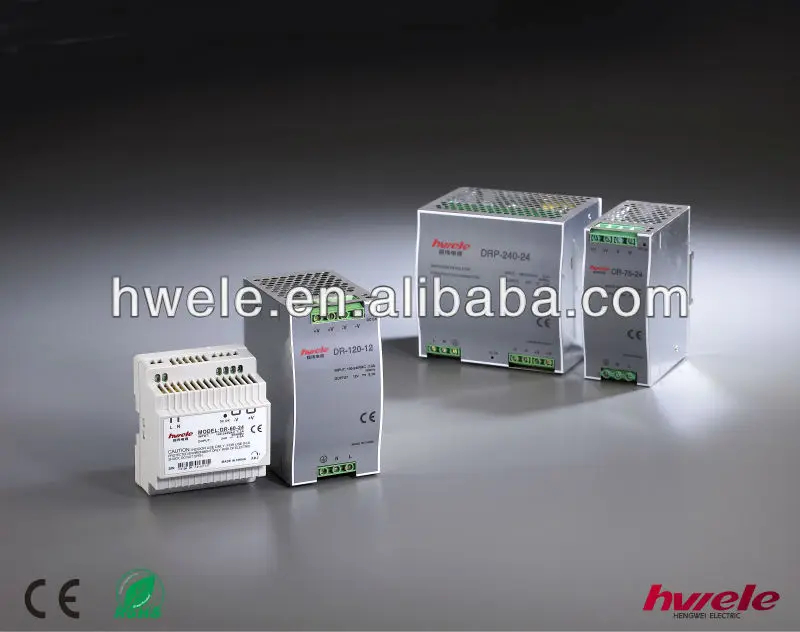

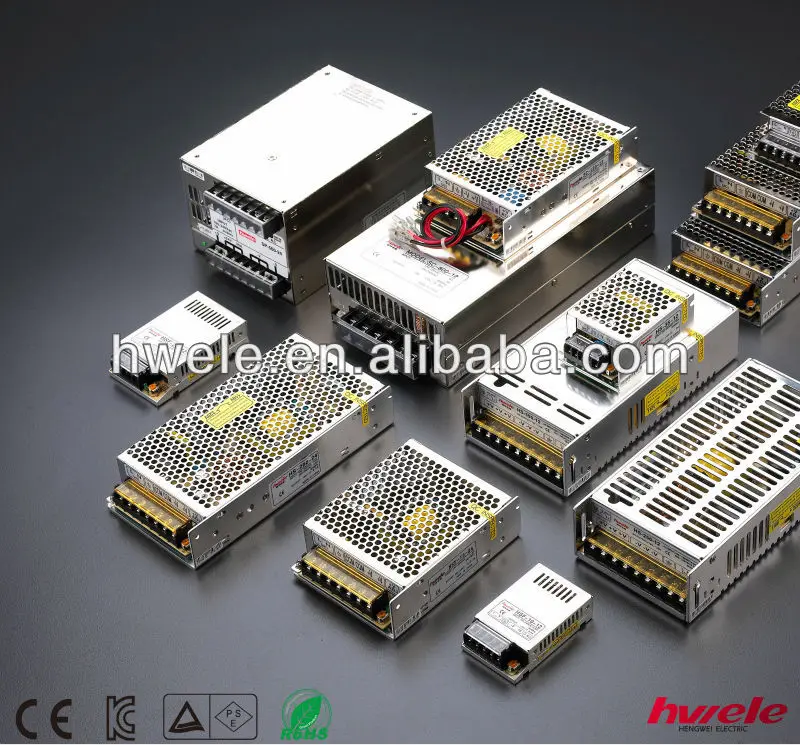

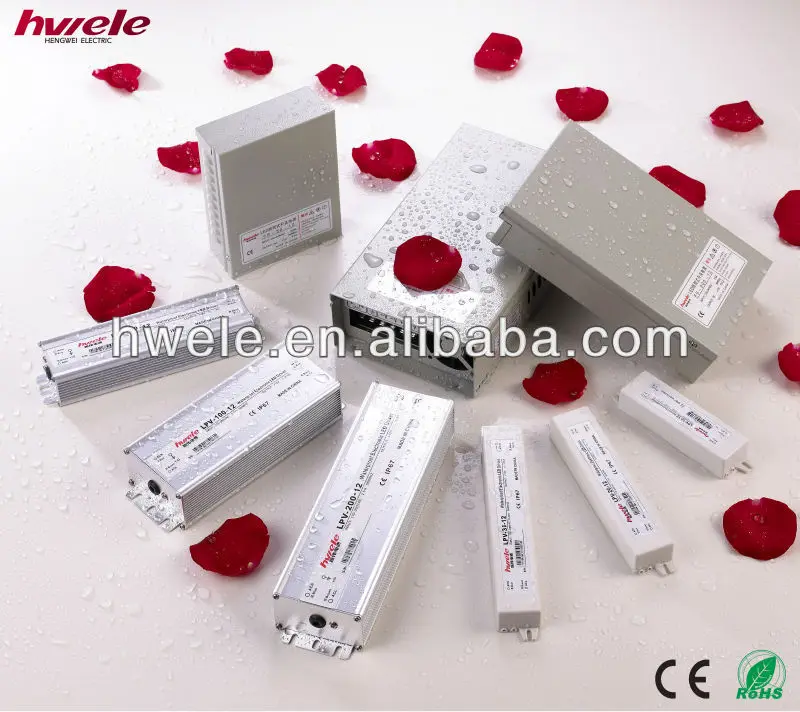

- Founded in 2005,Hengwei electric co.,ltd. Long-term commitment to switching power supply ,LED driver and other new energy product development,production and sales. We carry out the “6S”management and tenet of “survival by quality,development by efficiency”.We have passed the certification of ISO9001 Quality Management System,and other certifications:TUV,CE,PSE,KC,ROHS etc.we are professional in develop and manufacture enclosed type switching power supply,LED waterproof power supply,Din-rail switching power supply,Security Monitor power supply,. several major series total more than 1000 series model.Company’s products are widely applied in LED lamp,LED street light .display screen. Signboard light box,CCTV system, Security . Medical .industrial automation equipment .electric information etc. area .Company’s plant area is about 6000 square meter,,monthly supply capacity can be about two hundred thousand pieces,we own a Variety of advance manufacture facility and testing equipment, such as Samsung SMT machine,Chroma Integrated Tester ,EMC tester ,automatic potting machine,electronic buil-in shelf ,full-automatic crest welder. full-automatic component inserter,. ICT online detector. High and low temperature test chamber,etc.,We insist on each product has a set of precise controlling and managing procedure and criterion in every tache such as design, quality testing ,material choosing, producing ,shipping and after services ,in order to provide the best PQTS to customers(Price,Quality,Transportation,Service)in Hengwei. Now we have stable customers in America,Russia,Ukraine,Czech, South Korea,Chile, India,Dubai, France,Kuwait etc countries&areas and already seted agency in several countries.Inland selling network has widely laid over each province, city ,can provide customers professional technical support and after service at any time.
If you are looking for highly reliable switching power supply,you will be finally convinced that we are your most desirable choice!
