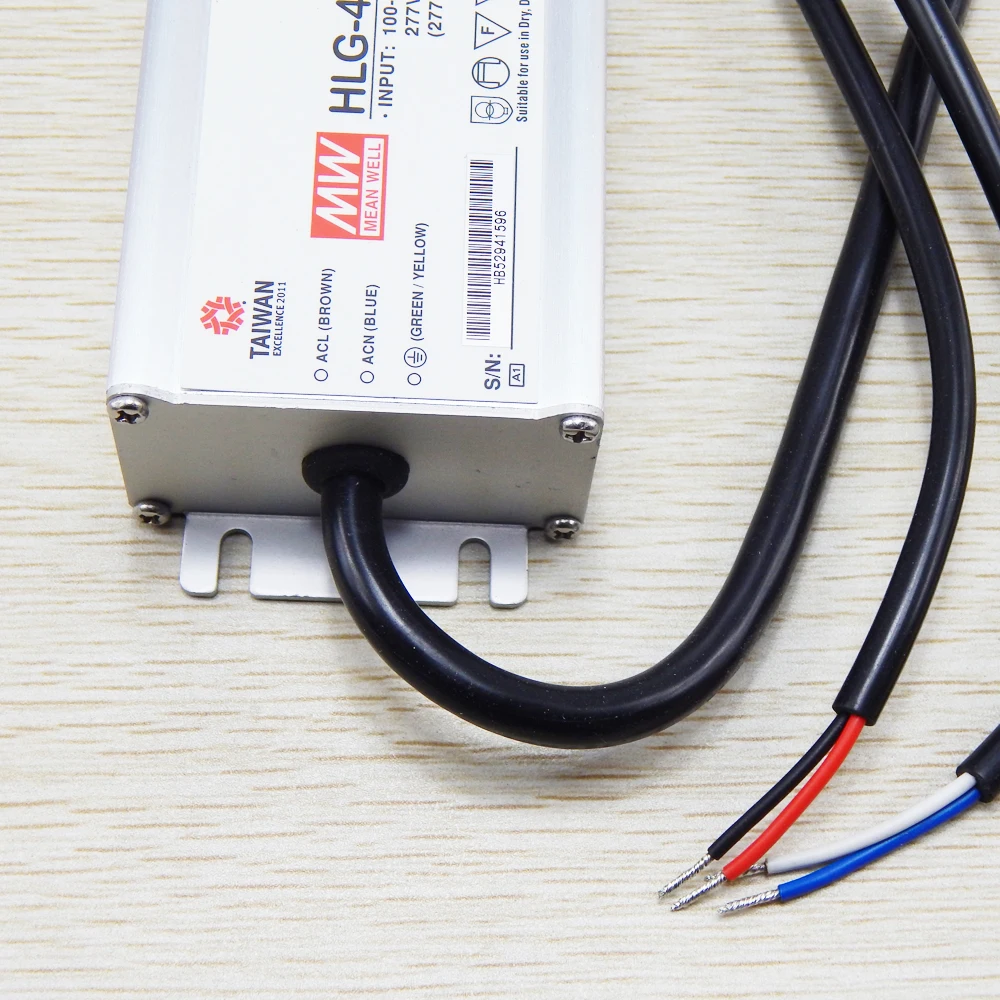

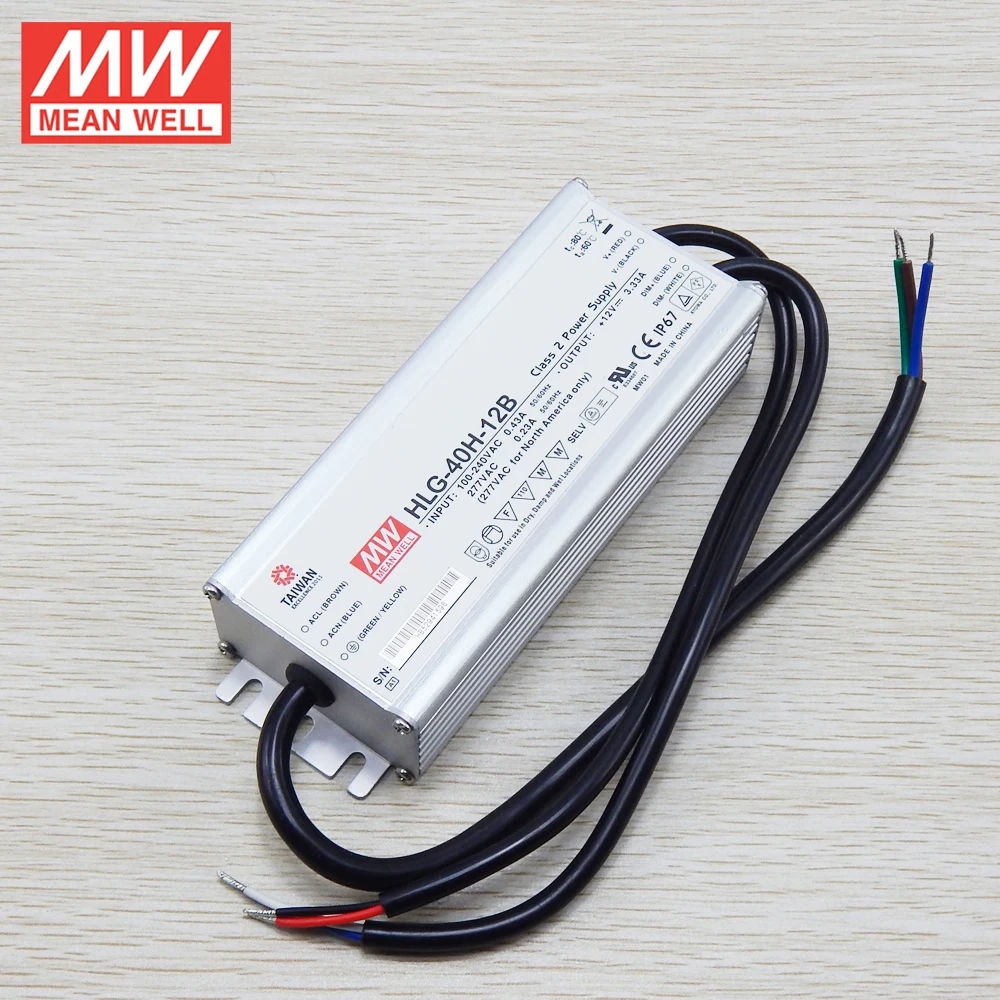

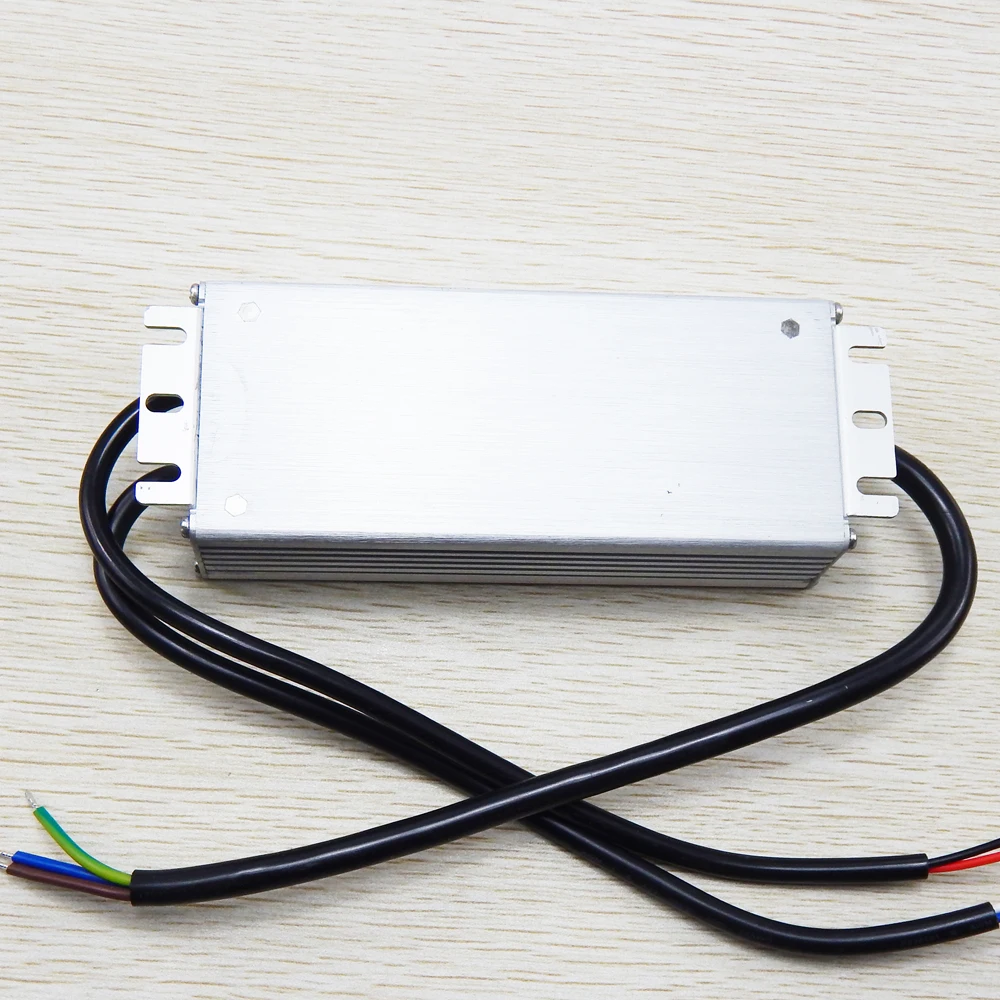

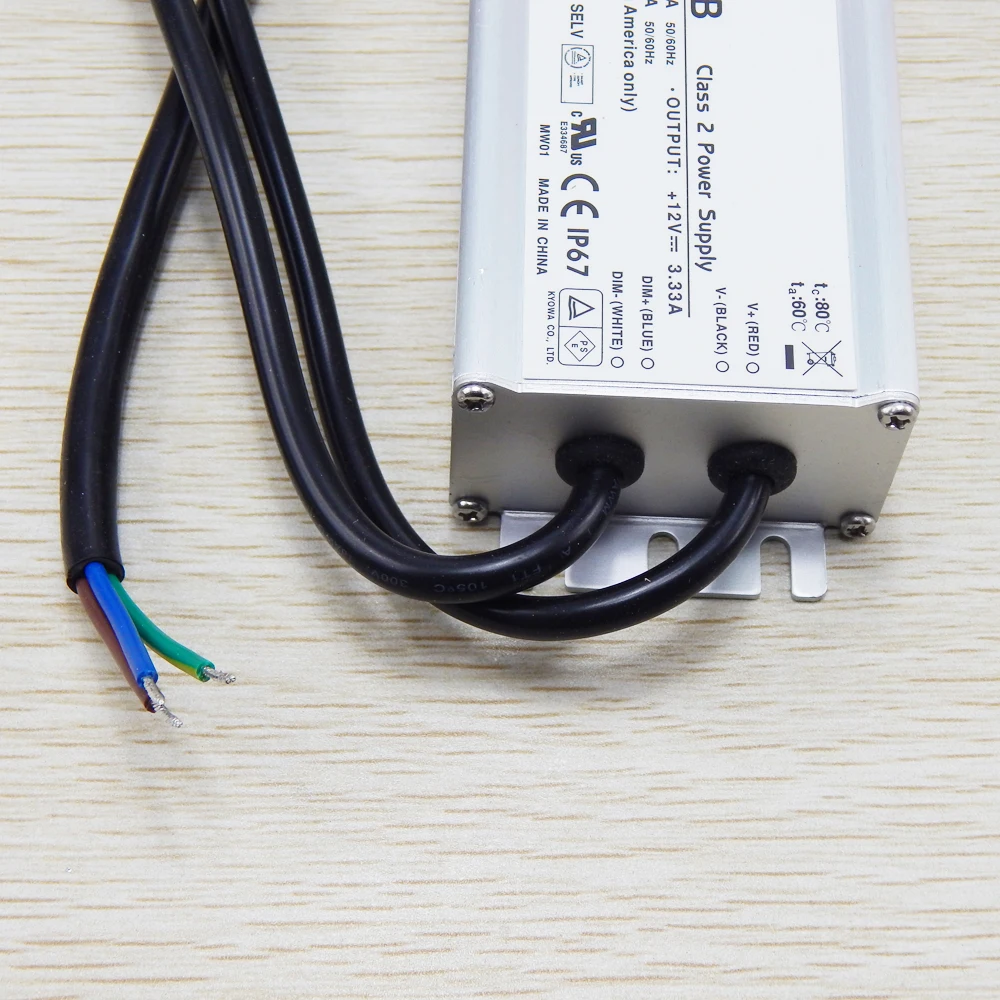

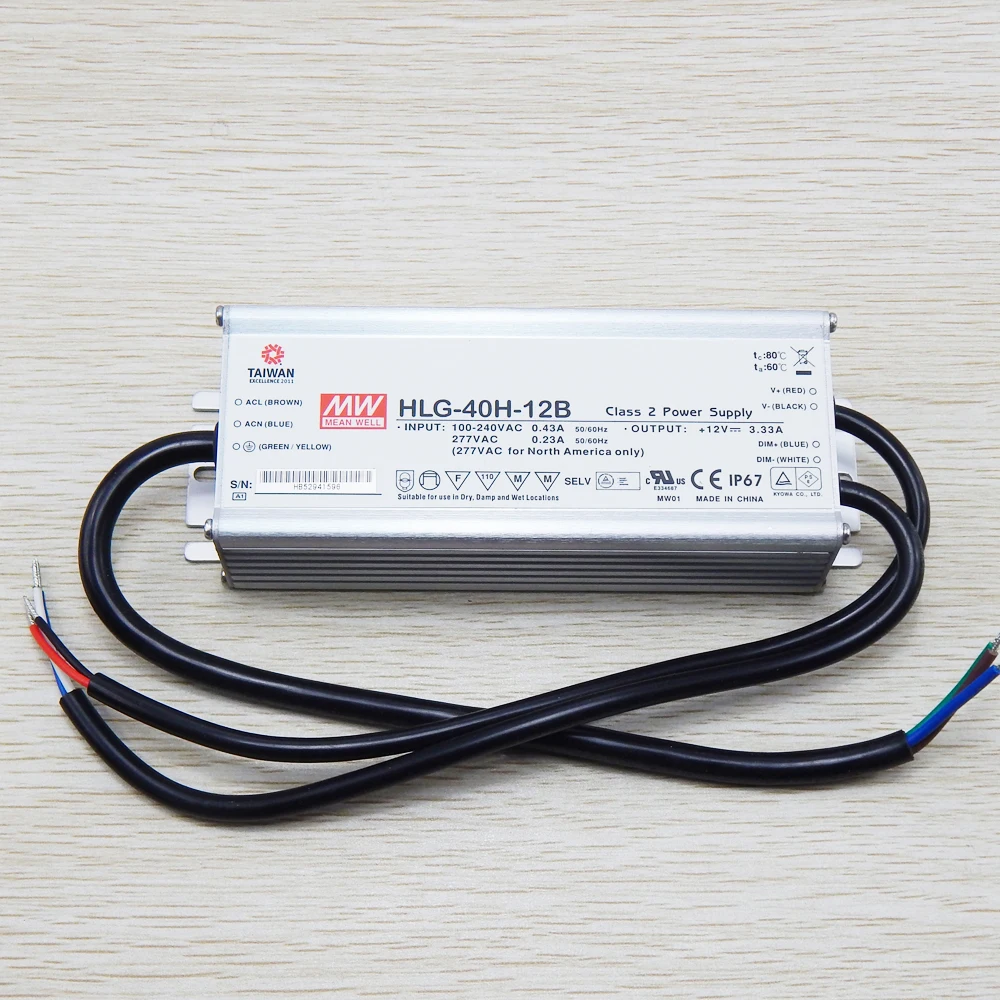

Бренд mean well представляет блок питания HLG-40H-12B 40 Вт Светодиодный драйвер диммер 220 В до

MODEL

HLG-40H-12B

OUTPUT

DC VOLTAGE

12V

CONSTANT CURRENT REGION Note.4

7.2 ~12V

RATED CURRENT

3.33A

RATED POWER

39.96W

RIPPLE & NOISE (max.) Note.2

150mVp-p

VOLTAGE ADJ. RANGE Note.6

10.8 ~ 13.5V

CURRENT ADJ. RANGE

2 ~ 3.33A  Can be adjusted by internal potentiometer A type only

VOLTAGE TOLERANCE Note.3

±2.5%

LINE REGULATION

±0.5%

LOAD REGULATION Note.8

±2.0%

SETUP, RISE TIME Note.9

500ms, 80ms at full load 230VAC / 115VAC

HOLD UP TIME (Typ.)

16ms/230VAC 16ms/115VAC at full load

INPUT

VOLTAGE RANGE Note.5

90 ~ 305VAC 127 ~ 431VDC

FREQUENCY RANGE

47 ~ 63Hz

POWER FACTOR (Typ.)

PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)

TOTAL HARMONIC DISTORTION

THD< 20% when output loading>=60% at 115VAC/230VAC input and output loading>=75%at 277VAC input

EFFICIENCY (Typ.)

86.5%

AC CURRENT (Typ.)

0.43A / 115VAC 0.24A / 230VAC 0.23A / 277VAC

INRUSH CURRENT (Typ.)

COLD START 50A(twidth=210μsmeasured at 50% Ipeak) at 230VAC

LEAKAGE CURRENT

<0.75mA/ 277VAC

PROTECTION

OVER CURRENT Note.4

95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed

SHORT CIRCUIT

Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

15 ~ 21V  Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

85°C±10°C (RTH2)  Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.

-40 ~ +70°C(Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 95% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +80°C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C(0 ~ 60°C)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY &

EMC

SAFETY STANDARDS Note.6

UL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN61347-1, EN61347-2-13 independent, IP65 or IP67, J61347-1,

J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1, EN60335-1

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG :0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to EN55015, EN61000-3-2 Class C (>=60% load) ; EN61000-3-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level (surge 4KV), criteria A

OTHERS

MTBF

336.5K hrs min. MIL-HDBK-217F (25°C)

DIMENSION

171*61.5*36.8mm (L*W*H)

PACKING

0.73Kg; 20pcs/15.6Kg/0.9CUFT
