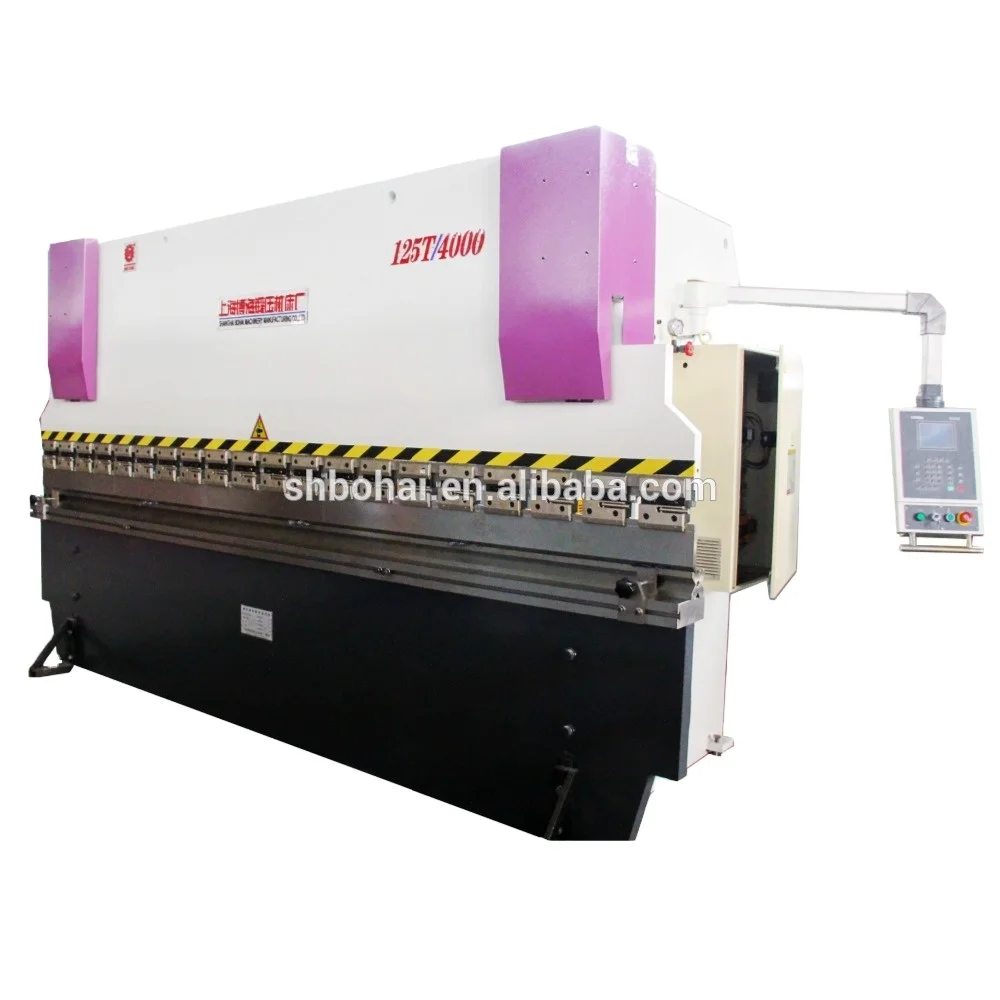

WD67K 125 4000 press bending machine



1. Machine Charactristcs

-- The machine is equipped with hydraulic electric control, freely adjustable slider travels and inching, semi-automatic, automatic operating criterion convenient for module trial and adjustment.

-- Up-move type bending design,pair oil cylinders working simultaneously, balanced operation,convenient,and safety.

-- With function of keeping pressure and delay time on lower dead spot, to assure the accuracy of work pieces.

-- Under the national standard conditions, the accuracy of bending angle can up to ±45´.

-- With function of slow decline, operator can control work pieces better.

2. Hydraulic system

-- Hydraulic system may realize quick decline, slow decline, working speed bending, quick return travel and sudden slider stop in the process of up and down etc.

-- Quality pump can stand high pressure, and low noise.

-- Sealing rings from Japanese NOK, with good sealing performance, reliable working, and long life.

-- The machine can work continuously under rated burden, hydraulic system has no divulgence, continue and steady, high accuracy.

 3. Backgauge and depth stop controlled by  NC controller ENC800



4. Main Equipments:



Hydraulic system:	Omega
Pump:	Gear pump

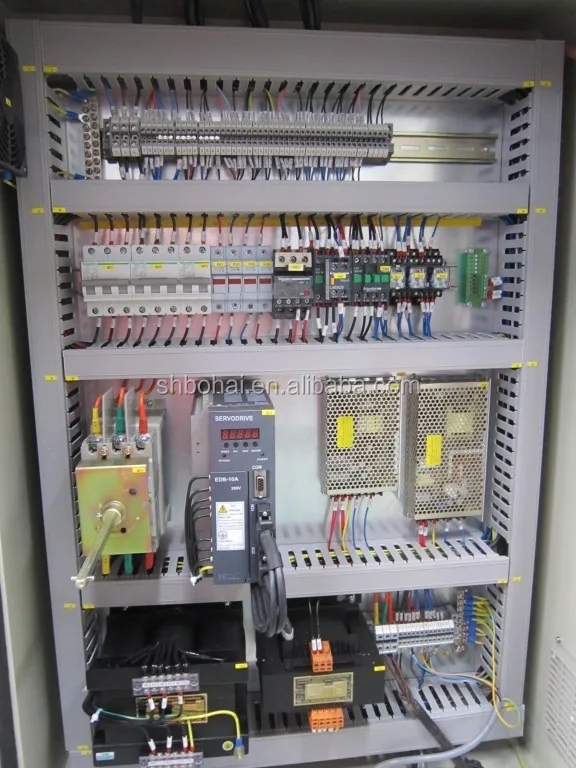

Electrics:	Schneider
O-rings:	Japanese NOK
Conectors:	Germay EMB
Ballscrew	TAIWAN HIWIN
Linear Guide rail	TAIWAN HIWIN
Servo motor	Huada or YASKAWA







5. Other standard equipments:



Settionalized Top Tool:	1set
Multi V-die Full length:	1piece
Stop fingers:	2 Piece
Front supporting arms:	2 Piece
Foundation bolts :	1set
Toolings:	1set (screw driver and spanner)
Manuals and diagram :	1book

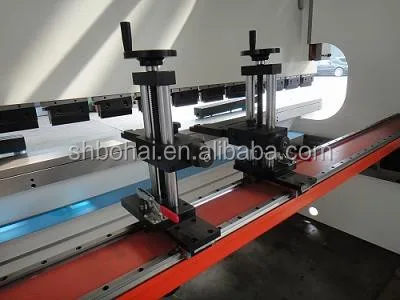

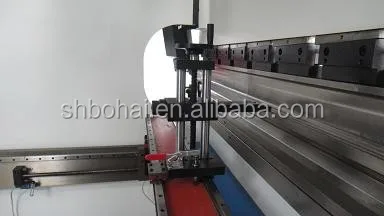

NC controlled Backgauge:

* Two Precision Finger Block moving on precision Linear way

 * The finger block manual adjustment(up and down) by handwheel









































 Ballscrew







 Servo Mortor







Price:  Give me reply, i will give you my favorable price immediately!

Payment term:  30% deposit and the balance paid against copy of B/L in 3 days.

Package:  Standard exporting package.

Operation manual and video disc:

When delivery machine, the related operation instruction of model will delivery together with machine. And in the instruction, there is teaching video disc.

After-sales service:

1.machine is simple, generally, user can understand how to operate. There is operation instruction  and disc.

2.welcome to our factory to learn how to operate our machine, we will give good training.

3.our engineer is available for user. If there is requirement, our engineer can go to user factory,  and adjust machine, give good training to user.
