Спиральная буровая машина

Категория: Other Construction Machinery >>>
Поставщик: Shandong,Longye,Machinary,Co.,Ltd.

Цена:25 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	29750.60 $*	31238.29 $*
Aug-16-2025	29500.45 $*	30975.44 $*
Jul-16-2025	24750.86 $*	25988.22 $*
Jun-16-2025	29000.61 $*	30450.6 $*
May-16-2025	25250.16 $*	26513.6 $*
Apr-16-2025	28500.64 $*	29925.73 $*
Mar-16-2025	28250.36 $*	29663.65 $*
Feb-16-2025	28000.28 $*	29400.25 $*
Jan-16-2025	27750.95 $*	29138.84 $*

Характеристики

Product Description

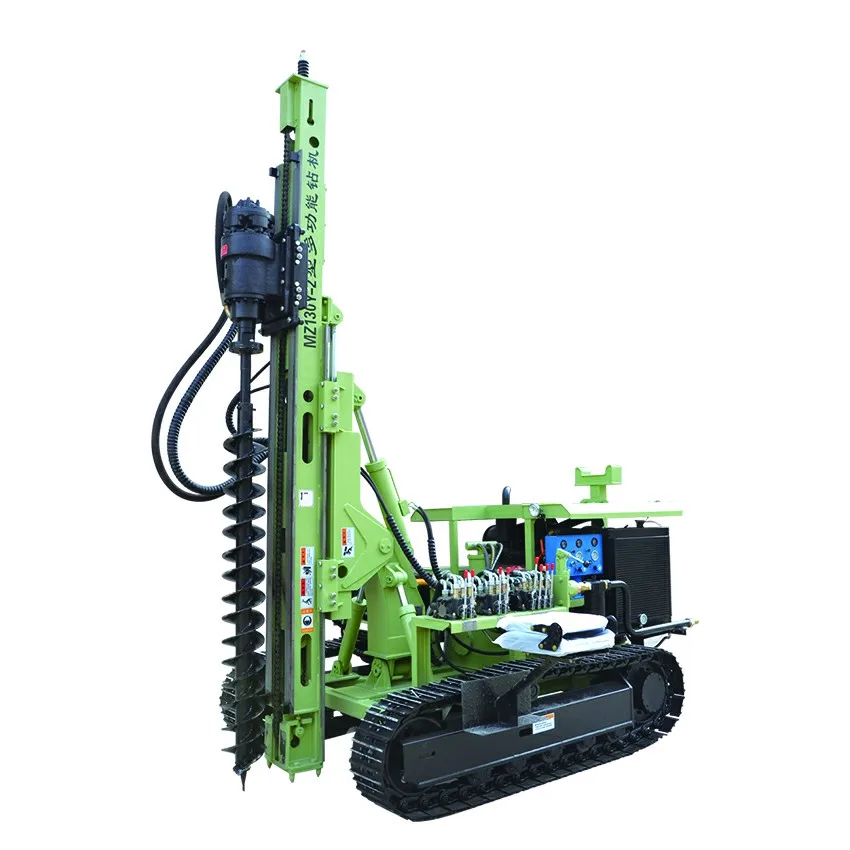

MZ130Y spiral pile drilling machine

adopt new-style hydraulic technique ,large rotation torque.the structure of the drilling rig is compact, During drilling the slide-skid are support on the ground to ensure the drilling has good stability.The usage of MZ130Y drilling rig has realiable property Application:

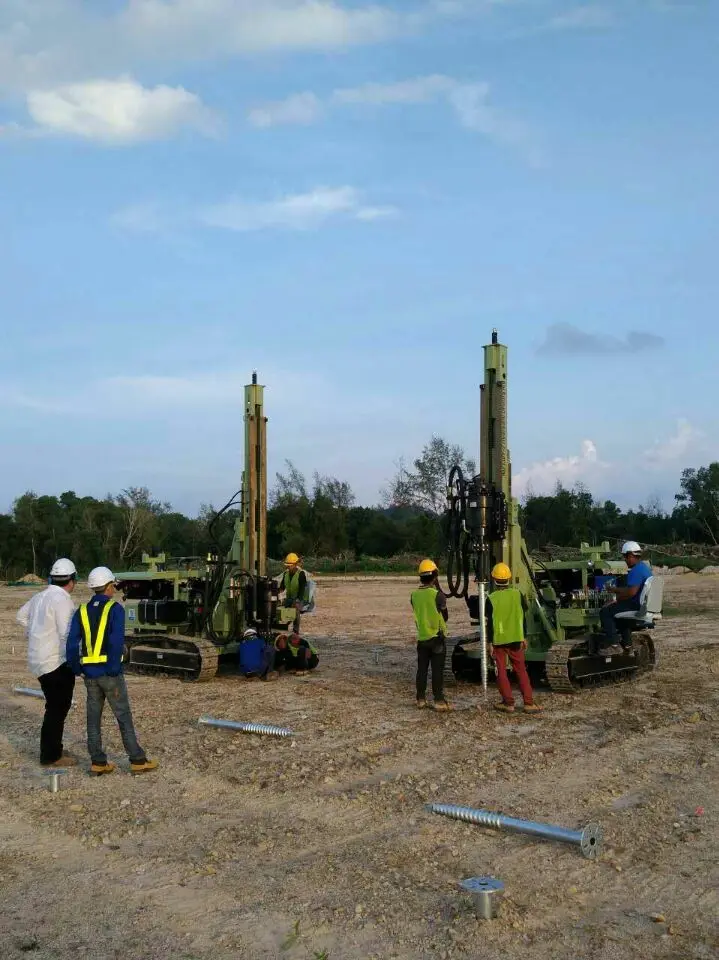

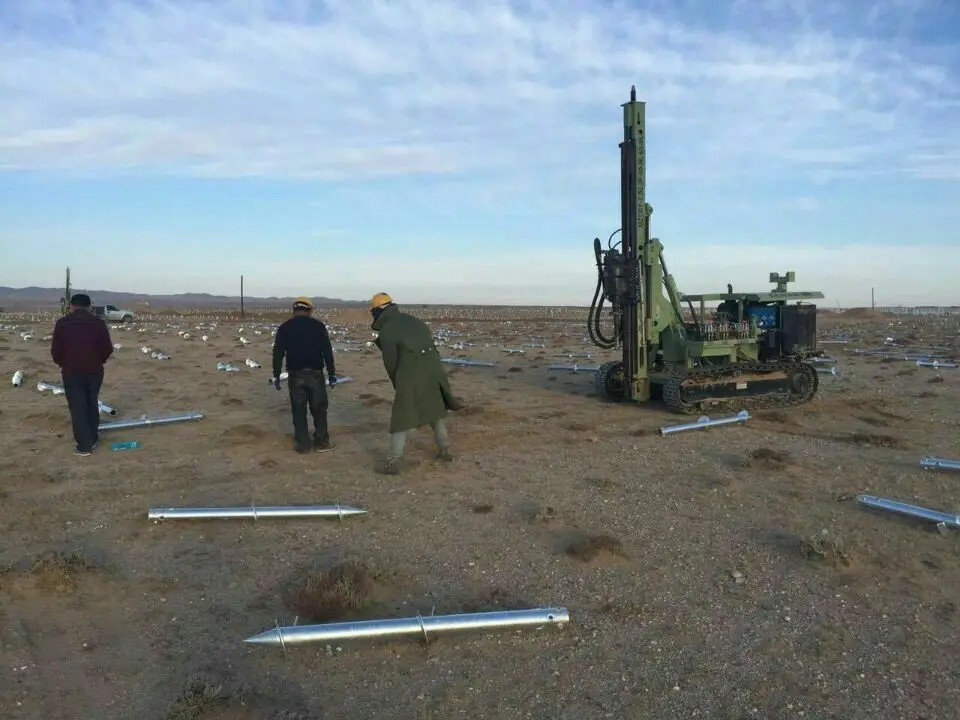

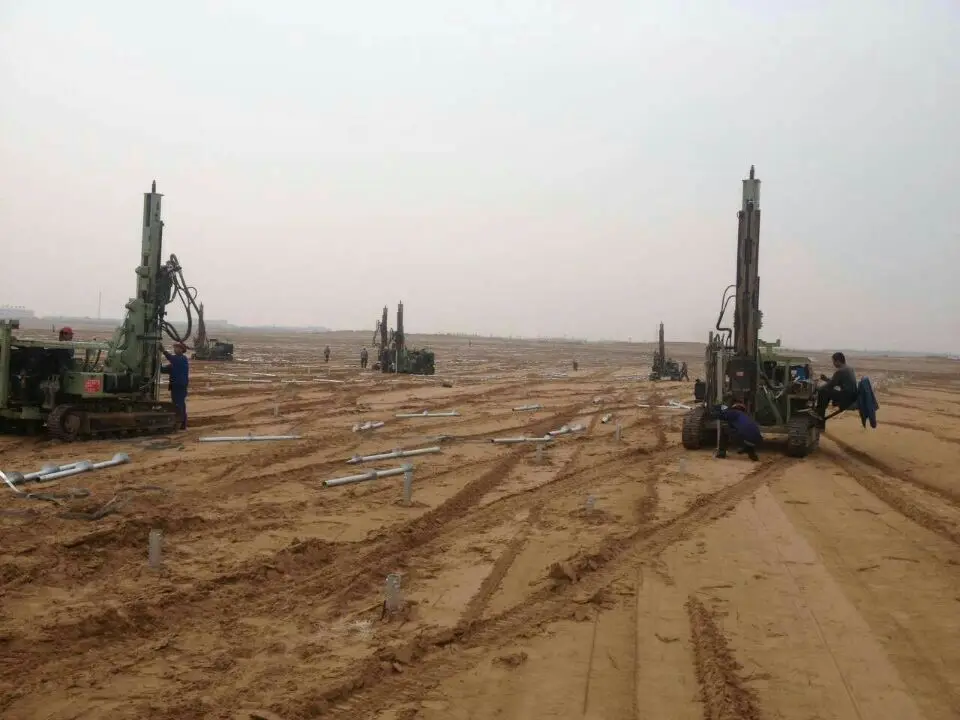

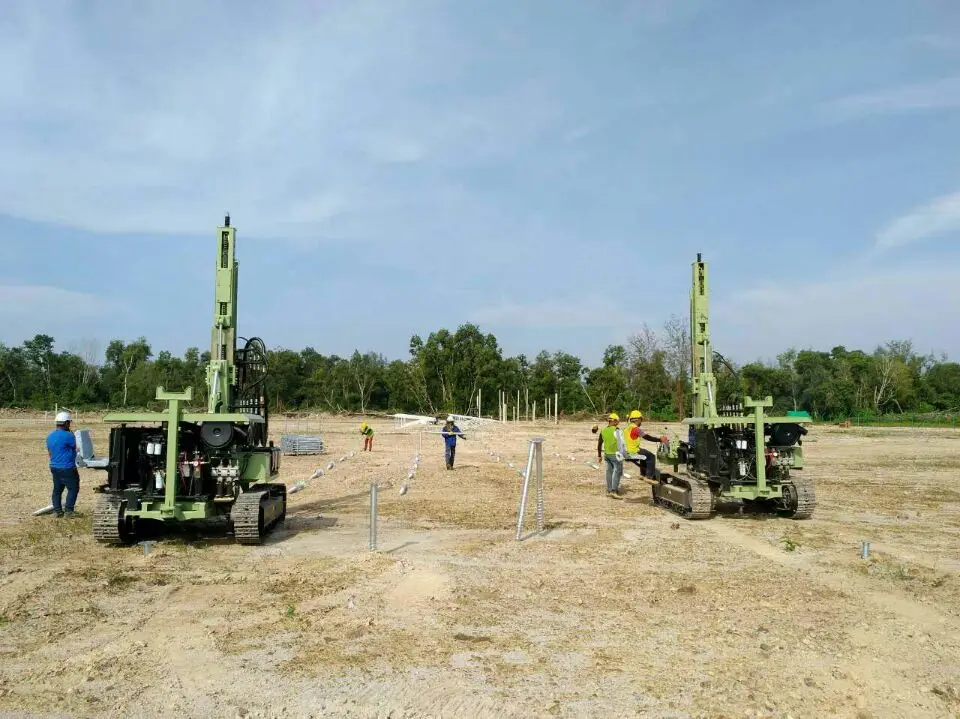

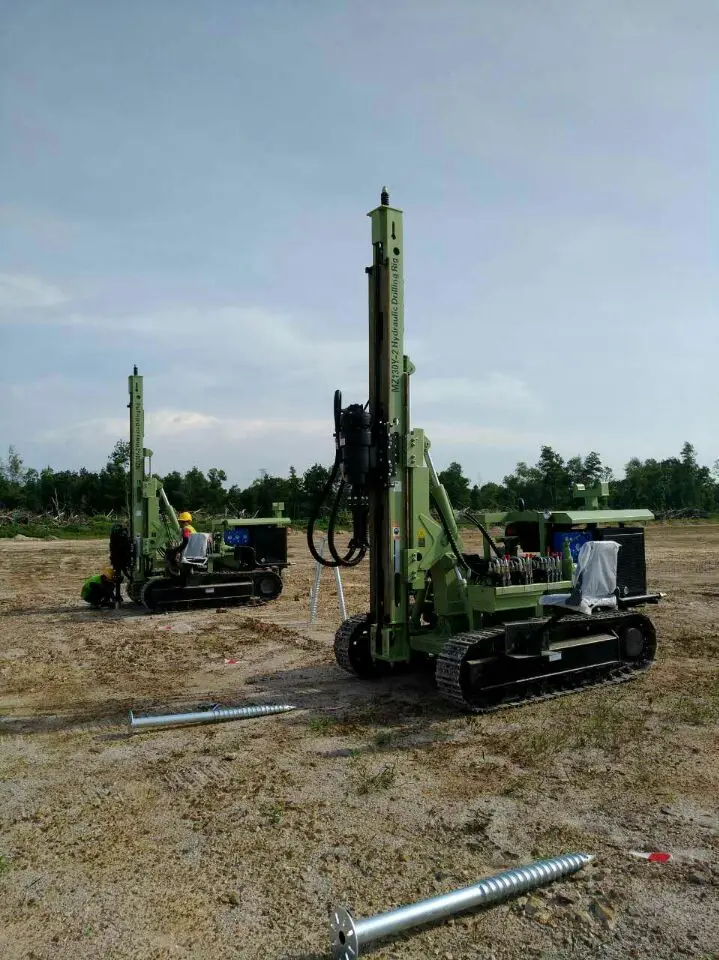

MZ130Y crawler hydraulic drilling rig is mainly used in blasting hole of mining,photovoltaic solar spiral pile ,road building for exploring the stone and water well drilling.

Working pressure	0.7-1.6Mpa
Air consumption	10-15m3/min
Bore diameter	90-400mm
Bore depth	Horizontal 40 down 50
Feed stroke	3000mm
Drill rod diameter	76mm
Guide compensation	900mm
Lifting force	24800N
Guide pitch	Up and down 45degree
Guide swing	Left 40 right30
Boom pitch	Up and down 60 degree
Boom swing	Left 90 right45
Climb ability	30 degree
Ground clearance	260mm
Walking speed	2.5km/h
Rotation speed	0-60r/min
Rotation torque	4600N.M
Motor power	55KW
Total weight	380000kg
dimension	440019002300
