320KN HDD machine

Категория: Other Construction Machinery >>>
Поставщик: Wuhan,Kudat,Industury,Trade,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.0 $*	0.24 $*
Aug-17-2025	0.86 $*	0.23 $*
Jul-17-2025	0.76 $*	0.28 $*
Jun-17-2025	0.0 $*	0.6 $*
May-17-2025	0.84 $*	0.37 $*
Apr-17-2025	0.23 $*	0.68 $*
Mar-17-2025	0.35 $*	0.92 $*
Feb-17-2025	0.8 $*	0.90 $*
Jan-17-2025	0.2 $*	0.71 $*

Характеристики

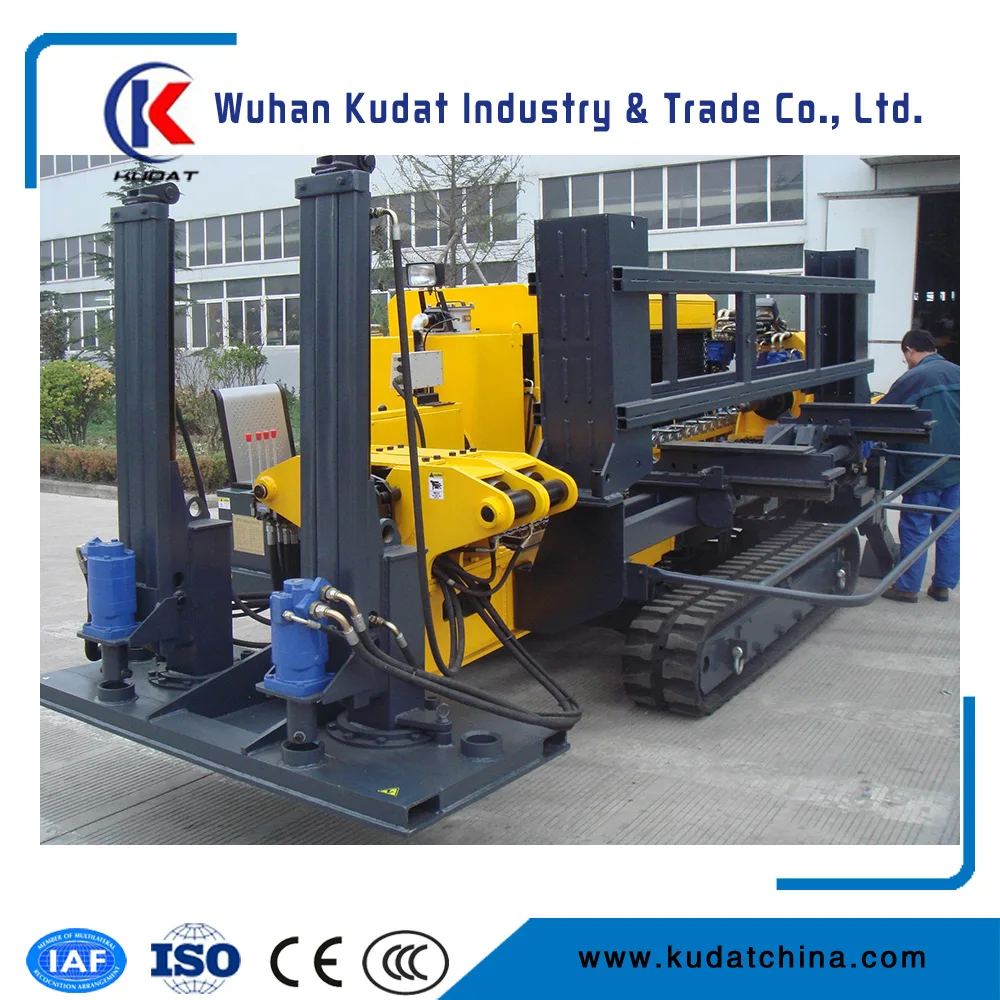

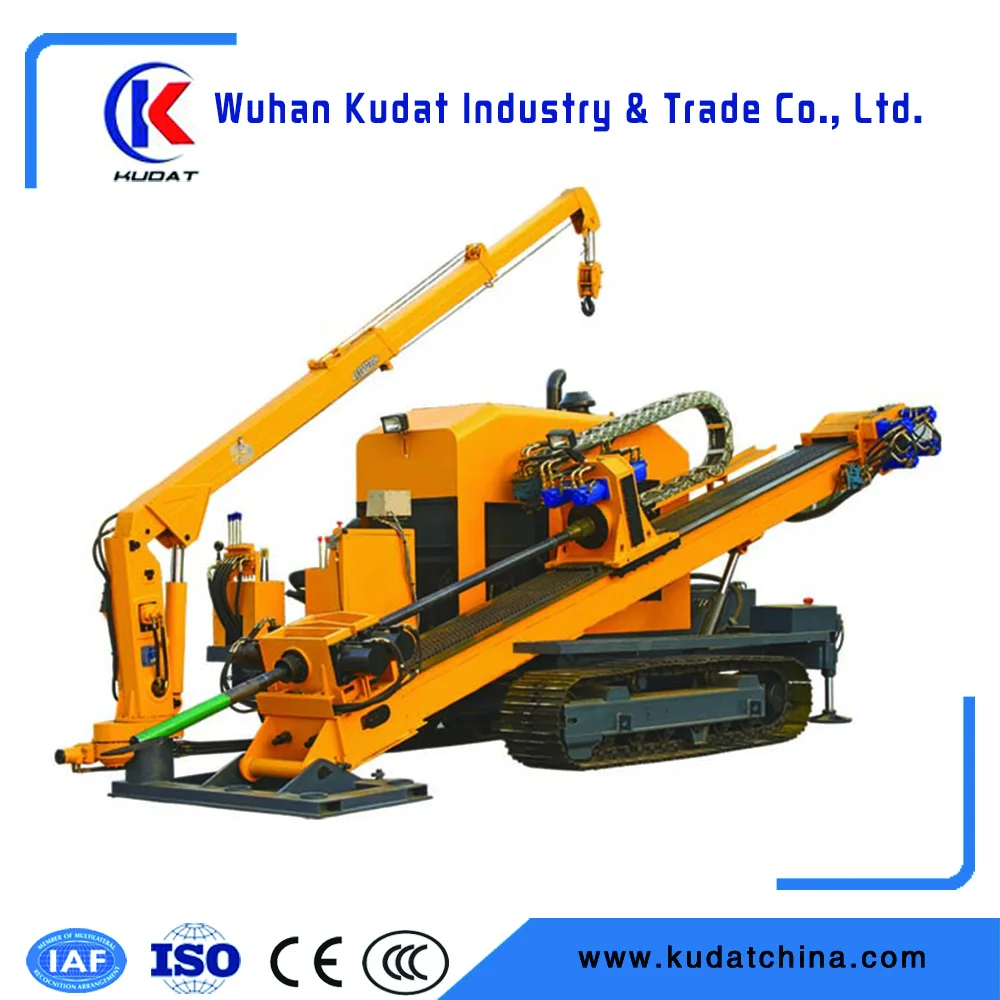

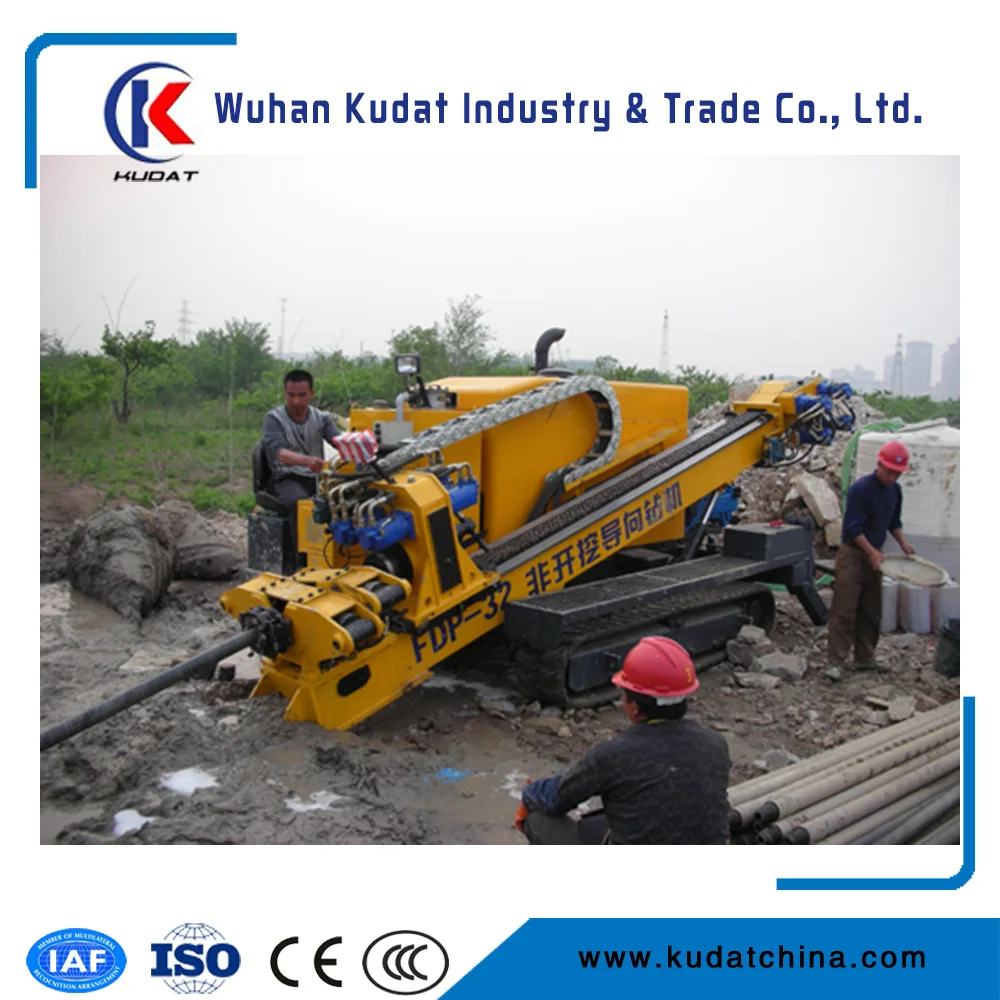

KDP-32 Hydraulic Directional Drilling Rig is mainly used for the civic construction especially for underfround pipe laying.

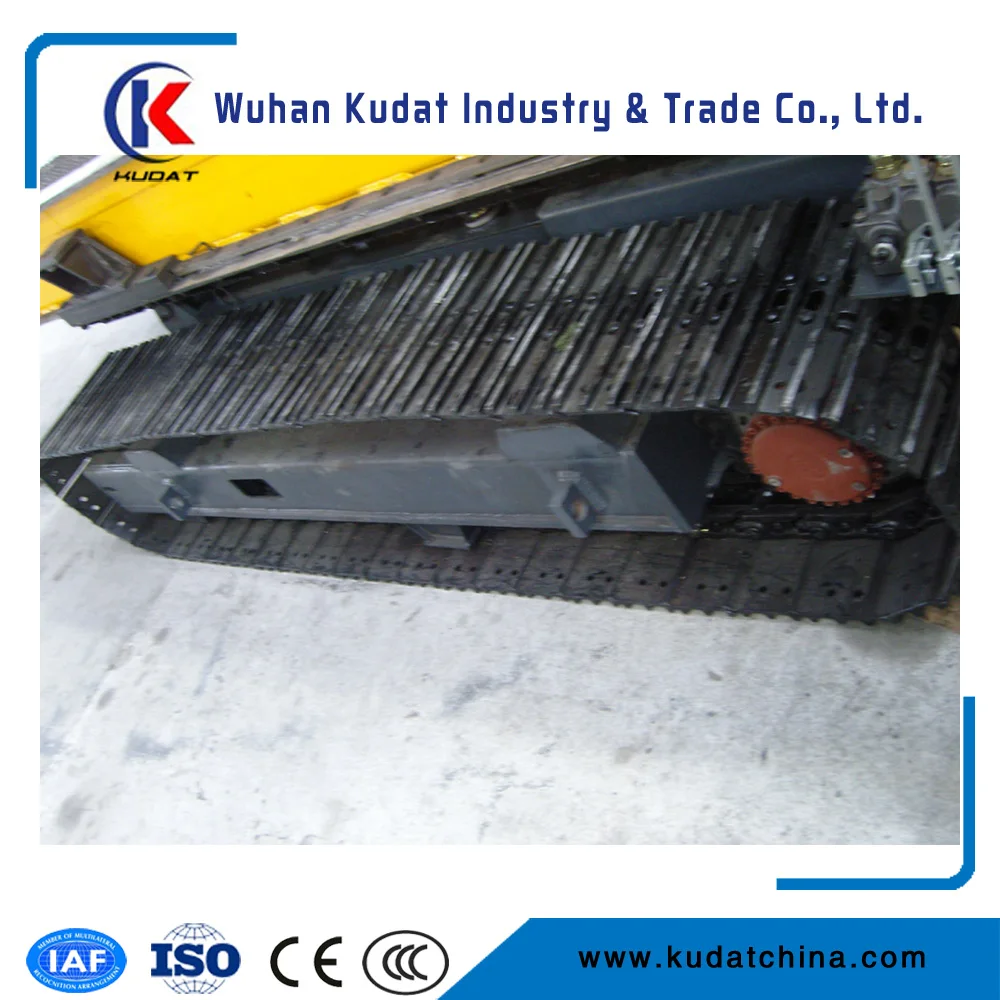

The KDP-32 is a full Hydraulic Directional Drilling Rig self-propelled with rubber crawler belts, with advanced and compact structure; and with high efficiency, low oil temperature. All main hydraulic components are selected and adopted from famous-brand products as auxiliary equipments. With movable mast, the rig is guaranteed to drill within the full angle scope and it is in good stability with graceful structure.

The Main Machine
Power of Engine	Deutz 145KW(195HP)
Max. Push capacity	320KN (71936 lbf)
Max. Pull capacity	320KN (71936 lbf)
Rated Torque	13000 N·M(9581 lbf·ft)
Hollow Spindle RPM	Lower 0-48r/min
Hollow Spindle RPM	High 0-96r/min
Feeding Stroke	3300 mm(130 inch)
Diameter of Guide Hole	130 mm(5.12 inch)
Drilling Angle	0°20°
Pressure of hydraulic system	20Mpa(2901 psi)
Traveling speed	2-2.6 km/h (6560-8528 feet/h)
Structural Style	integrated with rubber crawler and mud pump
Dimension (L×W×H)	5820×2250×2400 mm(229×89×94.5 inch)
Weight	8400 kg(18522 lb)
Mud Pump
Specification	BW-320
Max. Discharge	320 L/min(85US Gallons/min)
Peak Pressure	10 MPa(1450 psi)
Mud Process System
Data of engine	4KW(5.4HP) petrol engine
Pump parameter	30 m³/h (1059 feet³/h)
Mud processing capacity	6 m³/h (212 feet³/h)
Mud Tank	2M³ (71 feet³/h)
Drilling tools and auxiliary system
Specification of Rod	73×3000 mm(2.87×118 inch)
Guide Bit	130 mm(5.12 inch)
Reamer	325;400;500;600;720;830 (12.8;15.7;19.7;23.6;28.3;32.7 inch)
Distributor	40T(88200 lb)
Tracker	Optional Part
