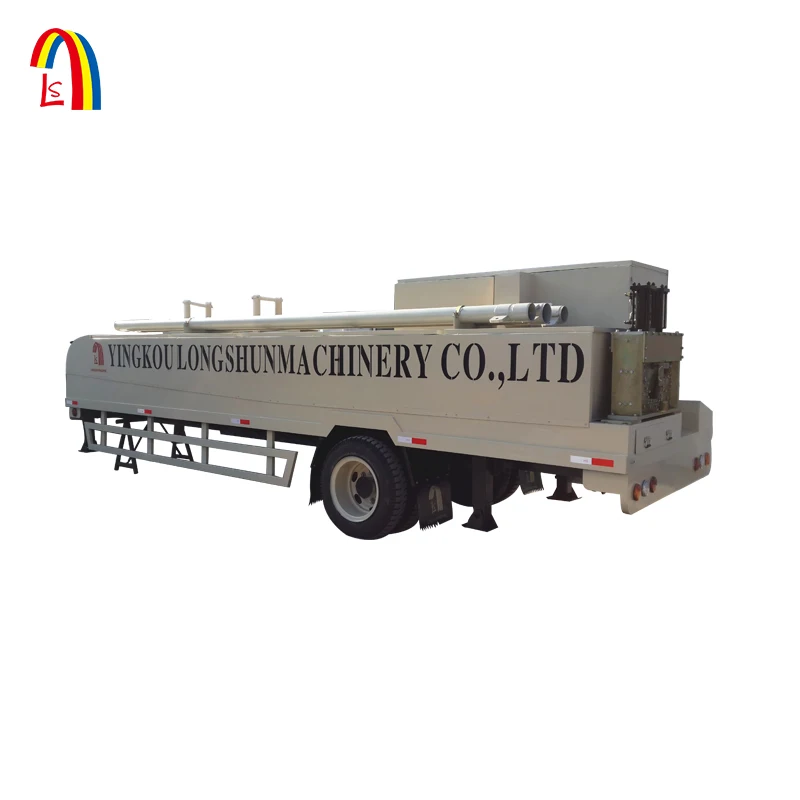

Arch Roof Roll Forming Construction Machine





Why Do People Choose Arch Roof Steel Buildings?

Fast And Easy DIY Assembly

Durable Construction With Galvalume Steel

High Quality Grade

Affordable, Factory Direct Pricing



What Is The large span arch roof Machine Widely Used For?

1.Conventional Building Appearance

 2.Ideal For Backyard Applications, Including Workshops Garages, And Equipment Storage

 3.Economical And Easy Construct



We provide you all the relevant accessories for free, with which you can begin to do projects immediately.



Our machine is easy to assemble, strong, durable and can offer you dependable services

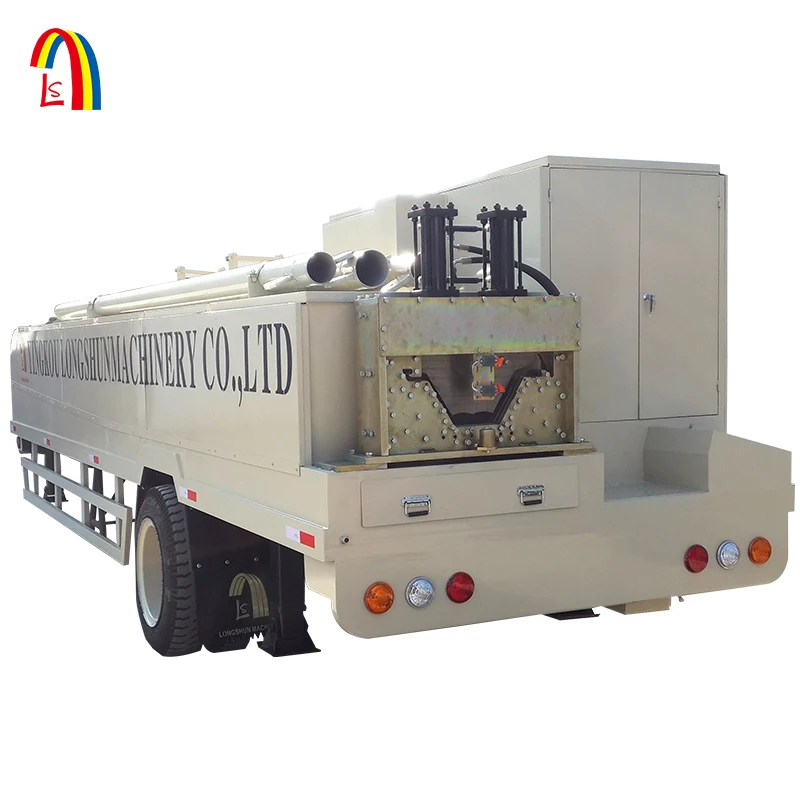

Machine Components:

a) De-coiler	b) Roll-forming device
c) Hydraulic cutter	d) PLC control system
e) Curving device	f) Necessary accessories

arch roof sheet making machine



Working flow:

Decoiler --- Feeding --- Roll forming ---Cutting --- Curving --- Output table

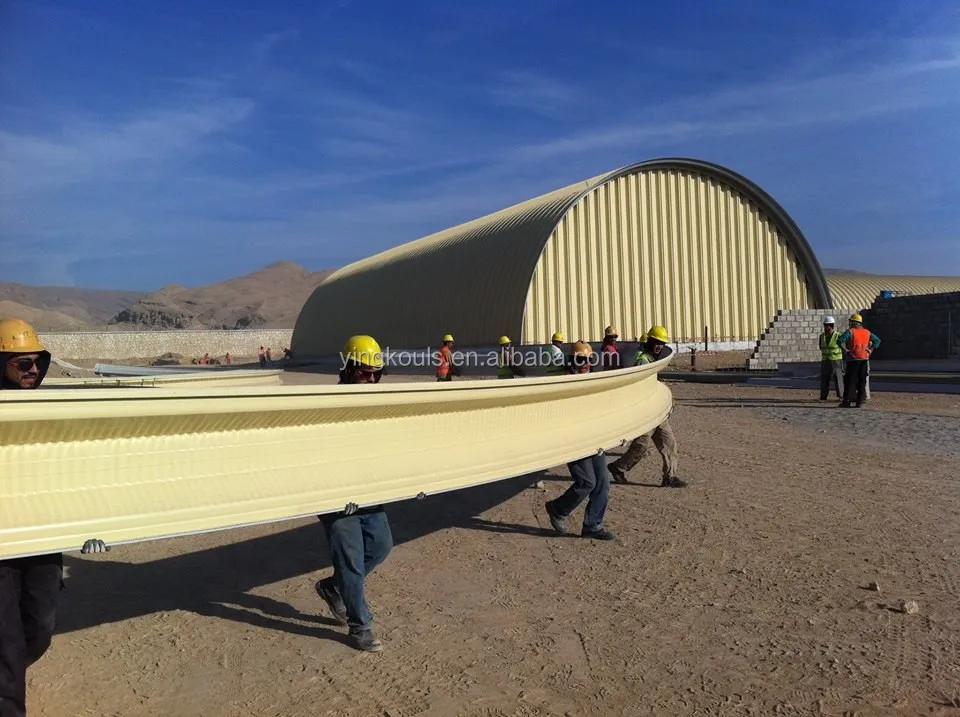

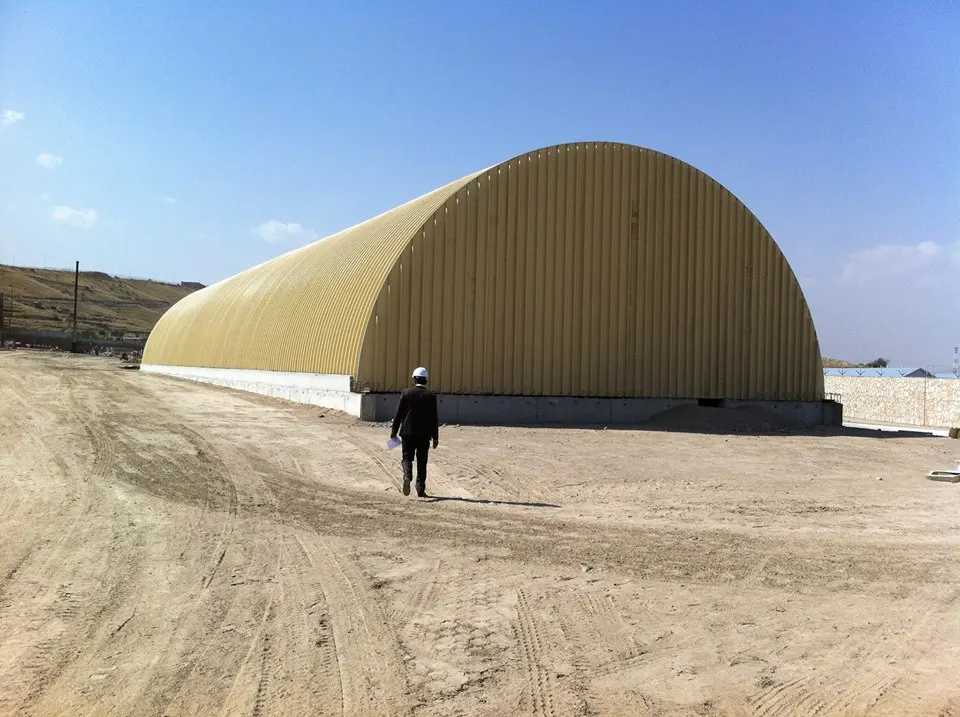

Large span arch roof Roll forming machine On sit production and installation of self supported curved roofing without any structure, enables faster and leak proof roofing system, thus ensuring utmost flexbility in work and design

arch roof sheet making machine

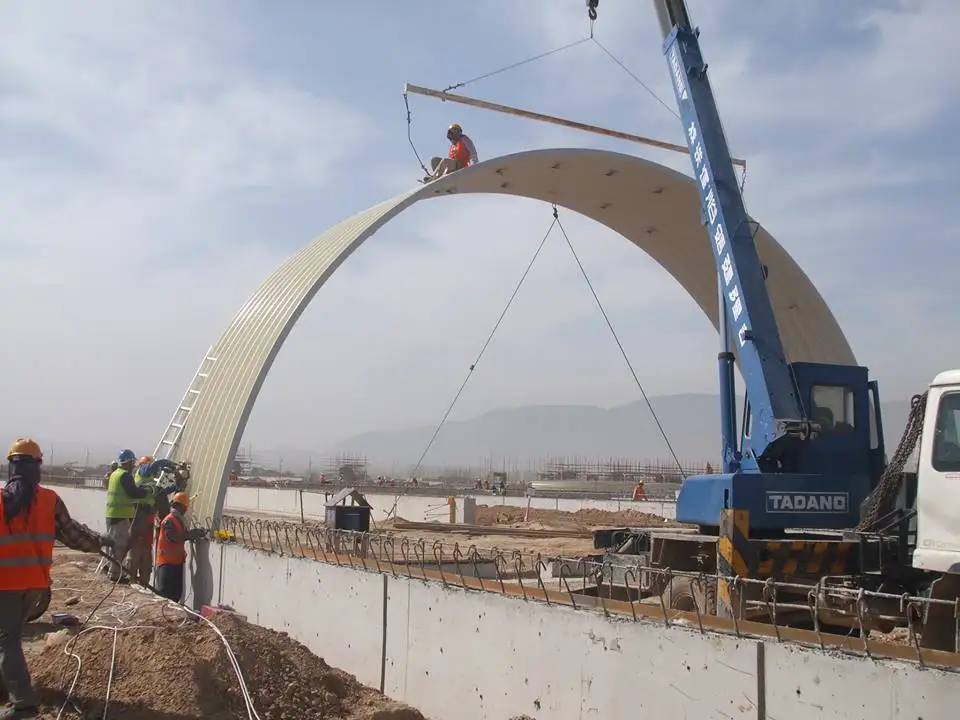

Easy & Quick installation As the production is carried out on site, the installation will be very fast, take an example, 1500 square meters area in 12 hours, enabling to finish the project in very quick time.

Arched roll forming machine Arch building machine



Arch roof sheet making machine

Tpyes:

Type	Feeding width	Effective Width	Coil Thickness	Max span	Use ratio	The depth of the groove
LS-1250-800	1250mm	800mm	1.0-1.5 mm	≤45m	64%	320mm        HOT
LS-1000-800	1000mm	800mm	0.8-1.5 mm	≤25m	80%	114mm        HOT
LS-1000-750	1000mm	750mm	0.8-1.5 mm	≤28m	75%	138mm        HOT
LS-1000-700	1000mm	700mm	0.8-1.5 mm	≤25m	70%	175mm
LS-1000-680	1000mm	680mm	0.8-1.5 mm	≤36m	68%	223mm        HOT
LS-1000-610	1000mm	610mm	0.8-1.5 mm	≤45m	61%	243mm        HOT
LS-1000-550	1000mm	550mm	0.8-1.5 mm	≤45m	55%	187.5mm
LS-1000-400	1000mm	400mm	0.8-1.5 mm	≤45m	40%	253mm
LS-914-750	914mm	750mm	0.8-1.5 mm	≤20m	82%	86mm         HOT
LS-914-700	914mm	700mm	0.8-1.5 mm	≤25m	76%	123mm
LS-914-650	914mm	650mm	0.8-1.5 mm	≤28m	71%	181mm
LS-914-610	914mm	610mm	0.8-1.5 mm	≤40m	66%	203mm        HOT
LS-914-400	914mm	400mm	0.8-1.5 mm	≤45m	43%	210mm
LS-600-305	600mm	305mm	0.8-1.5 mm	≤30m	51%	109mm

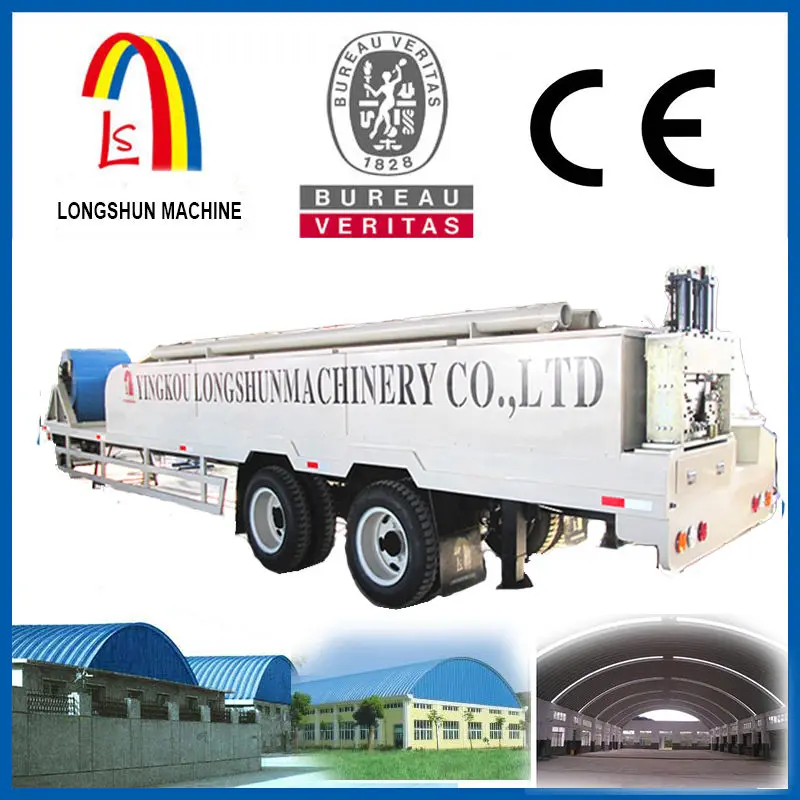

Long span Arch roof forming machine







Our products can be made according to your requirement.

Excellent quality and reasonable price to provide.

We do quotation within 24 hours and welcome your any inquiry at anytime.

More detail pelease call or email to me directly,thank you.

My Skype ID : yingkoulslucas

My phone No.86 1834 0780 160

Warranty: 1 year and long-life maintenance



*Installation and debugging: We will send professional engineer to make installation and debugging, buyer provide accommodation, food and the round-trip ticket fee.

Packing:	40HQ.
Delivery terms:	25- 30 days after receiving 30% deposit.
Payment terms:	T/T,30% depoisit, 70% before delivery
