Дешевая комната для сушки краски автомобиля автоматическая печь покраски
- Категория: Spray Booths >>>
- Поставщик: Yancheng,Dayang,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.97 $* | 0.27 $* |
| Aug-16-2025 | 0.10 $* | 0.9 $* |
| Jul-16-2025 | 0.44 $* | 0.38 $* |
| Jun-16-2025 | 0.24 $* | 0.91 $* |
| May-16-2025 | 0.35 $* | 0.28 $* |
| Apr-16-2025 | 0.81 $* | 0.24 $* |
| Mar-16-2025 | 0.83 $* | 0.61 $* |
| Feb-16-2025 | 0.9 $* | 0.59 $* |
| Jan-16-2025 | 0.92 $* | 0.89 $* |
Характеристики
Dayang for CE spray booth

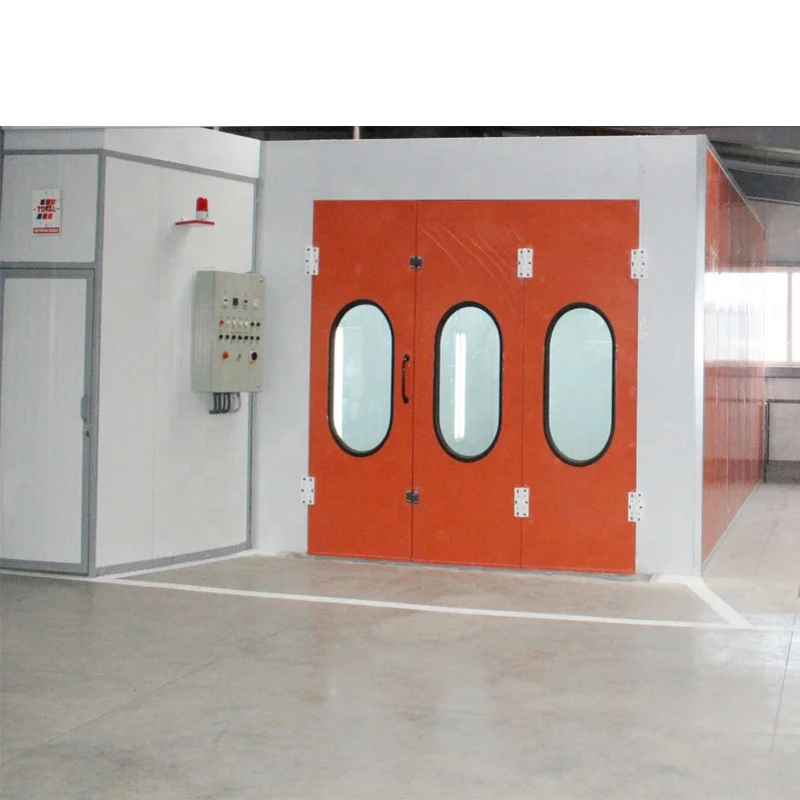

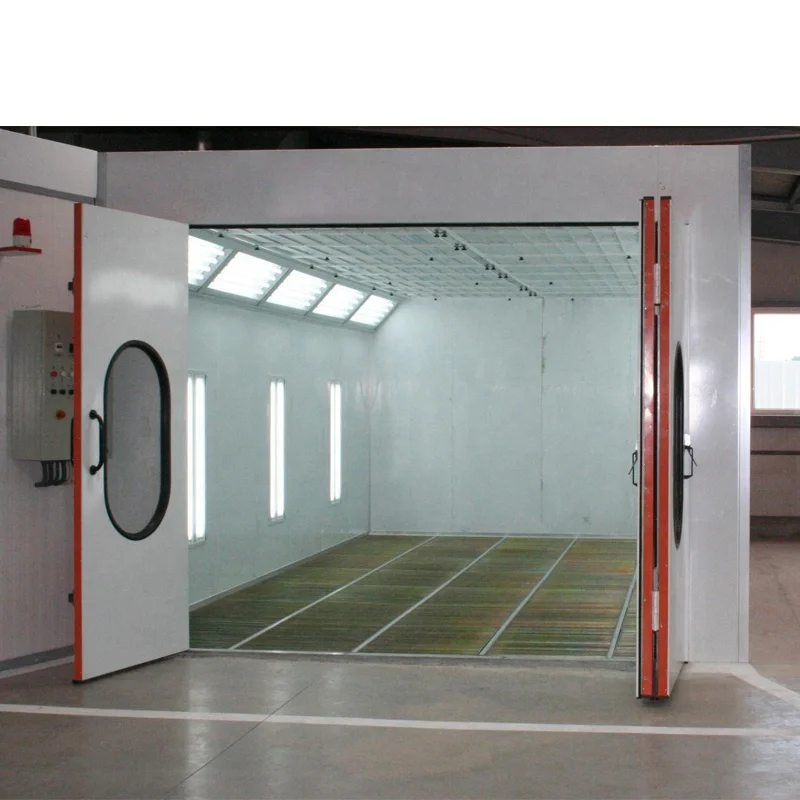

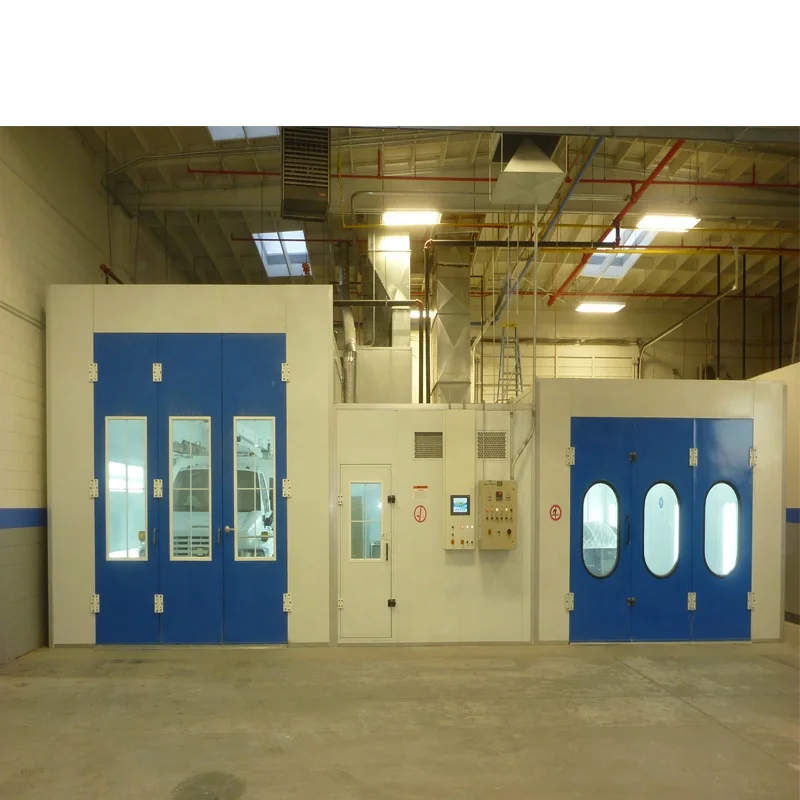

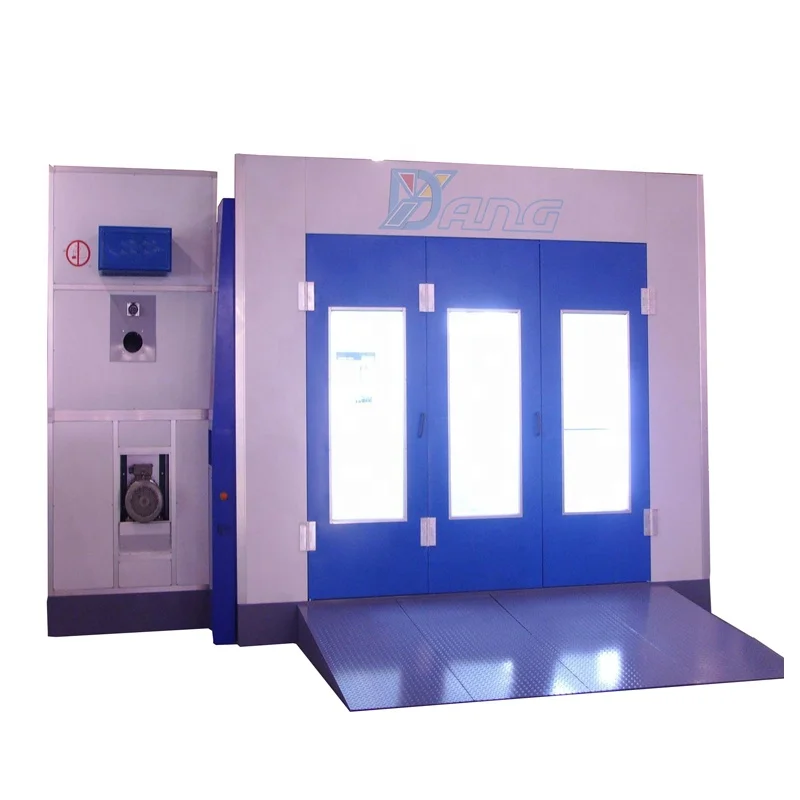

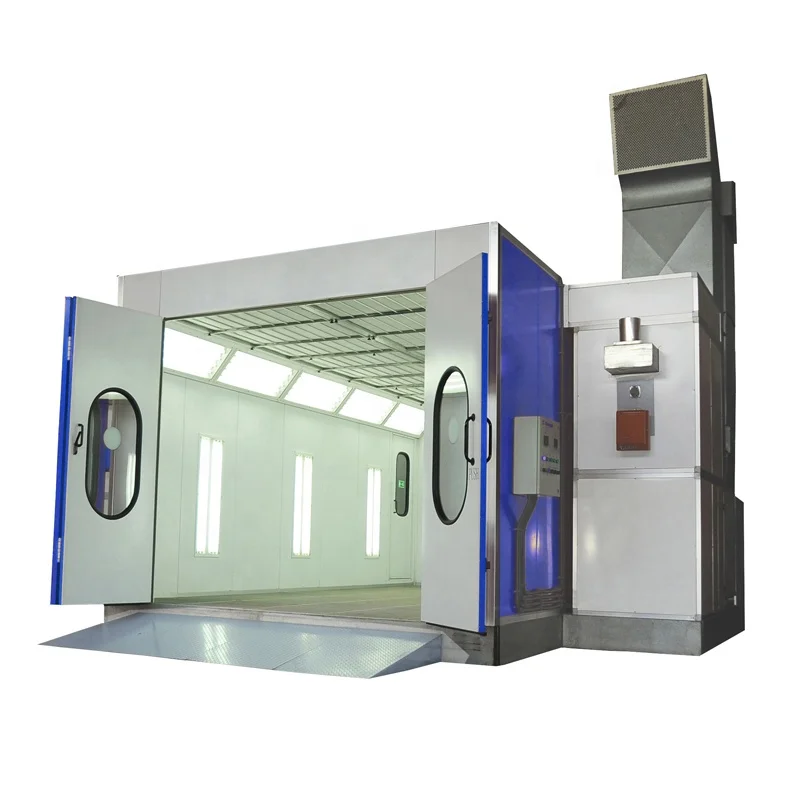

Specifications of car spray paint booth
Inside | 6900X3900X2650(LXWXH) |
Outside | 7100X5400X3400(LXWXH) |
Metal base | 2.0mm galvanized sheet,300mm metal base, two rows of gratings ,two outside ramps |
Wall panels | 50mm thickness by tongue and groove interlock, double skined by 0.5mm pre-painted steel sheet |
Main door | Three-fold flat door: 3000X2600mm(WXH) |
Service door | One service door: 2000X800mm(HXW) |
Lights | Upper inclined lights,8 units,4X36W each, illuminance≥700LUX |
Air system | Air intaking: 2X3KW centrifugal fan with CE motor,15000m3/h,all frames by aluminium alloy |
Air extraction: 2X3KW centrifugal fan with CE motor,15000m3/h,all frames by aluminium alloy | |
By-pass | Pneumatic damper from spraying to baking cycle |
Heating system | Big heating exchanger by stainless steel, G20 oil burner,18000kcal/h |
Filter system | Prefilter, ceiling filter, floor paint-stop filter, activated carbon extraction filter |
Control system | spraying, heating spraying, bake timer, indicator lights, hour timer, over temperature alarm, emergency stop, Siemens contactor, Omron temperature controller etc. |
Factory of car spray paint booth
Delivery of car spray paint booth
Related products
Our Services
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
Company Information
YANCHENG DAYANG MACHINERY CO., LTD. ----Ms.Liya Li( sales) |
|
