HDD Машина 36 м/мин Горизонтальное Направленное бурение Вертикальное горизонтальное расточный

HDD Машина 36 м/мин Горизонтальное Направленное бурение Вертикальное горизонтальное расточный

Категория: Other Construction Machinery >>>
Поставщик: Henan,Yulu,Machinery,Co.,Ltd.

Цена:969 833,92 ₽ - 1 741 292,72 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-17-2025	1231688.65 $*	1256322.35 $*
Jul-17-2025	998928.19 $*	1018907.64 $*
Jun-17-2025	1212291.41 $*	1236537.68 $*
May-17-2025	1202593.73 $*	1226645.47 $*
Apr-17-2025	960135.46 $*	979338.46 $*
Mar-17-2025	1183196.68 $*	1206860.31 $*
Feb-17-2025	1173498.67 $*	1196968.67 $*
Jan-17-2025	1163800.67 $*	1187076.59 $*

Характеристики

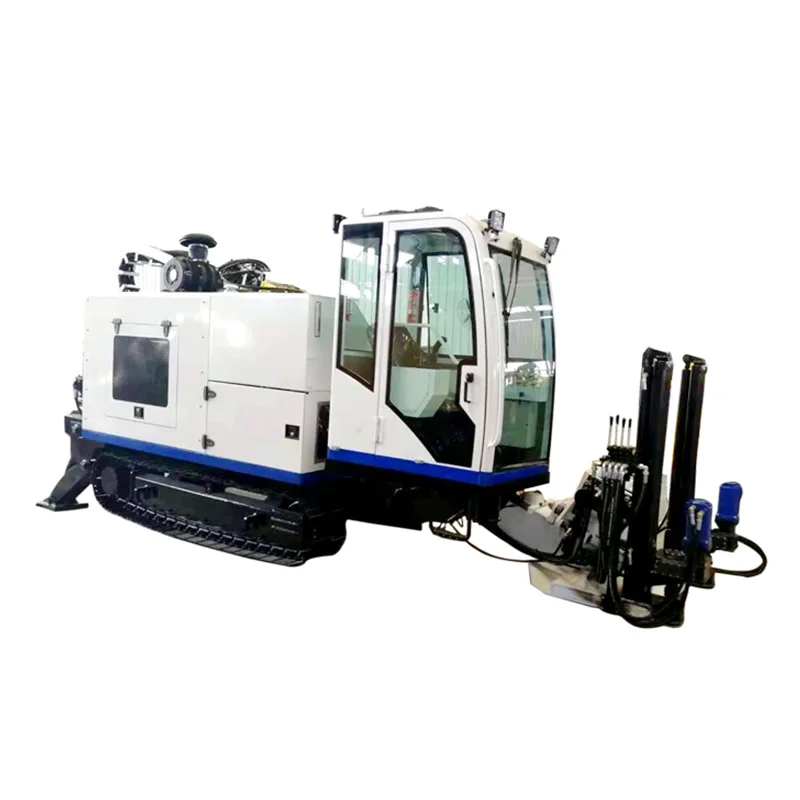

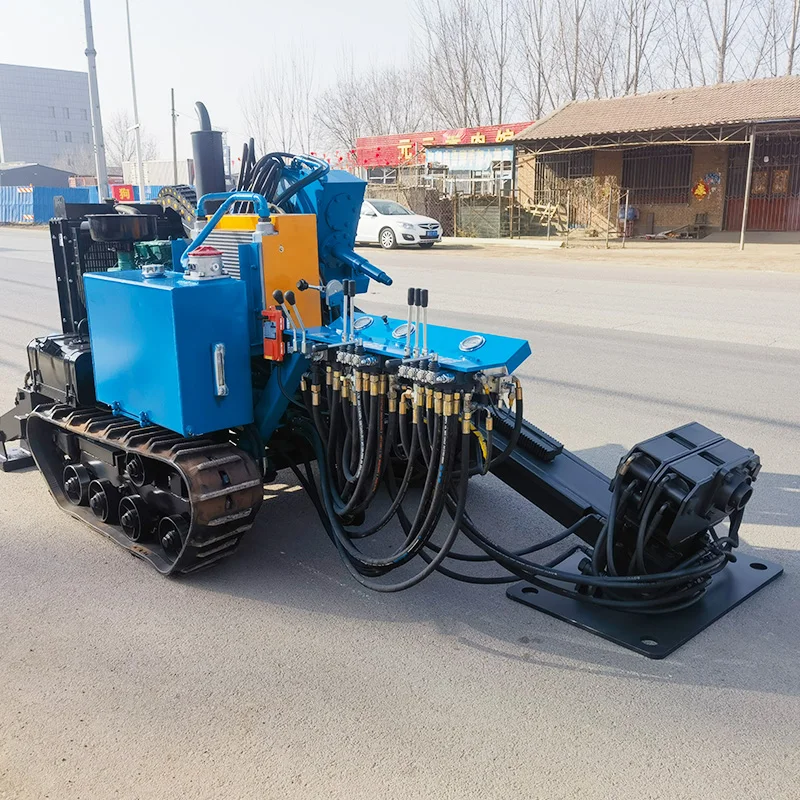

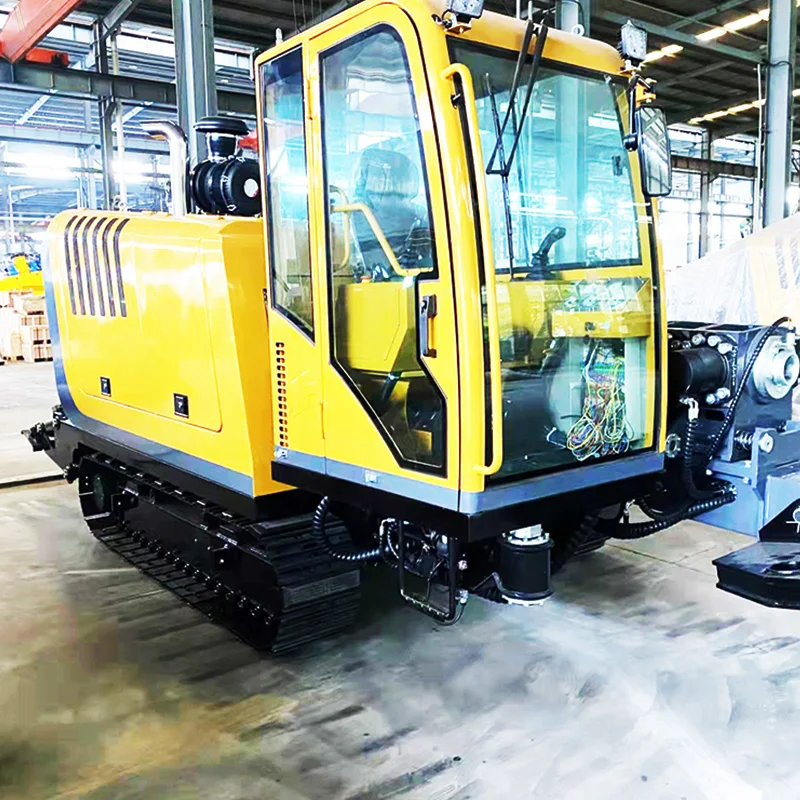

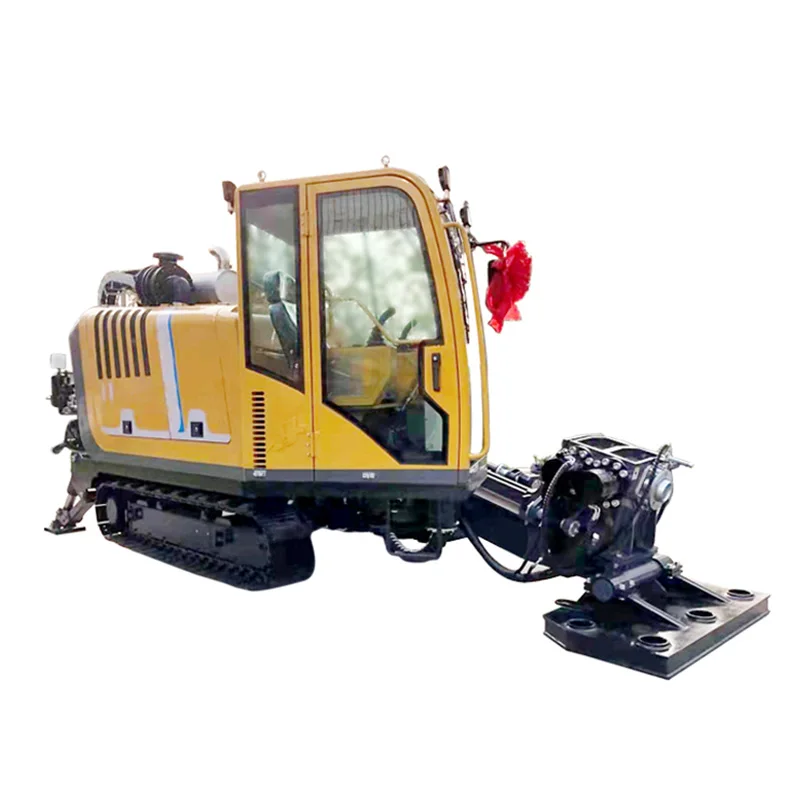

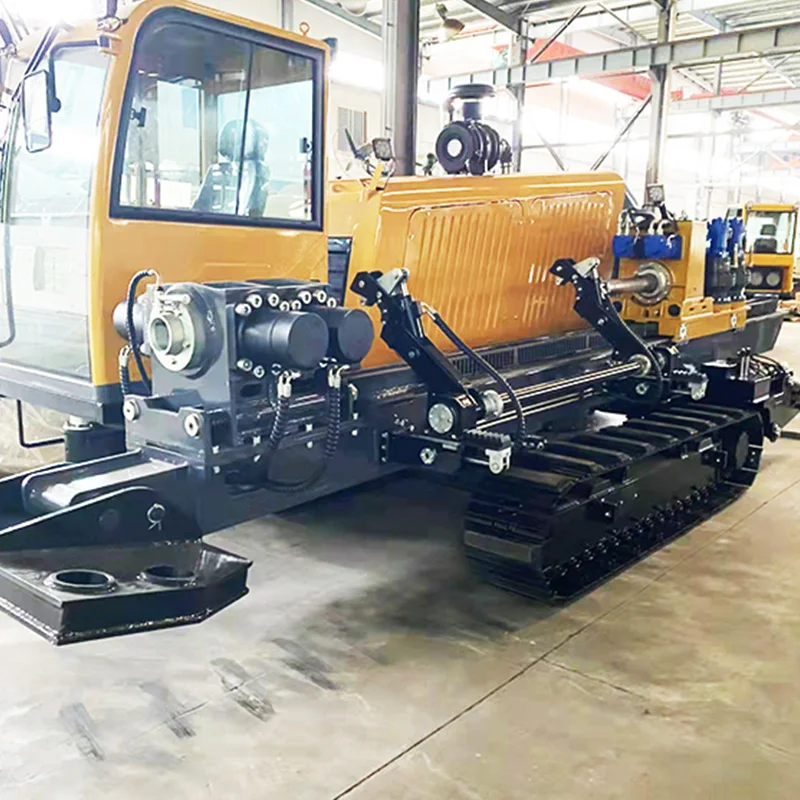

Trenchless Horizontal Direct Drill Portable Horizontal Directional Drilling Machine

Product Description

Horizontal directional drilling machine (HDD) is a kind of construction machinery for laying a variety of underground utilities (pipelines, cables, etc.) without excavating the surface.

APPLICATION

It is mainly used to cross roads, railways, buildings and rivers, and to lay or renew pipelines for water supply, gas,

electricity, telecommunications, natural gas, oil and sewage discharge under the conditions that it is not easy to excavate in downtown areas, cultural relics protection areas, crop and vegetation protection areas.

Performance Characteristics:

1. Pluralities of advanced control technologies are adopted, including the PLC control, electro-hydraulic proportion control, load sensitive control, etc.

2. The pipe automatic disassembly and assembly device can improve the working efficiency, relieves the labor intensity and manual error operation of the operators, and reduces the construction personnel and the construction cost.

3. Automatic anchor: The down and the up of the anchor is driven by hydraulics. The anchor is great in force and is easy and convenient to operate.

4. The dual-speed spindle drive is operated with low speed when drilling and dragging back to ensure smooth construction, and can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the drilling rod with empty loads.

5. The engine has the turbine torque increment characteristic, which can instantly increase the power to ensure the drilling power when coming across the complex geology.

Product Specifications

Description					Unit	Parameter value
Engine	Manufacturers
		China III	Model		QSB5.9-C210
		China III		Rated Power	kW /（r/min）	154 / 2200
		China II	Model		6BTAA5.9-C205
		China II		Rated Power	kW /（r/min）	153/ 2200
Thrust-Pull	Type				Pinion and rack drive
		Max thrust-pull force			kN	320/320
		Max thrust-pull speed			m/min	22
Rotation	Type				Four motor
		Torque			N·m	12000
		Max spindle speed			r/min	0～140
Max inclination angle					°	20
Pipe	Diameter × Length			mm×mm	Φ73×3000
Mud pump	Max Flow rate			L/min	320
Mud pump		Max pressure			MPa	8
Weight					kg	10500
