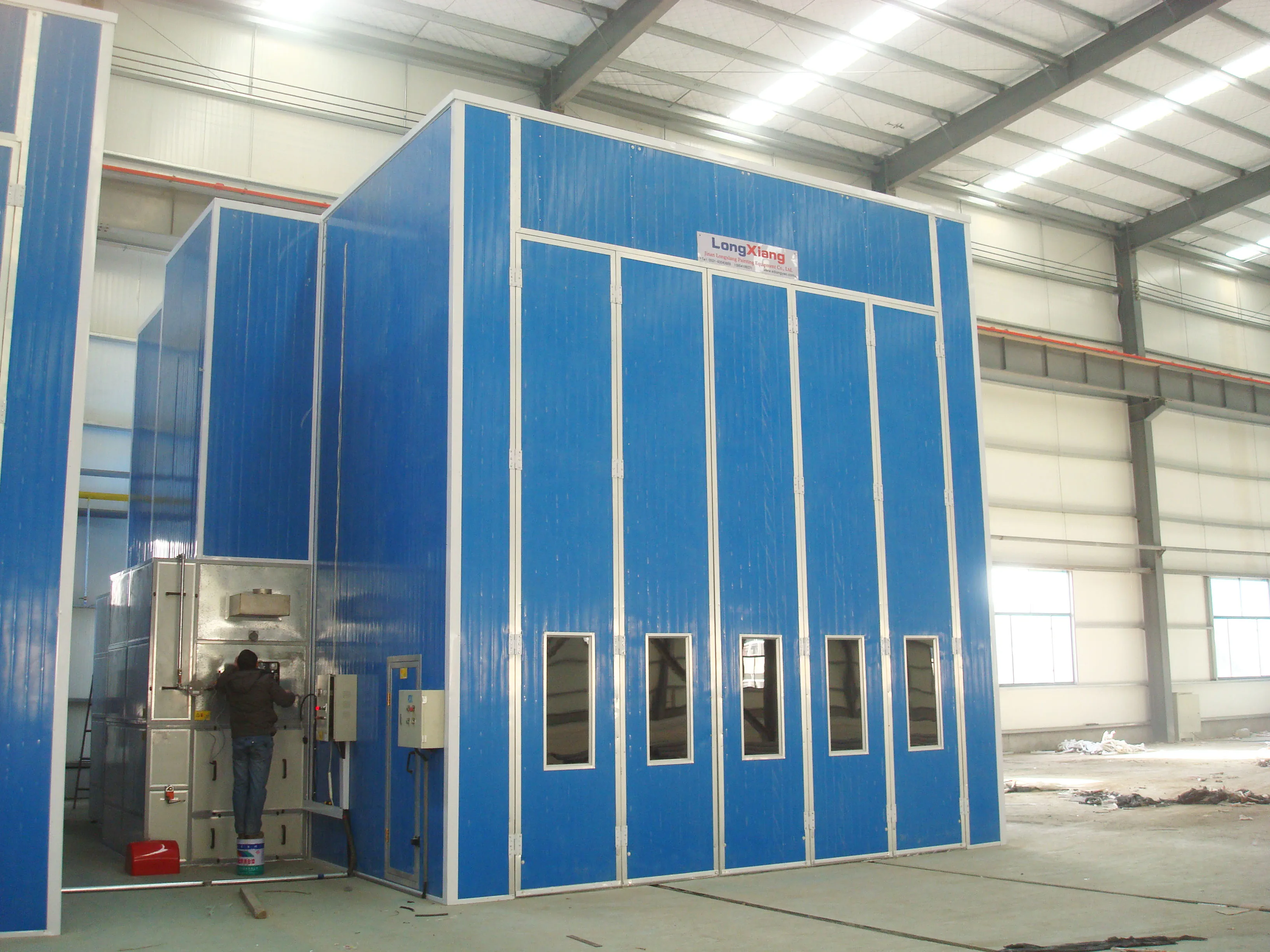

OEM LX-20-50 большие размеры индивидуальные

Inside dimension: 20000*5000*5000 mm (L*W*H)

Outside dimension: 20150*6650*5600 mm (L*W*H)

Total power: 85 KW

Free air speed: ≥0.25m/s

Pit

2 rows of pits in the ground for exhaust air,dimension of each pit is 18000×750mm(L×W),it is covered with steel plate is 30×4 flat
steel to ensure load bearing, and it is galvanized and anti-rust

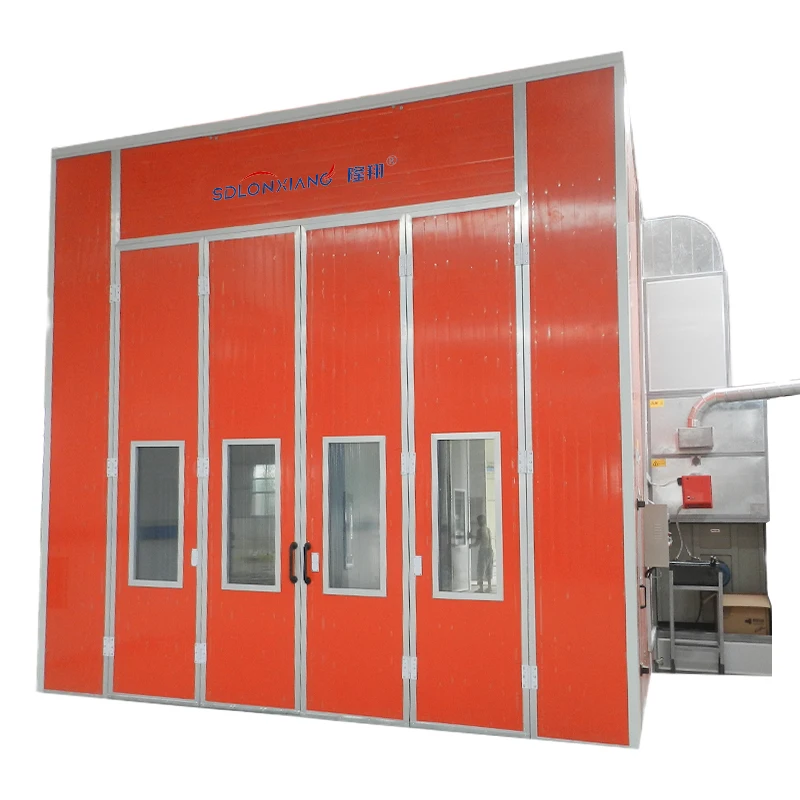

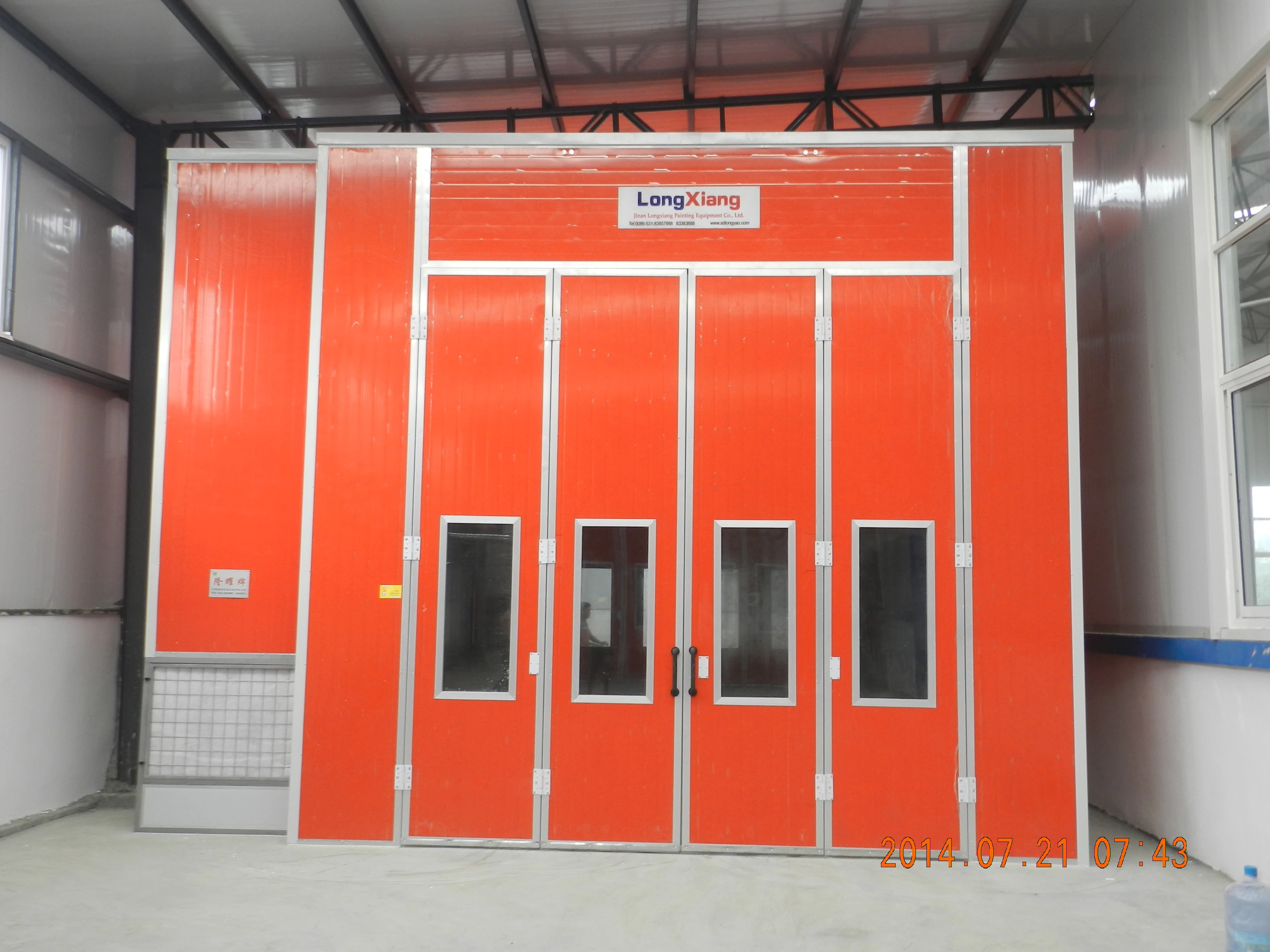

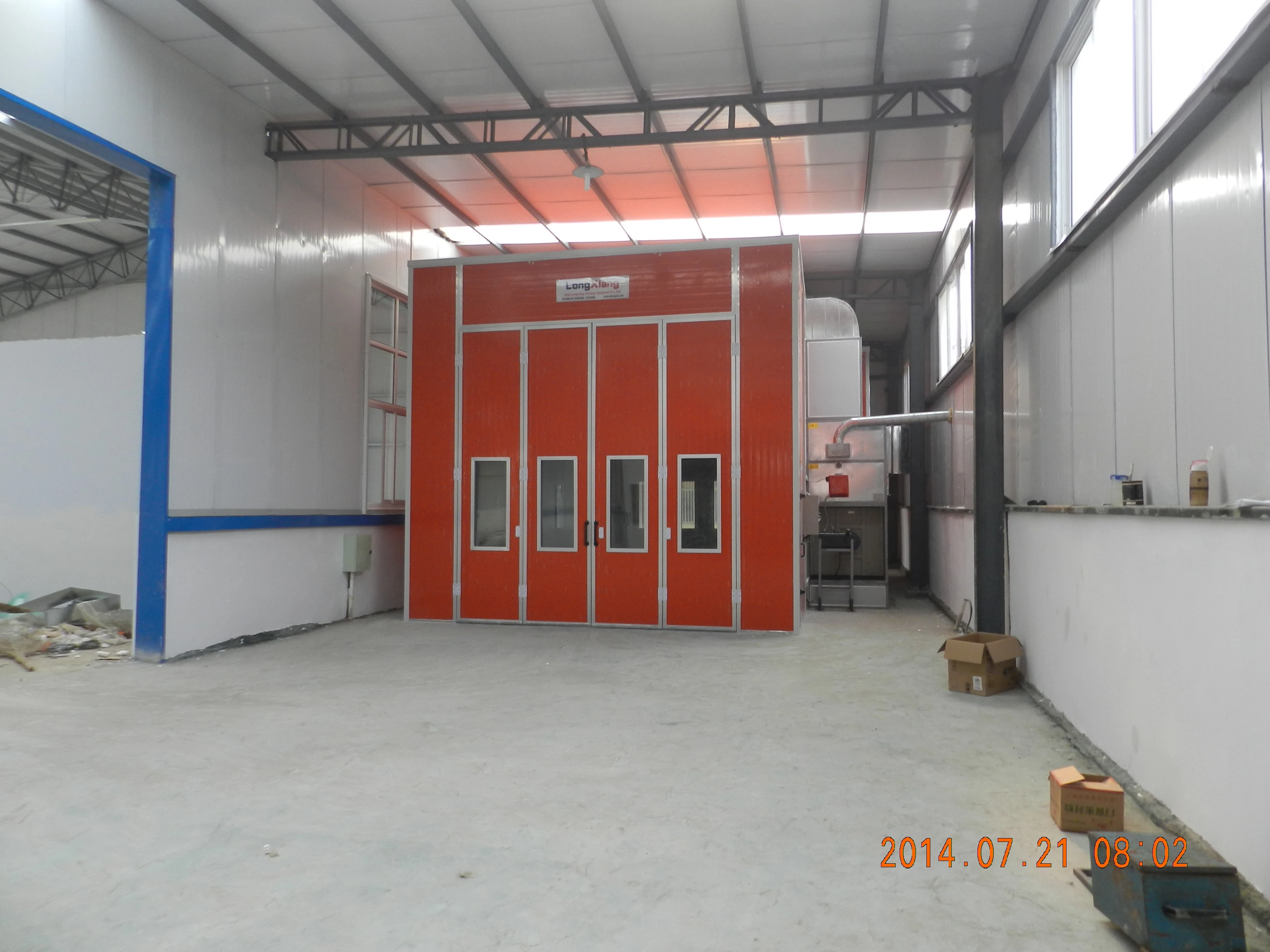

Main door

4-folds,4000×4500mm(W×H),color:white,The high-strength aluminum alloy profile-wrapped door is coated with "Longxiang" special
protective film on the outside to improve anti-corrosion and rust resistance and prolong the service life.Equipped with
super-large tempered glass observation window, dedicated luxury Big Mac pin, square tube guide column, aluminum alloy hinge;
sealing groove box is equipped with special sealing strip;

Personal door

2 units,650×2000mm(W×H),color:white,the high-strength aluminum alloy profile-wrapped door is equipped with a super-large tempered
glass observation window and a pressure lock to prevent the pressure in the room from exceeding the normal value and damage the
barn. It is safe and durable.

Room body

There are 4 sets of steel reinforcing bars in the middle of the wall, and 4 sets of steel composite beams on the top.The wall
panel is made of socket-type flame-retardant EPS composite board, and the outside is covered with "Longxiang" special protective
film to improve anti-corrosion and rust resistance and prolong service life，the thickness is 75mm, inner and outer δ0.426mm color
steel plate; inner filling: flame retardant EPS foam, bulk density 10 kg. The frame of the room is made of bent galvanized steel
plate, the surface is sprayed with high temperature plastic, and the anti-rust and anti-pressure sealing effect is good.

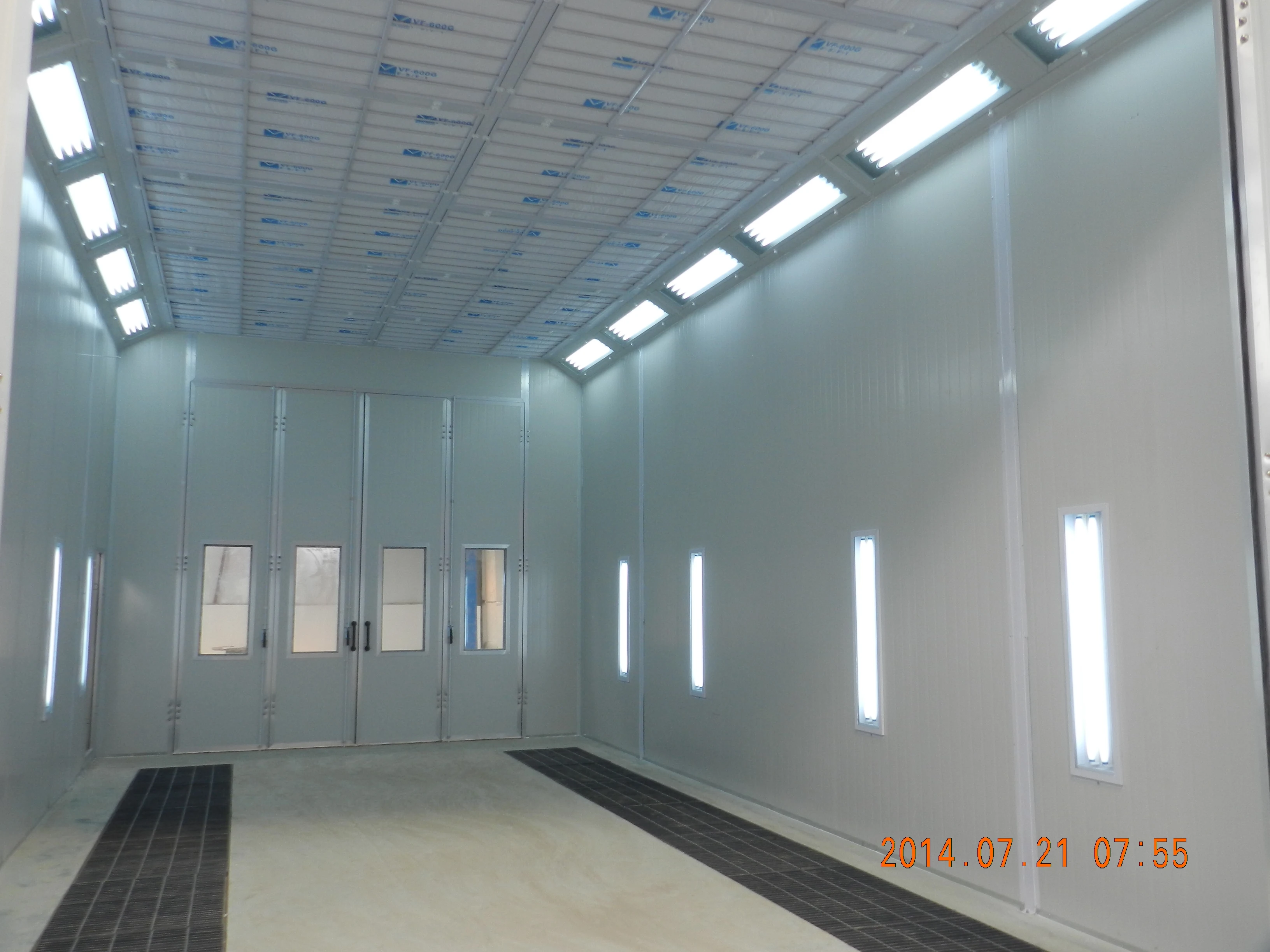

Lighting

With ceiling lights 26 groups*4 units=104units 16W tubes, and side lights 18 groups*4 units=72 units 16W LED lighting, LED
high-efficiency energy-saving lamps, galvanized plate sprayed plastic light box shell, 3C quality certified tempered glass light
transmission panel. Illumination: ≥800LUX.

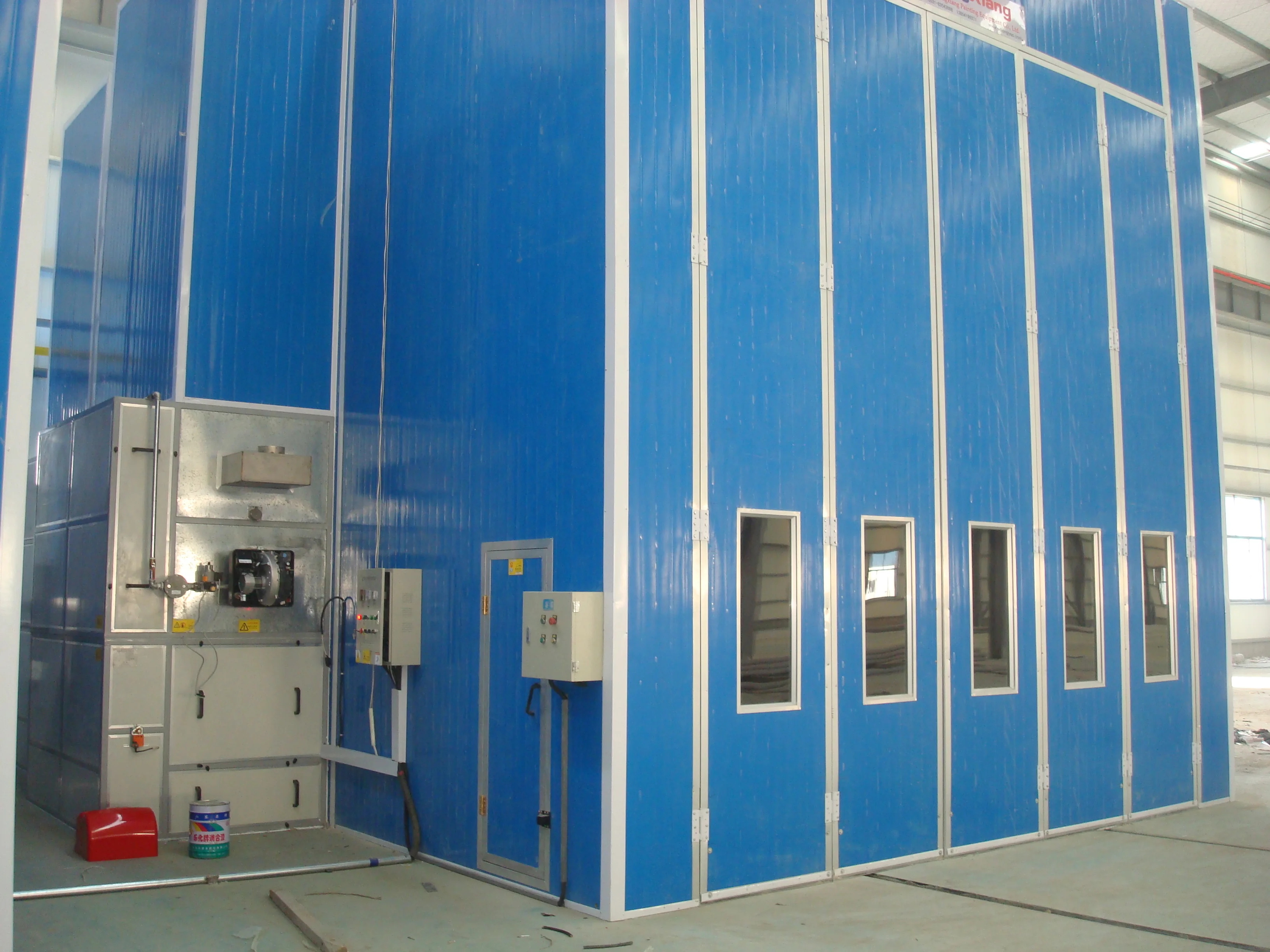

Generator setting

The fan cabinet is made of sprayed profiles and steel plates with a protective film, which improves the anti-corrosion and rust
resistance and prolongs the service life; the super-large fan cabinet can fully meet the air intake and exhaust needs of the barn;
the high-position air supply unit greatly improves the air supply efficiency of the fan; The air duct is composed of galvanized
sheet common plate flange air duct made by professional equipment, which is durable; 6-section air duct and 3 elbows are standard,
and the single-section size is 700*700*910mm square.

Intake&exhaust
air system
(3 units)

In total 6×7.5KW centrifugal fans for intake air,model YDW5.6M,air capacity is 20000m³/h for each fan;3×11KW centrifugal fans for
exhaust air,model 4-82-7.1E,belt-drive,air capacity 36000m³/h for each fan，small size, large air volume, low noise, small
vibration; heat and moisture resistance, durable.

Heating system
(3 units)

Equipped with 3 Italian imported Riello RG5S oil burners, theating productivity: 780000kcal/h. It is also equipped with pneumatic
spraying and baking automatic switching damper. The heat exchanger is welded by 1.2mm thick SUS304 high-quality stainless steel
with argon arc welding and matched with a large-diameter 65mm explosion-proof port. It has a reasonable structure, safe and
reliable, has a large heat exchange area, high heat energy utilization rate, and the heat exchange rate can reach 87.1%.

Filtering system

Ceiling filter, G2 grade, filter effect > 83%, produced by Italian technology, effectively captures dust particles ≥
10um.Sub-high-efficiency filtration, EU5 grade high-efficiency filtration, produced by Dutch technology, can efficiently capture
dust particles larger than 4um, with a capture rate as high as ≥99%. The built-in filter frame is convenient for replacing filter
cotton.Glass filter, the filter effect is >70%, absorbing dust and particles in the paint mist.M-type activated carbon filter and
single-layer flat-pumped glass fiber filter, G4 grade, dust purification rate ≥ 85%. The entire purification system has a large
dust holding capacity, small wind resistance, long life, a filtration rate of 98%, and a TSP value of ≤1.4㎎/m3.

Roof panel

75 mm EPS wall panel

Control System

The main components are selected domestic famous brand products, carefully designed, and the performance of the whole system is
stable, reliable, convenient and accurate. The main circuit is equipped with over-current, overload, short-circuit and lack of
phase protection, and automatically displays the entire working process and fault status.
It is equipped with lighting switch, temperature and time setting, normal temperature spray painting, temperature rise spray
paint, paint baking switch, emergency stop switch, fault alarm, over-temperature alarm and cumulative time, etc., and the user can
complete the overall work setting at one time.
