Характеристики
Products Description

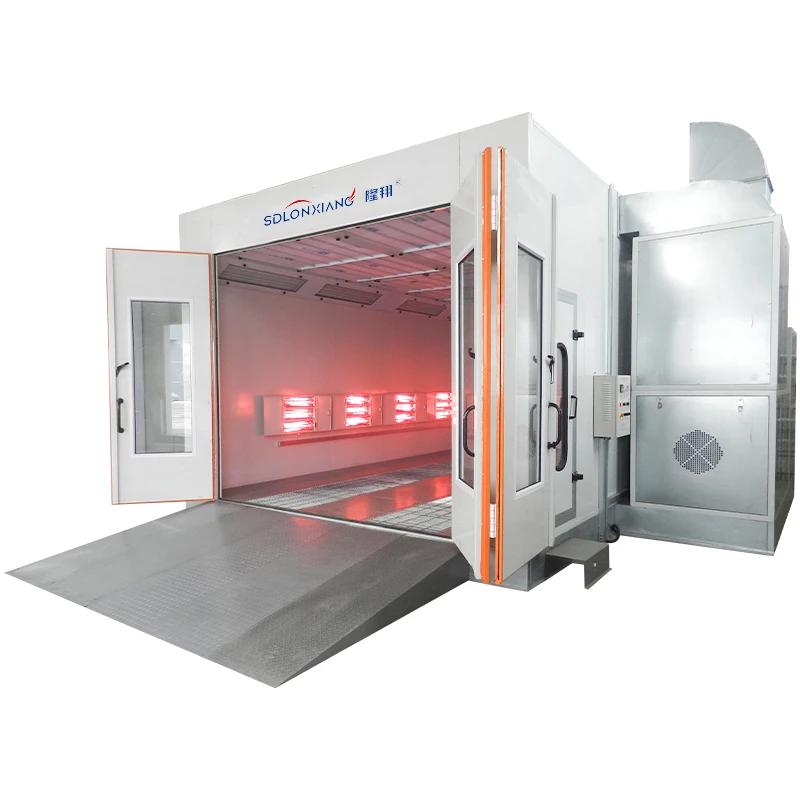

LX-D5 | ||||||||
Outside size: 7000*5200*3400 mm (L*W*H) | Inside size: 6900*3900*2650 mm (L*W*H) | |||||||
Entrance door: 3 folds，3000x2600 mm(W*H), bending steel door , Aluminum hinge, tempered glass window. | ||||||||
Emergency door: 650*2000 mm (W*H),equipped with handle lock | ||||||||
Cabin system | Wall panel | -Sandwich style EPS 50mm,0.45mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel. | |||||
Basement | -Galvanized steel assemble,280mm high,with steel structure support,5 rows of 30*5mm grills . -3 ramps,external setting,970*2000mm(W*L)/pc | ||||||
Ventilation system | Inlet fan | 1*7.5kw double-intake centrifugal fans, Each set air capacity:20000m³/h | |||||
Outlet fan | 1*7.5kw double-intake centrifugal fans, Each set air capacity:20000m³/h | ||||||
Cabinet setting type | -Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful . -Cabinet for the fan*1unit ,air duct*2pieces,each piece is 910mm, -Elbow:90°*1 unit | ||||||
Airflow speed | On-load speed:0.4m/s,ventilation rate:315 times/h | ||||||
Heating system | Electric | Adopt infrared heating system, 10 sets of 3KW far-infrared lamp. Maximum operating temperature: 80℃, heating rate (20-80℃) : 15-20min. | |||||
Lighting system | Ceiling lights | 8units*4pieces*16w LED Lighting | |||||
Side lights | 5units*4pieces*16w LED Lighting | ||||||
Filtering system | Primary filter | Grade G2 plate type , filtering rate＞83% | |||||
Ceiling filter | EU5 grade high efficient filter,filtering rate＞98% | ||||||
Floor filter | Multi-layer fiberglass filter,filtering rate＞70% | ||||||
Control system | Control panel | Intelligent control system | |||||
Function | Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, etc | ||||||
Total power | 49 KW | ||||||
Voltage/frequency | 380 V 50 HZ 3 phase | ||||||
