Цементная гидравлическая установка для

Категория: Other Construction Machinery >>>
Поставщик: Zhengzhou,Gaode,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.62 $*	0.96 $*
Aug-18-2025	0.25 $*	0.41 $*
Jul-18-2025	0.55 $*	0.62 $*
Jun-18-2025	0.0 $*	0.36 $*
May-18-2025	0.59 $*	0.76 $*
Apr-18-2025	0.85 $*	0.39 $*
Mar-18-2025	0.38 $*	0.59 $*
Feb-18-2025	0.59 $*	0.55 $*
Jan-18-2025	0.31 $*	0.37 $*

Характеристики

Products Description

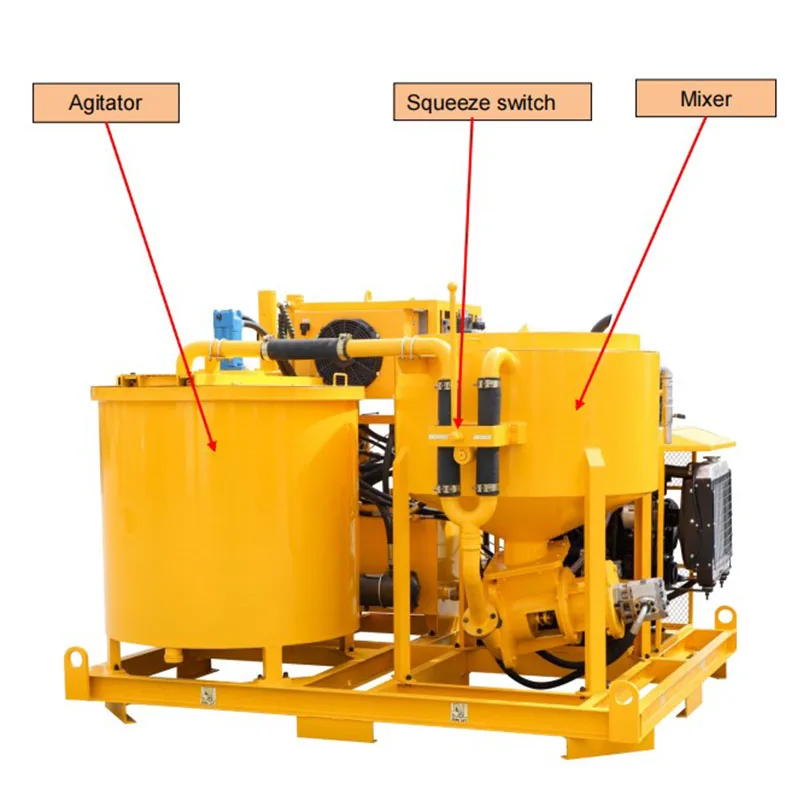

GGP400/700/80DPL-D grout station is a combination of mixer, agitator and grout pump in one base frame. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

Product Application

GGP400/700/80DPL-D grout station is mainly used for duct relining cavity filling, road, railway, hydropower, construction, mining, and other above-ground and underground engineering construction, can quickly mix water, cement, sand, bentonite, filler, clay, silicon Salt and other media. Then the grouting/grouting is carried out by the grouting pump station to achieve waterproof plugging, tunnel lining, reinforcement of foundations, rock layers, and filling of voids. This series of grouting pump stations has a compact structure, high grouting pressure, and a wide application range.

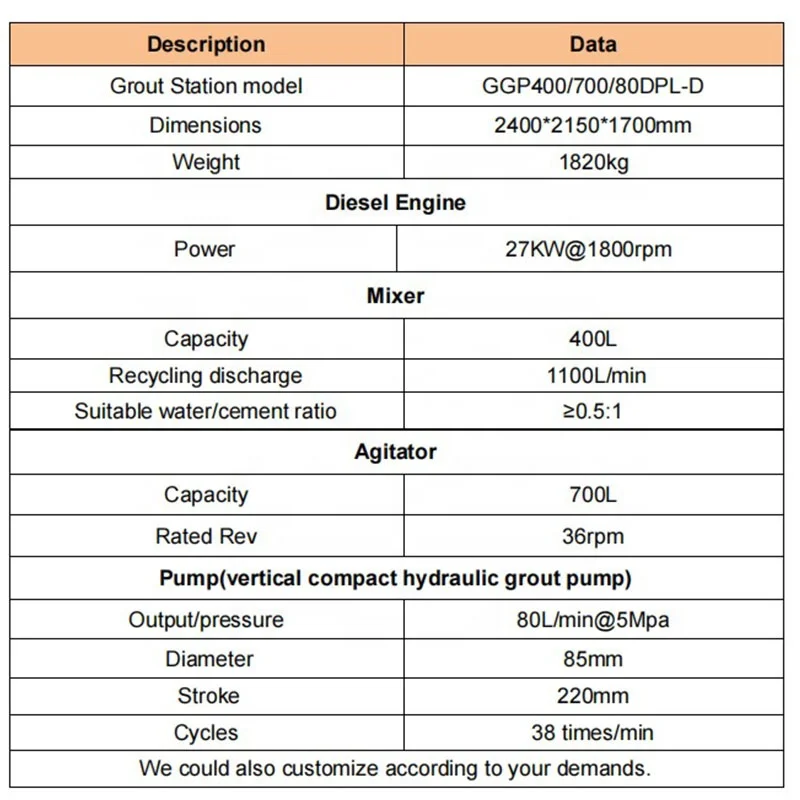

Product Parameters

Description	Data
Grout Station model	GGP400/700/80DPL-D
Dimensions	240021501700mm
Weight	1820kg
Diesel Engine
Power	27KW@1800rpm
Mixer
Capacity	400L
Recycling discharge	1100L/min
Suitable water/cement ratio	≥0.5:1
Agitator
Capacity	700L
Rated Rev	36rpm
Pump(vertical compact hydraulic grout pump)
Output/pressure	80L/min@5Mpa
Diameter	85mm
Stroke	220mm
Cycles	38 times/min
We could also customize according to your demands.

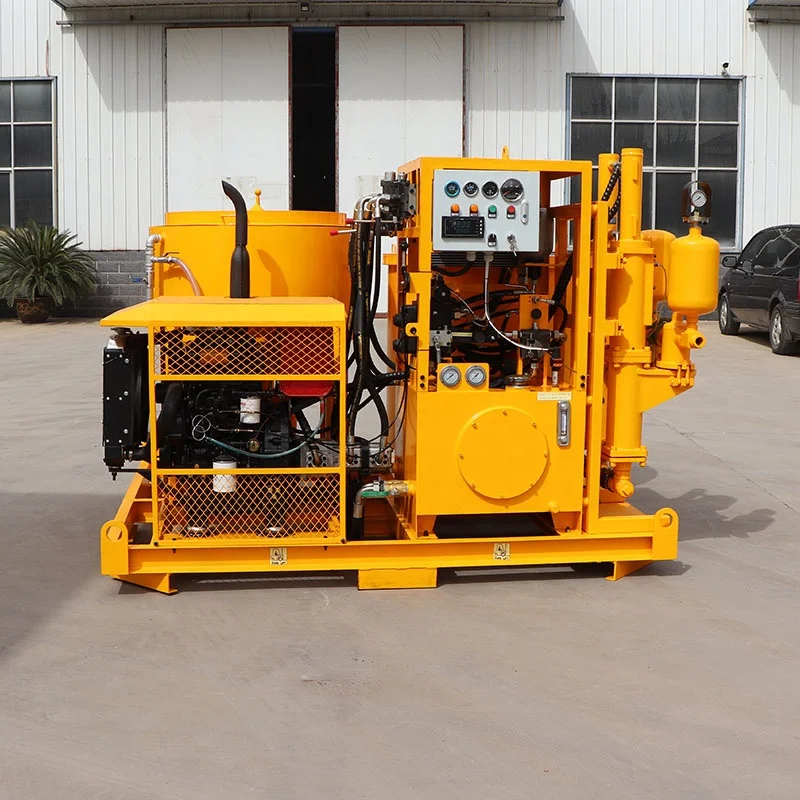

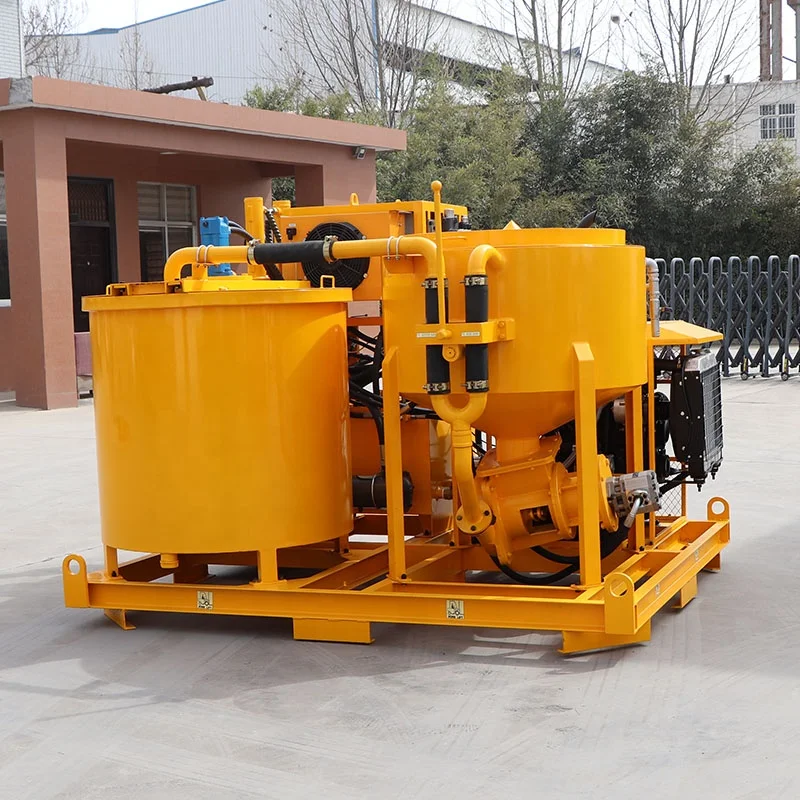

Product Show

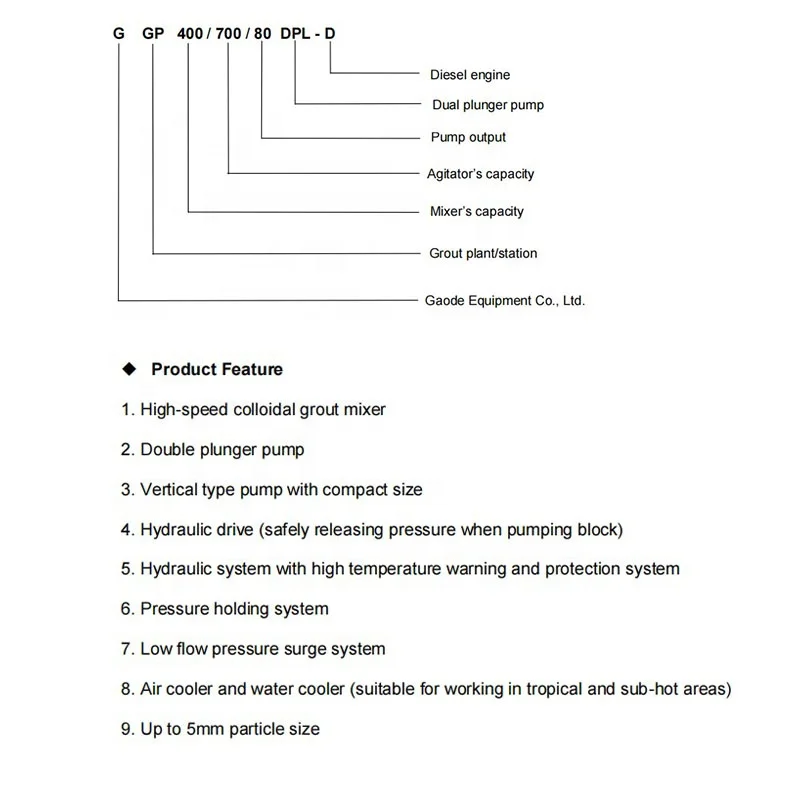

Product Features

1. High-speed colloidal grout mixer
2. Double plunger pump
3. Vertical type pump with compact size
4. Hydraulic drive (safely releasing pressure when pumping block)
5. Hydraulic system with high temperature warning and protection system
6. Pressure holding system
7. Low flow pressure surge system
8. Air cooler and water cooler (suitable for working in tropical and sub-hot areas)
9. Up to 5mm particle size

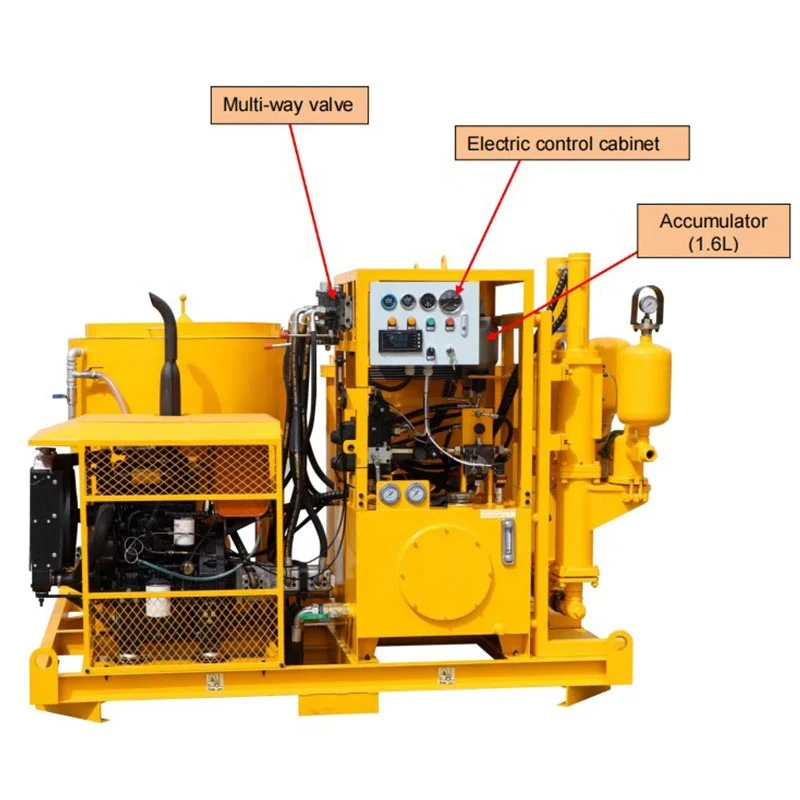

Details Images

Company Profile

Gaode Equipment Co., Ltd., short name Gaodetec, is a manufacturer specializing is R&D, manufacturing, and sale of grout equipment.

Now we have developed full series of grout plant and grout stations, and pumps including piston type, plunger type, and hose type. Mixer volume from 200L to 800L, agitator volume from 300L to 1200L, pump flow from 0 to 200L /min, and pressure from 0 to 100 bar. Electric power and diesel power are available for customization.
From years of experience Gaode Equipment Co., Ltd. has developed its own R&D and technician teams, which supports further development and customized service for clients.
