VANSE китайская высокотехнологичная легкая в эксплуатации бетонная напольная лазерная машина с приводом на 360 градусов лазерным


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 0.61 $* 0.98 $*
Aug-15-2025 0.60 $* 0.69 $*
Jul-15-2025 0.39 $* 0.62 $*
Jun-15-2025 0.70 $* 0.47 $*
May-15-2025 0.27 $* 0.54 $*
Apr-15-2025 0.66 $* 0.60 $*
Mar-15-2025 0.19 $* 0.2 $*
Feb-15-2025 0.23 $* 0.72 $*
Jan-15-2025 0.41 $* 0.77 $*

Характеристики

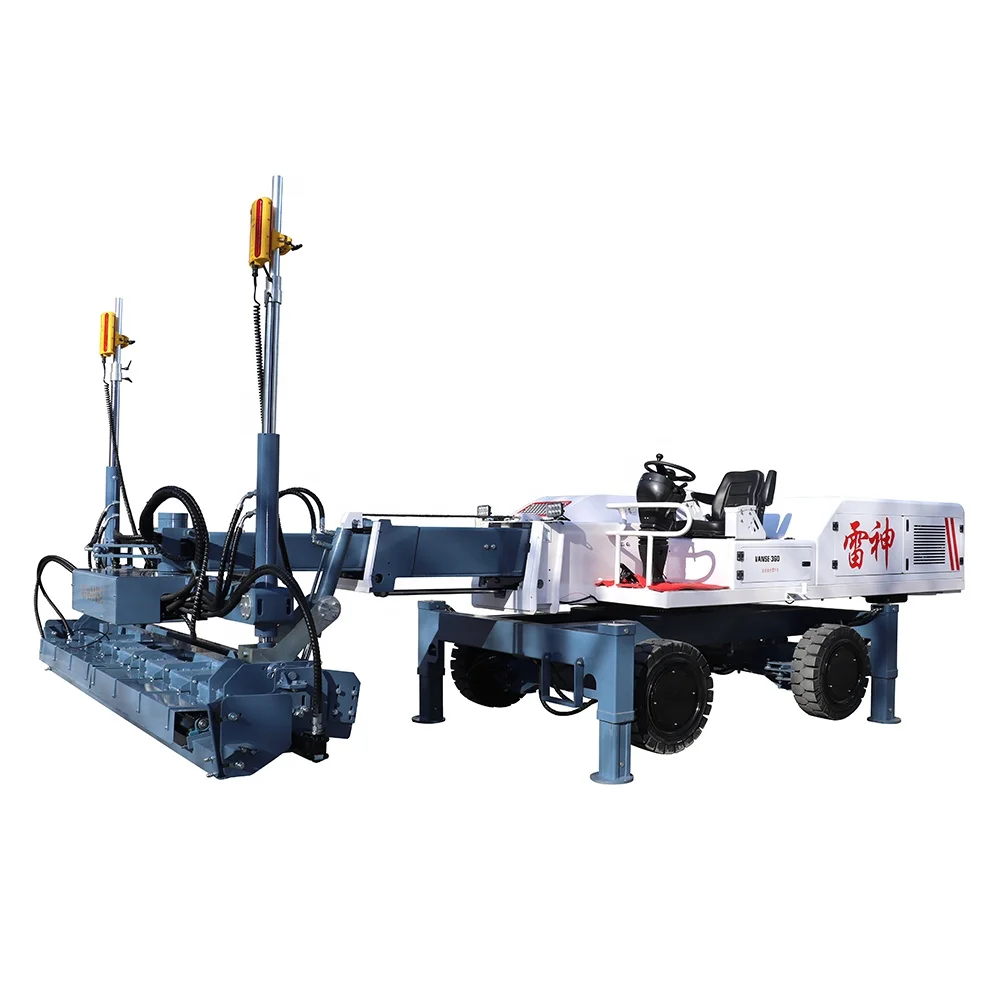

High quality 360 degree rotation concrete laser screed machine manufacturer


Products Description






1. Concrete laser screeds are used in concrete floor works, including flat floor works, slop works and double slops works. Such as factory, workshop, park, plaza, super market, exhibition hall, container yards, wharf, play ground, square and so on.
2. It has three important functions: Paving the concrete, Leveling the concrete floor, Compacting the concrete floor. It improves the quality of floor.
3. It can level the concrete floor automatically by microcomputer laser scanning.
4. It can improve the flatness of the concrete floor. The height deviation of all concrete floor is below 1.5mm.
5. It can save about 70% of manpower. So it can increase the profit greatly.
6. It can shorten the construction period. It can work quickly and well.
7. Operation is very easy.
8. The drive system is hydraulic drive fully.
9. The telescopic boom is 6m long, 360 degrees rotary.

High quality 360 degree rotation concrete laser screed machine manufacturer




High quality 360 degree rotation concrete laser screed machine manufacturer

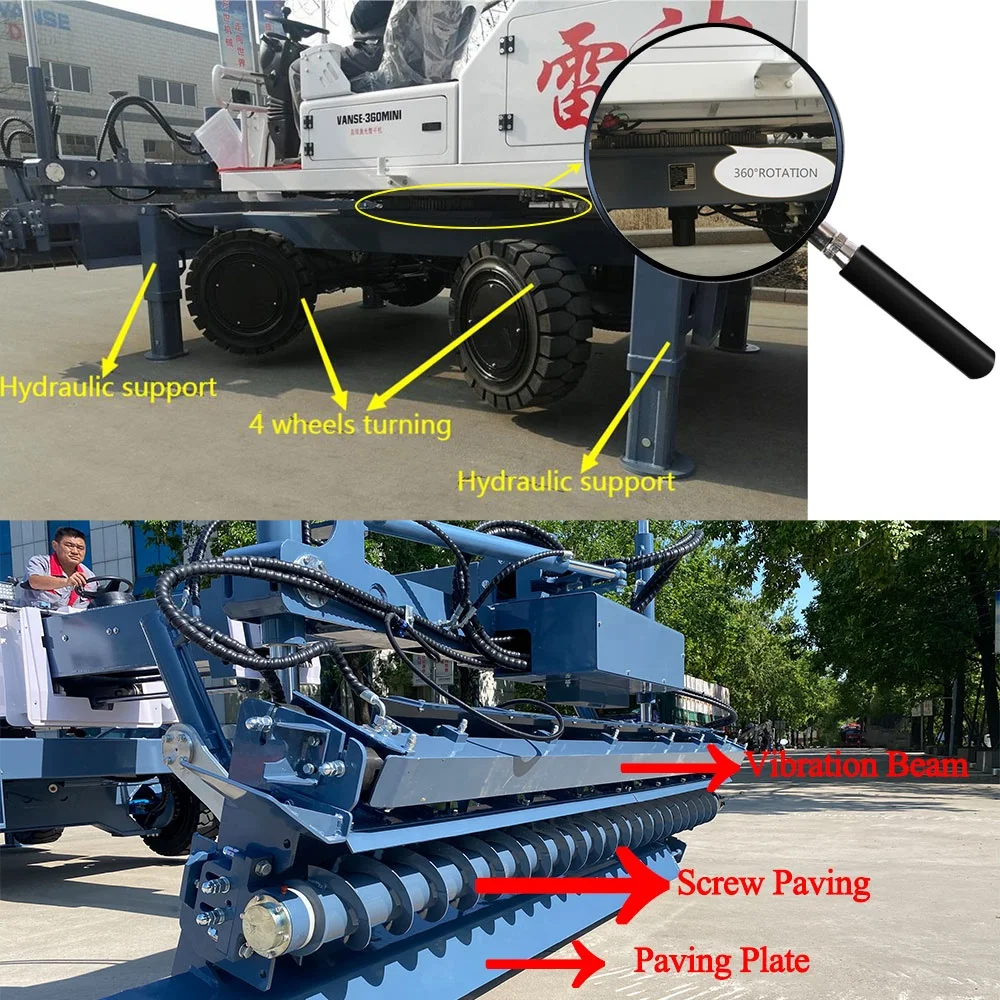

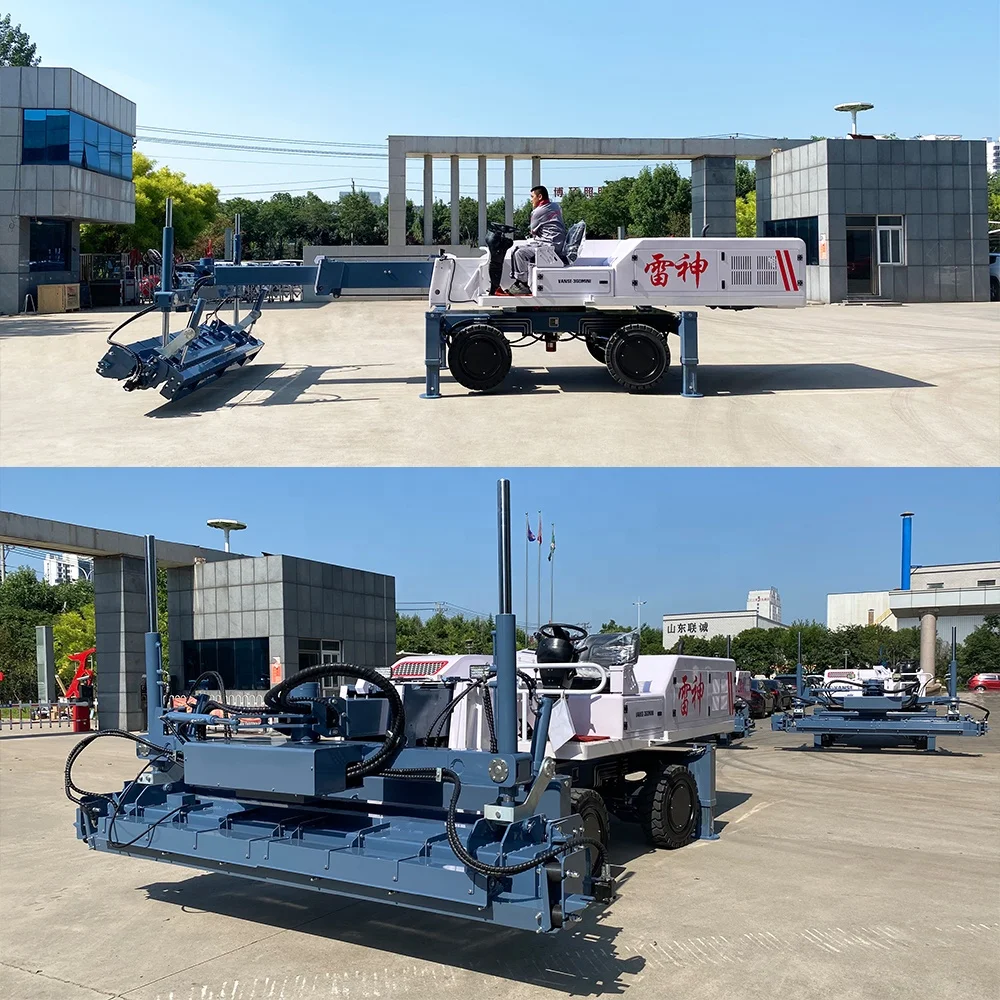

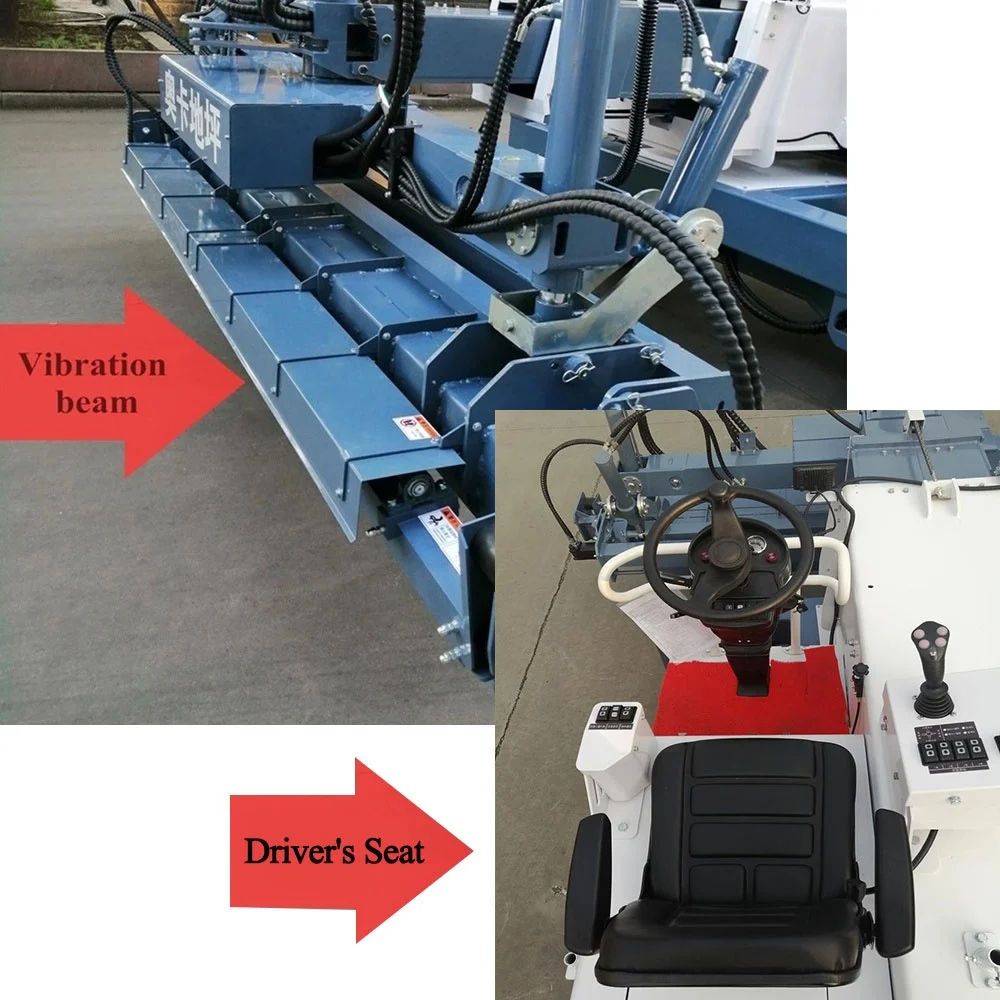

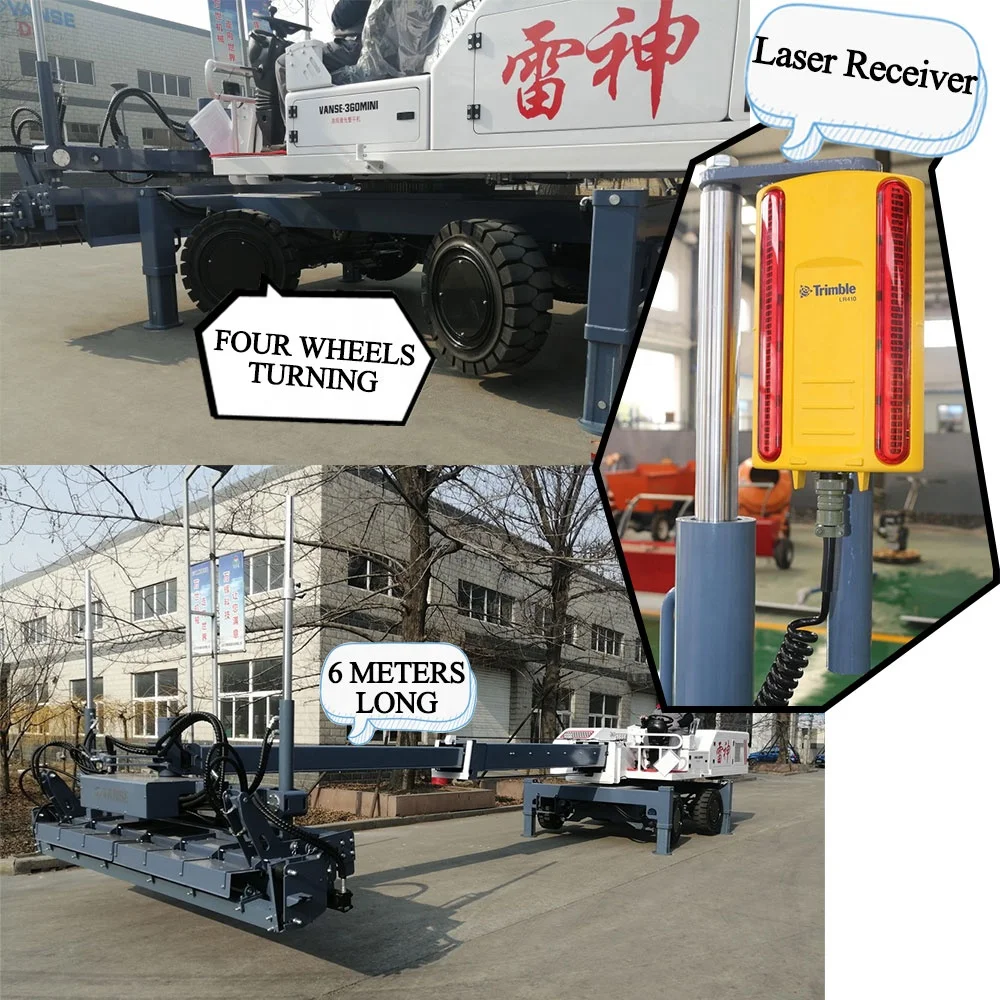

Details Images




High quality 360 degree rotation concrete laser screed machine manufacturer


Specification




Name
Concrete Laser Screed
Fuel Tank Volume
100L
Type
YZ30-4E
Engine Oil Volume
2.4-5.3L
Engine Type
YANMAR 4TNV94L
Screed Width
3.1M
Characteristic
Diesel, 4 Stroke,4 Cylinder
Screed Swing Angle
120°
Cooling System
Closed Cooling Liquid 50:50
Paving Thickness
5-40CM
Power
35KW/ 2400rpm
Leveling Precision
1.5MM
Telescopic Boom
6M Long, 360° Rotation
Excitation Force
3000N
Paving Mode
Hydraulic Screw Conveyor Paving
Vibration Frequency
60HZ
Vibrating System
Hydraulic Eccentric Vibrating Beam
Mini turning radius
2.6M
Configuration
Laser Emitter & Receiver, Tripod.
Cooling Liquid Tank
150L
Working Speed
18 sq.m/Min
Walking Speed
3KM/H
Speed Control
Stepless Speed Change.
Power
Hydraulic Drive
Outline Dimension
5350*3650*2100 mm
Tank Volume
80 L
Drive Type
Full Hydraulic 4 Wheels Drive
Net Weight
5500Kgs
Turning
2 Wheels/ 4 Wheels/ Crab Turn.
Support Legs
One key up&down. Auto leveling
Applicable Scope
Flat Surface、Slope、Double Slope (three-dimensional)
Tyre
Solid puncture-proof & antiskid tyre
Laser Control System
Microcomputer Laser Scanning
Laser System
Trimble brand (standard), Leica (optional)


High quality 360 degree rotation concrete laser screed machine manufacturer

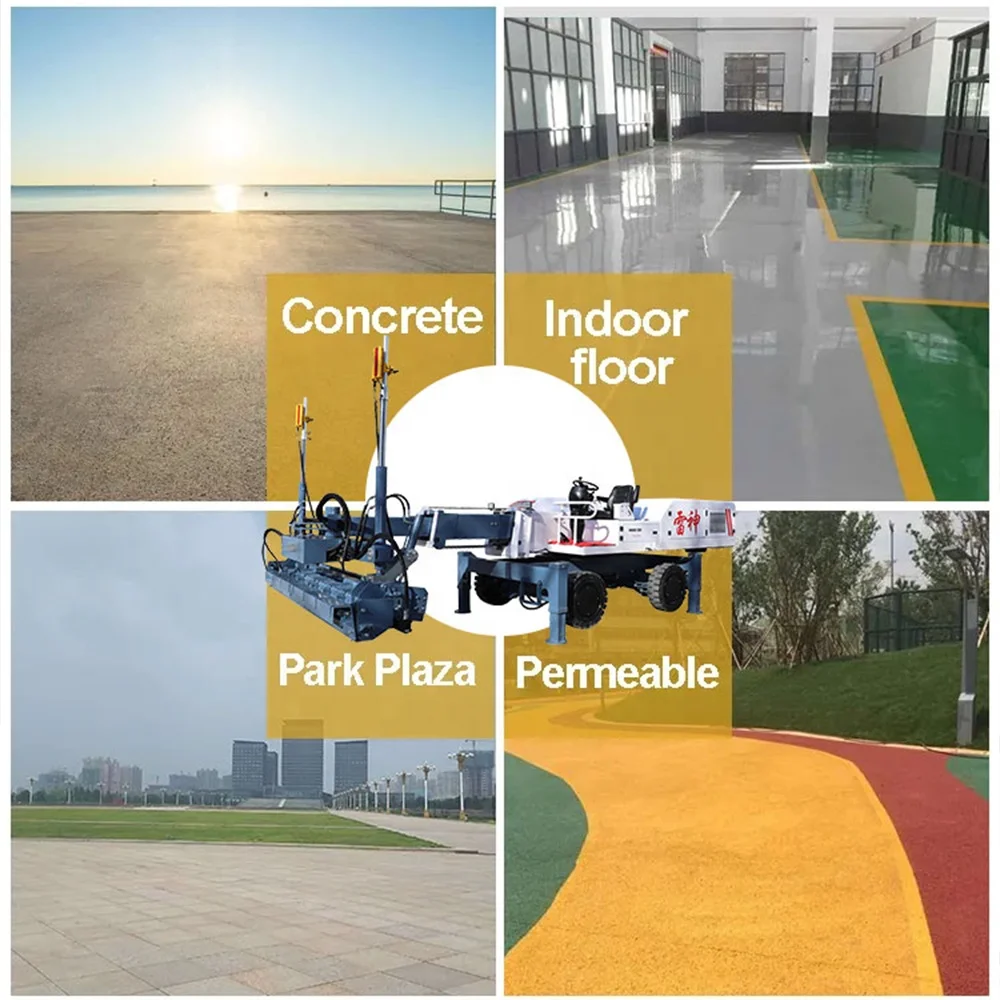

Application




High quality 360 degree rotation concrete laser screed machine manufacturer


Related Products






Company Information






Our Service






Become Our Dealer




Packing & Delivery






FAQ




1. What is the delivery time ?
Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok , then send to port .

2. How about the warranty ?
We supply 12 months warranty .

3. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.

4. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order

5. Can the machine use the trademark of our own company?
Yes ,sir ,of course .

6. Can we customize the product according to our requirements?
Yes ,sir ,no problem .

7. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .Or we can also use Iron Frame to pack them . If machine is big, we use iron frame much more .
